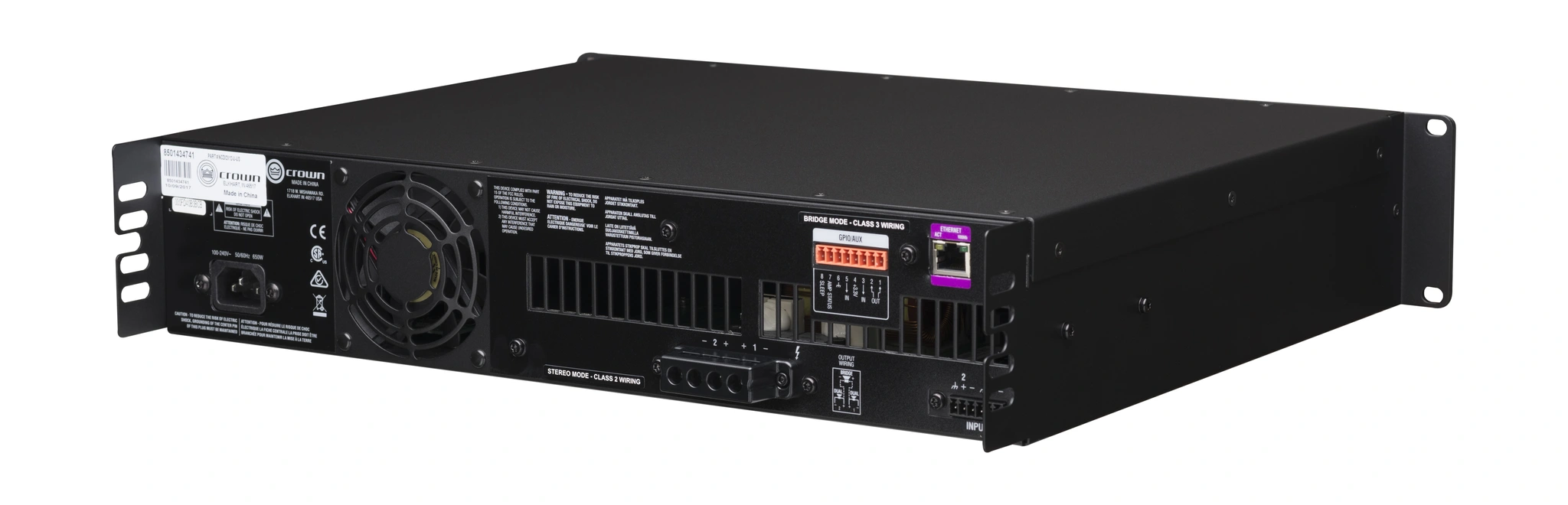

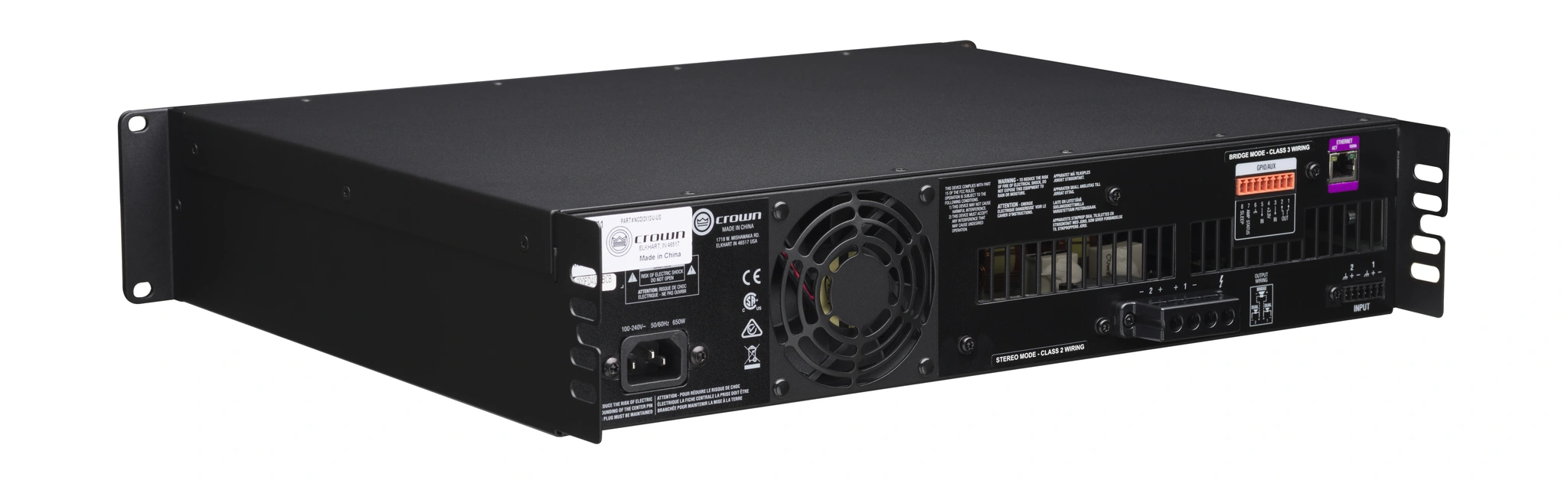

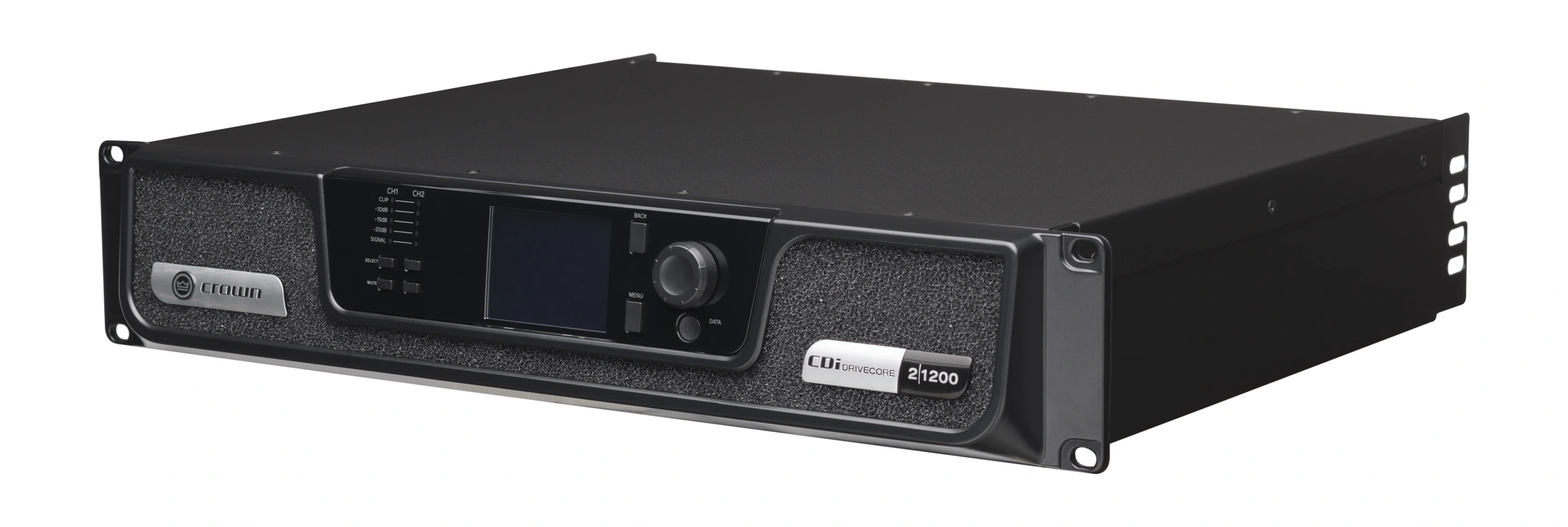

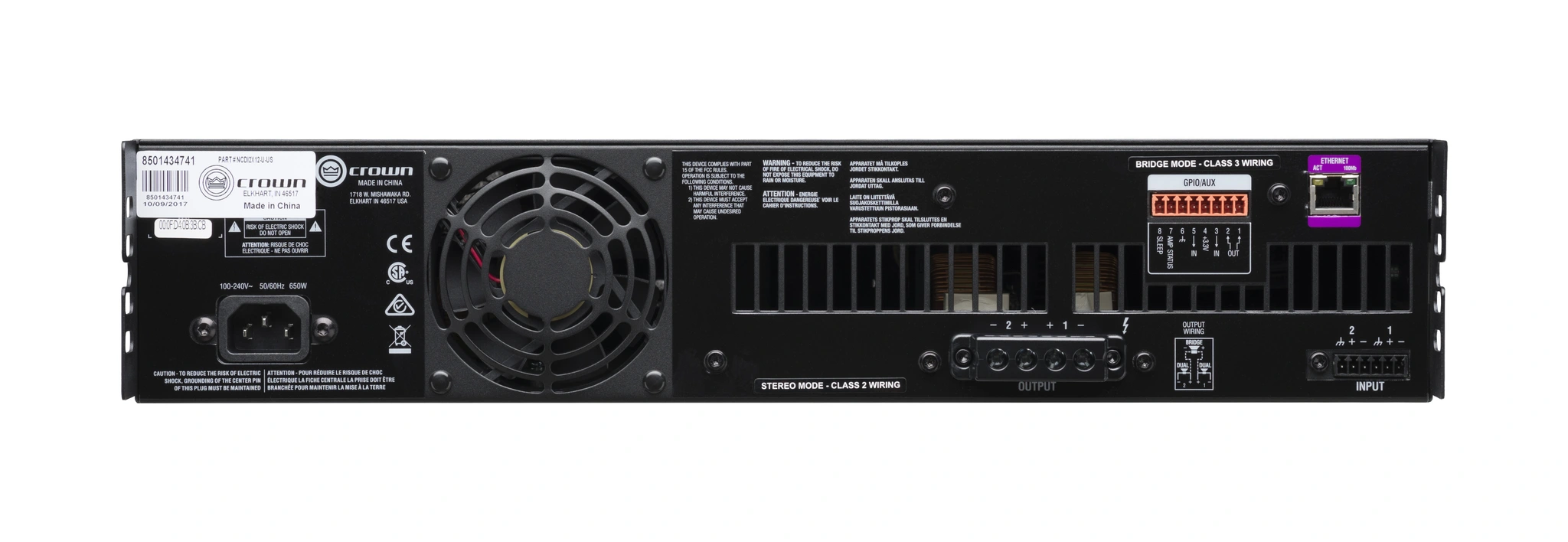

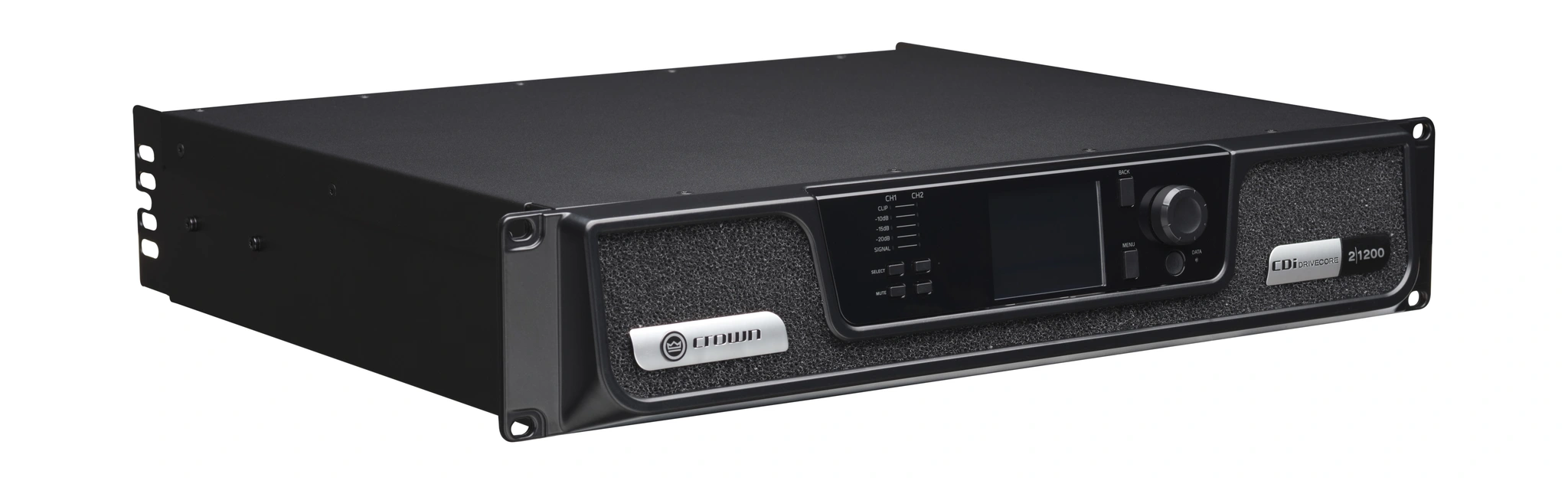

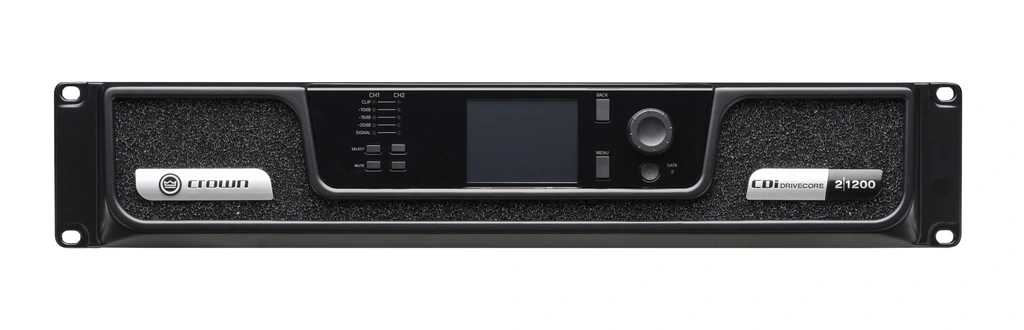

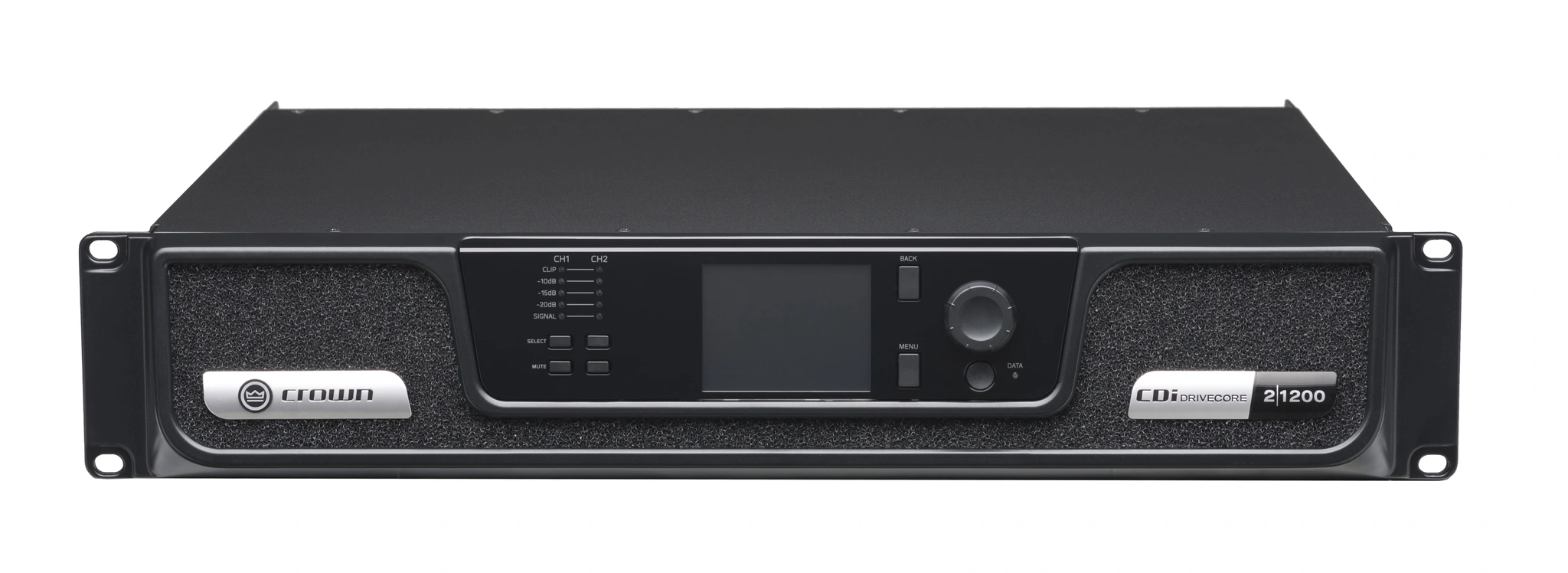

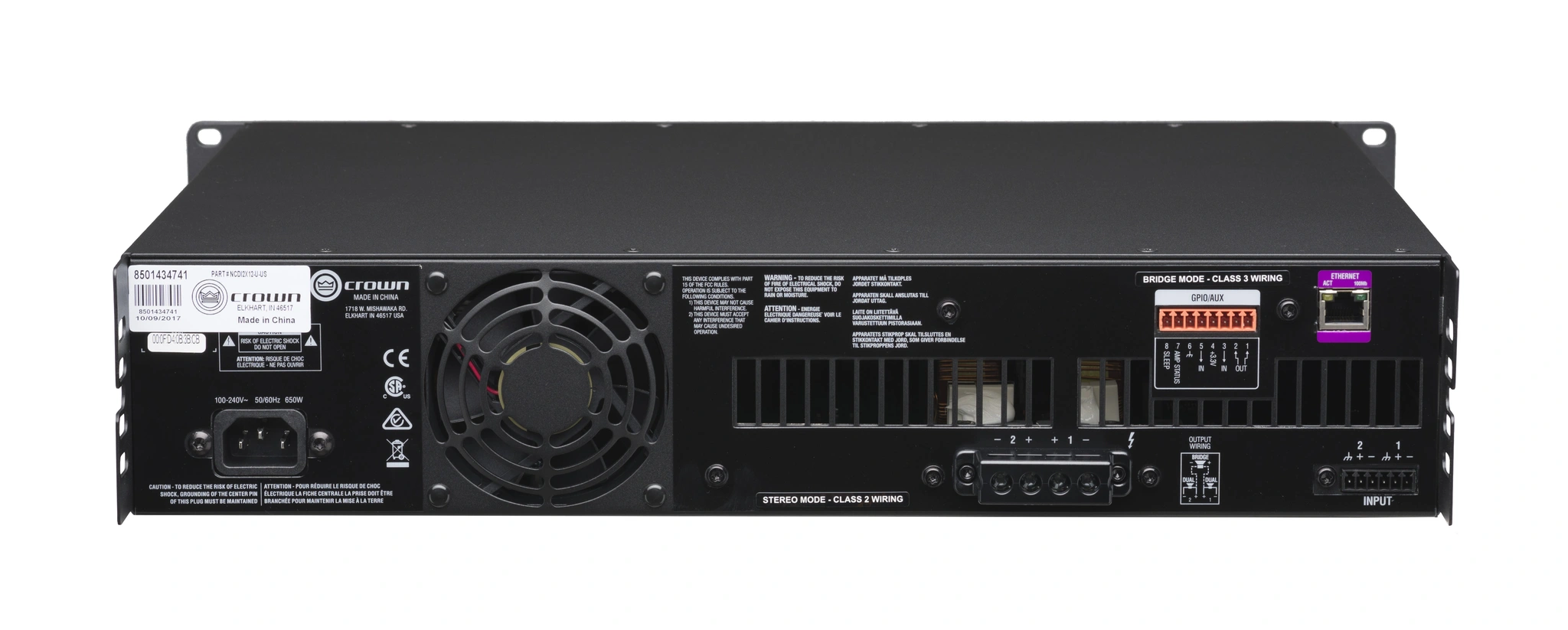

Crown NCDI2X12-U-EU CDi DriveCore 2|1200 Power Amplifier
The Crown CDi DriveCore 2|1200 power amplifier delivers high-output performance, integrated DSP processing, network monitoring, and efficient DriveCore technology for professional installed audio systems in commercial and large-scale environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 14,035.18 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Crown CDi DriveCore 2|1200 Power Amplifier
The Crown CDi DriveCore 2|1200 is a professional 2-channel installation amplifier engineered for demanding commercial audio environments including cinemas, houses of worship, hospitality venues, cruise lines, and large-scale distributed sound systems. Built using advanced DriveCore technology derived from Crown’s flagship installation amplifiers, the CDi DriveCore 2|1200 combines high efficiency, powerful output performance, integrated DSP functionality, and flexible system integration within a compact rackmount design.
Designed for streamlined operation, the amplifier supports both low-impedance and high-voltage distributed speaker systems, delivering up to 1200W per channel without requiring external transformers for 70V or 100V operation. Integrated high-level DSP processing enables precise tuning, system optimization, crossover configuration, delay adjustment, and speaker management directly from the amplifier. Preloaded JBL loudspeaker tunings further simplify installation and improve system setup efficiency in professional audio deployments.
The amplifier incorporates network control and monitoring capabilities, allowing centralized system management and remote configuration for installed audio infrastructures. Its front-panel interface provides direct access to system parameters and operational controls, simplifying deployment and maintenance in fixed installations. High damping factor performance and low total harmonic distortion ensure accurate signal reproduction, excellent speaker control, and consistent audio clarity across the frequency spectrum.
The CDi DriveCore 2|1200 features flexible bridge-mono operation for increased output capability, supporting high-power applications where additional wattage is required. Engineered with efficient thermal management and universal power compatibility, the amplifier is optimized for continuous operation in demanding professional environments. Combining advanced amplification technology, flexible DSP integration, network control, and high-output performance, the Crown CDi DriveCore 2|1200 is a reliable solution for modern installed sound systems.
Features of CDi DriveCore 2|1200
- 2-channel professional installation amplifier
- Integrated DriveCore amplifier technology
- Network control and monitoring support
- High-level onboard DSP processing
- Front-panel configuration interface
- Supports 70V distributed audio systems
- Supports 100V distributed audio systems
- Transformer-less high-voltage operation
- Preloaded JBL speaker tunings
- Bridge-mono operation support
- High damping factor performance
- Low distortion audio reproduction
- Compatible with low-impedance speakers
- Compact rackmount chassis design
- Universal AC power compatibility
- Commercial installation optimized
Specifications of CDi DriveCore 2|1200
| Amplifier Type | Professional installation power amplifier |
| Channels | 2 |
| DriveCore Technology | Yes |
| BLU Link Support | No |
| Rated Power Output @ 4 Ohms | 1200W per channel |
| Rated Power Output @ 8 Ohms | 1200W per channel |
| Rated Power Output @ 2 Ohms | 850W per channel |
| Rated Power Output @ 16 Ohms | 600W per channel |
| Rated Power Output @ 70Vrms | 1200W per channel |
| Rated Power Output @ 100Vrms | 1200W per channel |
| Bridge Mono Output @ 4 Ohms | 1200W |
| Bridge Mono Output @ 8 Ohms | 2400W |
| Bridge Mono Output @ 16 Ohms | 2400W |
| Bridge Mono Output @ 140Vrms | 2400W |
| Bridge Mono Output @ 200Vrms | 2400W |
| Sensitivity (8 Ohms) | 0.7V RMS |
| Frequency Response | ±0.25 dB (20 Hz – 20 kHz) |
| Total Harmonic Distortion | 0.35% |
| Damping Factor (20 Hz – 100 Hz) | >1000 |
| Crosstalk (20 Hz – 1 kHz) | >80 dB |
| Signal-to-Noise Ratio | >104 dB |
| Input Impedance Balanced | 20 kΩ |
| Input Impedance Unbalanced | 10 kΩ |
| DSP Processing | Integrated |
| Network Monitoring | Supported |
| Front Panel Interface | Yes |
| JBL Speaker Tunings | Preloaded |
| Speaker Load Support | Low impedance and 70V/100V |
| Power Supply | 100 – 240V AC |
| Power Connector | 15A IEC |
| Rack Size | 2RU |
| Dimensions (W × H × D) | 19 × 3.5 × 14.71 in |
| Weight | 17.2 lb (7.8 kg) |
