Crown NCDI2X300-U-EU CDi DriveCore 2|300 Installation Power Amplifier
The Crown CDi DriveCore 2|300 power amplifier delivers efficient two-channel amplification, integrated DSP processing, network monitoring, and flexible 70V/100V speaker support for professional commercial audio installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 7,517.01 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

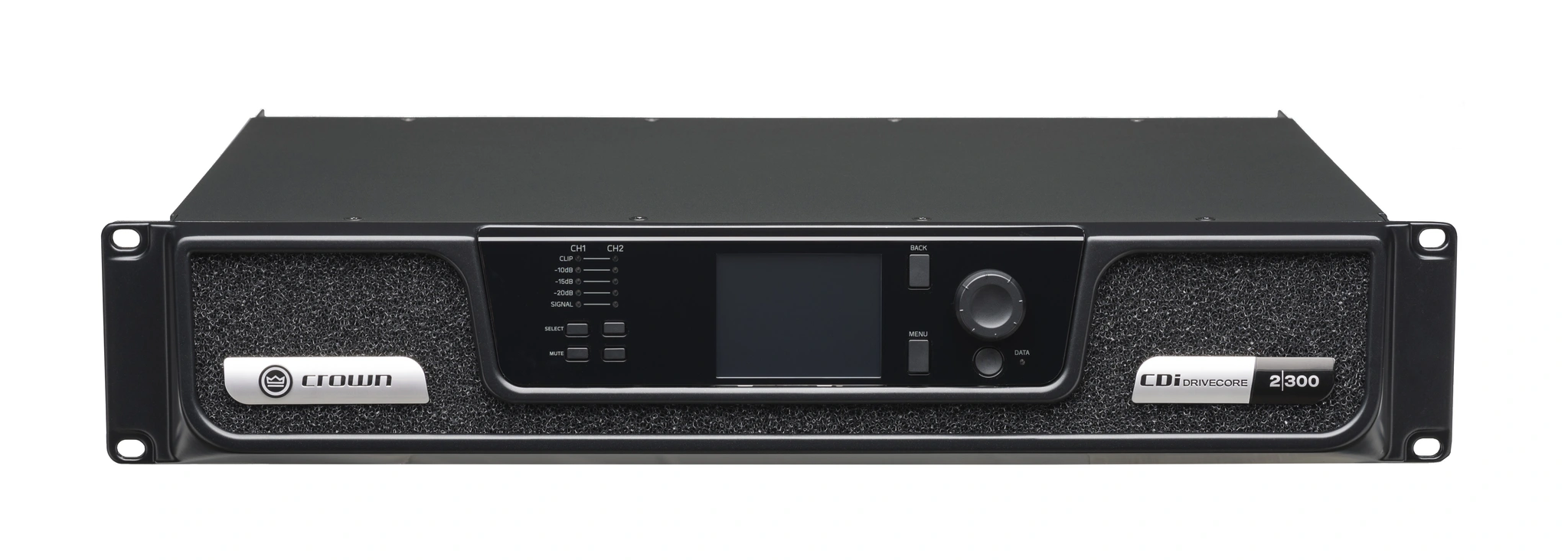

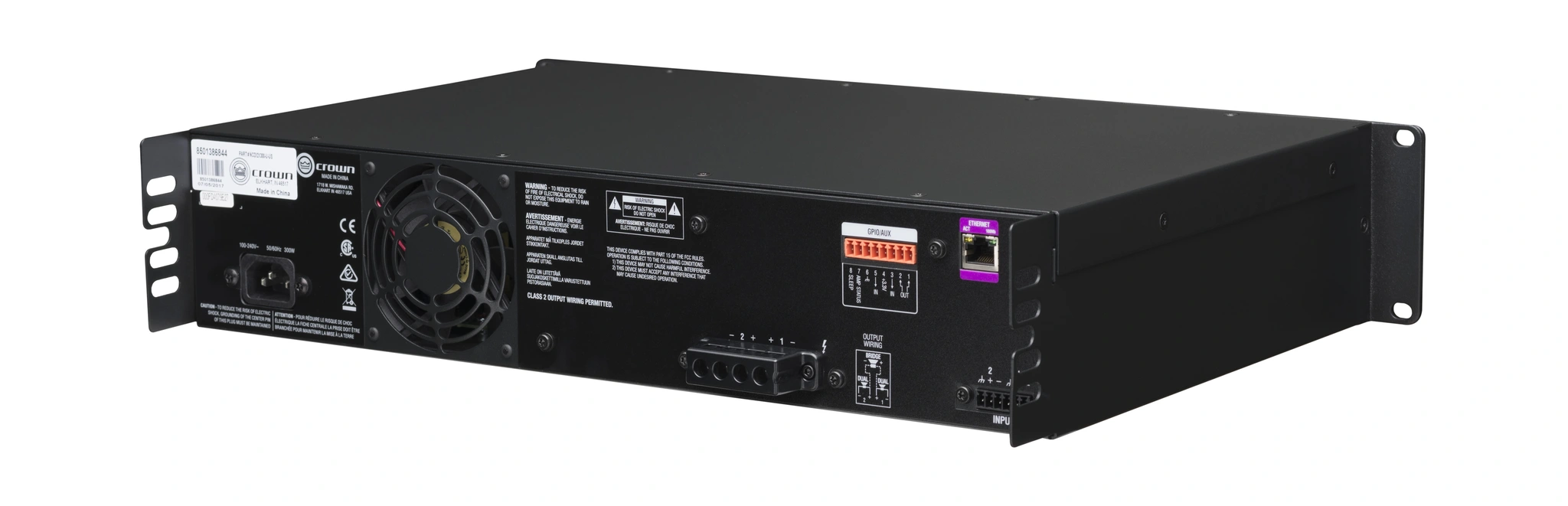

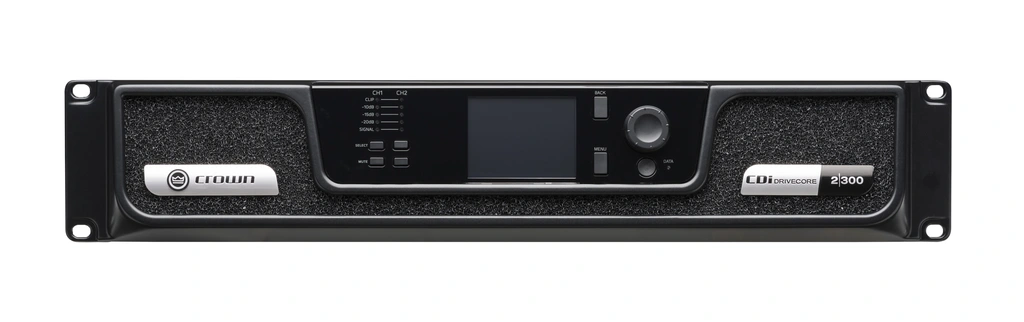

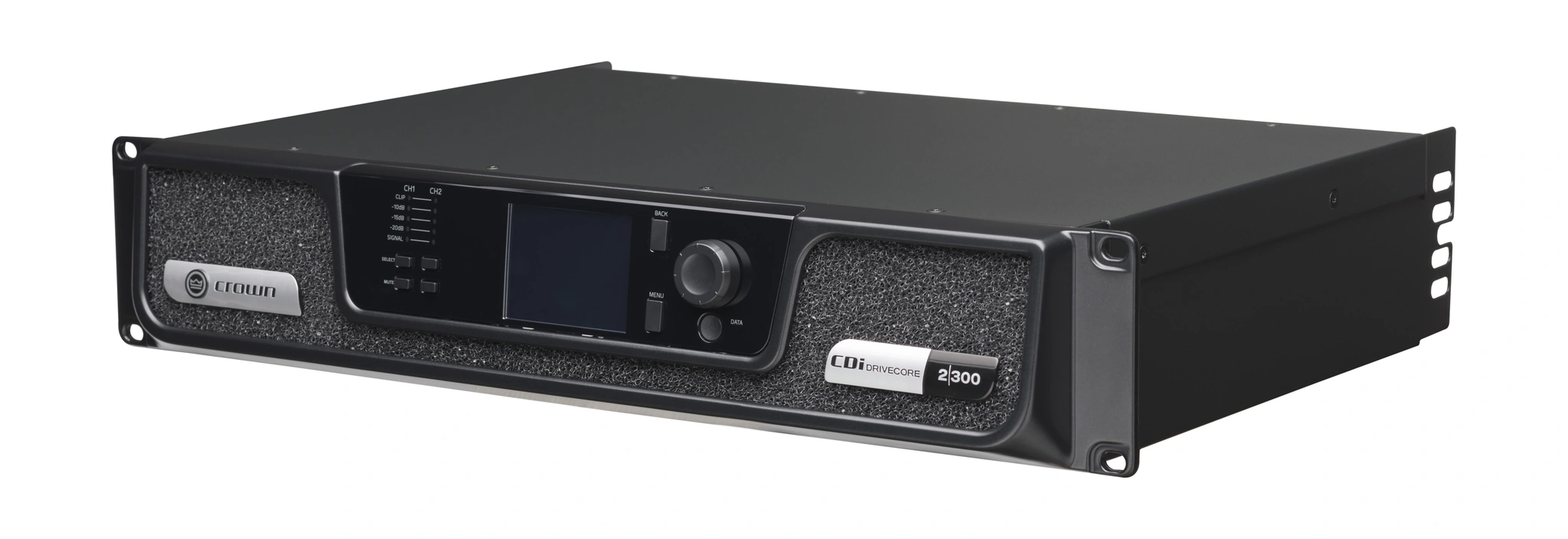

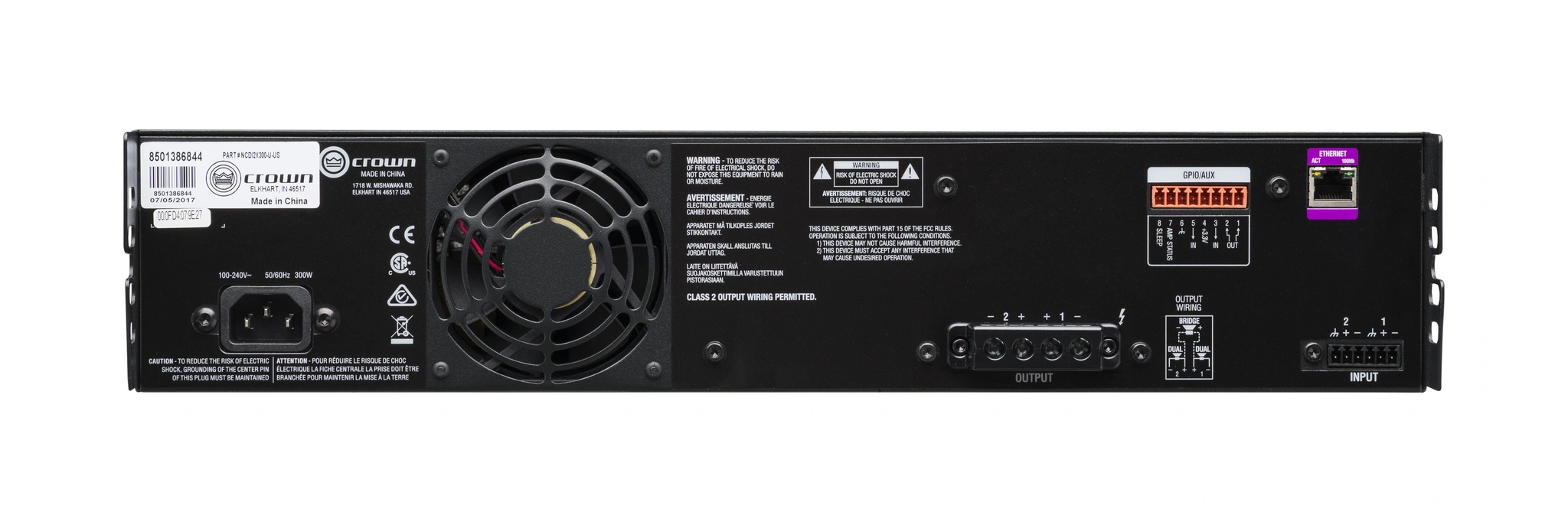

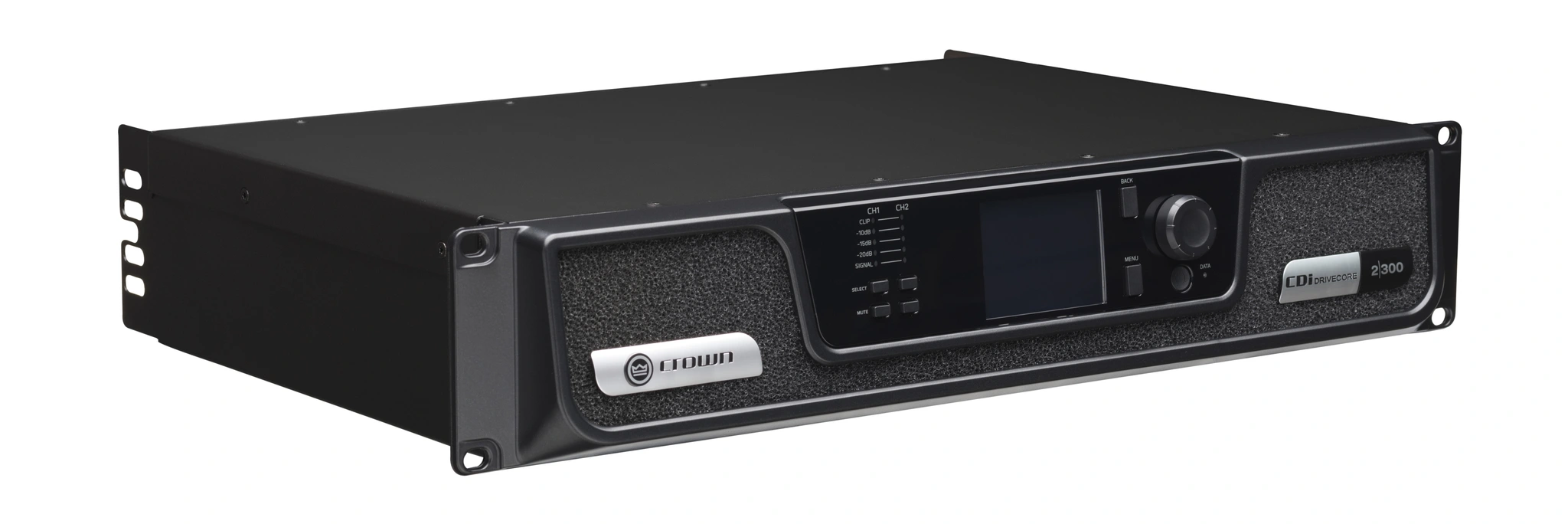

Crown CDi DriveCore 2|300 Power Amplifier
The Crown CDi DriveCore 2|300 is a professional two-channel installation amplifier engineered for commercial audio applications requiring reliable performance, integrated DSP functionality, and flexible system control. Utilizing advanced DriveCore technology derived from Crown’s flagship installed sound amplifier platforms, the CDi DriveCore 2|300 delivers efficient high-quality audio performance while maintaining compact operation and reduced component complexity for improved reliability.
Designed for small to medium-sized installed sound environments such as restaurants, retail stores, hospitality spaces, educational facilities, and commercial venues, the amplifier supports both low-impedance and high-voltage distributed speaker systems. Each output channel can directly drive 70V or 100V speaker loads without requiring external transformers, simplifying installation and reducing system costs. Delivering up to 300W per channel, the amplifier provides consistent and controlled performance across a wide range of distributed audio applications.
Integrated high-level DSP processing enables advanced system configuration directly within the amplifier. Functions include crossover processing, input and output parametric equalization, delay management, input routing, and LevelMAX limiting for optimized loudspeaker protection and audio clarity. The amplifier also comes preloaded with JBL speaker tunings, helping installers quickly configure compatible loudspeaker systems with optimized settings.
The CDi DriveCore 2|300 includes network control and monitoring support through Harman HiQnet Audio Architect software, allowing centralized configuration and remote management across installed sound systems. Its intuitive front-panel interface simplifies amplifier setup and monitoring without requiring external controllers. Featuring high damping factor performance, low distortion operation, and universal power compatibility, the Crown CDi DriveCore 2|300 is designed for dependable long-term operation in demanding professional audio environments.
Features of CDi DriveCore 2|300
- 2-channel installation power amplifier
- Crown DriveCore amplification technology
- Integrated DSP signal processing
- Network control and monitoring support
- Supports 70V distributed systems
- Supports 100V distributed systems
- Transformer-less high-voltage outputs
- Front-panel configuration interface
- JBL speaker tuning presets included
- Input routing functionality
- 8-band input parametric EQ
- 8-band output parametric EQ
- Adjustable crossover processing
- Input delay up to 1000 ms
- Output delay up to 100 ms
- LevelMAX loudspeaker limiting
- GPIO and AUX control port
- High damping factor design
- Low distortion audio performance
- Compact rackmount installation format
Specifications of CDi DriveCore 2|300
| Amplifier Type | Professional installation power amplifier |
| Channels | 2 |
| DriveCore Technology | Yes |
| BLU Link Support | No |
| Rated Power Output @ 2 Ohms | 150W per channel |
| Rated Power Output @ 4 Ohms | 300W per channel |
| Rated Power Output @ 8 Ohms | 300W per channel |
| Rated Power Output @ 16 Ohms | 150W per channel |
| Rated Power Output @ 70Vrms | 300W per channel |
| Rated Power Output @ 100Vrms | 300W per channel |
| Bridge Mono Output @ 4 Ohms | 300W |
| Bridge Mono Output @ 8 Ohms | 600W |
| Bridge Mono Output @ 16 Ohms | 600W |
| Bridge Mono Output @ 140Vrms | 600W |
| Bridge Mono Output @ 200Vrms | 600W |
| Sensitivity (8 Ohms) | 0.7V RMS |
| Frequency Response | ±0.5 dB (20 Hz – 20 kHz) |
| Total Harmonic Distortion | 0.35% |
| Damping Factor (20 Hz – 100 Hz) | >1000 |
| Crosstalk (20 Hz – 1 kHz) | >80 dB |
| Signal-to-Noise Ratio | >104 dB |
| Input Impedance Balanced | 20 kΩ |
| Input Impedance Unbalanced | 10 kΩ |
| DSP Processing | Integrated |
| Input Parametric EQ | 8-band |
| Output Parametric EQ | 8-band |
| Input Delay | Up to 1000 ms |
| Output Delay | Up to 100 ms |
| Limiter | LevelMAX |
| Network Monitoring | Supported |
| GPIO/AUX Port | Yes |
| Front Panel Interface | Yes |
| JBL Speaker Tunings | Preloaded |
| Power Supply | 100 – 240V AC |
| Power Connector | IEC Type 320 inlet |
| Rack Size | 2RU |
| Dimensions (W × H × D) | 19 × 3.5 × 12.25 in |
| Weight | 14.56 lb (6.6 kg) |
