Crown NCDI2X600-U-EU CDi 2|600 Analog input, 2 channel Amplifier

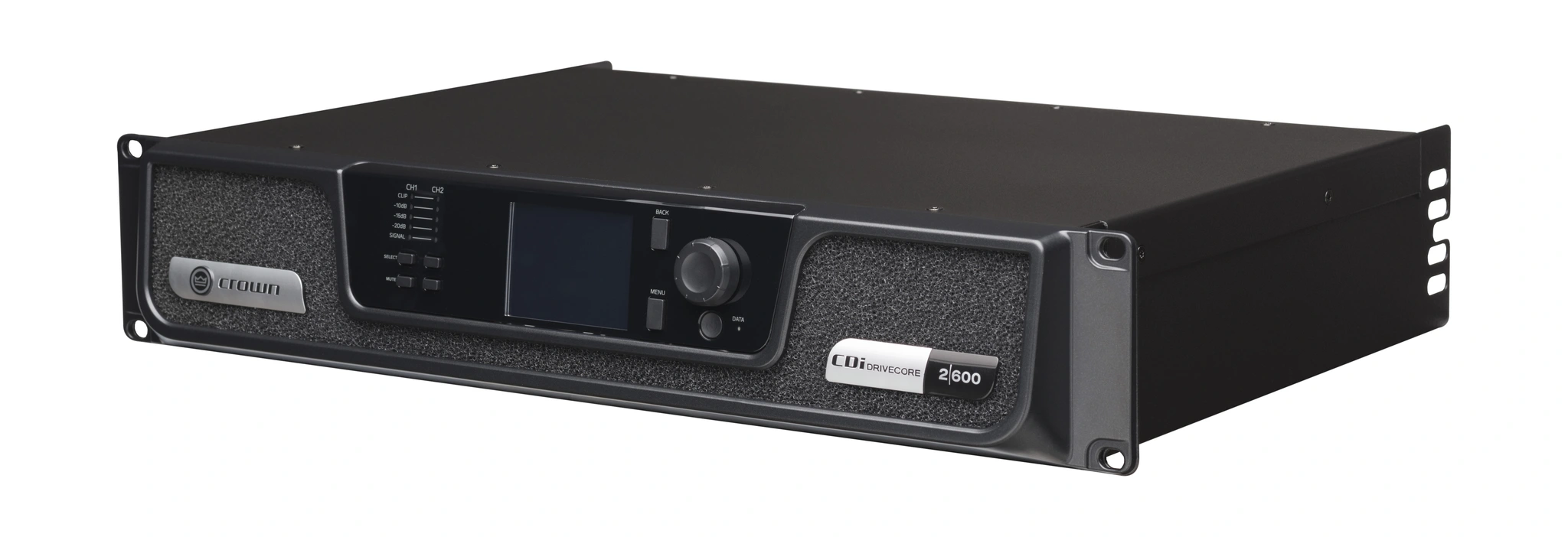

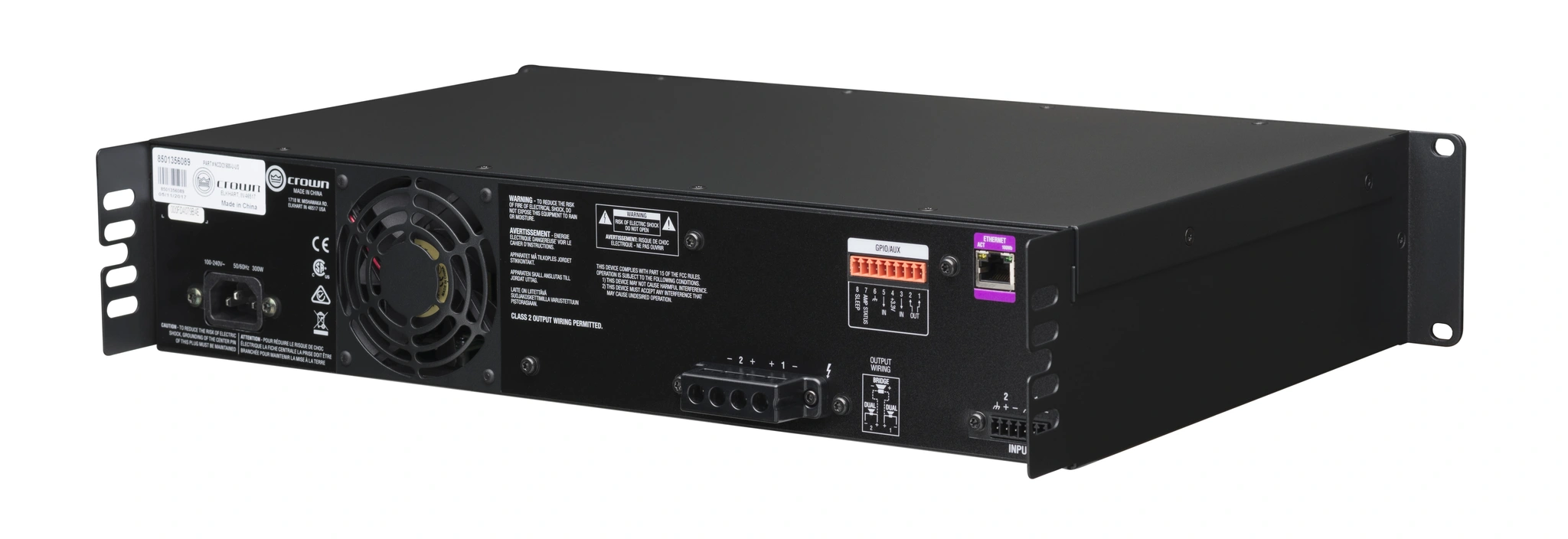

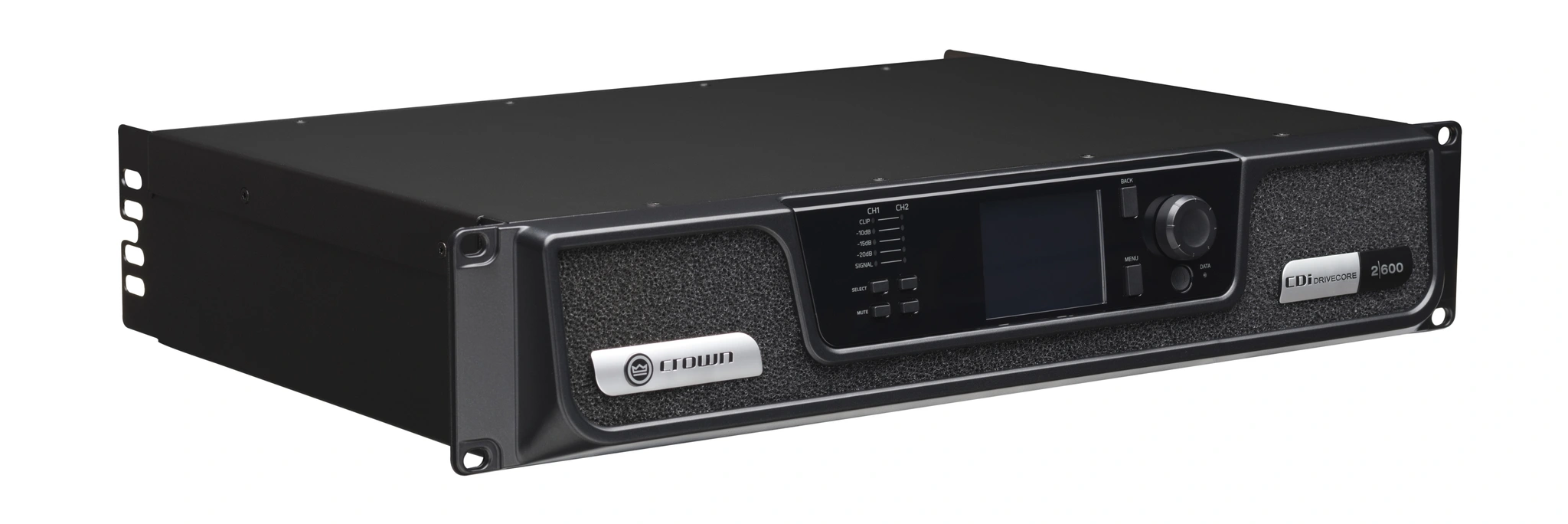

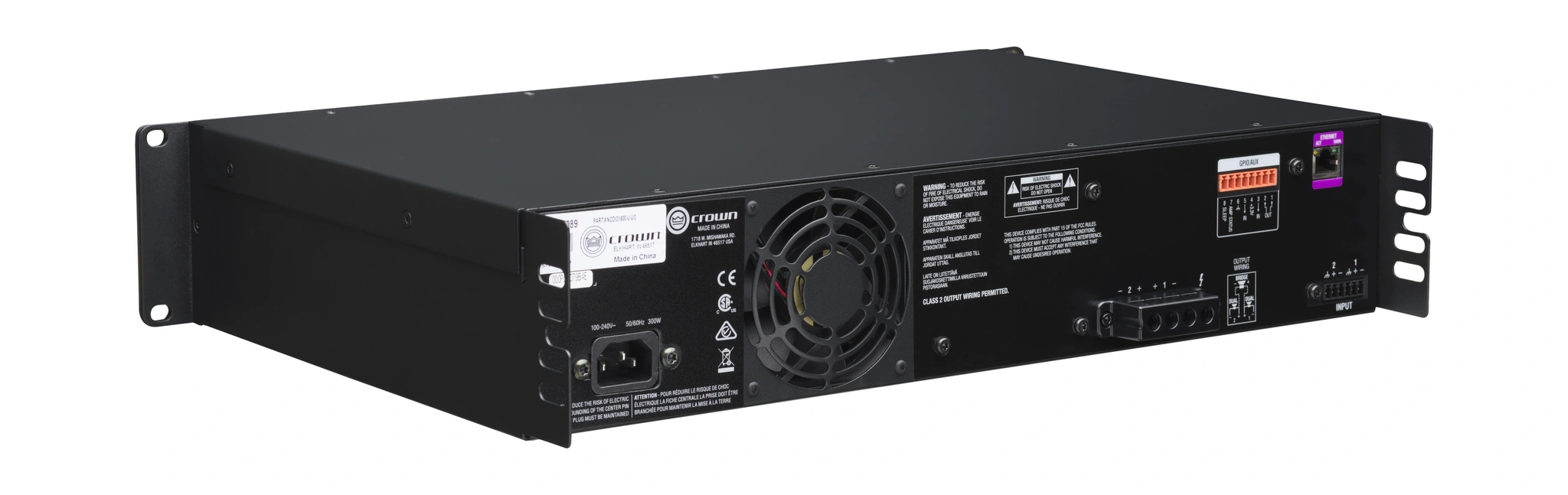

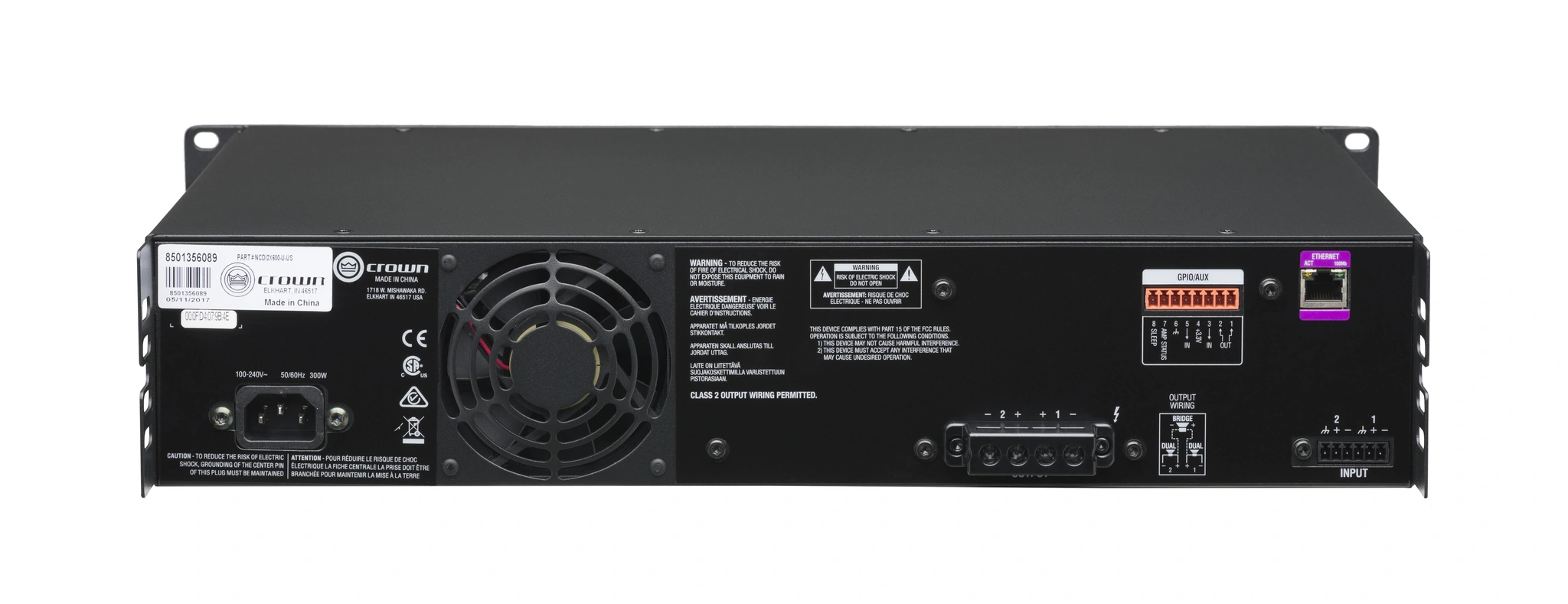

Crown CDi DriveCore 2|600 amplifier

The Crown CDi DriveCore 2|600 amplifier is part of the CDi DriveCore series developed by Crown Audio, offering a balance of high performance, advanced processing, and installation efficiency for professional audio environments. Built using DriveCore technology derived from flagship installed sound systems, it reduces component count while improving reliability and audio clarity.

Designed as a 2-channel power amplifier, it is optimized for medium-sized installations such as cinemas, houses of worship, lounges, bars, and multi-zone commercial spaces. It supports both low impedance and high impedance distributed systems, delivering up to 70V and 100V outputs without requiring external transformers.

The integrated DSP engine provides flexible system tuning including input routing, up to 1000 ms input delay, 8-band parametric EQ, crossover management, and output processing with additional delay up to 100 ms. LevelMAX limiter ensures consistent output protection and sound quality. Network control via HiQnet Audio Architect enables remote configuration, monitoring, and system management over TCP/IP networks.

The amplifier includes a front-panel interface for direct configuration and a GPIO/AUX port for external control functions such as preset recall, muting, fault monitoring, and power management. It also ships with preloaded JBL speaker tunings to simplify setup and ensure optimized performance across compatible systems. The CDi DriveCore 2|600 delivers efficient amplification, precise control, and scalable integration for modern professional installations. Its efficient architecture and preconfigured processing presets reduce installation time and system tuning complexity for integrators. The design ensures stable performance under continuous operation, making it suitable for demanding commercial audio environments requiring consistent output and long-term reliability.

Features of CDi DriveCore 2|600

• DriveCore amplification technology for high efficiency and reliability
• 2-channel power amplifier for medium-scale installations
• Integrated DSP with flexible system processing tools
• Input routing with up to 1000 ms delay control
• 8-band parametric EQ for input and output tuning
• Crossover management for system optimization
• LevelMAX limiter for output protection and stability
• Direct drive support for 70V and 100V speaker systems
• Front-panel interface for local configuration and control
• GPIO/AUX port for external system integration
• Network control via TCP/IP for remote monitoring
• Preloaded JBL speaker tunings for faster setup

Specifications of CDi DriveCore 2|600
