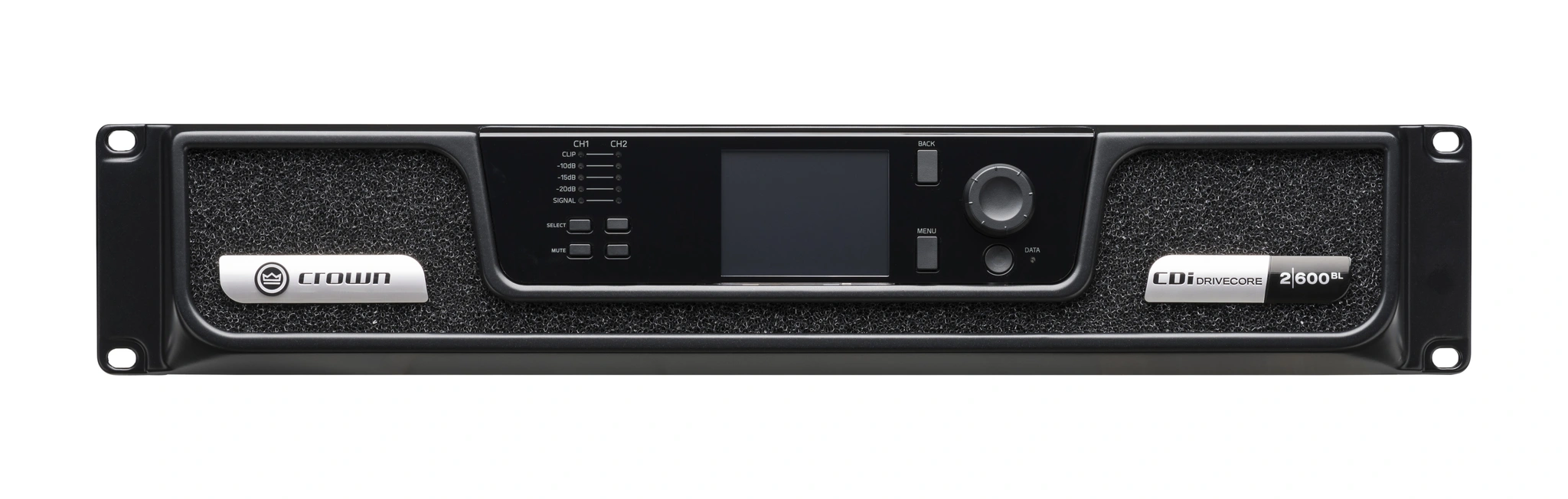

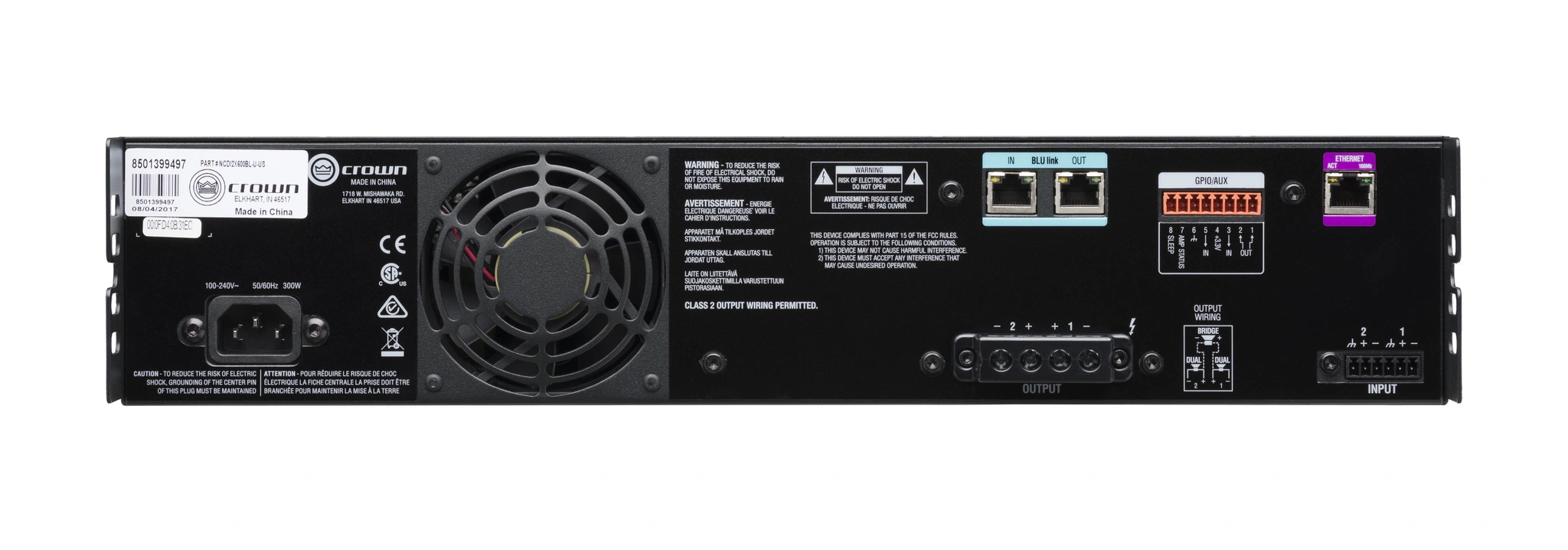

Crown NCDI2X600BL-U-EU CDi 2|600BL Analog + BLU link input, 2 channel Amplifier

Crown CDi DriveCore 2|600BL amplifier

The Crown CDi DriveCore 2|600BL amplifier from Crown Audio is engineered for professional installed sound applications requiring advanced networking, powerful DSP processing, and efficient amplification performance. Developed using proprietary DriveCore technology, the amplifier minimizes internal component count while enhancing reliability, energy efficiency, and overall sonic accuracy.

Designed for medium-scale commercial installations, the 2|600BL is suitable for cinemas, worship facilities, hospitality venues, lounges, and distributed audio environments that require dependable operation and scalable system integration. The amplifier supports both low-impedance and high-impedance speaker configurations, including direct 70V and 100V outputs without requiring external transformers.

Integrated DSP functionality allows precise system tuning through input routing, crossover management, input and output parametric equalization, and adjustable delay processing. The amplifier includes up to 1000 ms input delay and 100 ms output delay for advanced loudspeaker alignment and distributed audio optimization. The built-in LevelMAX limiter enhances system protection while maintaining consistent output performance.

The addition of BLU link technology enables digital audio transport over HARMAN’s fault-tolerant 256-channel audio bus, allowing the amplifier to send and receive audio channels across networked professional sound systems. Remote monitoring and configuration are supported through standard TCP/IP network control platforms, while the intuitive front-panel interface allows local setup and system adjustments directly from the amplifier.

Preloaded JBL speaker tunings simplify installation and reduce calibration time for compatible loudspeaker systems. With integrated networking, DSP flexibility, and efficient power delivery, the CDi DriveCore 2|600BL is designed to provide reliable amplification and streamlined integration for modern professional audio installations.

Features of CDi DriveCore 2|600BL

• Proprietary DriveCore amplification technology
• 2-channel commercial installation amplifier
• Integrated DSP processing and system tuning
• BLU link digital audio bus support
• Network monitoring and remote configuration
• Up to 1000 ms input delay adjustment
• 8-band parametric EQ for input processing
• 8-band parametric EQ for output tuning
• Built-in crossover configuration support
• LevelMAX limiter for loudspeaker protection
• Direct 70V and 100V output capability
• Front-panel amplifier configuration interface
• GPIO/AUX control port integration
• Preloaded JBL loudspeaker tunings

Specifications of CDi DriveCore 2|600BL
