Description

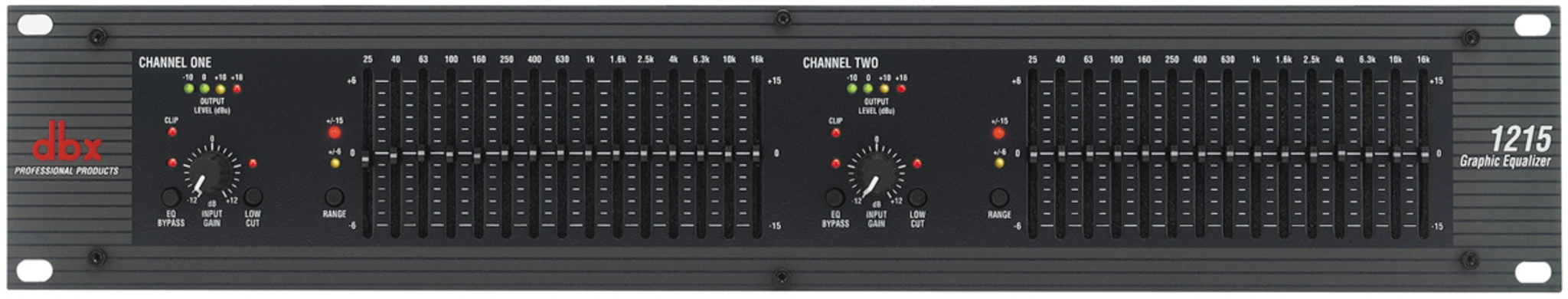

dbx 1215 Dual-Channel Graphic Equalizer
The dbx 1215 Dual-Channel Graphic Equalizer is a professional audio processing solution engineered for demanding sound reinforcement, live touring, and portable audio applications. Designed with simplicity, reliability, and precise frequency control in mind, the unit features dual-channel operation with fifteen 2/3-octave ISO-centered frequency bands per channel, allowing accurate tonal shaping and system optimization for a wide range of audio environments.
The equalizer provides selectable ±6 dB and ±15 dB boost/cut ranges, enabling both subtle corrections and extensive frequency adjustments. Its 45 mm precision faders offer smooth and accurate control, while the adjustable input gain range helps optimize signal levels for different system requirements. Integrated 40 Hz Bessel low-cut filters reduce unwanted low-frequency rumble and improve overall system clarity.

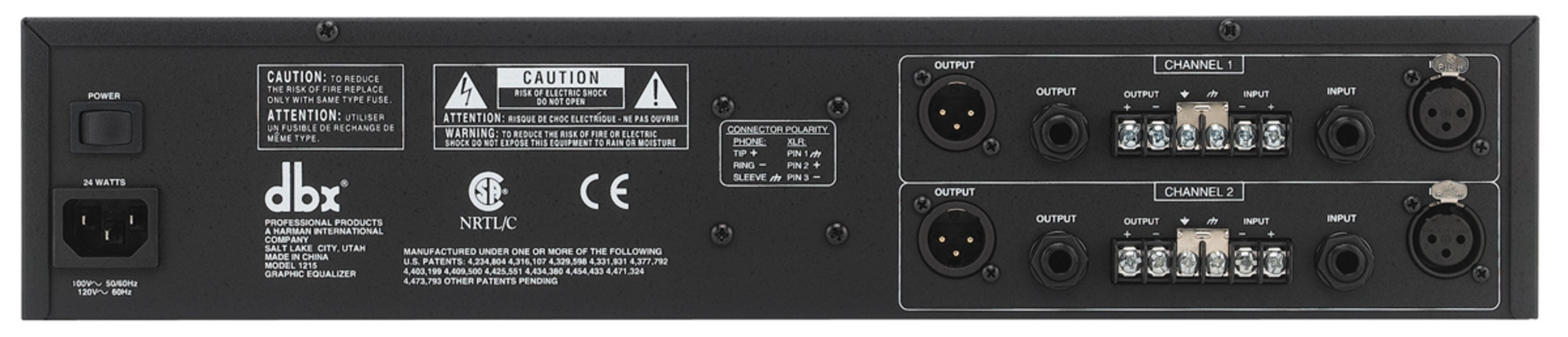

For installation flexibility, the dbx 1215 incorporates XLR, 1/4-inch TRS, and barrier strip connectors, making integration with professional audio systems straightforward. Electronically balanced inputs and servo-balanced outputs help maintain signal integrity while minimizing noise and interference. Additional chassis and signal ground lift options assist in eliminating hum and ground loop issues commonly encountered in complex audio installations.
Built with premium components and housed in a durable 2U steel and aluminum chassis, the dbx 1215 delivers exceptional audio performance with extended frequency response, low distortion, excellent signal-to-noise ratio, and minimal crosstalk. Features such as RF-filtered circuitry, magnetically isolated power supply, and power-off relay bypass enhance system reliability and operational stability. Designed for professional users who demand precise equalization and dependable performance, the dbx 1215 provides powerful audio control for both live and installed sound systems.
Features of DBX1215
- Dual-channel graphic equalizer design
- Fifteen 2/3-octave ISO frequency bands
- Selectable ±6 dB EQ range
- Selectable ±15 dB EQ range
- Precision 45 mm faders
- Adjustable input gain control
- 40 Hz low-cut filter
- 18 dB/octave Bessel filtering
- Electronically balanced inputs
- Servo-balanced output circuitry
- RF-filtered signal paths
- XLR connectivity support
- 1/4-inch TRS connections
- Barrier strip terminal connections
- Ground lift functionality
- Hardwire relay bypass protection
- Extended frequency response
- Low distortion audio performance
- High signal-to-noise ratio
- Touring-grade metal chassis
Specifications of DBX1215
| Channels | Dual Channel |
| Equalizer Bands | 15 Bands per Channel |
| Frequency Centers | ISO Standard |
| Boost/Cut Range | Selectable ±6 dB or ±15 dB |
| Input Gain Range | -12 dB to +12 dB |
| Low-Cut Filter | 40 Hz, 18 dB/Octave Bessel |
| Input Connectors | 1/4″ TRS, Female XLR, Barrier Strip |
| Input Type | Electronically Balanced/Unbalanced, RF Filtered |
| Input Impedance | 40 kΩ Balanced, 20 kΩ Unbalanced |
| Maximum Input Level | > +21 dBu Balanced or Unbalanced |
| CMRR | >40 dB, Typically >55 dB at 1 kHz |
| Output Connectors | 1/4″ TRS, Male XLR, Barrier Strip |
| Output Type | Impedance Balanced/Unbalanced, RF Filtered |
| Output Impedance | 200 Ω Balanced, 100 Ω Unbalanced |
| Maximum Output Level | > +21 dBu into 2 kΩ or Greater; > +18 dBm into 600 Ω |
| Bandwidth | 20 Hz – 20 kHz (+0.5/-1 dB) |
| Frequency Response | <10 Hz – >50 kHz (+0.5/-3 dB) |
| Dynamic Range | 109 dB / 115 dB |
| Signal-to-Noise Ratio | 90 dB / 97 dB |
| THD + Noise | <0.005% |
| Interchannel Crosstalk | <-80 dB (20 Hz – 20 kHz) |
| Bypass Switch | Bypasses Graphic EQ Section |
| Range Switch | Selects ±6 dB or ±15 dB EQ Range |
| I/O Meter | 4-LED Bar Graph at -10, 0, +10, +18 dBu |
| Status Indicators | EQ Bypass, Clip, Low Cut, ±6 dB, ±15 dB |
| Operating Voltage | 100 VAC 50/60 Hz, 120 VAC 60 Hz, 230 VAC 50/60 Hz |
| Power Consumption | 24 W |
| Power Connector | IEC Receptacle |
| Dimensions | 3.5″ H × 19″ W × 7.9″ D (8.9 × 48.3 × 20.1 cm) |
| Unit Weight | 8.5 lbs (3.9 kg) |
| Shipping Weight | 9.5 lbs (4.3 kg) |
