DBX DriveRack VENU360 Loudspeaker Management System – UK
The dbx DriveRack VENU360 is a professional loudspeaker management processor with 3 inputs, 6 outputs, advanced DSP, AutoEQ, AFS, mobile control, and flexible system optimization for professional sound applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 8,001.15 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

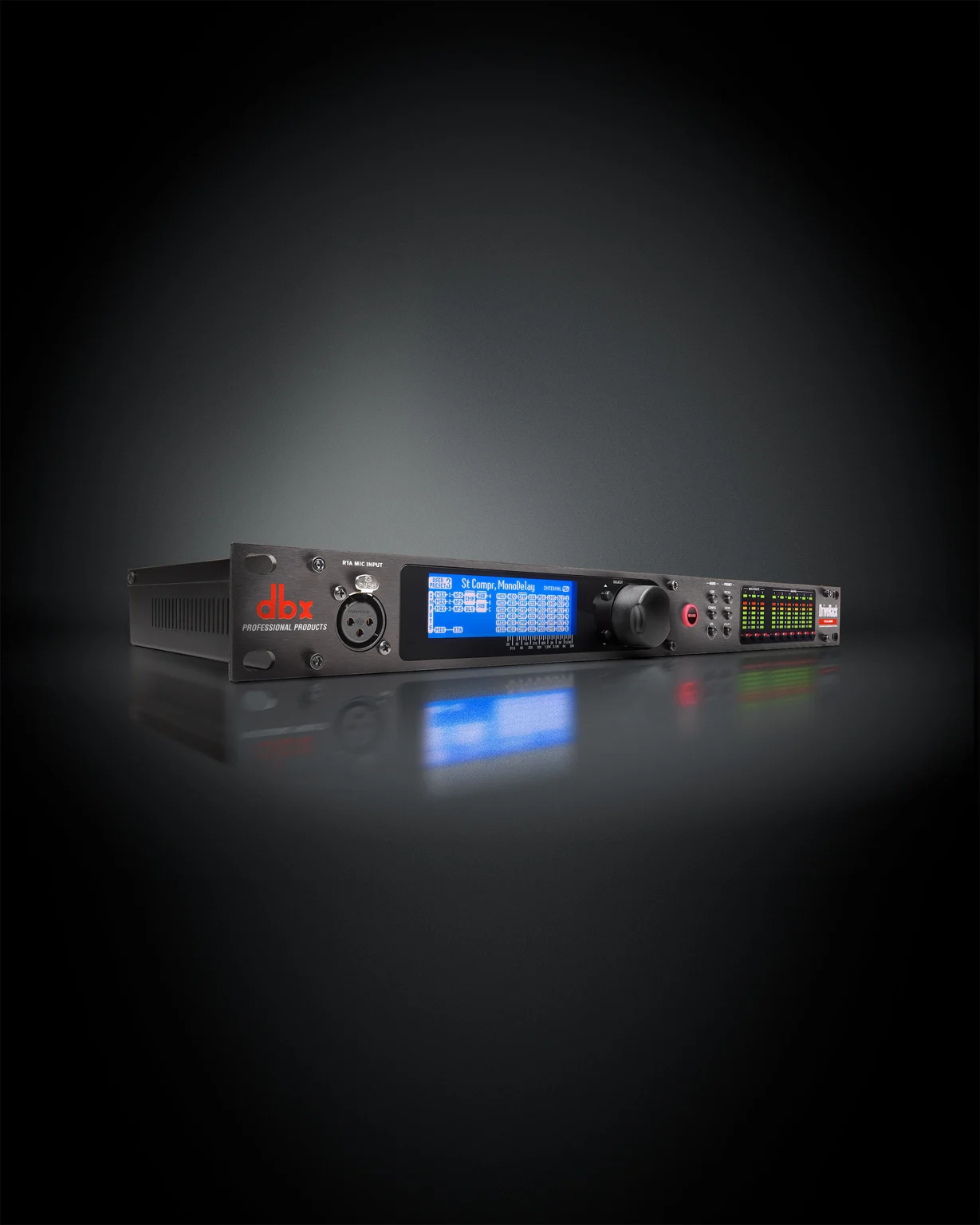

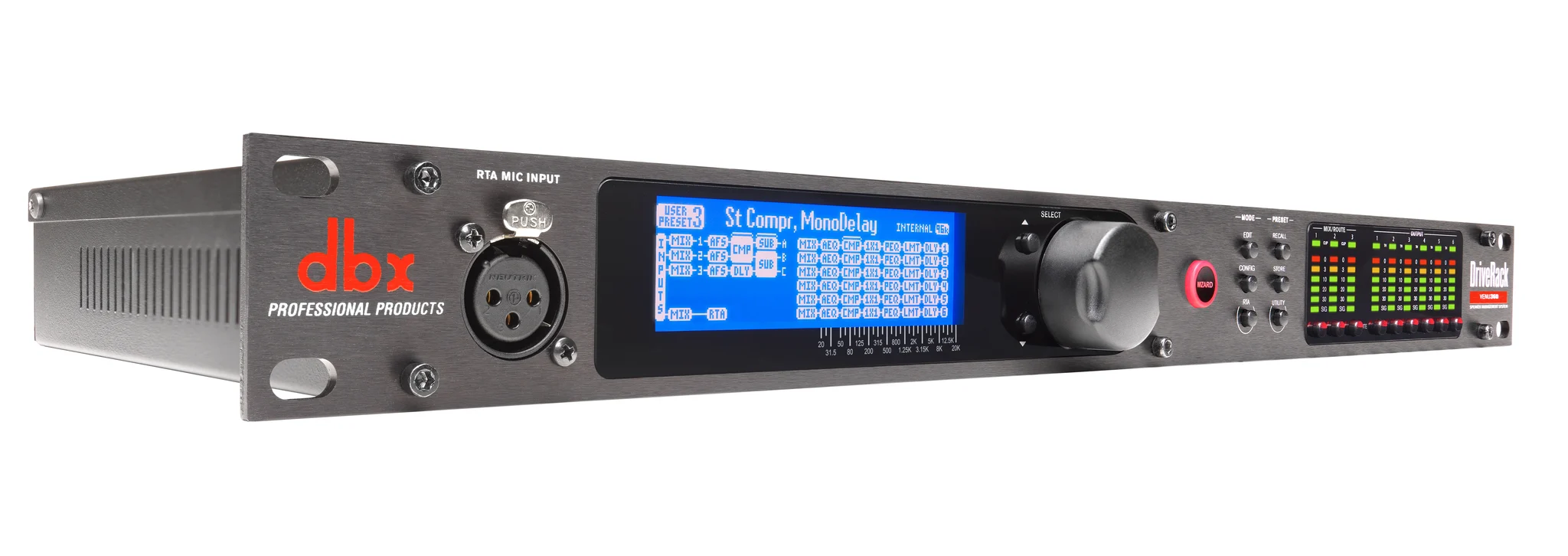

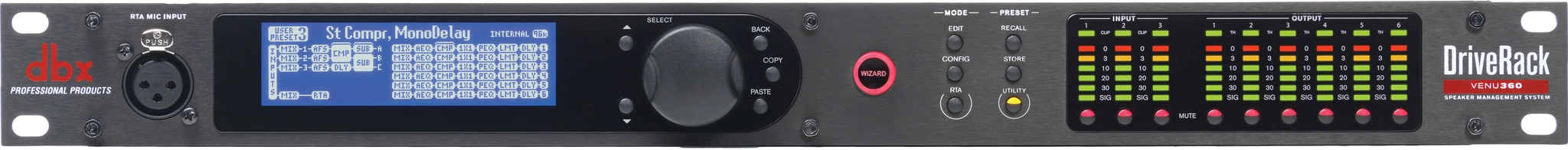

dbx DriveRack VENU360 Complete Loudspeaker Management System
The dbx DriveRack VENU360 is an advanced loudspeaker management processor developed to enhance the performance, control, and protection of professional sound systems. Designed as the successor to the renowned DriveRack 260, it incorporates enhanced digital signal processing, expanded routing capabilities, and modern networking features, making it an excellent solution for installed audio systems, portable PA setups, and touring applications.
Equipped with three analog inputs and six configurable outputs, the DriveRack VENU360 serves as the central processing hub between audio mixers and power amplifiers. Its upgraded AutoEQ™ technology employs an RTA measurement microphone and precision sine-sweep analysis to automatically optimize loudspeaker levels and room equalization in just a few moments. Because AutoEQ operates independently on each output channel, users can calibrate front-of-house speakers, stage monitors, delay systems, and individual audio zones separately for consistent system performance.
The integrated Advanced Feedback Suppression (AFS™) continuously monitors incoming signals to detect and eliminate feedback before it becomes audible, maintaining clean and natural sound without compromising tonal quality. Updated configuration wizards simplify system setup by guiding users through speaker configuration, routing, crossover selection, level adjustment, monitor optimization, and feedback management.
Remote system management is available through Ethernet connectivity, allowing complete control from Android®, iOS®, macOS®, or Windows® devices. The intuitive software interface enables quick adjustment of compressors, equalizers, crossover parameters, speaker presets, delays, and other processing functions from anywhere on the network. Combining high-resolution 24-bit processing, comprehensive DSP tools, and flexible configuration options, the DriveRack VENU360 provides reliable loudspeaker management for demanding professional audio environments.
Features of DriveRack VENU360
- Professional 3-input, 6-output loudspeaker management processor
- Enhanced AutoEQ™ with automatic room calibration
- Advanced AFS™ feedback suppression technology
- Ethernet control from Android®, iOS®, macOS®, and Windows® devices
- Guided setup and monitor configuration wizards
- 31-band Graphic EQ for input processing
- 12-band Parametric EQ with notch filtering capability
- Integrated dbx compression processing
- Automatic Gain Control support
- Built-in Subharmonic Synthesis
- Noise Gate and Backline Delay processing
- Flexible crossover supporting up to mono 6-way speaker systems
- Independent AutoEQ processing for multiple output zones
- Tower delays up to 1000 ms per output
- Driver alignment delay and speaker tuning functions
- 24-bit dbx Type IV™ digital conversion technology
Specifications of DriveRack VENU360
| System Type | Complete Loudspeaker Management System |
| Inputs | 3 Analog Line Inputs, 2 AES Digital Inputs (Shared), 1 RTA Microphone Input |
| Input Connectors | 3 Female XLR (2 Selectable Analog/AES), 1 Female XLR RTA Mic |
| Input Type | Electronically Balanced, RF Filtered |
| Input Impedance | >30 kΩ Balanced |
| Maximum Input Level | >+28 dBu Balanced, ≤1% THD |
| CMRR | >50 dB @ 1 kHz |
| Phantom Power (RTA Mic) | +48 VDC |

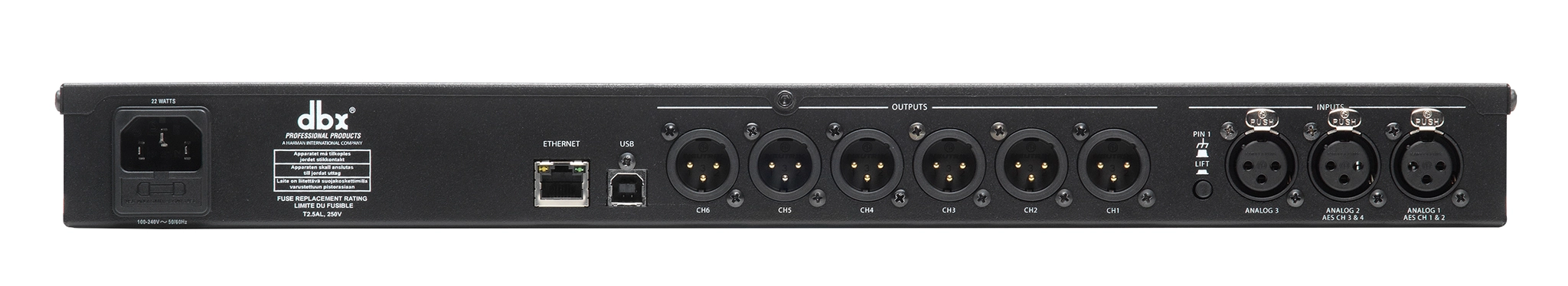

| Outputs | 6 Line Outputs |
| Output Connectors | Male XLR |
| Output Type | Electronically Balanced, RF Filtered |
| Output Impedance | 120 Ω Balanced |
| Maximum Output Level | +22 dBu Balanced, ≤1% THD |
| Alignment Delay | Up to 1000 ms per Output |
| A/D Converter | 24-bit dbx Type IV™ Conversion System |
| A/D Dynamic Range | 117 dB A-weighted, 114 dB Unweighted |
| Type IV Dynamic Range | Up to 129 dB with Transient Material |
| D/A Converter | 24-bit |
| D/A Dynamic Range | 116 dB A-weighted, 113 dB Unweighted |
| Internal Processing | 32-bit Floating Point |
| Supported Sample Rates | 48/96 kHz (32–192 kHz with Sample Rate Conversion) |
| System Dynamic Range | 114 dB A-weighted, 110 dB Unweighted |
| THD+Noise | 0.0025% Typical @ +4 dBu, 1 kHz |
| Frequency Response | 20 Hz – 20 kHz (+0/-0.5 dB) |
| Interchannel Crosstalk | < -97 dB, -105 dB Typical |
| Latency | 2.57 ms (48 kHz Analog), 2.28 ms (96 kHz Analog), 2.31 ms (48 kHz AES), 2.15 ms (96 kHz AES) |
| Operating Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | 18 W |
| Dimensions | 1.75 × 8.0 × 19 in (4.4 × 20.32 × 48.26 cm) |
| Unit Weight | 5.48 lbs (2.49 kg) |
| Shipping Weight | 7.10 lbs (3.22 kg) |
