Dynacord CMS 1000-3 10-Channel Mixing System

Dynacord CMS 1000-3 10-Channel Mixing System

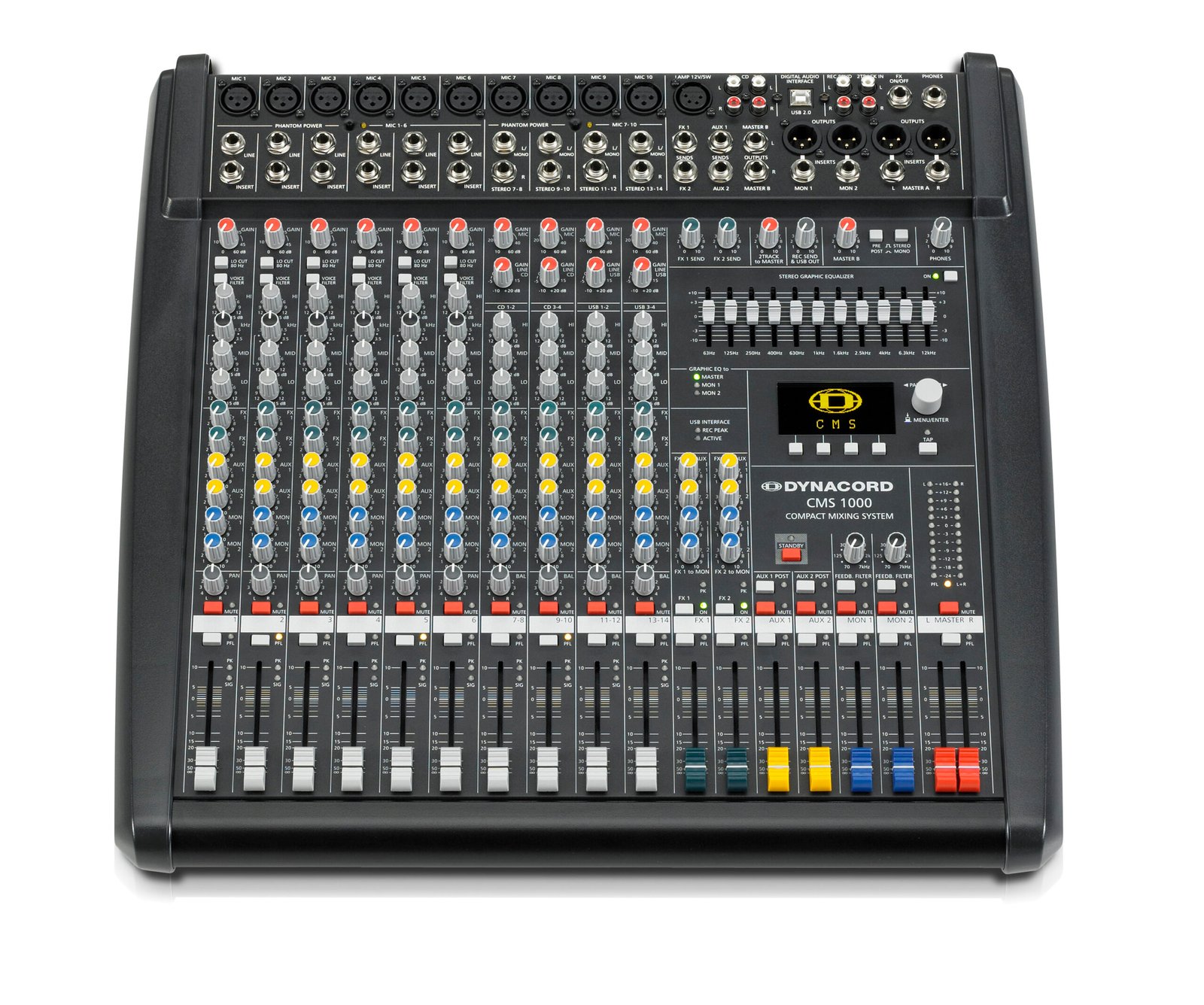

The Dynacord CMS 1000-3 is a ten-channel compact mixing system intended for professional live sound and fixed installation applications. It integrates a flexible mixing surface, dual digital effects processors, master equalization, USB audio, MIDI connectivity, and an OLED display into a single console. Six mono and four stereo channels provide broad source connectivity, while auxiliary buses support monitor, effects, and additional signal routing requirements.

Mono inputs provide gain, equalization, filtering, and routing functions, while grouped 48 V phantom power supports compatible condenser microphones. Two independent stereo effects processors provide 100 factory presets and 20 user memories, with editable parameters and TAP delay control. The 11-band master graphic equalizer provides detailed tonal adjustment for the overall system. The high-contrast 128 x 64 pixel OLED display provides access to effects and processing settings during operation.

The integrated USB audio interface provides four input and four output channels with 24-bit conversion and sample rates of 44.1, 48, 88.2, and 96 kHz. MIDI In/Out supports compatible instruments and control equipment. The CMS 1000-3 operates from a universal 100–240 V AC supply and uses a robust console format intended for professional environments. Its combination of ten channels, digital recording, effects, equalization, and flexible routing makes it suitable for live bands, venues, corporate AV, education, hospitality, houses of worship, and other systems requiring an integrated professional mixer.

 Features of CMS 1000-3

• 10-channel compact mixing system
• Six mono and four stereo channels
• Dual stereo effects processors
• 100 factory and 20 user effect memories
• 11-band master graphic EQ
• 4-in/4-out USB audio interface
• 24-bit digital audio
• MIDI In/Out
• High-contrast OLED display
• Grouped 48 V phantom power

Specifications of CMS 1000-3

“
