Dynacord CMS 600-3 8-Channel Mixing System
Dynacord CMS 600-3 is an 8-channel compact mixing system featuring dual effects, 4×4 USB audio, MIDI, master graphic EQ, OLED display, and flexible routing for professional audio applications. for live and installed sound systems
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 9,196.95 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

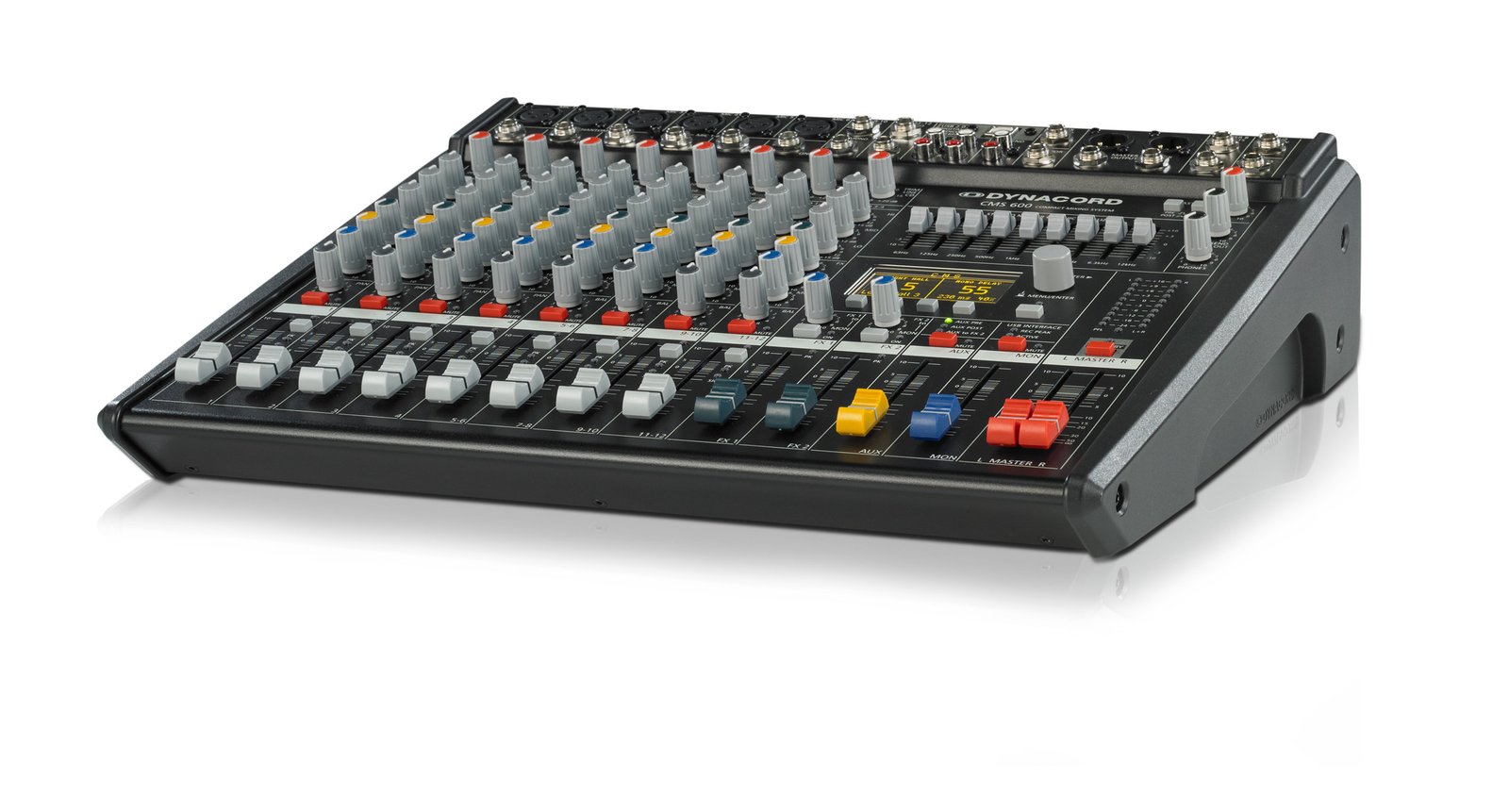

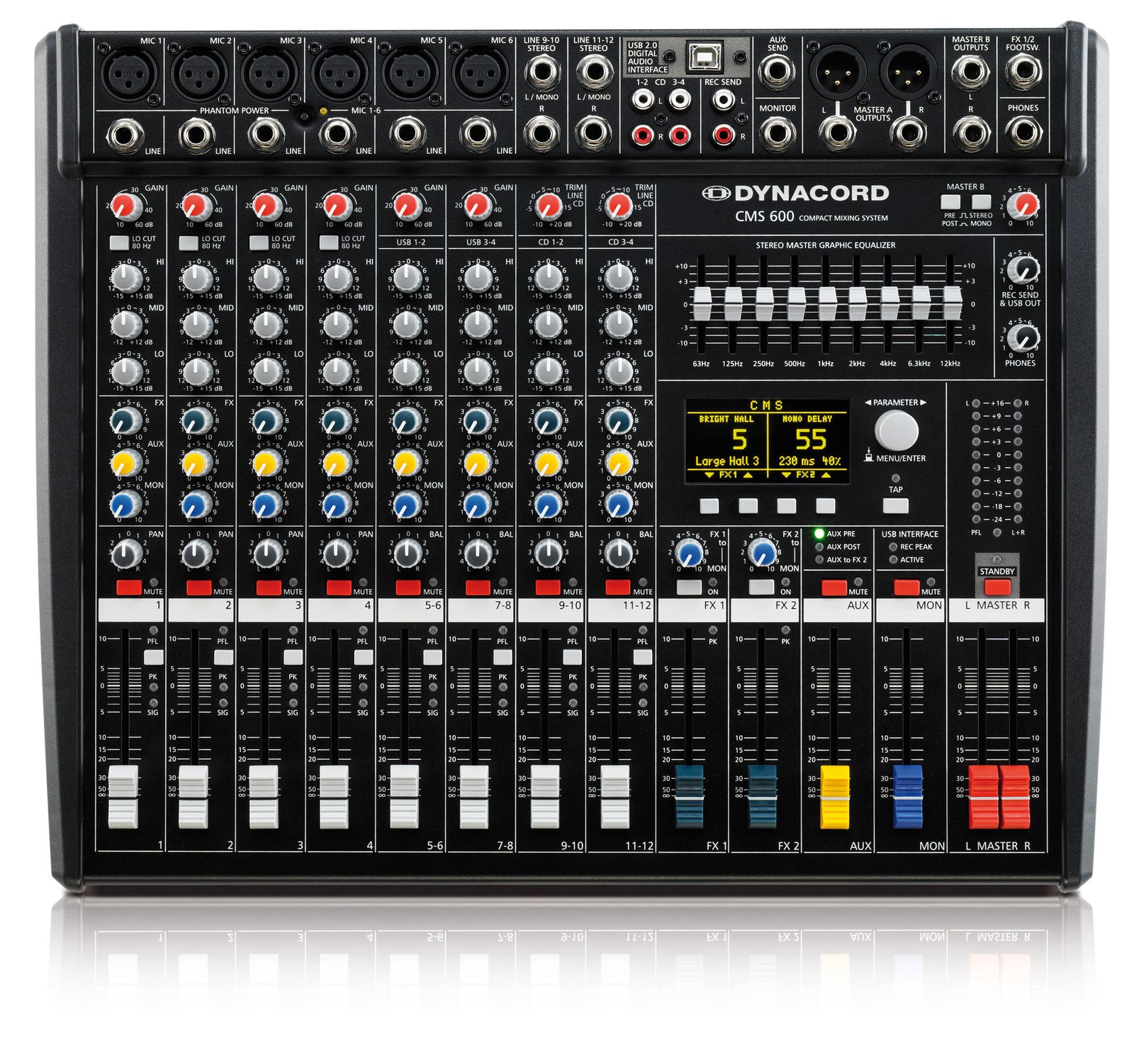

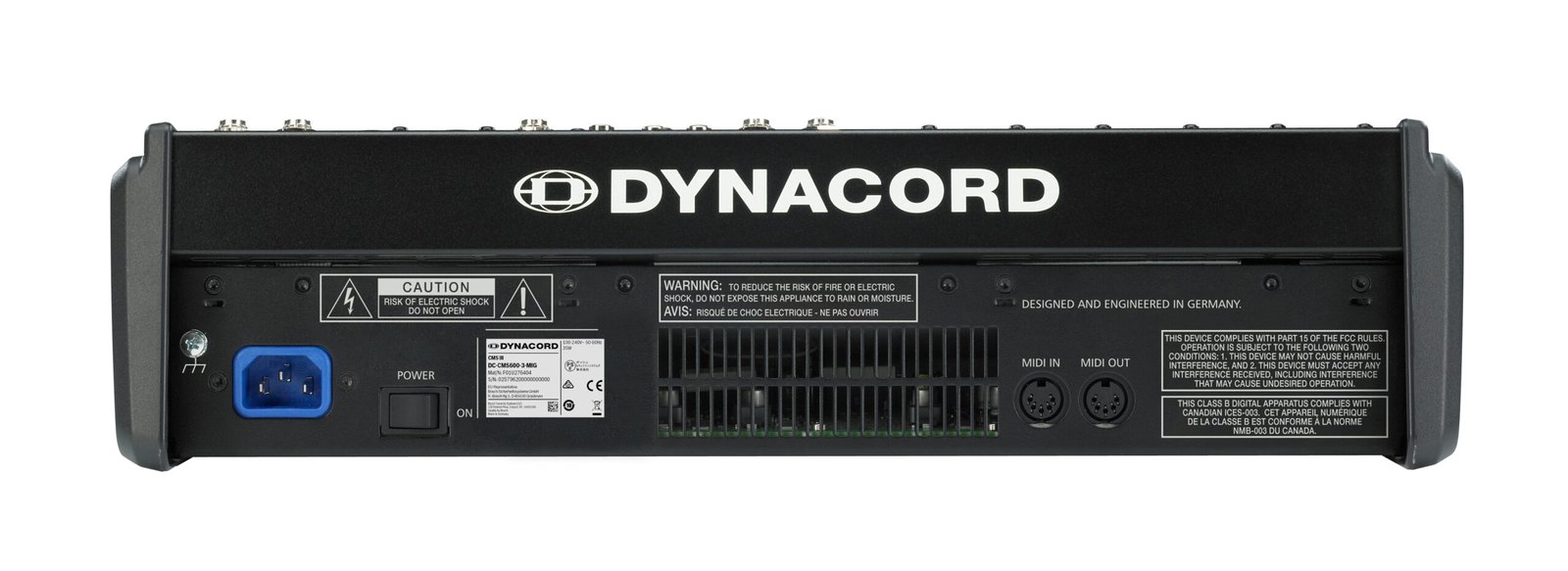

Dynacord CMS 600-3 8-Channel Mixing System
The Dynacord CMS 600-3 is an eight-channel compact mixing system designed for professional live audio and fixed installation applications. It combines an analog-style mixing surface with digital effects, graphic equalization, USB audio, MIDI connectivity, and an OLED display. The channel architecture includes four microphone/line channels, two microphone/stereo USB super channels, and two stereo line channels, providing flexible connectivity for microphones, instruments, playback sources, and computer audio.
The mono input section provides electronically balanced microphone connections, gain control, equalization, auxiliary routing, effects sends, and monitoring functions. Switchable 48 V phantom power supports suitable condenser microphones. Two independent 24/48-bit stereo effects processors provide 100 factory presets and 20 user memories, with editable parameters and TAP timing for delay effects. A nine-band master graphic equalizer provides system-level tonal adjustment.
The integrated four-in/four-out USB audio interface supports 24-bit conversion and sample rates of 44.1, 48, 88.2, and 96 kHz, allowing simultaneous computer recording and playback. MIDI In/Out connectivity provides additional control possibilities. The high-contrast 128 x 64 pixel OLED display supports clear access to processing functions, while the 5.8 kg chassis keeps the system easy to transport. With its compact construction, professional controls, digital interface, effects, and flexible routing, the CMS 600-3 is suited to small venues, bands, corporate AV, education, houses of worship, and fixed sound installations.
Its integrated controls and connectivity support efficient system setup and practical day-to-day operation.
Its integrated controls and connectivity support efficient system setup and practical day-to-day operation.
Its integrated controls and connectivity support efficient system setup and practical day-to-day operation.
Features of CMS 600-3
- 8-channel compact mixing system
- Four Mic/Line channels
- Two Mic/Stereo USB super channels
- Two stereo line channels
- Dual stereo effects processors
- 100 factory and 20 user effect memories
- 4-in/4-out 24-bit USB interface
- MIDI In/Out
- Nine-band master graphic EQ
- High-contrast OLED display
Specifications of CMS 600-3
| Channels | 4 mono + 4 stereo |
| Mic/Line Mono Channels | 4 |
| Mic/Line / USB Super Channels | 2 |
| Stereo Line Channels | 2 |
| Auxiliaries | 1 Pre, 1 Post, 1 Pre/Post switchable |
| Frequency Response | 15 Hz – 70 kHz |
| THD | <0.005% typical, specified test condition |
| Master EQ | 9-band |
| Effects | Dual stereo 24/48-bit multi-effects |
| Effect Presets | 100 factory + 20 user |
| Display | 128 x 64 pixel OLED |
| Digital Audio Interface | 4 in / 4 out |
| USB Resolution | 24-bit |
| USB Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| MIDI | 5-pin DIN In/Out |
| Phantom Power | 48 V DC |
| AC Input | 100–240 V AC, 50–60 Hz |
| Dimensions | 416.9 x 108.6 x 347.8 mm |
| Net Weight | 5.8 kg |
