Ecler CMIMO88 MIMO88 8×8 Digital Matrix

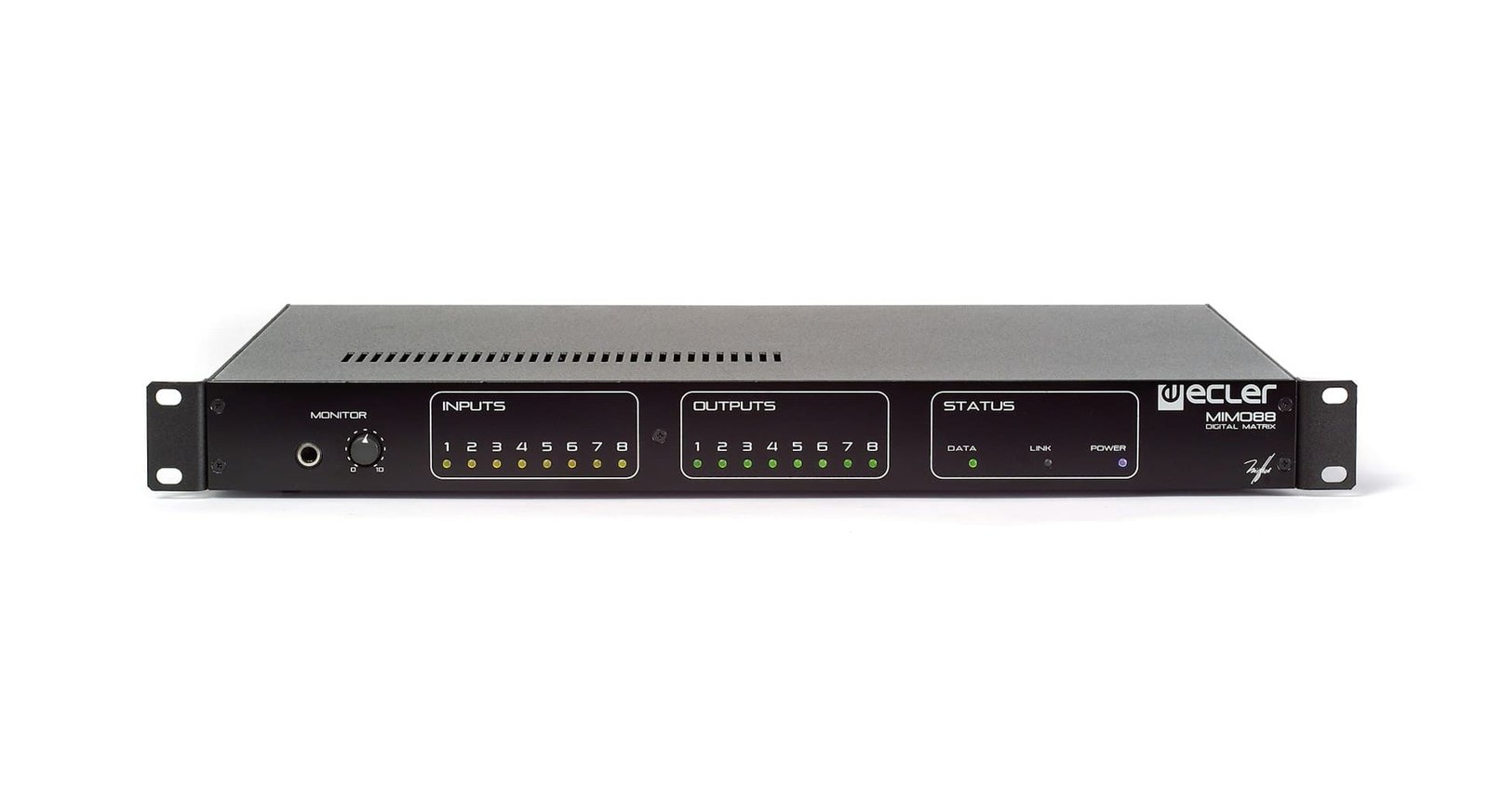

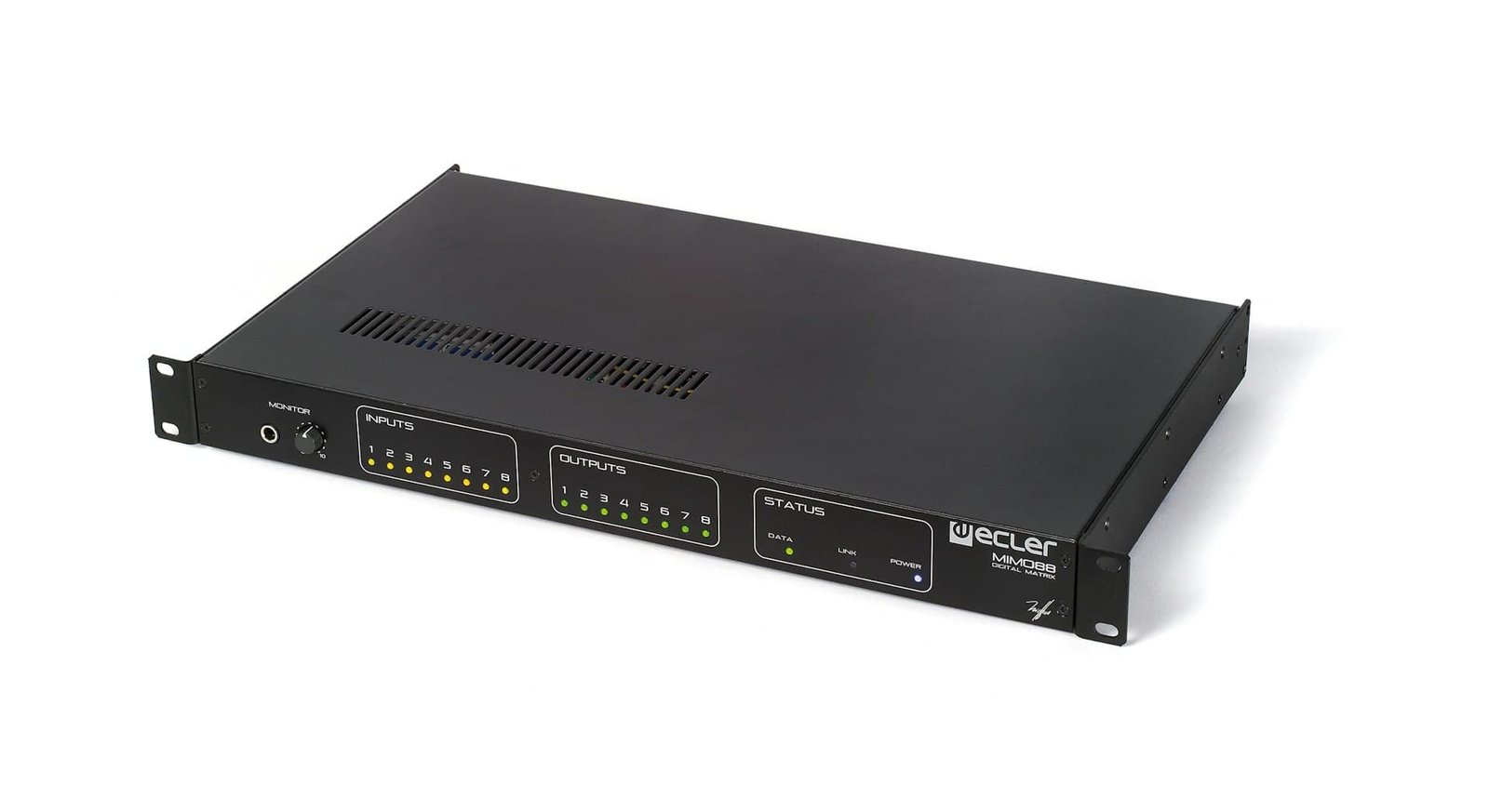

Ecler MIMO88 digital audio matrix

The Ecler MIMO88 is a fully programmable digital audio matrix, offering 8×8 digital audio matrix (expandable to 16×16) of real routing capability from any input to any output.

It is remotely controlled with UCPs (User Control Panels) when a UCP Server is present in the system, compatible with the touchscreen WPNETTOUCH and third-party devices such as computers, tablets, and smartphones. TP-NET protocol compatibility allows integration with third-party control systems.

DSP processing includes a signal generator, delays, full parametric EQ filters at inputs and outputs, input noise gate, level, mute, phase, and VU-meters, output compressor/limiter, ducking (priority and overriding), virtual and physical paging station management, presets save and recovery, and scheduled events triggering.

A Frequency Shifter function, available on each input channel, helps avoid acoustic feedback (the Larsen effect) in reinforcement applications, and compatibility with WPNET4KV and WPNET8K control panels using specific retro-compatible firmware ensures the unit works alongside existing wall panel infrastructure.

Features

• Fully programmable digital audio matrix
• 8×8 digital audio matrix (expandable to 16×16)
• Remote control via UCPs and WPNETTOUCH
• TP-NET protocol compatible
• Signal generator, delays, parametric EQ (inputs and outputs)
• Input noise gate, level, mute, phase, VU-meters
• Output compressor/limiter
• Ducking (priority and overriding)
• Virtual and physical paging station management
• Presets save and recovery
• Scheduled events triggering
• Frequency Shifter (feedback prevention) per input

Specifications
