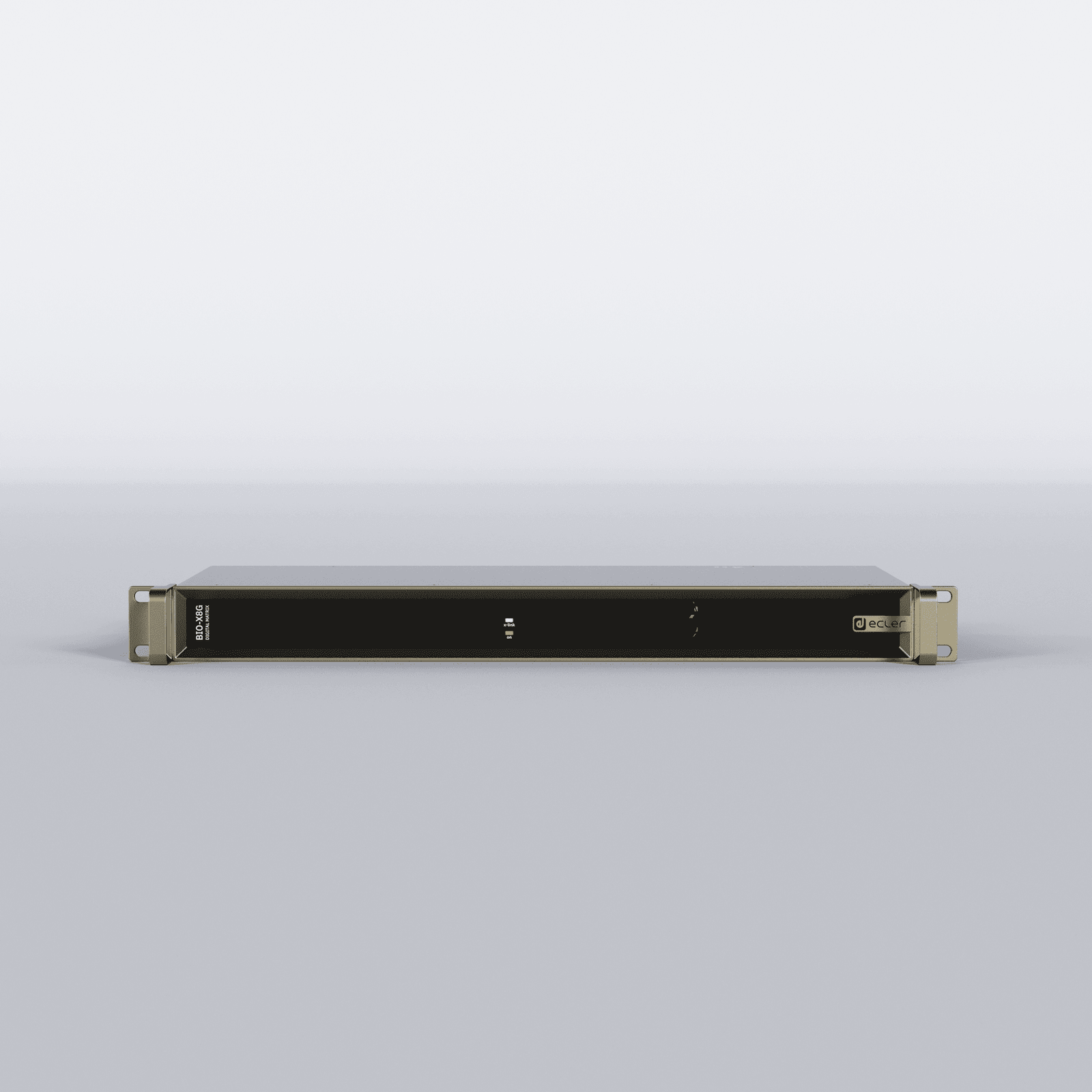

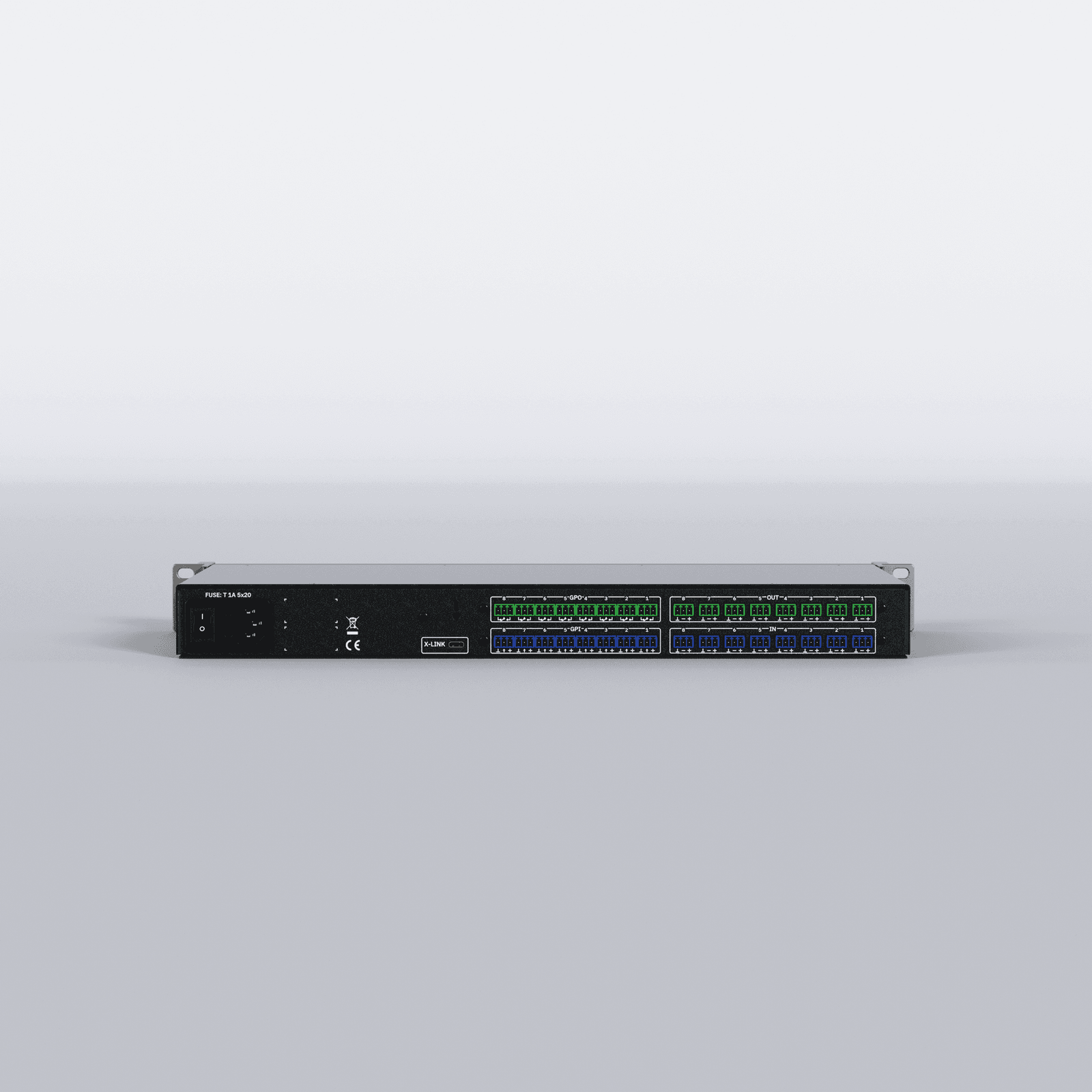

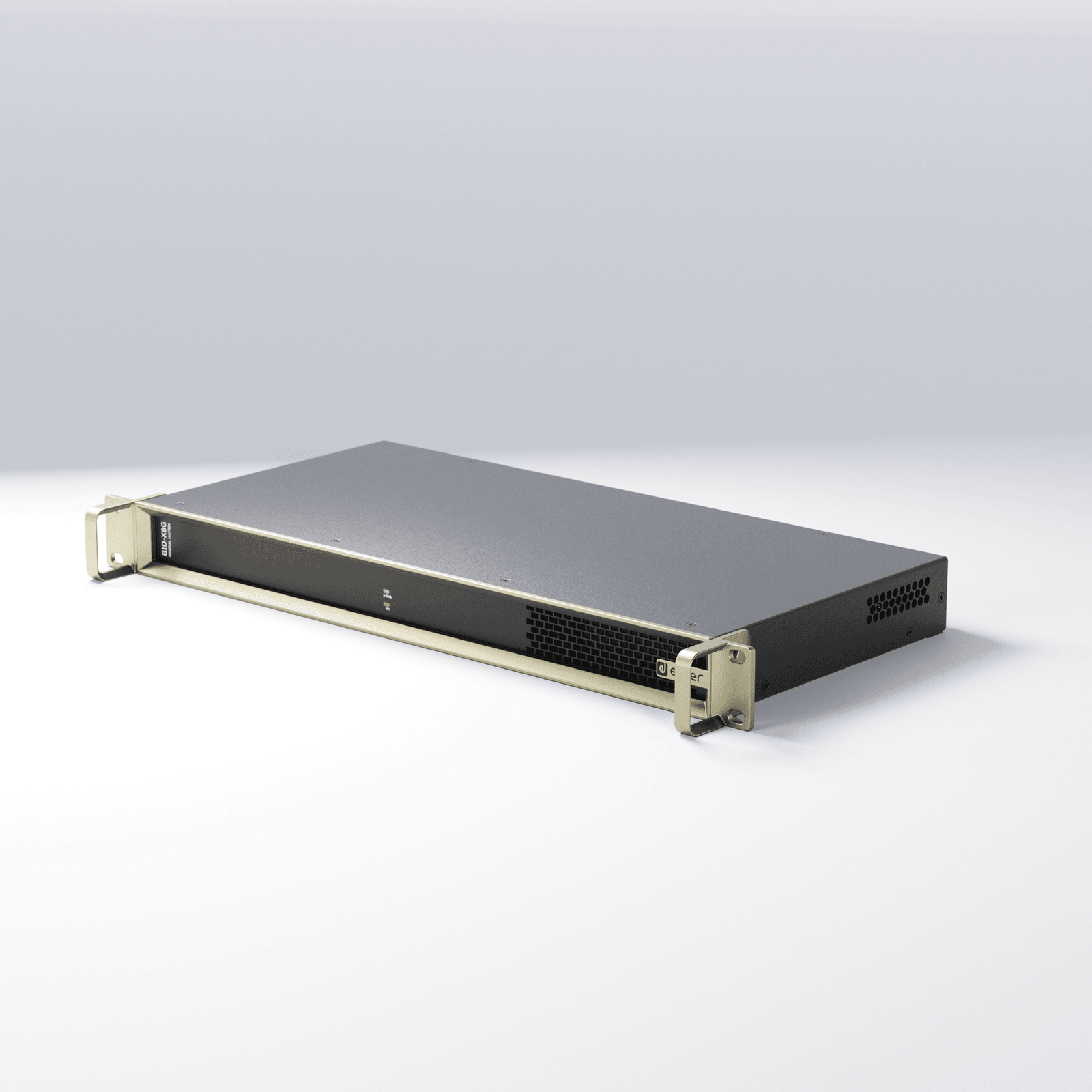

Ecler CBIOX8G BIO-X8G GPIO Expansion Unit
The Ecler BIO-X8G is an EclerPLEX I/O expansion interface that scales up a VIVO host matrix by 8 analogue input and 8 analogue output ports, along with 8 GPI ports and 8 GPO ports.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 6,546.96 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Ecler BIO-X8G EclerPLEX audio and control expansion unit
The Ecler BIO-X8G is an affordable expansion interface that can easily scale up an EclerPLEX digital host matrix, adding to its default size 8 input and 8 output analogue audio ports, 8 GPI ports and 8 GPO ports.
Connection to the host VIVO unit is made via X-link, using a 1 meter Ecler certified X-link cable included with the unit. Each of the 8 MIC/LINE analogue audio inputs offers +48V phantom power selectable per port, giving flexibility to connect condenser microphones or line-level sources as needed.
The addition of 8 GPI and 8 GPO ports makes the BIO-X8G well suited to projects that need extra contact-closure control capacity alongside additional analogue audio I/O, such as paging stations, volume controls, or automation triggers spread across a larger installation.
A maximum of 2 BIO-X8G units can be connected to a single VIVO host unit, using its 2 X-link expansion ports, reaching an expanded total matrix size that lets a project’s I/O capacity grow well beyond the host unit’s default configuration.
Features
- EclerPLEX audio and control expansion interface
- 8 analogue audio input ports (+48V phantom selectable)
- 8 analogue audio output ports
- 8 GPI ports
- 8 GPO ports
- Connects via X-link to VIVO host unit
- 1m Ecler certified X-link cable included
- Up to 2 units per VIVO host
Specifications
| Product Type | EclerPLEX I/O Expansion Unit |
| Analogue Inputs | 8, MIC/LINE, +48V phantom selectable |
| Analogue Outputs | 8 |
| GPIO | 8 GPI + 8 GPO |
| Connection | X-link (1m cable included) |
| Max Units per Host | 2 |
