Ecler WPaVOL Remote Wall Volume Control

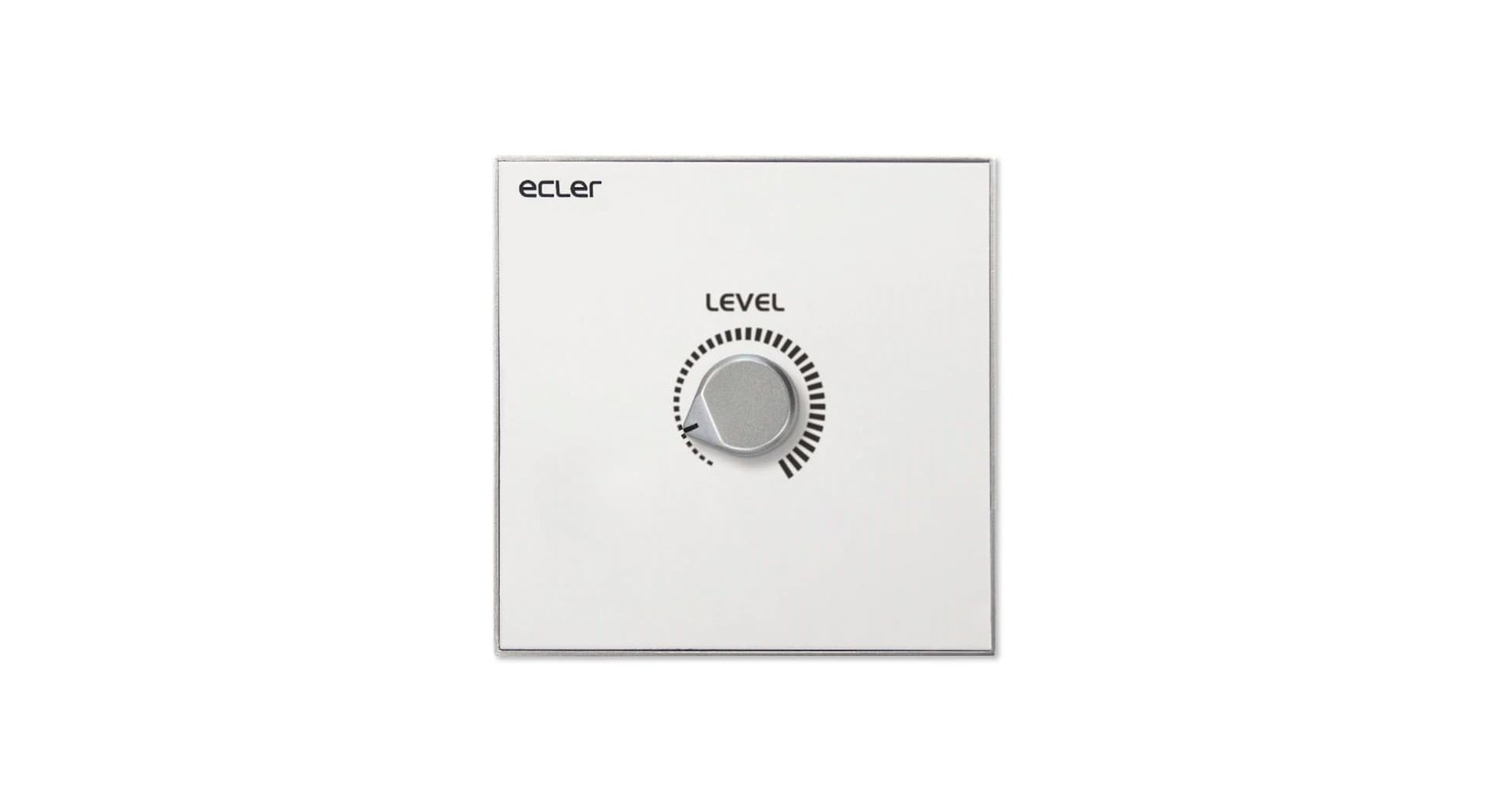

Ecler WPaVOL remote wall volume control

The Ecler WPaVOL is a remote wall panel control dedicated to single-zone volume management, compatible with any Ecler device offering a 0-10V DC REMOTE control port, including MPA-R, ALMA, MIMO88/SG, NXA series, CA series and GPA series products.

As part of the WPa series, the WPaVOL represents an evolution of Ecler’s earlier WPm series, bringing a modern, elegant and discreet aesthetic developed in collaboration with Italdesign Giugiaro. Its clean design blends into a wide range of interior styles while offering intuitive, tactile volume control at the point of use.

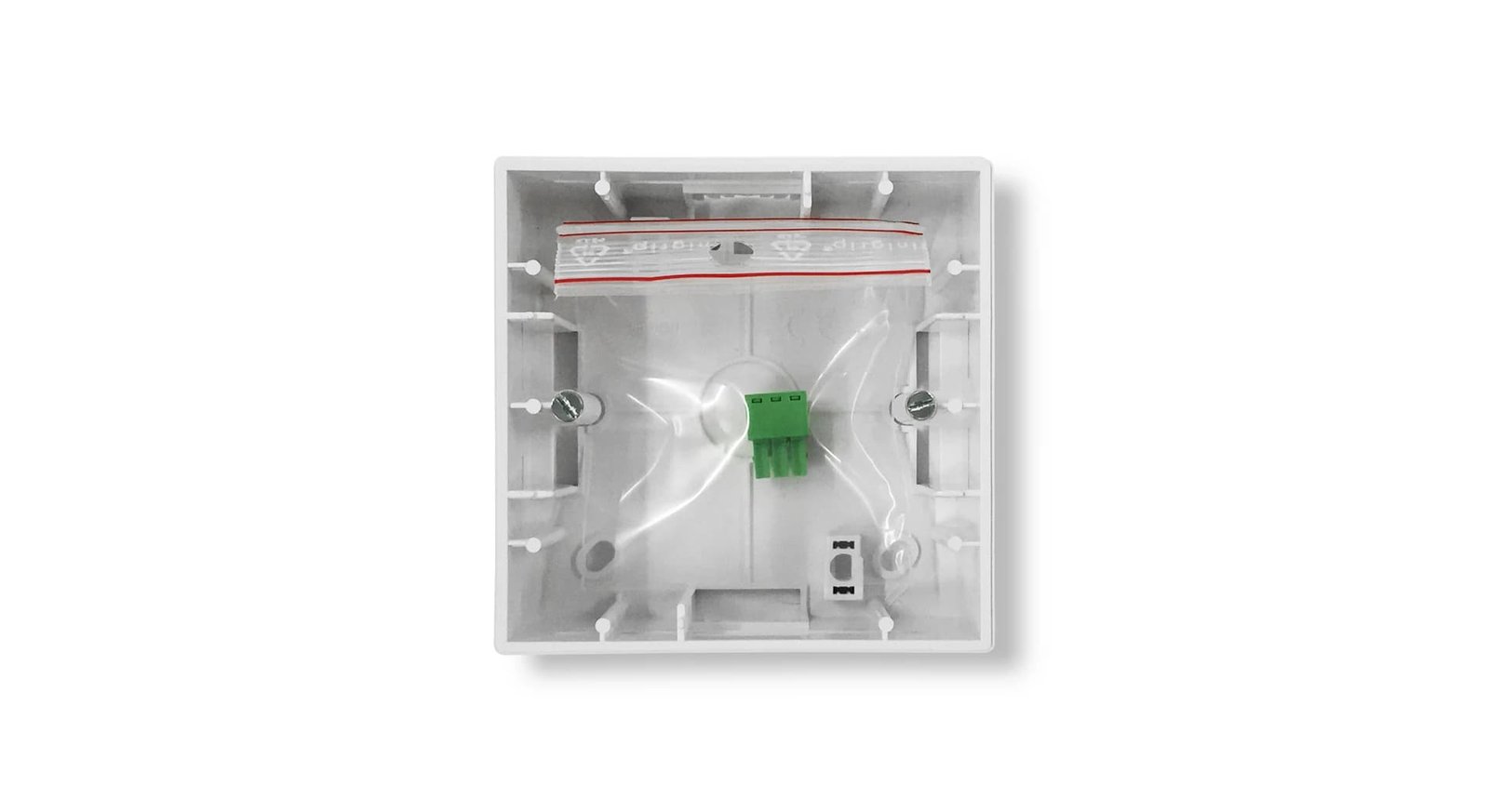

A surface-mount installation box (86 x 86 x 38mm) is included as standard, simplifying fitting in retrofits or new-build projects where a flush-mounted electrical box may not be available. This makes the WPaVOL a straightforward option for adding local volume control to classrooms, meeting rooms, cafes, retail spaces and other commercial environments.

By connecting to any compatible 0-10VDC remote port, the WPaVOL allows staff or end users to adjust background music or paging levels directly from the wall, without needing to access a central amplifier or rack, streamlining day-to-day operation of the audio system.

Features of WPaVOL

• Remote wall panel control for single-zone volume
• Compatible with any 0-10VDC REMOTE control port
• Compatible with MPA-R, ALMA, MIMO88/SG, NXA, CA, GPA series
• Elegant, discreet design by Italdesign Giugiaro
• Surface-mount installation box included
• Simple retrofit and new-build installation
• Direct wall-based volume adjustment

Specifications of WPaVOL
