Ecler WPaMIX-TUS Remote Wall Micro-Mixer – US model

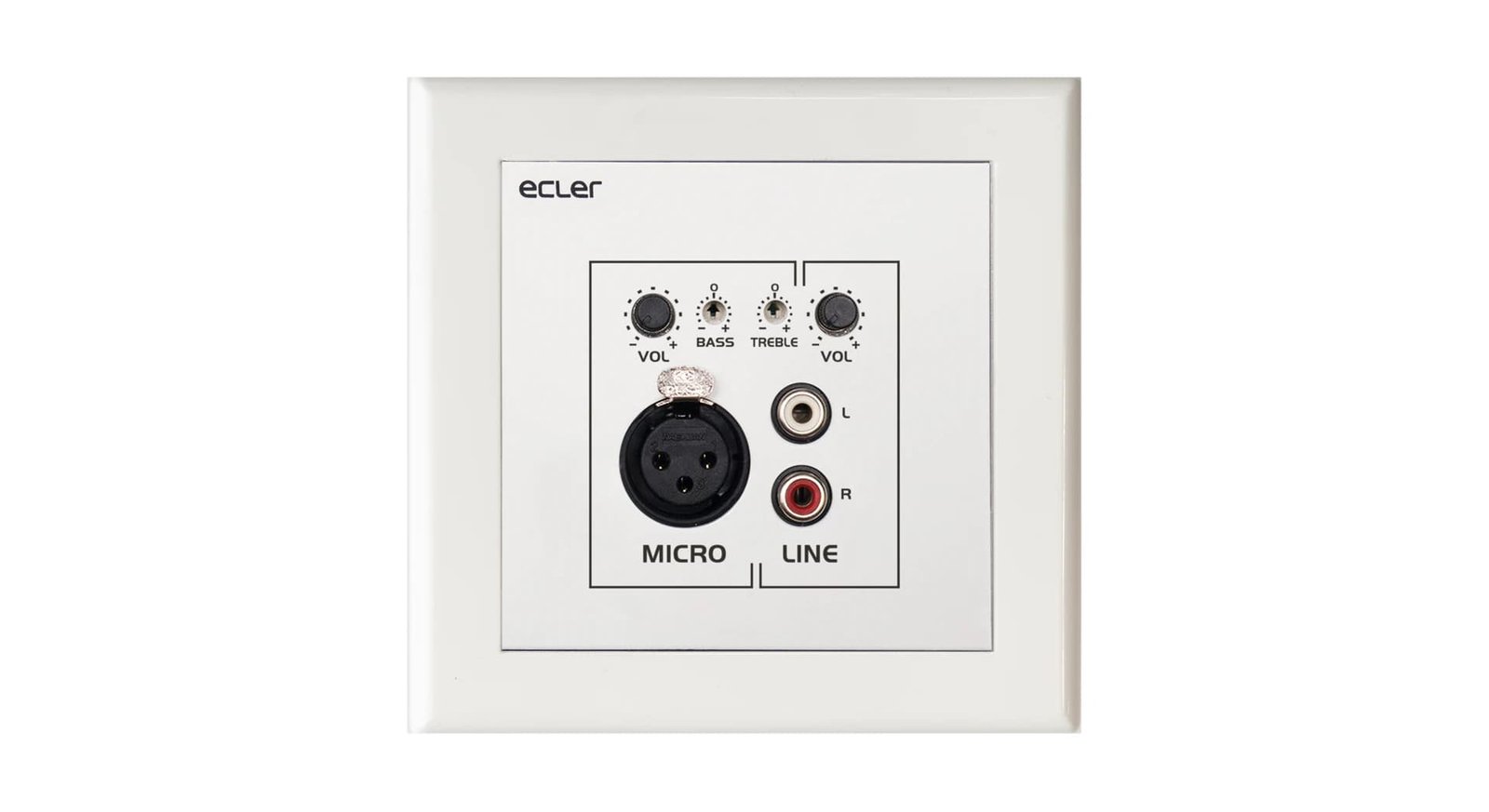

Ecler WPaMIX-TUS wall panel micro-mixer

The Ecler WPaMIX-TUS is the North American format version of the WPaMIX-T, a 2-channel micro-mixer that keeps the standard wall-panel format of the WPa series. It allows a stereo unbalanced signal (2xRCA) to be mixed with a microphone signal (XLR), producing a balanced mono output that can be sent to preamplifiers, amplifiers, or digital or analogue matrices.

The microphone input includes a 2-band EQ with bass and treble controls, allowing quick tonal adjustment for announcements made through the panel. A talk-over function automatically reduces the line-level signal whenever the microphone input exceeds the detection threshold, so voice messages remain clear over background music.

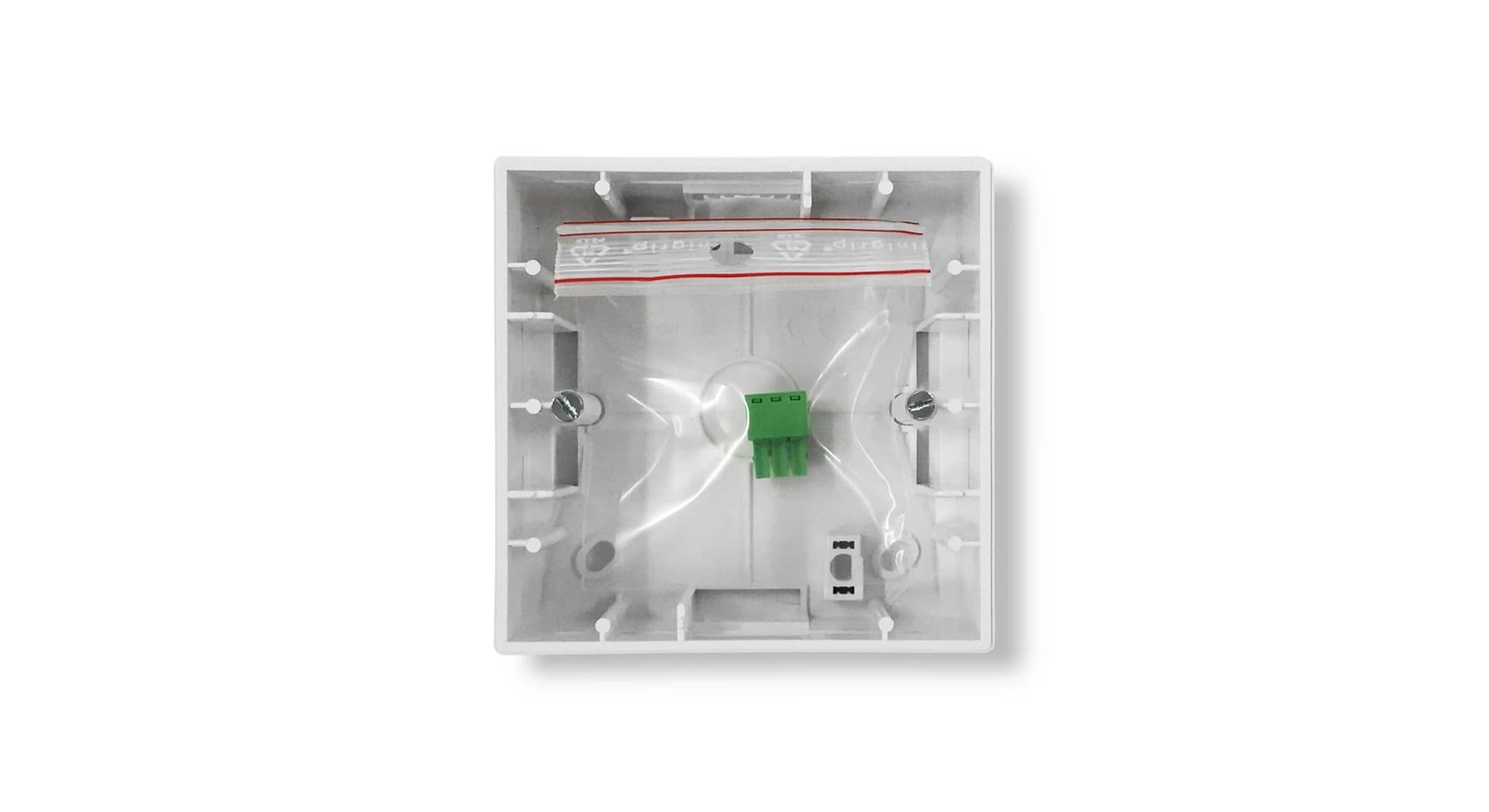

Built to fit standard US electrical boxes, the WPaMIX-TUS brings the WPa series design, developed in collaboration with Italdesign Giugiaro, to North American installations without compromising on functionality or aesthetics.

The panel requires an external 24VDC (or 15VDC) power supply, with the Ecler WP24-PSU recommended, capable of powering up to twenty WPaMIX-T/WPaMIX-TUS units depending on cable length and voltage loss. As with the standard model, installation away from power sources and high-voltage cabling is recommended, since the unit has no electromagnetic shielding.

Features of WPaMIX-TUS

• 2-channel wall panel micro-mixer, US format
• Mixes stereo RCA with XLR microphone input
• Balanced mono output for amplifiers/matrices
• 2-band EQ (bass, treble) on microphone input
• Talk-over function for automatic line signal attenuation
• Standard US electrical box compatible
• External 24VDC or 15VDC power required (WP24-PSU recommended)
• Design developed with Italdesign Giugiaro

Specifications of WPaMIX-TUS
