Ecler WPaVOL Remote Wall Volume Control

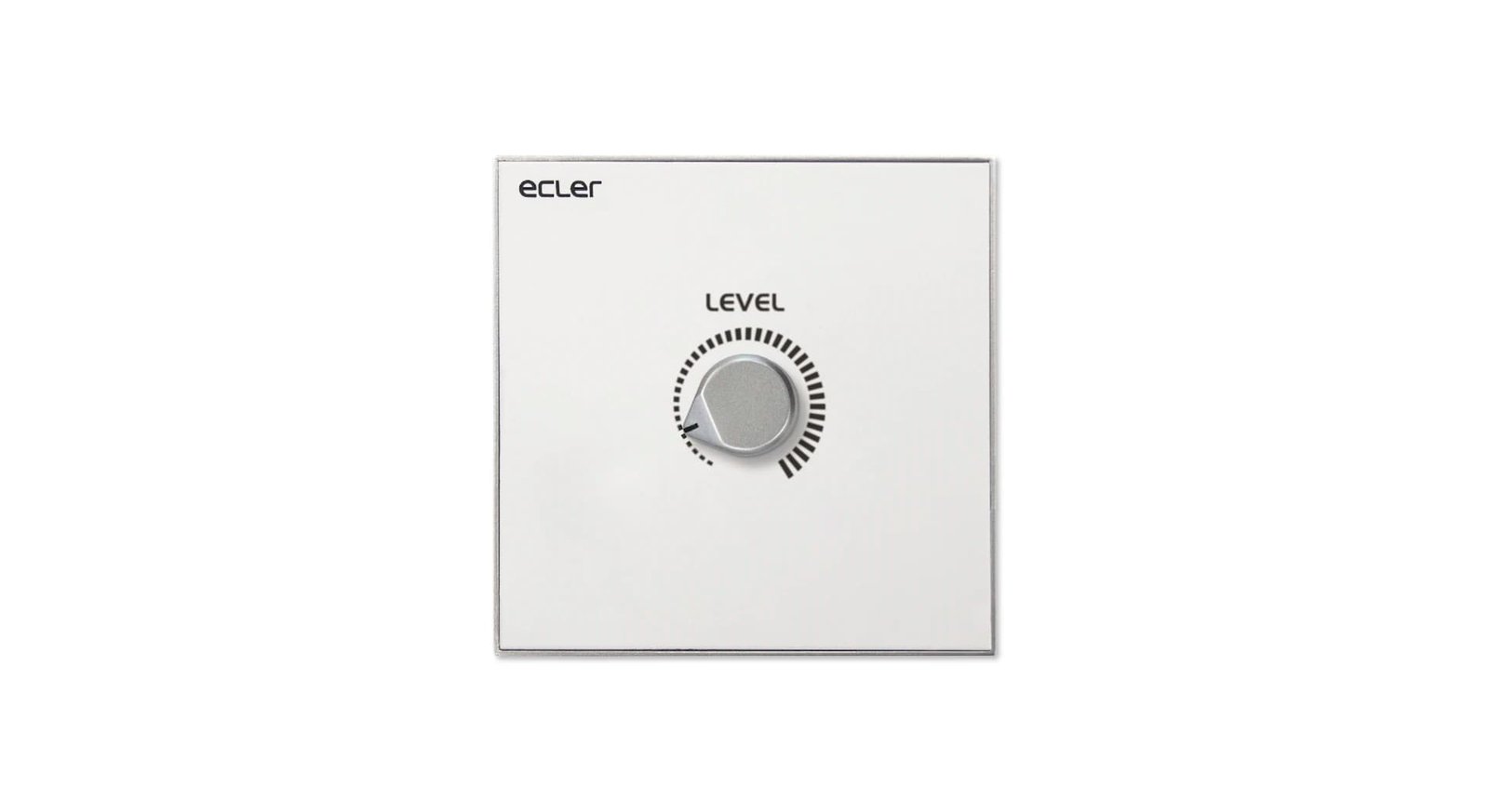

Ecler WPaVOL-J remote wall volume control with mini-jack

The Ecler WPaVOL-J shares the same core specifications as the standard WPaVOL wall panel volume control, adding a front-panel stereo 1/8-inch mini-jack connector for convenient local audio source connection. This makes it a practical choice for meeting rooms, classrooms or presentation spaces where visitors may want to connect a personal device.

Like the rest of the WPa series, the WPaVOL-J is compatible with any Ecler device offering a 0-10V DC REMOTE control port, including MPA-R, ALMA, MIMO88/SG, NXA series, CA series and GPA series products, giving it broad compatibility across Ecler’s distributed audio ecosystem.

The elegant, discreet design, developed in collaboration with Italdesign Giugiaro, keeps the added mini-jack connector visually integrated into the panel, avoiding the cluttered look of a separately mounted input jack. A surface-mount installation box is included for straightforward fitting.

By combining local volume control with a convenient audio input point, the WPaVOL-J is well suited to huddle rooms, training spaces and hospitality environments where guests need quick, temporary access to the sound system alongside standard background music control.

Features of WPaVOL-J

• Remote wall panel control for single-zone volume
• Front-panel stereo 1/8-inch mini-jack input
• Compatible with any 0-10VDC REMOTE control port
• Compatible with MPA-R, ALMA, MIMO88/SG, NXA, CA, GPA series
• Elegant, discreet design by Italdesign Giugiaro

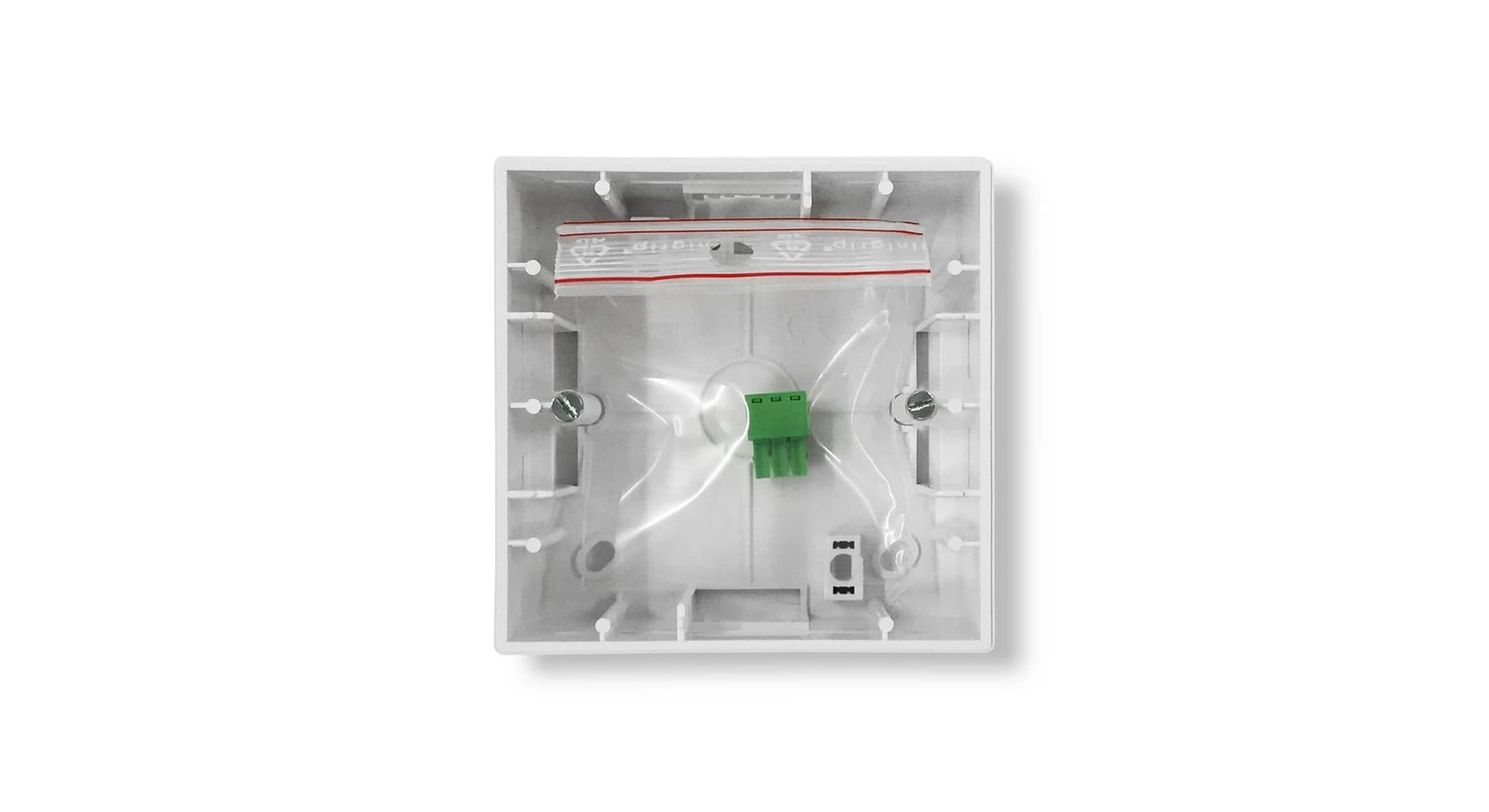

• Surface-mount installation box included

Specifications of WPaVOL-J
