Description

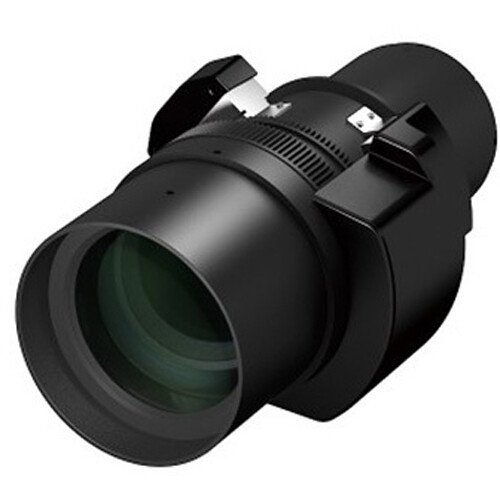

Epson ELPLL08 Long-Throw Zoom Lens
The Epson ELPLL08 Long-Throw Zoom Lens is designed for professional large-venue projection where long-distance installation and exceptional image quality are required. Built for Epson Pro Series projectors with brightness levels up to 20,000 lumens, this interchangeable lens supports projection sizes up to 1000 inches while providing installation flexibility for auditoriums, conference centers, museums, houses of worship, and other commercial environments.
The lens features a long-throw optical design with multiple throw ratios to support a wide range of compatible projector models. It offers a throw ratio of 7.21 to 10.11:1 for WUXGA and WXGA projectors up to 8,500 lumens, 5.27 to 7.41:1 for 9,000- to 20,000-lumen WUXGA projectors, and 5.09 to 7.16:1 for Epson EB-PQ Series 4K projectors. The motorized 1.0 to 1.4 zoom ratio enables accurate image sizing while maintaining installation flexibility without relocating the projector.
With a focal length ranging from 119 mm to 165.4 mm and an aperture of f/1.8 to f/2.5, the ELPLL08 delivers bright, detailed images across large projection surfaces. Wide lens shift capabilities further simplify installation, supporting vertical adjustment up to ±60% and horizontal adjustment up to ±18% on compatible high-lumen models, with even greater adjustment ranges available on selected projector series.
Designed for demanding professional installations, the Epson ELPLL08 combines precision optics, durable construction, and interchangeable compatibility with Epson Pro Series projectors. Its motorized optical controls and long-throw performance make it an excellent solution for applications requiring flexible projector placement while maintaining outstanding image clarity on very large screens.
Features of ELPLL08
- Long-throw zoom lens design
- Compatible with Epson Pro Series projectors
- Supports projectors up to 20,000 lumens
- Interchangeable professional lens
- Motorized zoom operation
- Supports screens up to 1000 inches
- Long-distance projection capability
- 1.0 to 1.4 zoom ratio
- Wide vertical lens shift
- Horizontal lens shift adjustment
- f/1.8 to f/2.5 aperture
- 119 mm to 165.4 mm focal length
- Optimized for large venue installations
- Compatible with EB-PQ Series 4K projectors
- Precise optical performance
- Flexible installation positioning
Specifications of ELPLL08
| Model | V12H004L08 |
| Lens Type | Long-Throw, Zoom |
| Compatibility | Epson Pro Series Projectors (up to 20,000 lumens) |
| Motorized | Yes |
| Throw Ratio (Up to 8,500 lm, WUXGA/WXGA) | 7.21 to 10.11:1 |
| Throw Ratio (9,000–20,000 lm, WUXGA) | 5.27 to 7.41:1 |
| Throw Ratio (EB-PQ Series 4K) | 5.09 to 7.16:1 |
| Aperture | f/1.8 to f/2.5 |
| Focal Length | 119 mm to 165.4 mm |
| Maximum Projection Size | Up to 1000 in. (2540 cm) |
| Zoom Ratio | 1.0 to 1.4 |
| Horizontal Lens Shift (Up to 8,500 lm) | ±30% |
| Vertical Lens Shift (Up to 8,500 lm) | ±67% |
| Horizontal Lens Shift (9,000–20,000 lm) | ±18% |
| Vertical Lens Shift (9,000–20,000 lm) | ±60% |
| Horizontal Lens Shift (EB-PQ Series 4K) | ±16% |
| Vertical Lens Shift (EB-PQ Series 4K) | ±58% |
| Product Weight | 4.9 lb (2.2 kg) |
| Package Weight | 6.105 lb |
| Package Dimensions (L × W × H) | 14 × 9.3 × 9.1 in. |
