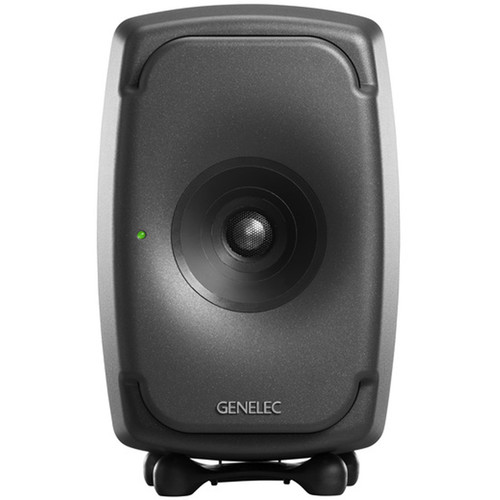

Genelec 8331AP Dark Grey 3-Way Coaxial SAM/DSP Studio Monitor
Genelec 8331AP Dark Grey 3-Way Coaxial SAM/DSP Studio Monitor delivers unmatched precision and clarity with a compact design. Featuring Genelec’s advanced coaxial driver technology, it ensures phase accuracy and perfect imaging for professional studio environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 12,223.68 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
The Genelec 8331AP Dark Grey 3-Way Coaxial SAM/DSP Studio Monitor delivers precise and consistent monitoring performance in small to medium-sized control rooms. Featuring coaxial three-way design with integrated Smart Active Monitoring (SAM™) DSP, the 8331AP provides accurate imaging, wide sweet spot, and extended frequency response. Its coaxial driver arrangement minimizes phase and time differences between drivers, ensuring clarity and detail across the entire audible spectrum.
APPLICATIONS –
- Professional Recording Studios: Ideal for mixing, mastering, and production in compact control rooms.
- Post-Production Suites: Provides precise monitoring for film, TV, and game audio projects.
- Broadcast Control Rooms: Ensures accurate and reliable audio reproduction for radio, TV, and live production monitoring.
- Immersive Audio Systems: Integrates with multi-channel setups such as 5.1, 7.1, and Dolby Atmos® environments.
- Educational & Research Facilities: Suitable for audio training programs, labs, and research requiring reference-level monitoring.
- Home & Project Studios: Enables professional-grade monitoring in small spaces with limited acoustic treatment.
FEATURES –
- Coaxial 3-way design for minimal phase and time distortion
- SAM™ DSP for room calibration, level matching, and alignment
- High SPL capability for small to medium control rooms
- Integrated GLM™ network control for system optimization
- Die-cast aluminum enclosure for rigidity and minimal resonance

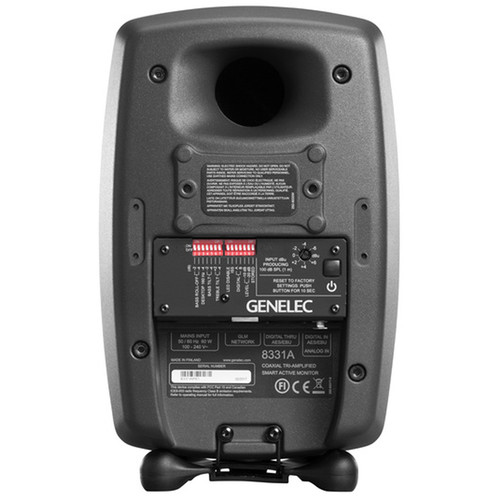

- XLR Analog and AES/EBU Digital inputs for flexible connectivity
- Frequency range: 38 Hz – 25 kHz (-6 dB)
- Integrated protection circuits for thermal and overload protection
- Adjustable bass tilt and treble tilt for room-specific tuning
- Compact form factor suitable for small control rooms or mobile setups
- Wide sweet spot with coaxial driver for consistent imaging off-axis
SPECIFICATIONS –
| Category | Specification |
|---|---|
| Monitor Type & Configuration | Active 3-Way Coaxial SAM™ Studio Monitor |
| Total Power Output | 200 W (LF 100 W + MF 50 W + HF 50 W, Class D) |
| Woofer | 1x 6.5″ / 165 mm Cone |
| Midrange Driver | 1x 3″ / 75 mm Cone Coaxial |
| Tweeter | 1x 0.75″ / 19 mm Metal Dome Coaxial |
| Frequency Range | 38 Hz – 25 kHz (-6 dB) |
| Frequency Response | 45 Hz – 22 kHz (±2.5 dB) |
| Maximum SPL | 111 dB (Short Term) |
| Crossover Frequency | 850 Hz / 3.2 kHz |
| THD (Total Harmonic Distortion) | <0.05% |
| Analog Inputs | 1x XLR Balanced Input |
| Digital Inputs | 1x XLR AES/EBU Input, 1x XLR AES/EBU Thru |
| Network I/O | 2x RJ45 for GLM™ Control Network |
| Enclosure Type | Ported Die-Cast Aluminum |
| Material | Die-Cast Aluminum |
| AC Input Power | 100–240 VAC, 50/60 Hz |
| Power Consumption | 0.5 W (Standby), 5 W (Idle), 200 W (Maximum) |
| Dimensions (W x H x D) | 221 x 326 x 221 mm / 8.7″ x 12.8″ x 8.7″ |
| Weight | 9.6 kg / 21.2 lb |
| Color | Dark Grey |
| Included Accessories | Power Cable, Isolation Stand, GLM™ Network Cable, User Manual |
