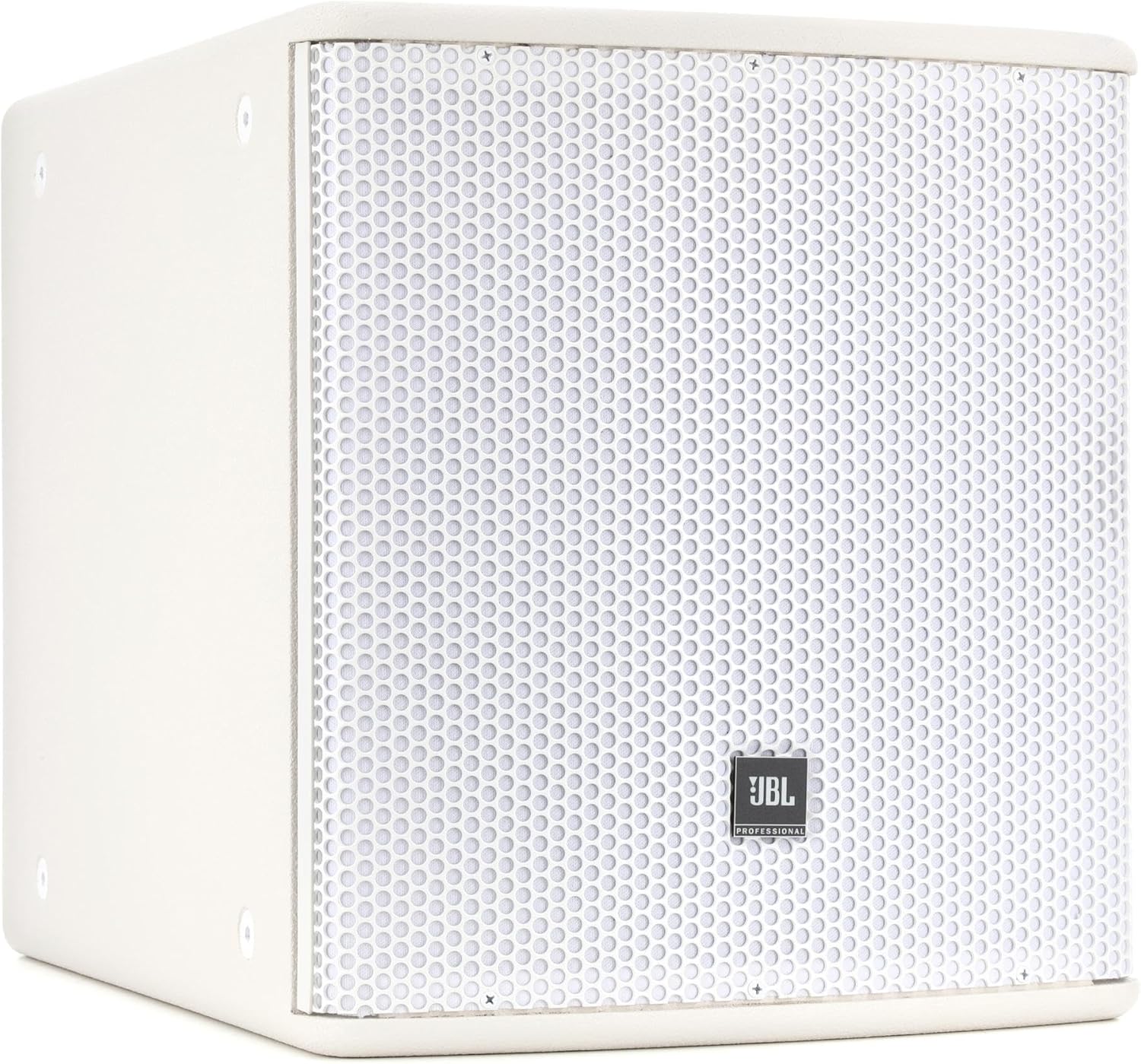

JBL ASB6112-WH Compact 12-inch Subwoofer – White
The JBL ASB6112 12-inch Subwoofer in white is an ultra-compact, high-power system with a 2263H Differential Drive woofer, neodymium magnet, and dual voice coil, delivering precise low-frequency output for professional audio setups.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 11,105.04 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL ASB6112 12-inch Subwoofer
JBL ASB6112 12-inch Subwoofer in white is an ultra-compact, high-power subwoofer designed for professional audio applications. It features a 2263H Differential Drive® 12″ woofer with dual 75 mm (3 in) voice coils, dual magnetic gap, and a neodymium magnet, offering high performance and long-lasting reliability. The subwoofer is housed in a multi-ply hardwood cabinet with a durable DuraFlex™ white finish and protected by a 14-gauge perforated steel grille.
The front-loaded, vented design enables extended low-frequency response with minimal distortion. The system includes 16 M10 threaded suspension points for flexible installation, while FIR tuning aligns the phase profile with JBL AE Series full-range speakers. Suitable for ground-stacked or suspended applications, it can be used as a stand-alone subwoofer or integrated into arrays. Ideal for theaters, performing arts venues, clubs, houses of worship, and themed entertainment spaces. Origin of country mexico.
Features of ASB6112
2263H 12″ Differential Drive® dual voice coil, dual gap, neodymium magnet driver
1000 W continuous pink noise, 4000 W peak power handling
Front-loaded, vented cabinet for high output with low distortion
FIR tuning for phase alignment with full-range AE Series models
Suitable for ground-stacked or suspended applications, stand-alone or in arrays
Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply birch plywood
16 M10 threaded suspension points
White DuraFlex™ finish with acoustically transparent black foam-backed 14-gauge steel grille
Specifications of ASB6112
| Frequency Range (-10 dB) | 35 Hz – 1 kHz |
| Frequency Response (±3 dB) | 43 Hz – 1 kHz |
| Transducer Power Rating (AES) | 1000 W (4000 W peak), 2 hrs |
| System Power Rating | 700 W (2800 W peak), 100 hrs |
| Maximum SPL (1 m) | 40 Hz – 300 Hz: 126 dB cont avg (132 dB peak) |
| System Sensitivity | 40 Hz – 300 Hz: 96 dB SPL, 1 W (2.83 V) @ 1 m |
| Nominal Impedance | 8 ohms |
| LF Driver | 1 x 2263H 305 mm (12 in), 75 mm (3 in) dual voice coil dual gap neodymium Differential Drive® driver |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply birch plywood |
| Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware |
| Finish | White DuraFlex™ finish |
| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon® and CE-compliant barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | 406 x 369 x 483 mm (16 x 14.5 x 19 in) |
| Net Weight | 16.3 kg (36 lb) |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers |
| Nominal LF Driver Impedance | 8 ohms |
| Origin of Country | Mexico |
