JBL ASB6112 Compact 12-inch Subwoofer – Black
The JBL ASB6112 12-inch Subwoofer in black is an ultra-compact, high-power system with a 2263H Differential Drive woofer, neodymium magnet, and dual voice coil, delivering precise low-frequency output for professional audio setups.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 11,105.04 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

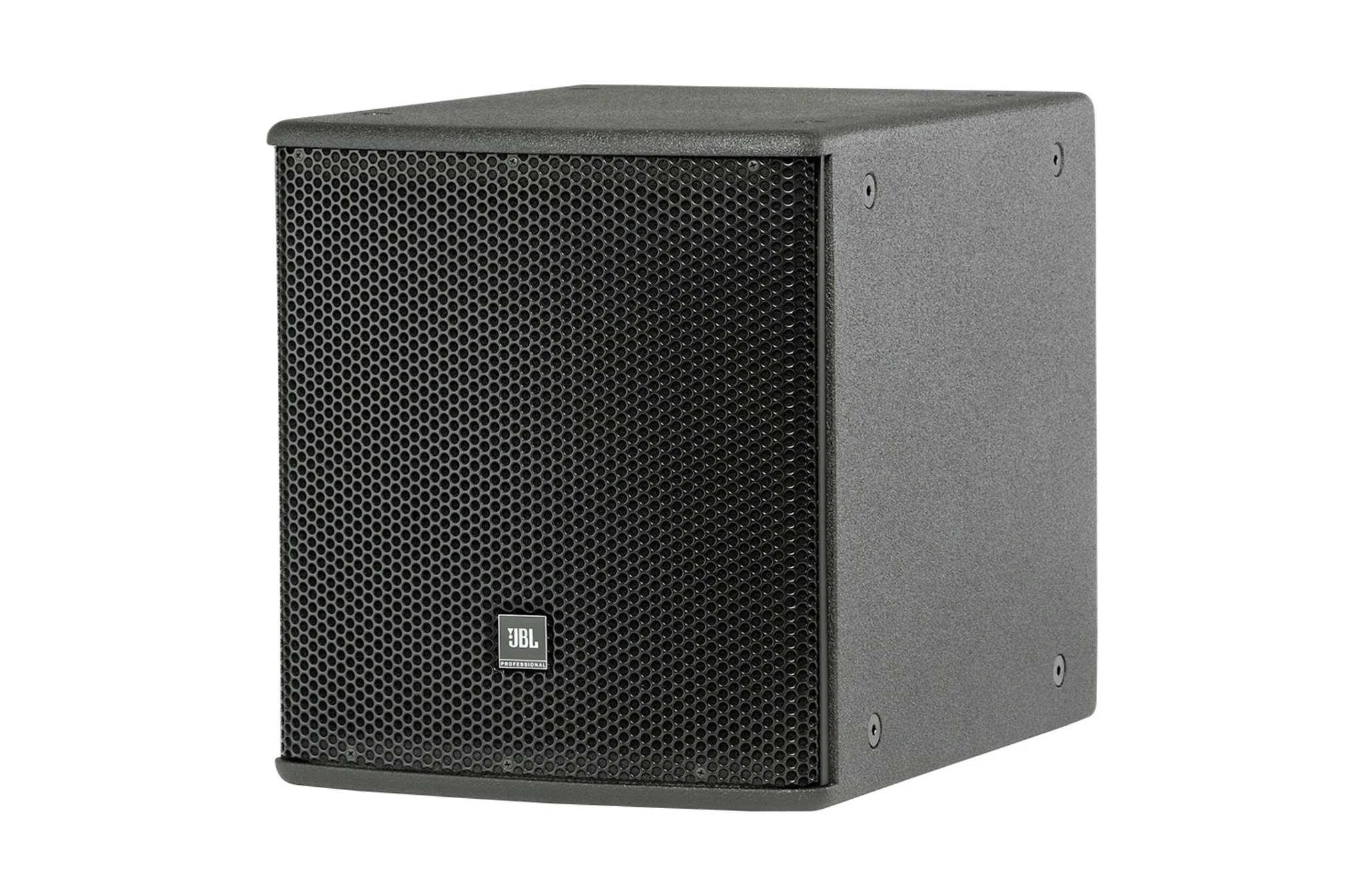

JBL ASB6112 12-inch Subwoofer
JBL ASB6112 12-inch Subwoofer in black is an ultra-compact, high-power subwoofer designed for professional installations. It houses a 2263H Differential Drive® 12″ woofer featuring a dual 75 mm (3 in) voice coil, dual magnetic gap, and a neodymium magnet for exceptional performance and long-term reliability. The subwoofer is enclosed in a multi-ply hardwood cabinet finished with JBL’s durable DuraFlex™ coating, and protected by a 14-gauge perforated steel grille.
The front-loaded, vented design allows extended low-frequency bandwidth with minimal distortion, and the system includes 16 M10 threaded suspension points for versatile mounting options. FIR tuning ensures the phase profile matches full-range JBL AE Series loudspeakers, making it suitable for ground-stacked or suspended applications, either stand-alone or integrated into arrays. Ideal for theaters, performing arts venues, clubs, houses of worship, and themed entertainment spaces. Origin of country mexico.
Features of ASB6112

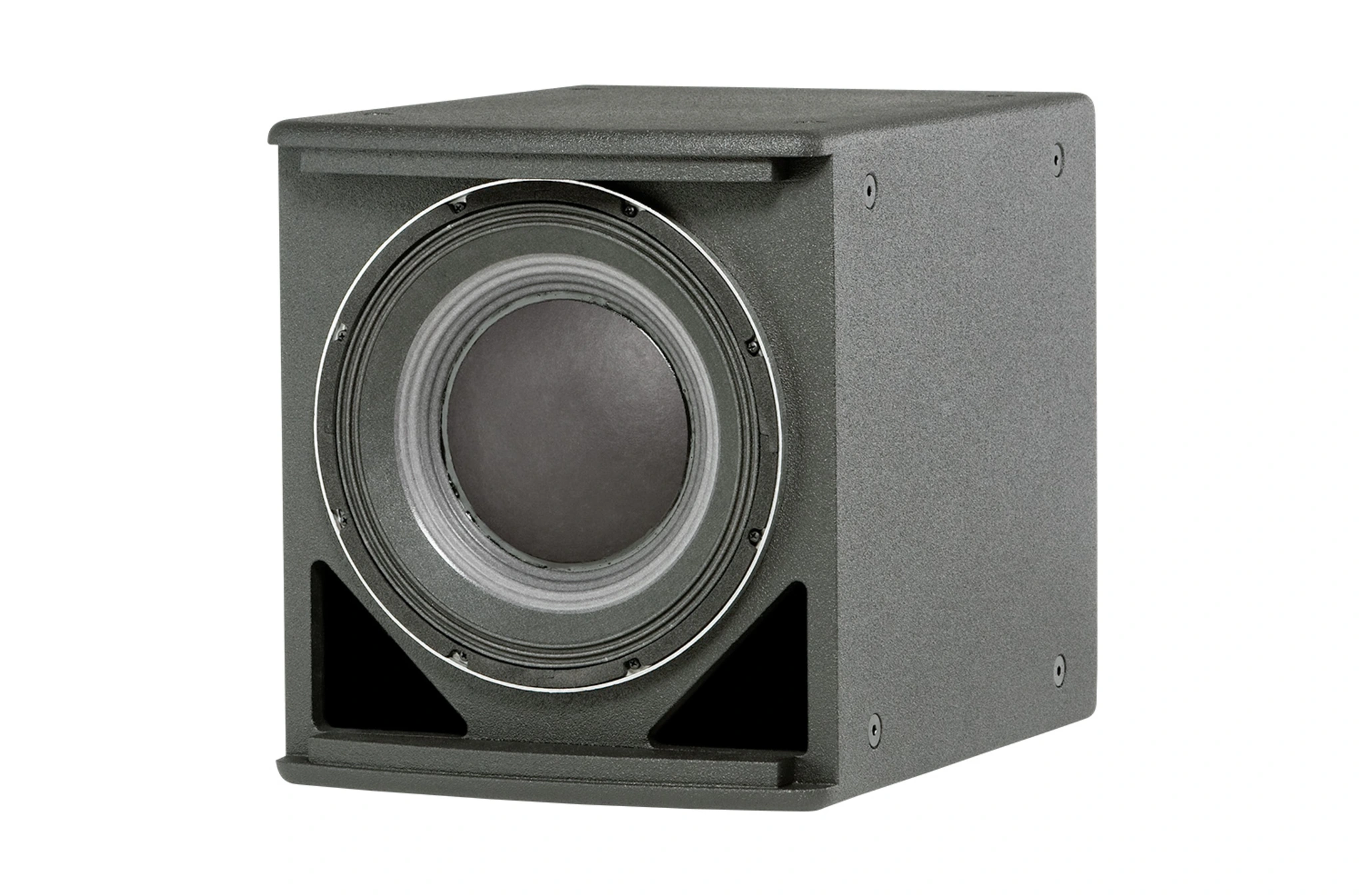

2263H 12″ Differential Drive® dual voice coil, dual gap, neodymium magnet driver
1000 W continuous pink noise, 4000 W peak power handling
Front-loaded, vented enclosure with large vent area for high output and low distortion
FIR tuning for phase alignment with full-range models
Suitable for ground-stacked or suspended applications, in arrays or combined with AE Series products
Rectangular cabinet made from 16 mm (5/8 in) exterior-grade 11-ply birch plywood
16 M10 threaded suspension points
Black DuraFlex™ finish with acoustically transparent black foam-backed 14-gauge steel grille
Specifications of ASB6112
| Frequency Range (-10 dB) | 35 Hz – 1 kHz |
| Frequency Response (±3 dB) | 43 Hz – 1 kHz |
| Transducer Power Rating (AES) | 1000 W (4000 W peak), 2 hrs |
| System Power Rating | 700 W (2800 W peak), 100 hrs |
| Maximum SPL (1 m) | 40 Hz – 300 Hz: 126 dB cont avg (132 dB peak) |
| System Sensitivity | 40 Hz – 300 Hz: 96 dB SPL, 1 W (2.83 V) @ 1 m |
| Nominal Impedance | 8 ohms |
| LF Driver | 1 x 2263H 305 mm (12 in), 75 mm (3 in) dual voice coil dual gap neodymium Differential Drive® driver |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply birch plywood |
| Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware |
| Finish | Black DuraFlex™ finish (White available upon request) |
| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon® and CE-compliant barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | 406 x 369 x 483 mm (16 x 14.5 x 19 in) |
| Net Weight | 16.3 kg (36 lb) |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers |
| Nominal LF Driver Impedance | 8 ohms |
| Origin of Country | Mexico |
