JBL ASB6118 18-inch Subwoofer – Black
The JBL ASB6118 18-inch Subwoofer in black is a high-power, single-driver subwoofer featuring a 2242H SVG low-frequency driver, delivering deep, precise bass for professional audio installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 16,194.90 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

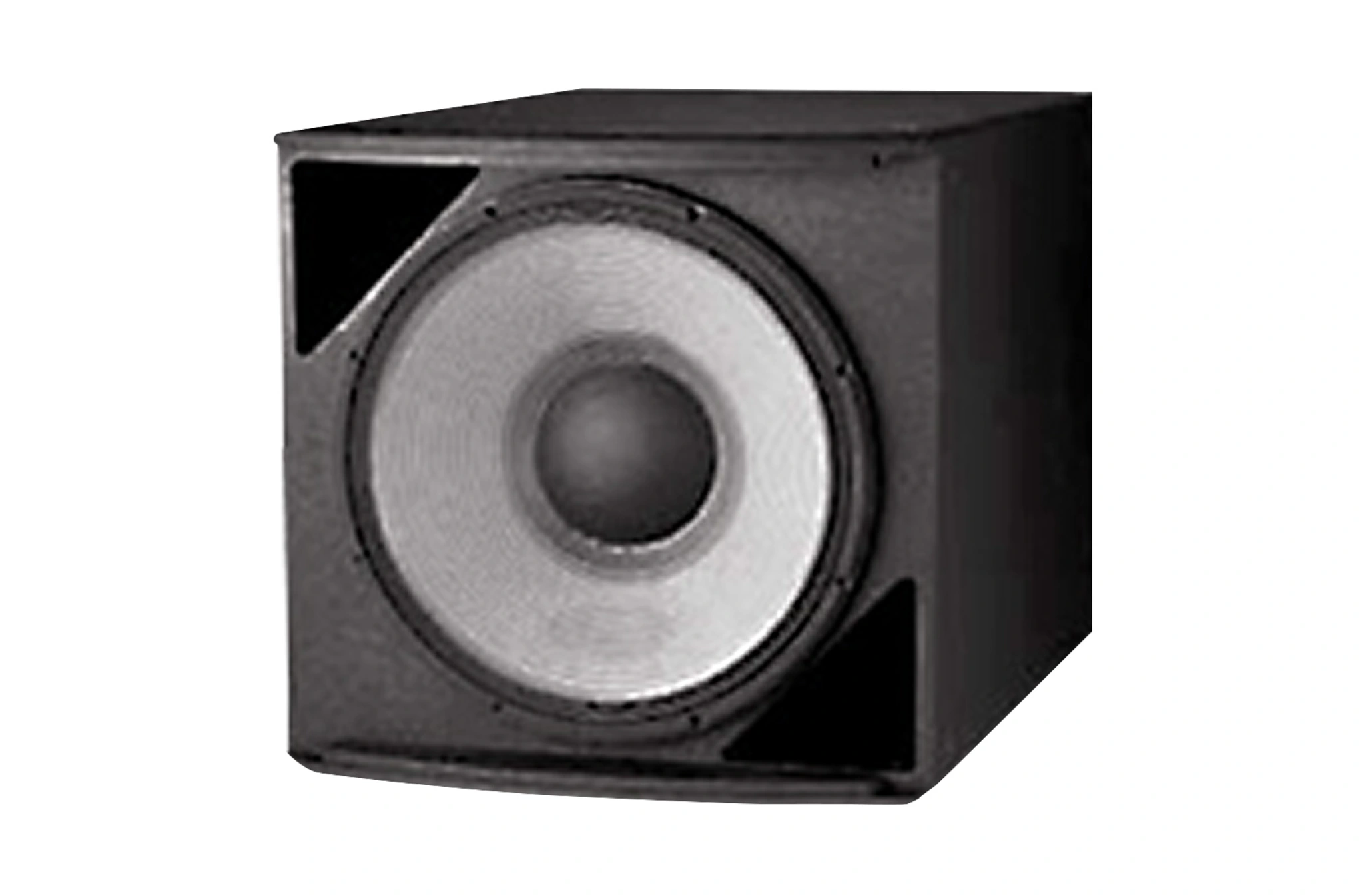

JBL ASB6118 18-inch Subwoofer
JBL ASB6118 18-inch Subwoofer in black is a high-power, single-driver subwoofer designed for professional fixed installations and live audio applications. It houses a 2242H 460 mm (18 in) SVG™ low-frequency driver with a 100 mm (4 in) voice coil in a front-loaded, vented cabinet, providing extended low-frequency bandwidth and high output with minimal distortion. The enclosure is constructed from 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood for durability and finished in black DuraFlex™.
The FIR Tuning Set ensures optimal phase alignment with JBL AE Series full-range loudspeakers, allowing seamless integration in arrays with AM6200 and AM4200 mid-high systems using optional PAF-2K planar array frame kits. This subwoofer is ideal for performing arts venues, theaters, auditoriums, houses of worship, live clubs, sports facilities, and themed entertainment spaces. Origin of country mexico.
Features of ASB6118
2242H 18″ SVG™ low-frequency driver with 100 mm (4 in) voice coil
Front-loaded, vented cabinet for deep bass and high output
FIR Tuning Set for phase alignment with full-range models
Suitable for standalone or arrayed configurations with AE Series loudspeakers
Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood
12 M10 threaded suspension points (3 top, 3 bottom, 3 each side, 2 rear)
Black DuraFlex™ finish
Specifications of ASB6118
| Frequency Range (-10 dB) | 28 Hz – 1 kHz |
| Frequency Response (±3 dB) | 35 Hz – 1 kHz |
| Transducer Power Rating (AES) | 1200 W (4800 W peak), 2 hrs |
| System Power Rating | 800 W (3200 W peak), 100 hrs |
| Maximum SPL (1 m) | 30 Hz – 100 Hz: 129 dB cont avg (135 dB peak) 100 Hz – 500 Hz: 129 dB cont avg (135 dB peak) |
| System Sensitivity (1 W @ 1 m) | 30 Hz – 100 Hz: 98 dB 100 Hz – 500 Hz: 98 dB |
| Nominal Impedance | 8 ohms |
| LF Driver | 1 x JBL 2242H 460 mm (18 in) SVG™ driver, 100 mm (4 in) voice coil |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood |
| Suspension Attachment | 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | Not specified |
| Net Weight | 44.5 kg (98 lbs) |
| Optional Accessories | Optional PAF-2K Planar Array Frame Kit |
| Origin of Country | Mexico |
