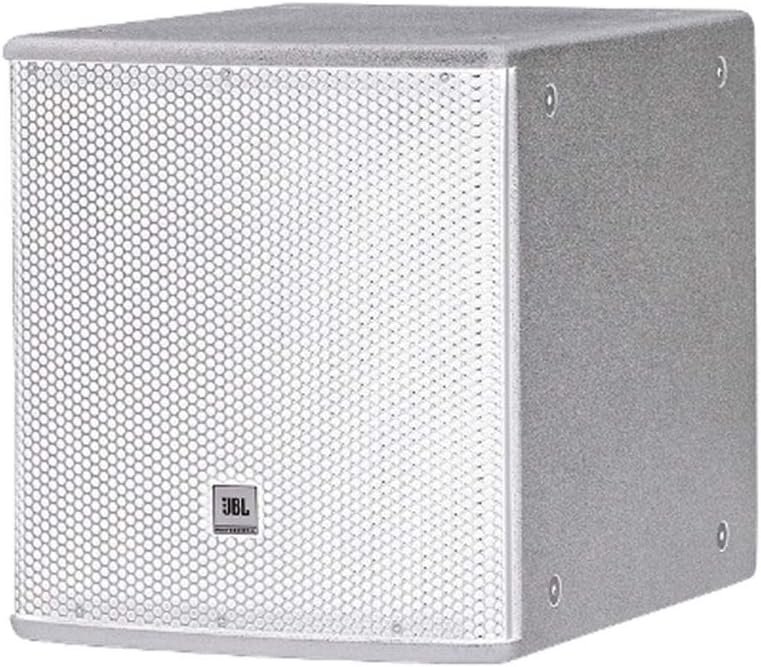

JBL ASB6118-WH 18-inch Subwoofer – White

JBL ASB6118 18-inch Subwoofer

JBL ASB6118 18-inch Subwoofer in white is a high-power, single 18-inch subwoofer system developed for demanding professional audio installations where deep, controlled bass response is required. It features one JBL 2242H SVG™ Super Vented Gap low-frequency driver measuring 460 mm (18 in) with a large 100 mm (4 in) voice coil. The front-loaded, vented enclosure design allows extended low-frequency bandwidth while maintaining high efficiency and low distortion at elevated sound pressure levels.

The cabinet is constructed from 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood, offering excellent structural rigidity and long-term durability. The white DuraFlex™ finish provides a clean, professional appearance suitable for visually sensitive venues such as theaters, houses of worship, and performance halls. The design supports seamless integration with JBL AE Series mid-high loudspeakers, including AM6200 and AM4200 models, when used with optional PAF-2K planar array frame kits.

The FIR Tuning Set enables accurate phase matching with compatible full-range systems, ensuring consistent low-frequency alignment within complex sound reinforcement arrays. With multiple M10 suspension points, the ASB6118 can be safely installed in fixed or flown configurations, making it well suited for auditoriums, live clubs, sports facilities, and themed entertainment venues. Origin of country mexico.

Features of ASB6118

• Single 18-inch JBL 2242H SVG™ low-frequency driver

• Front-loaded, vented enclosure for extended bass response

• FIR tuning for phase compatibility with full-range loudspeakers

• Designed for fixed installation and array applications

• Rectangular cabinet made from 16 mm (5/8 in) Finnish birch plywood

• Twelve M10 threaded suspension points for secure mounting

• White DuraFlex™ finish
