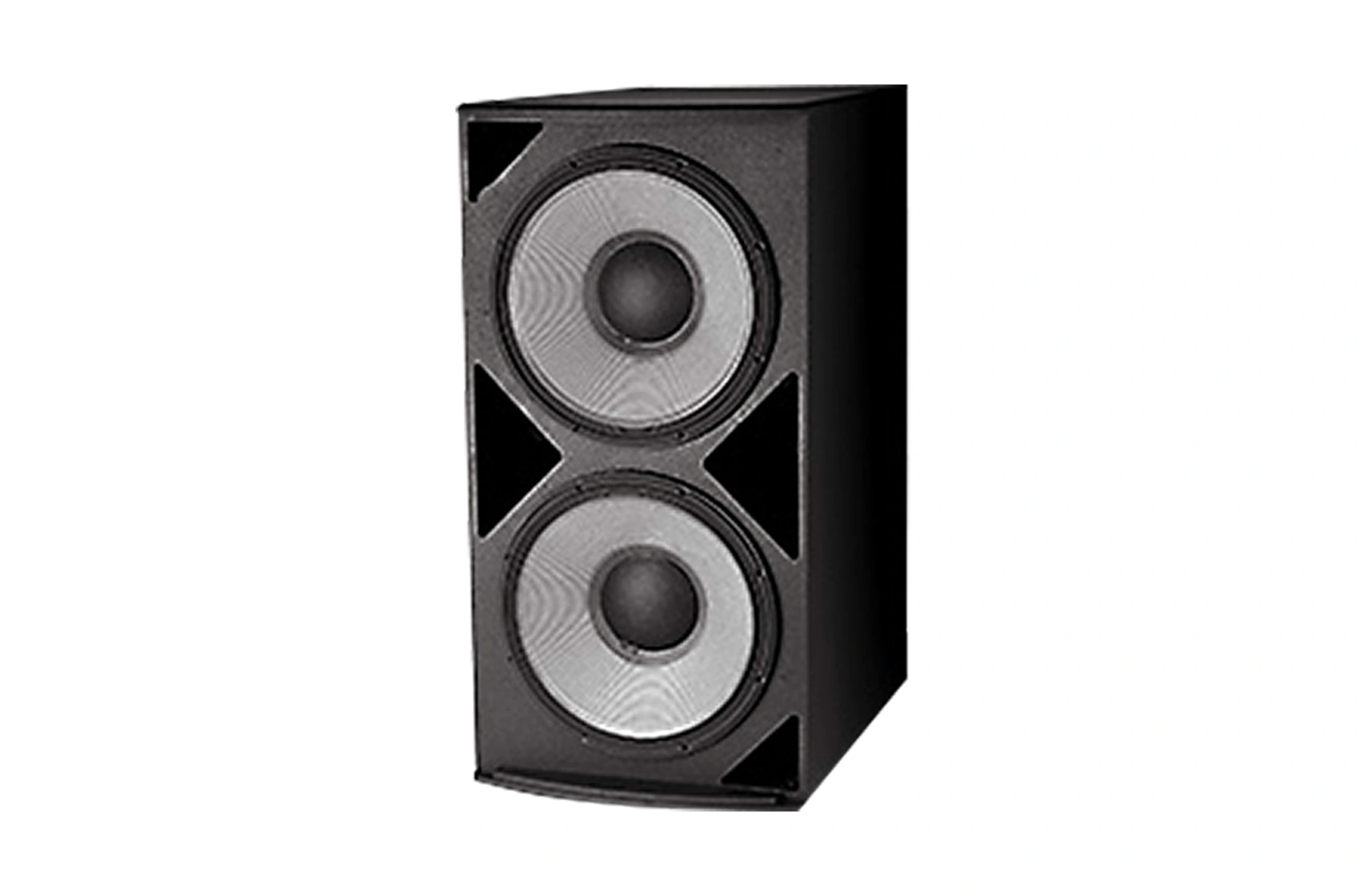

JBL ASB6128 Dual 18-inch Subwoofer – Black
The JBL ASB6128 Dual 18-inch Subwoofer is a high-power, front-loaded subwoofer system engineered to deliver massive, controlled low-frequency output for professional fixed-installation sound applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 25,496.99 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL ASB6128 Dual 18-inch Subwoofer
JBL ASB6128 Dual 18-inch Subwoofer is a high-performance subwoofer system designed for large-scale professional audio installations requiring deep, powerful, and accurate bass reproduction. It is equipped with two JBL 2242H 460 mm (18 in) SVG™ Super Vented Gap low-frequency drivers, each featuring a 100 mm (4 in) voice coil for exceptional power handling, thermal stability, and reduced power compression during sustained high-output operation.
The system utilizes a front-loaded, vented enclosure design that delivers extended low-frequency bandwidth while maintaining tight and controlled bass response. A large vent area supports high acoustic output with low distortion, making the ASB6128 suitable for demanding environments such as performing arts centers, auditoriums, worship facilities, sports venues, live clubs, and themed entertainment installations.
The enclosure is constructed from 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood, ensuring excellent rigidity, durability, and long-term reliability in permanent installations. The subwoofer supports parallel or discrete driver input modes, providing flexibility in system configuration and amplifier matching. FIR tuning allows precise phase alignment with compatible JBL full-range loudspeakers, improving overall system coherence and low-frequency integration.
Multiple M10 threaded suspension points enable secure and versatile rigging options, while compatibility with optional planar array frame kits allows seamless integration into arrayed loudspeaker systems. Origin of country mexico.
Features of ASB6128
Dual JBL 2242H 18-inch SVG™ Super Vented Gap low-frequency drivers
Front-loaded vented enclosure for extended low-frequency performance
Large vent area for high output with low distortion
Parallel or discrete driver input mode selection
FIR tuning for optimized phase matching with full-range systems
Rugged birch plywood enclosure for professional fixed installations
Multiple M10 threaded suspension points for flexible rigging
Specifications of ASB6128
| Frequency Range (-10 dB) | 28 Hz – 1 kHz |
| Frequency Response (±3 dB) | 35 Hz – 1 kHz |
| Transducer Power Rating (AES) | 2400 W (9600 W peak), 2 hrs |
| System Power Rating | 1600 W (6400 W peak), 100 hrs |
| Maximum SPL (1 m) | 30 Hz – 100 Hz: 136 dB cont avg (142 dB peak); 100 Hz – 500 Hz: 136 dB cont avg (142 dB peak) |
| System Sensitivity (1 W @ 1 m) | 30 Hz – 100 Hz: 102 dB; 100 Hz – 500 Hz: 102 dB |
| Nominal Impedance | 4 ohms (parallel-drive mode), 2 x 8 ohms (discrete-drive mode) |
| LF Drivers | 2 x JBL 2242H, 460 mm (18 in) SVG™ drivers with 100 mm (4 in) voice coil |
| Input Modes | Drivers parallel / drivers discrete |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood |
| Suspension Attachment | 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Net Weight (each) | 73 kg (161 lb) |
| Origin of Country | Mexico |
