JBL ASB7118 High Power 18-inch Subwoofer – Black

JBL ASB7118 Ultra High-Power 18-inch Subwoofer

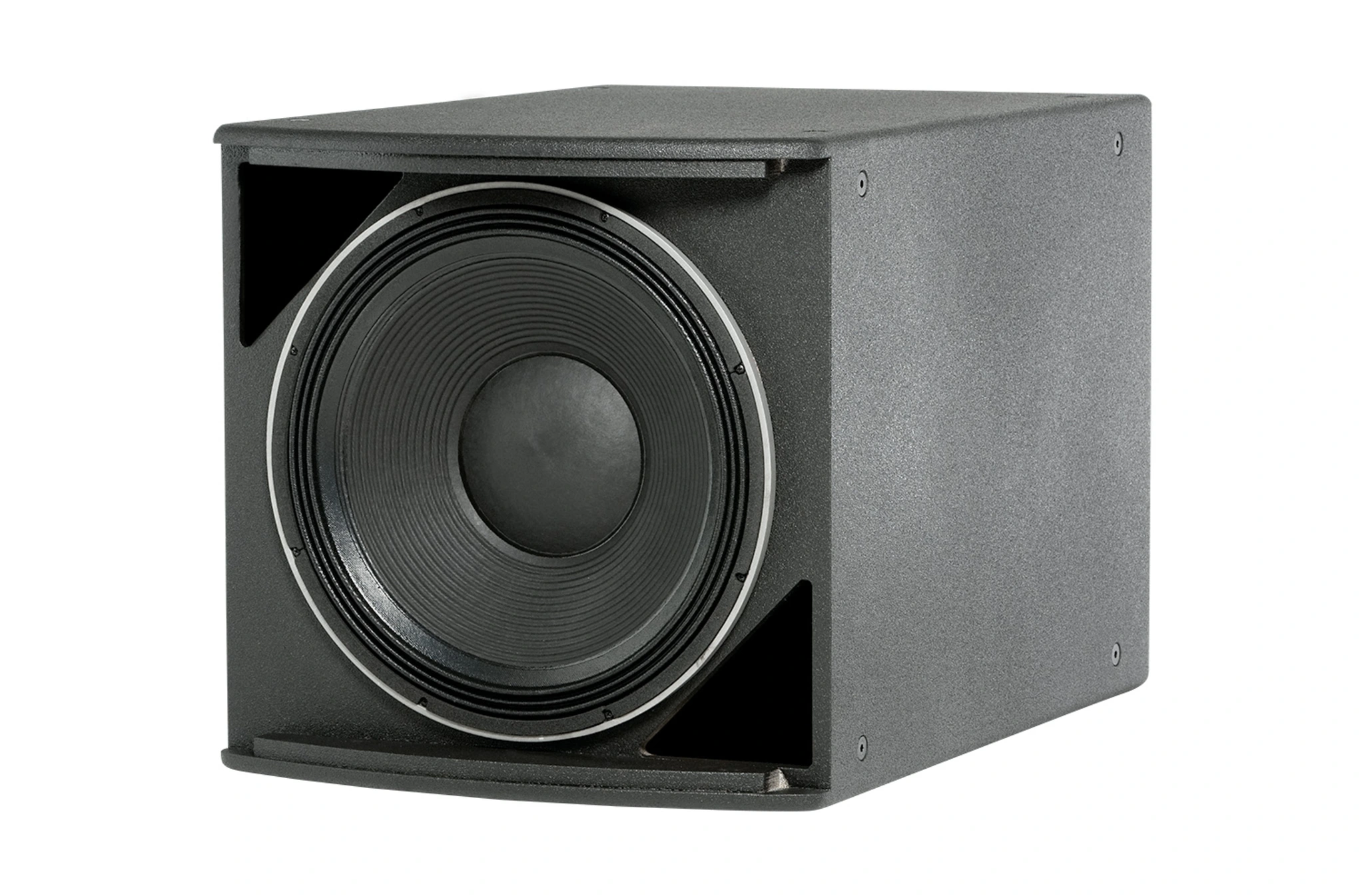

JBL ASB7118 Ultra High-Power 18-inch Subwoofer is a premium low-frequency system designed for large-scale professional audio environments that demand exceptional output, depth, and reliability. It features the advanced JBL 2269H Ultra Long Excursion 460 mm (18 in) Differential Drive® woofer, incorporating a 100 mm (4 in) dual voice coil with dual magnetic gaps and a neodymium magnet structure. JBL’s proprietary Vented Gap Cooling™ technology ensures superior heat dissipation, reduced power compression, and consistent performance during extended high-output operation.

The front-loaded, vented enclosure design provides extended low-frequency bandwidth while maintaining tight and controlled bass response. The ultra-robust composite cone supports extreme excursion capability, allowing a peak-to-peak excursion of up to 89 mm (3.5 in), delivering powerful and accurate low-end reproduction even at high sound pressure levels.

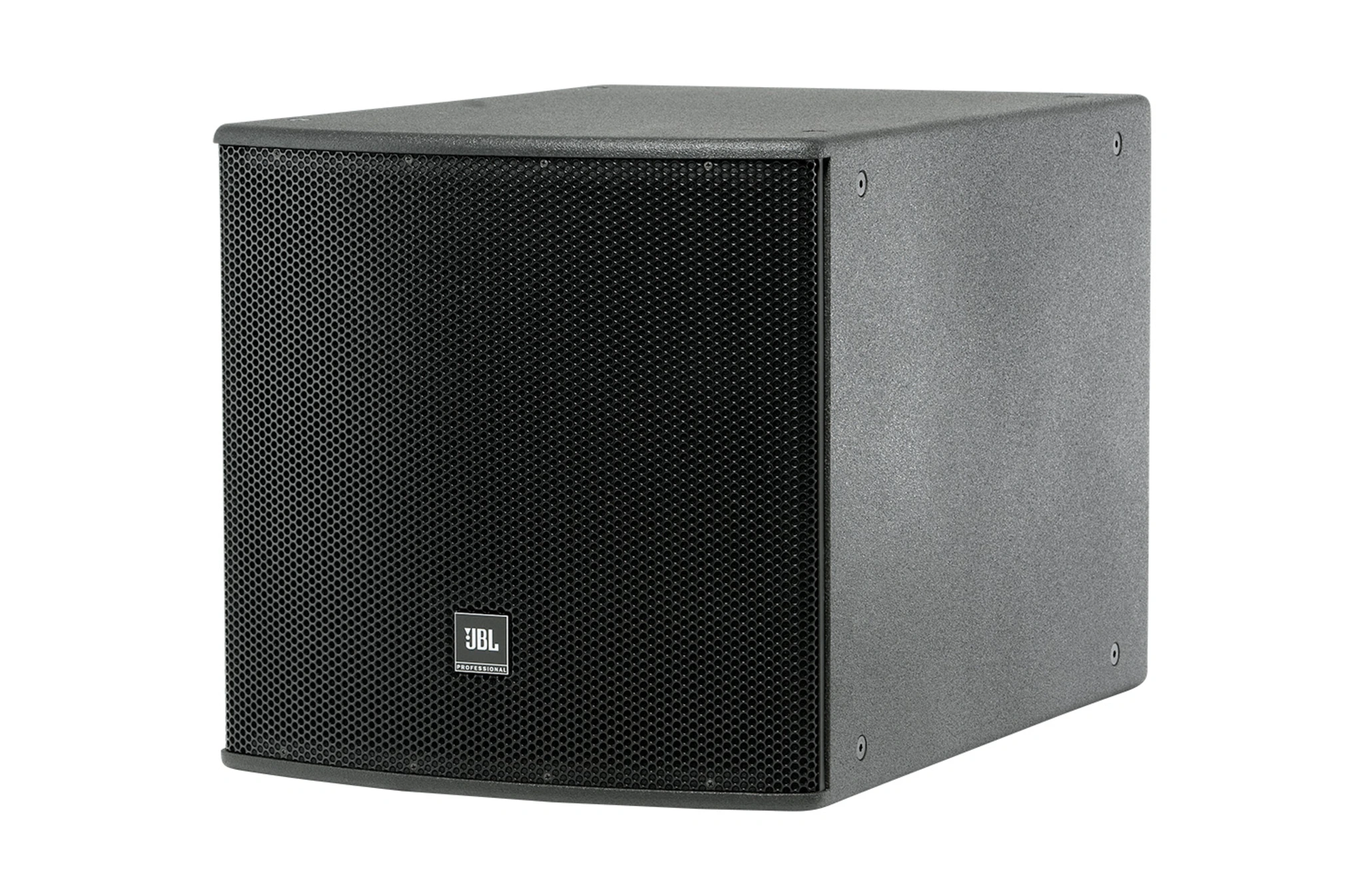

The enclosure is constructed from 16 mm (5/8 in) exterior-grade 11-ply birch plywood, offering excellent structural integrity and durability for fixed installations or suspended array systems. A durable DuraFlex™ finish and a 14-gauge perforated steel grille provide long-term protection in demanding professional environments. Sixteen M10 threaded suspension points allow flexible and secure rigging configurations for both ground-stacked and flown applications.

The ASB7118 integrates seamlessly with JBL AE Series full-range loudspeakers through FIR tuning, ensuring precise phase alignment and optimized system performance. This subwoofer is ideal for use in auditoriums, performing arts centers, houses of worship, sports facilities, live music venues, and themed entertainment installations. Origin of country mexico.

Features of ASB7118

• JBL 2269H 18-inch Differential Drive® Ultra Long Excursion woofer

• Dual voice coil, dual gap neodymium motor structure

• Vented Gap Cooling™ technology for reduced power compression

• Ultra-long excursion design for deep and powerful bass response

• Front-loaded vented enclosure for high output with low distortion

• FIR tuning compatibility with JBL full-range loudspeakers

• Durable birch plywood enclosure with DuraFlex™ finish

• Sixteen M10 threaded suspension points for flexible rigging

Specifications of ASB7118
