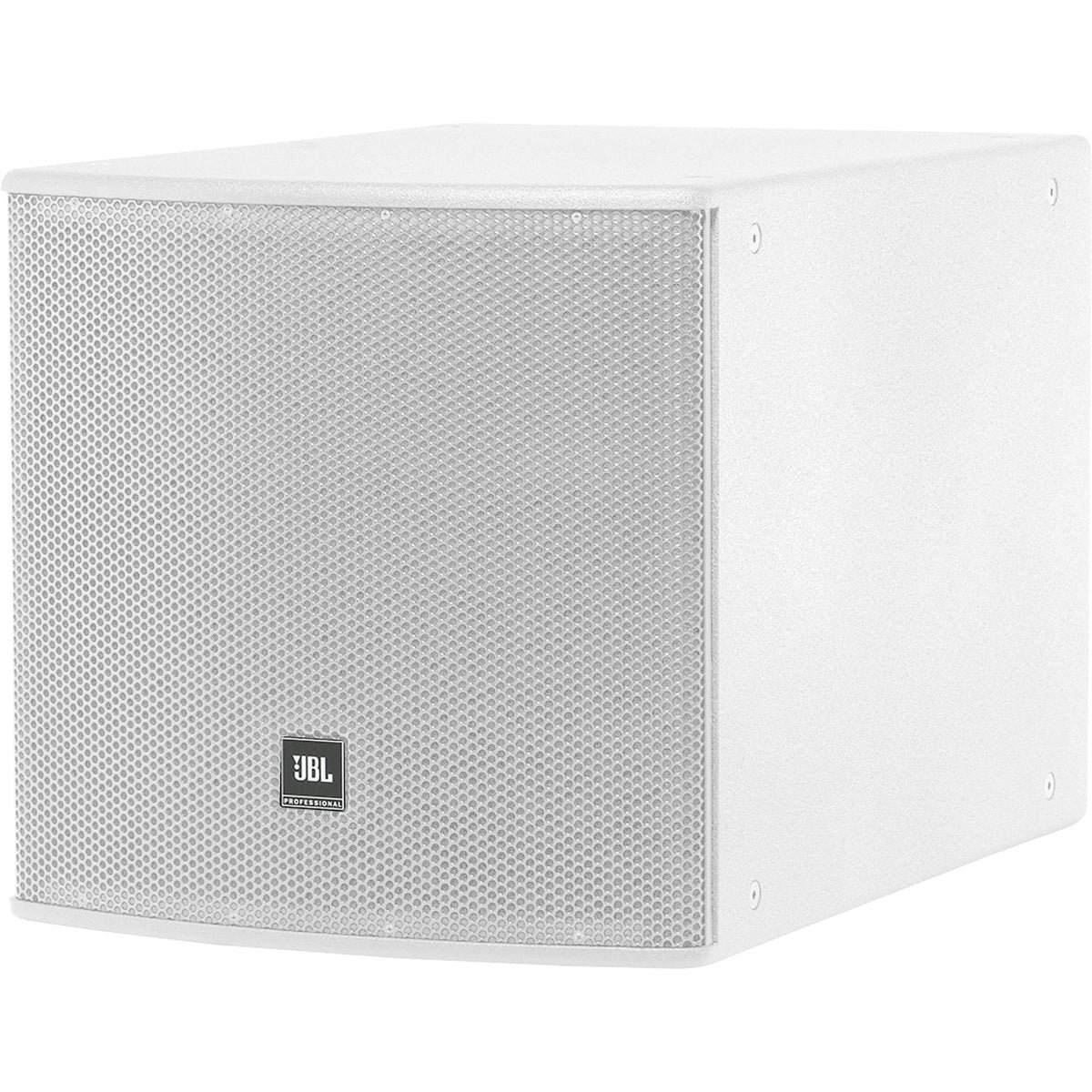

JBL ASB7118-WH High Power 18-inch Subwoofer – White

JBL ASB7118 Ultra High-Power 18-inch Subwoofer

JBL ASB7118 Ultra High-Power 18-inch Subwoofer in white is engineered for large-scale professional audio applications where deep, accurate, and high-impact low-frequency reproduction is essential. It is equipped with the advanced JBL 2269H Ultra Long Excursion 460 mm (18 in) Differential Drive® woofer, featuring a 100 mm (4 in) dual voice coil with a dual magnetic gap structure and neodymium magnet assembly. JBL’s proprietary Vented Gap Cooling™ technology ensures efficient heat dissipation, minimizes power compression, and maintains consistent performance during prolonged high-output use.

The front-loaded, vented cabinet design allows extended low-frequency bandwidth while preserving clarity and tight bass control at high sound pressure levels. Its ultra-rugged composite cone supports extreme excursion capability, enabling a peak-to-peak excursion of up to 89 mm (3.5 in) for powerful and precise bass reproduction.

The enclosure is constructed from 16 mm (5/8 in) exterior-grade 11-ply birch plywood, offering excellent structural strength and durability for fixed installations or flown array systems. A clean white DuraFlex™ finish and a 14-gauge perforated steel grille provide both visual elegance and long-term protection. Sixteen M10 threaded suspension points allow flexible and secure rigging options for ground-stacked or suspended configurations.

The ASB7118 integrates seamlessly with JBL AE Series full-range loudspeakers through FIR tuning, ensuring accurate phase alignment and optimized system performance. This subwoofer is ideally suited for auditoriums, performing arts venues, houses of worship, sports facilities, live entertainment spaces, and themed installations. Origin of country mexico.

Features of ASB7118

• JBL 2269H 18-inch Differential Drive® Ultra Long Excursion woofer

• Dual voice coil and dual gap neodymium motor structure

• Vented Gap Cooling™ technology for thermal stability

• Ultra-long excursion design for deep, high-impact bass

• Front-loaded vented enclosure for high output with low distortion

• FIR tuning compatibility with JBL full-range systems

• Durable birch plywood cabinet with white DuraFlex™ finish

• Sixteen M10 threaded suspension points for versatile rigging

Specifications of ASB7118
