JBL AW266 High Output 12″ 2-way Full-Range 60 x 60 Loudspeaker – GRAY
The JBL AW266 High Output 12-inch 2-Way Full-Range Loudspeaker in gray finish delivers powerful, weather-resistant performance with wide 60° x 60° coverage, ideal for demanding outdoor and indoor installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 26,226.01 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AW266 High Output 12-inch 2-Way Full-Range Loudspeaker (Gray Finish)

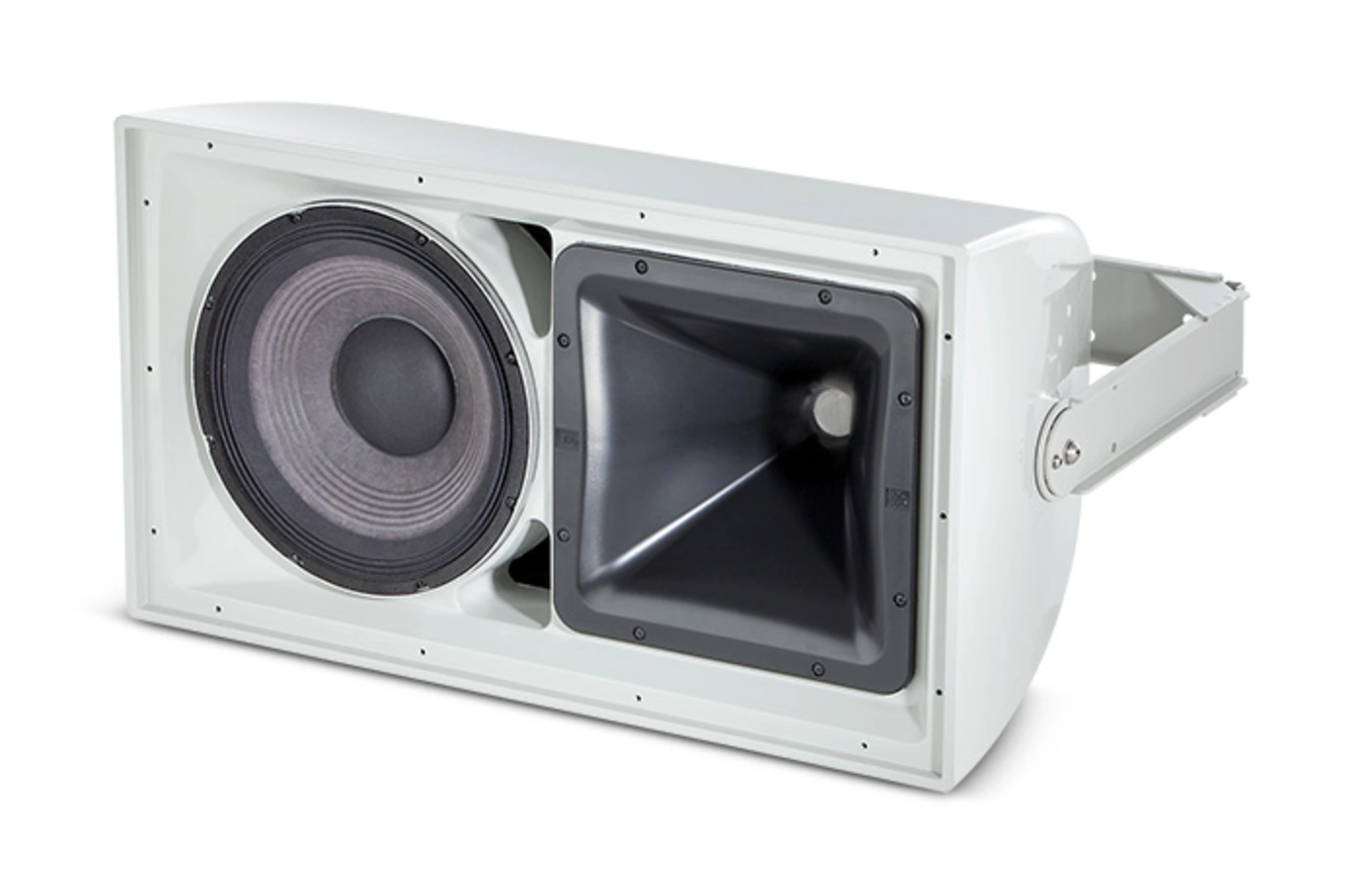

The JBL AW266 is a high-power, lightweight, 2-way full-range loudspeaker engineered for reliable operation in harsh environmental conditions. Designed as part of JBL’s AE Series, this loudspeaker combines robust construction with advanced transducer technology to deliver clear, high-output sound for professional installations. It features a JBL 2262H 300 mm (12 in) Differential Drive® low-frequency driver with a 75 mm (3 in) dual voice coil and dual magnetic gap structure, ensuring high efficiency, reduced power compression, and extended low-frequency performance.
High-frequency reproduction is handled by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil, providing detailed and controlled high-frequency response. A large Progressive Transition™ waveguide delivers consistent 60° x 60° coverage, allowing uniform sound distribution across wide listening areas. The system can be installed in either vertical or horizontal orientation, offering flexibility for various mounting requirements.

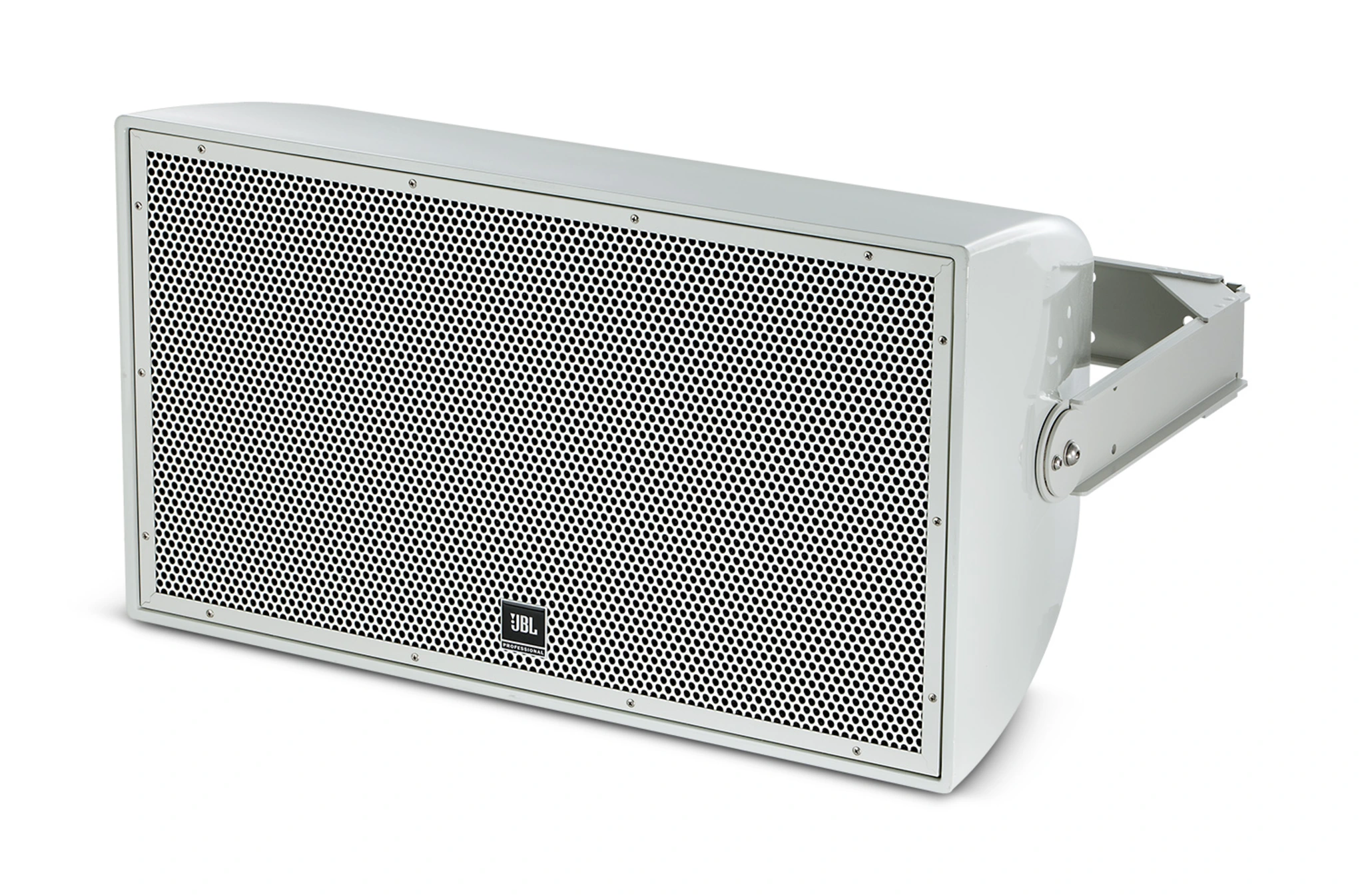

The enclosure is constructed from hand-laminated multilayer fiberglass with extensive internal bracing to maximize low-frequency output and structural integrity. A durable gray gelcoat finish enhances resistance to moisture, UV exposure, and physical wear. Protection is further reinforced by a three-layer stainless steel grille system backed with open-cell foam and stainless steel mesh.
The AW266 includes an integrated 400 W 70/100V transformer and a heavy-duty weather-treated U-type mounting bracket for straightforward installation on flat surfaces or corner placements. This loudspeaker is well suited for sports facilities, themed entertainment venues, outdoor entertainment centers, and water parks. Origin of country mexico.
Features of AW266
2-way full-range loudspeaker with weather-resistant design
JBL 2262H 12-inch Differential Drive® low-frequency driver
JBL 2432H high-frequency compression driver
Progressive Transition™ waveguide with 60° x 60° coverage
Hand-laminated fiberglass enclosure with internal bracing
Integrated 400 W 70/100V transformer
Gray gelcoat finish for outdoor durability
Stainless steel grille with foam and mesh backing
Flexible vertical or horizontal mounting options
Supplied heavy-duty U-type mounting bracket
Specifications of AW266
| Frequency Range (-10 dB) | 40 Hz – 20 kHz |
| Frequency Response (±3 dB) | 51 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 500 W (2000 W peak), 100 hrs |
| Maximum SPL (1 m) | 126 dB SPL (132 dB peak) |
| System Sensitivity (1 W @ 1 m) | 98 dB |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
| LF Driver | 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver, 75 mm (3 in) dual voice coil |
| Nominal LF Driver Impedance | 8 ohms |
| LF Driver Sensitivity | 96 dB SPL, 1 W @ 1 m |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal HF Driver Impedance | 8 ohms |
| HF Driver Sensitivity | 113 dB SPL, 1 W @ 1 m |
| Waveguide | PT-H66HF-1 |
| Enclosure | Hand-laminated fiberglass, gray gelcoat |
| Suspension Attachment | 2 x M10 for U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point |
| Grille | Three-layer stainless steel grille with foam and mesh backing |
| Input Connector | CE-compliant covered barrier strip terminals |
| Environmental | IP55C per IEC529 |
| Dimensions (H x W x D) | 409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in) |
| Net Weight (each) | 25.2 kg (55.5 lb) |
| Origin of Country | Mexico |
