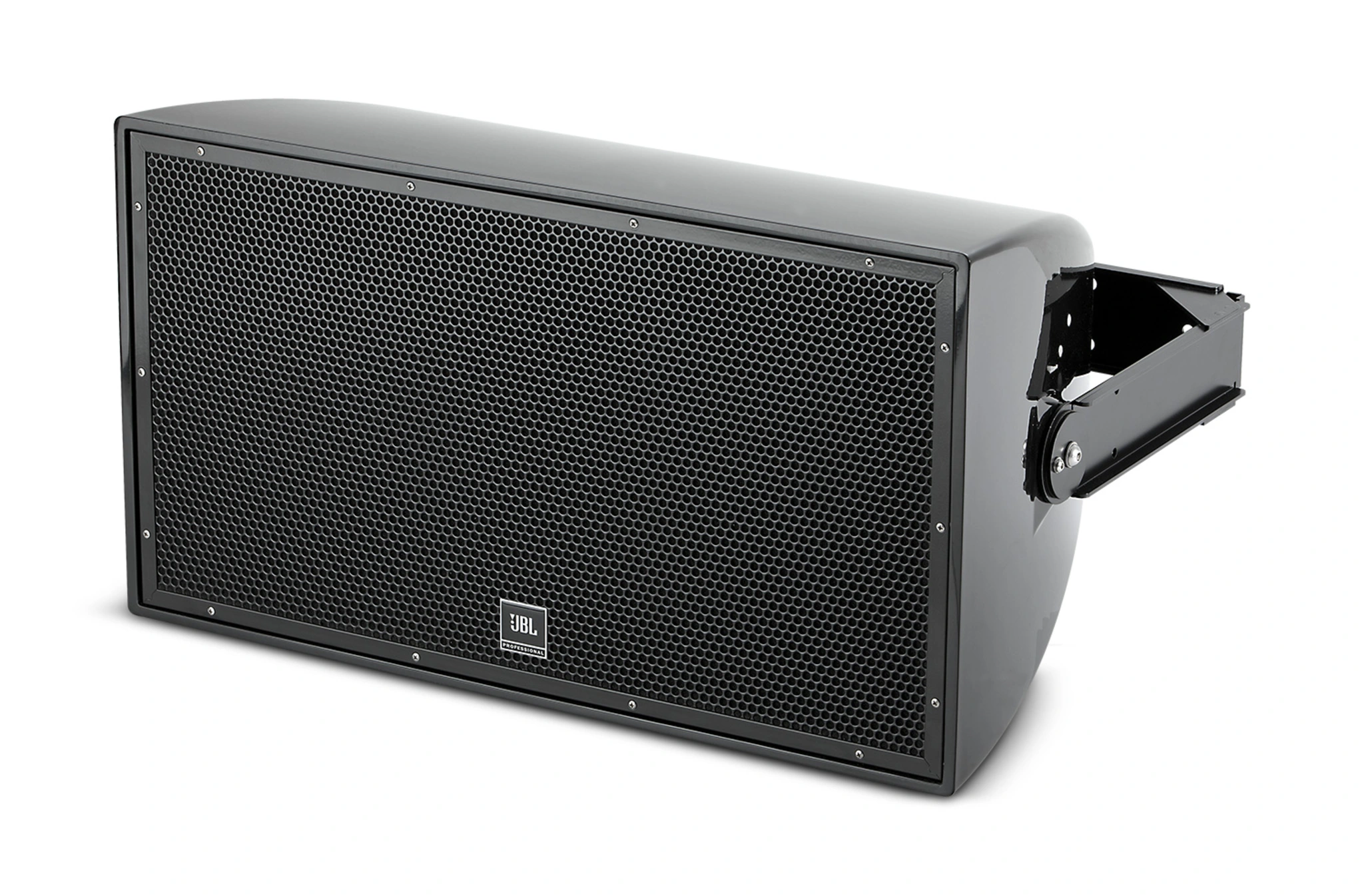

JBL AW266-BK High Output 12″ 2-way Full-Range 60 x 60 Loudspeaker – Black

JBL AW266 High Output 12-inch 2-Way Full-Range Loudspeaker (Black Finish)

The JBL AW266 is a high-power, lightweight, 2-way full-range loudspeaker designed for professional applications where durability and performance are critical. As part of JBL’s AE Series, this loudspeaker is engineered to operate reliably in harsh environments while delivering clear, high-output audio. It is equipped with a JBL 2262H 300 mm (12 in) Differential Drive® low-frequency driver featuring a 75 mm (3 in) dual voice coil and dual magnetic gap structure, ensuring high efficiency, reduced distortion, and extended low-frequency response.

High-frequency performance is provided by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil, offering precise and controlled high-frequency reproduction. Sound dispersion is managed by a large Progressive Transition™ waveguide that delivers uniform 60° x 60° coverage, ensuring even sound distribution across wide listening areas. The loudspeaker supports both vertical and horizontal installation, allowing flexible placement to suit various system designs.

The enclosure is constructed from hand-laminated multilayer fiberglass with extensive internal bracing to enhance structural rigidity and low-frequency performance. A durable black gelcoat finish provides excellent resistance to moisture, UV exposure, and physical wear. Additional protection is provided by a three-layer stainless steel grille system with open-cell foam and stainless steel mesh backing, safeguarding internal components in demanding environments.

The AW266 includes an integrated 400 W 70/100V transformer and a heavy-duty weather-treated U-type mounting bracket for secure and straightforward installation on flat surfaces or corners. This loudspeaker is well suited for sports facilities, themed entertainment venues, outdoor entertainment centers, and water parks. Origin of country mexico.

Features of AW266

• 2-way full-range loudspeaker with weather-resistant construction

• JBL 2262H 12-inch Differential Drive® low-frequency driver

• JBL 2432H high-frequency compression driver

• Progressive Transition™ waveguide with 60° x 60° coverage

• Hand-laminated fiberglass enclosure with internal bracing

• Integrated 400 W 70/100V transformer

• Black gelcoat finish for enhanced outdoor durability

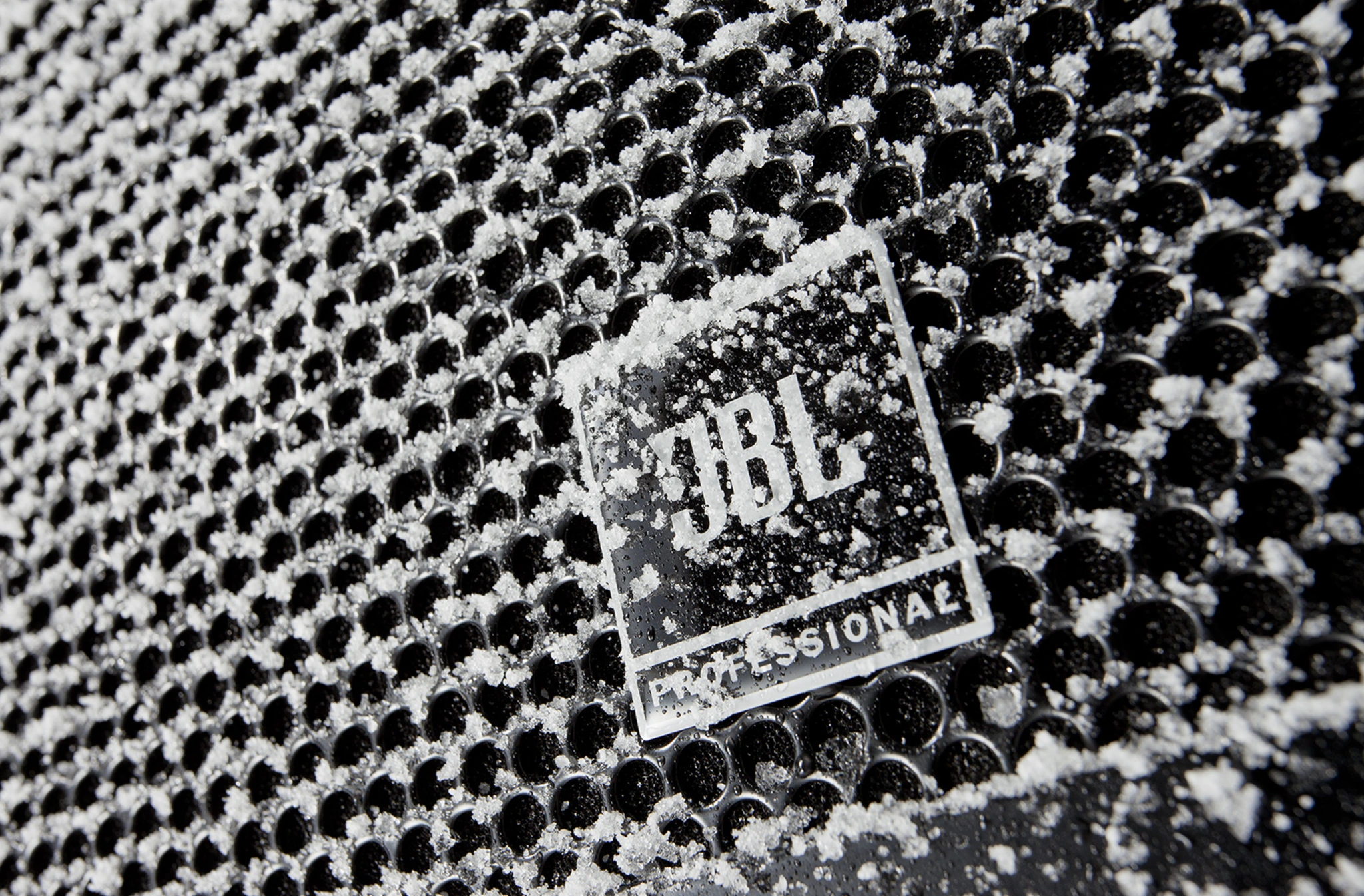

• Stainless steel grille with foam and mesh backing

• Vertical or horizontal mounting flexibility

• Supplied heavy-duty U-type mounting bracket

Specifications of AW266
