JBL AW526-LS-BK 15″ 2-Way All Weather Loudspeaker with EN54-24 Certification – Black
The JBL AW526-LS High Power 15-inch 2-Way All-Weather Loudspeaker in black is EN 54-24 compliant for life safety applications, providing 120° x 60° rotatable coverage, weather-resistant durability, and versatile installation.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 28,363.74 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

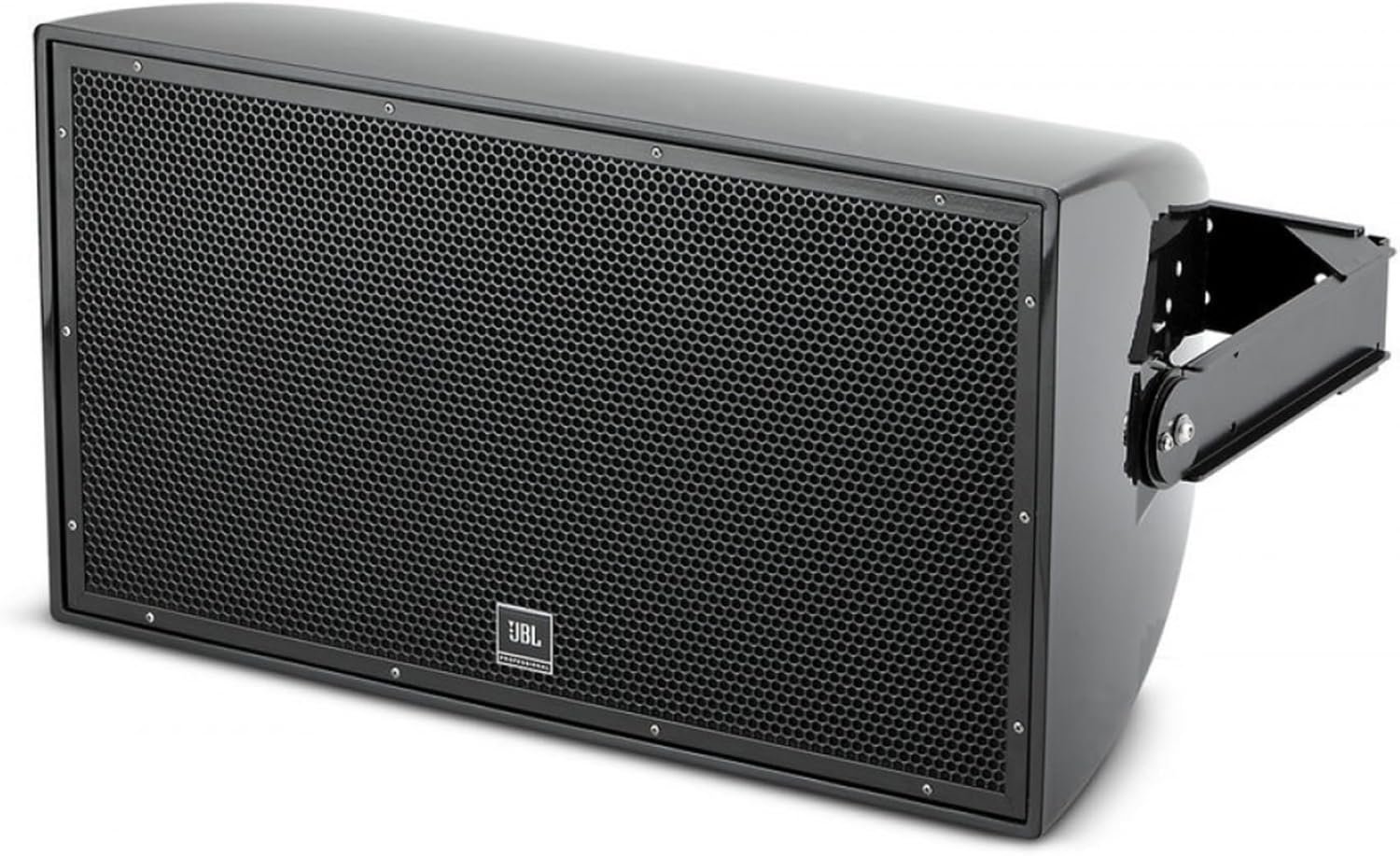

JBL AW526-LS High Power 15-inch 2-Way All-Weather Loudspeaker Black Finish
The JBL AW526-LS is a high-output, lightweight 2-way full-range loudspeaker designed for life safety applications in demanding indoor and outdoor environments. Part of JBL’s AE Series, this model delivers reliable, high-quality audio performance while meeting EN 54-24 standards for life safety compliance.
It features a 2265H 380 mm (15 in) Differential Drive® low-frequency driver with dual voice coil and dual magnetic gap, producing deep, efficient bass. The high-frequency section uses a 2432H compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil, providing clear and intelligible sound reproduction.
The large Progressive Transition™ waveguide ensures precise 120° x 60° coverage and is rotatable for flexible vertical or horizontal installation. The enclosure is hand-laminated fiberglass with heavy bracing to maximize low-frequency performance and is finished in rugged black for durability. A 500 W 70/100V transformer and U-type mounting bracket are included for secure and easy installation.
This loudspeaker is ideal for sports facilities, themed entertainment venues, outdoor entertainment centers, and water parks, combining life safety compliance, high power, and environmental protection. Origin of country mexico.
Features of AW526-LS
Weather-resistant, all fiberglass enclosure
EN 54-24 compliant for life safety applications
120° x 60° coverage with rotatable waveguide
2265H 15-inch Differential Drive® low-frequency driver
2432H high-frequency compression driver
Progressive Transition™ waveguide for excellent pattern control and low distortion
Rotatable for vertical or horizontal orientation
500 W, 70/100V transformer included
U-type mounting bracket included
Available in black and gray finish
Suitable for indoor and outdoor life safety installations
Specifications of AW526-LS
| Frequency Range (-10 dB) | 39 Hz – 20 kHz |
| Frequency Response (±3 dB) | 86 Hz – 17 kHz |
| Coverage Pattern | 120° x 60°, rotatable waveguide |
| Coverage Angle | 0.5 kHz: H 135°, V 108°; 1 kHz: H 98°, V 95°; 2 kHz: H 115°, V 67°; 4 kHz: H 108°, V 46° |
| Directivity Factor (Q) | 7.9 |
| Directivity Index (DI) | 9 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1 m) | 127 dB-SPL cont avg (133 dB peak) |
| Maximum SPL (@ 4 m) | 108 dB per EN54 Standard |
| System Sensitivity (1 W @ 1 m) | 100 dB SPL |
| Sensitivity (1 W @ 4 m) | 86.98 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
| LF Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| Nominal LF Driver Impedance | 8 ohms (6.2 ohms per EN54) |
| LF Sensitivity (1 W @ 1 m) | 98 dB SPL |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HF Sensitivity (1 W @ 1 m) | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Hand-laminated fiberglass, black finish |
| Suspension Attachment | 2 x M10 for U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point |
| Grille | Three-layer 16-gauge stainless steel grille with foam and mesh backing |
| Input Connector | CE-compliant covered barrier strip terminals |
| Environmental | IP55C per IEC 529 |
| Dimensions (H x W x D) | 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in) |
| Net Weight (each) | 28.3 kg (62.5 lb) |
| Origin of Country | Mexico |
