JBL AW566 High Output 15″ 2-way Full-Range 60 x 60 Loudspeaker – Gray
The JBL AW566 High Power 15-inch 2-Way All-Weather Loudspeaker in gray features a 60° x 60° coverage pattern, weather-resistant design, rotatable horn, and high-output 15″ LF driver for versatile indoor and outdoor applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 28,363.74 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AW566 High Power 15-inch 2-Way All-Weather Loudspeaker Gray Finish
The JBL AW566 is a high-performance, lightweight 2-way full-range loudspeaker designed for both indoor and outdoor installations. Part of JBL’s AE Series, it delivers robust, clear sound with exceptional pattern control and durability.

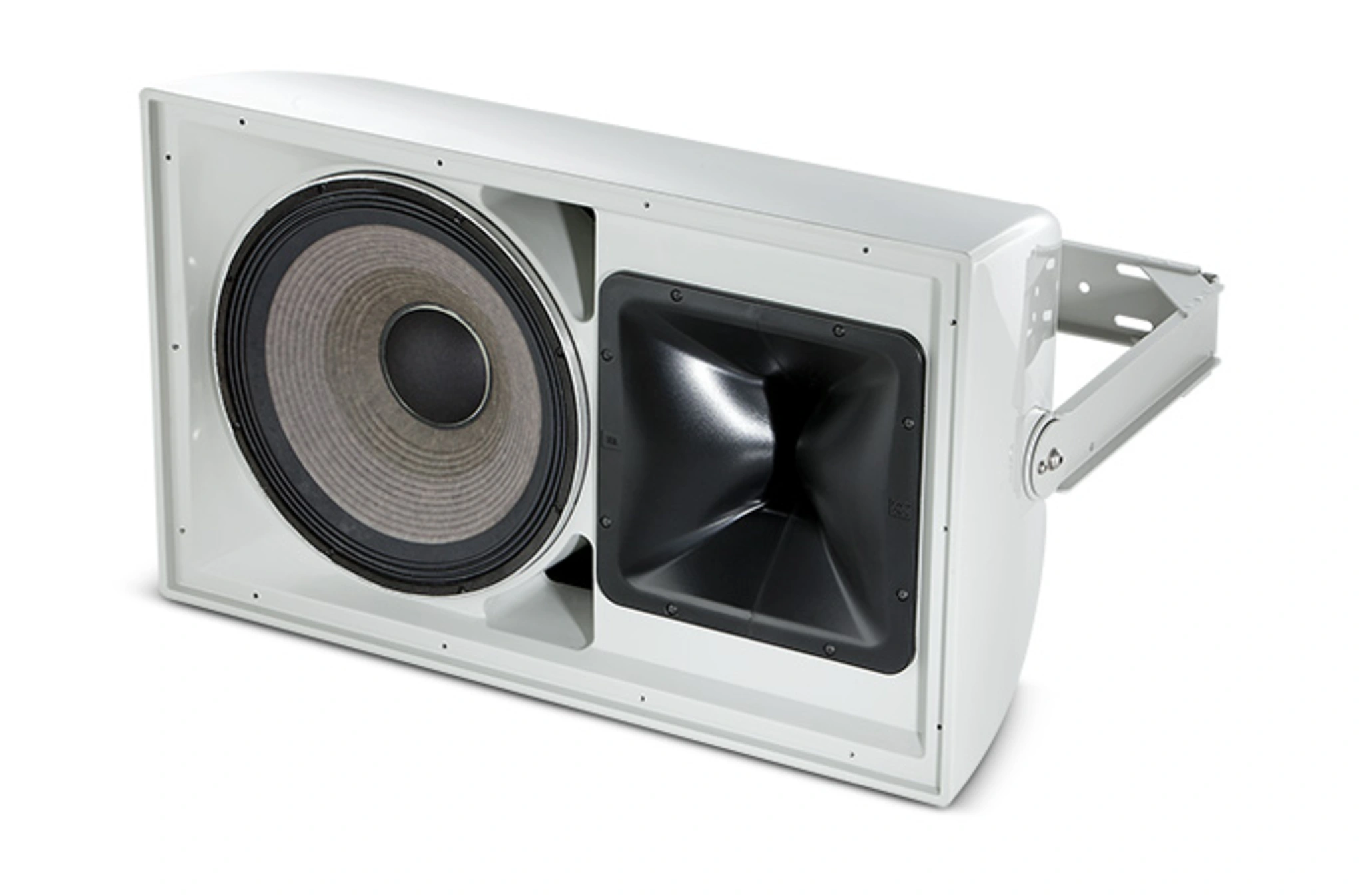

This loudspeaker is equipped with a 2265H-1 380 mm (15 in) Differential Drive® low-frequency driver featuring dual voice coil and dual magnetic gap for precise bass output. The high-frequency section uses a 2432H 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver for detailed, intelligible sound.

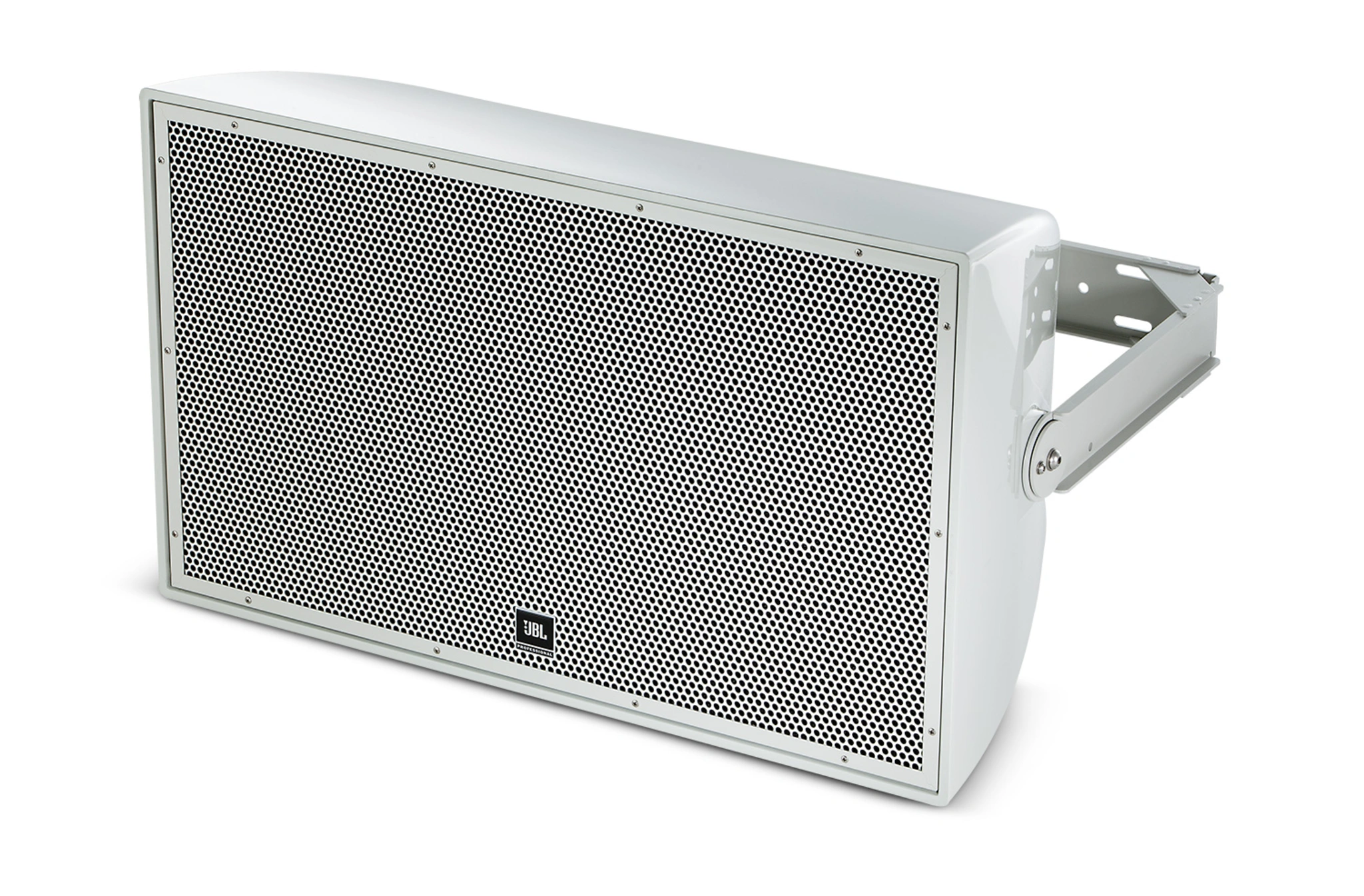

Its large Progressive Transition™ waveguide provides accurate 60° x 60° coverage and ensures even sound dispersion. The hand-laminated fiberglass enclosure, heavily braced for optimal low-frequency performance, is finished in gray and backed by a robust 14-gauge stainless steel grille with foam and mesh for protection in the harshest conditions.

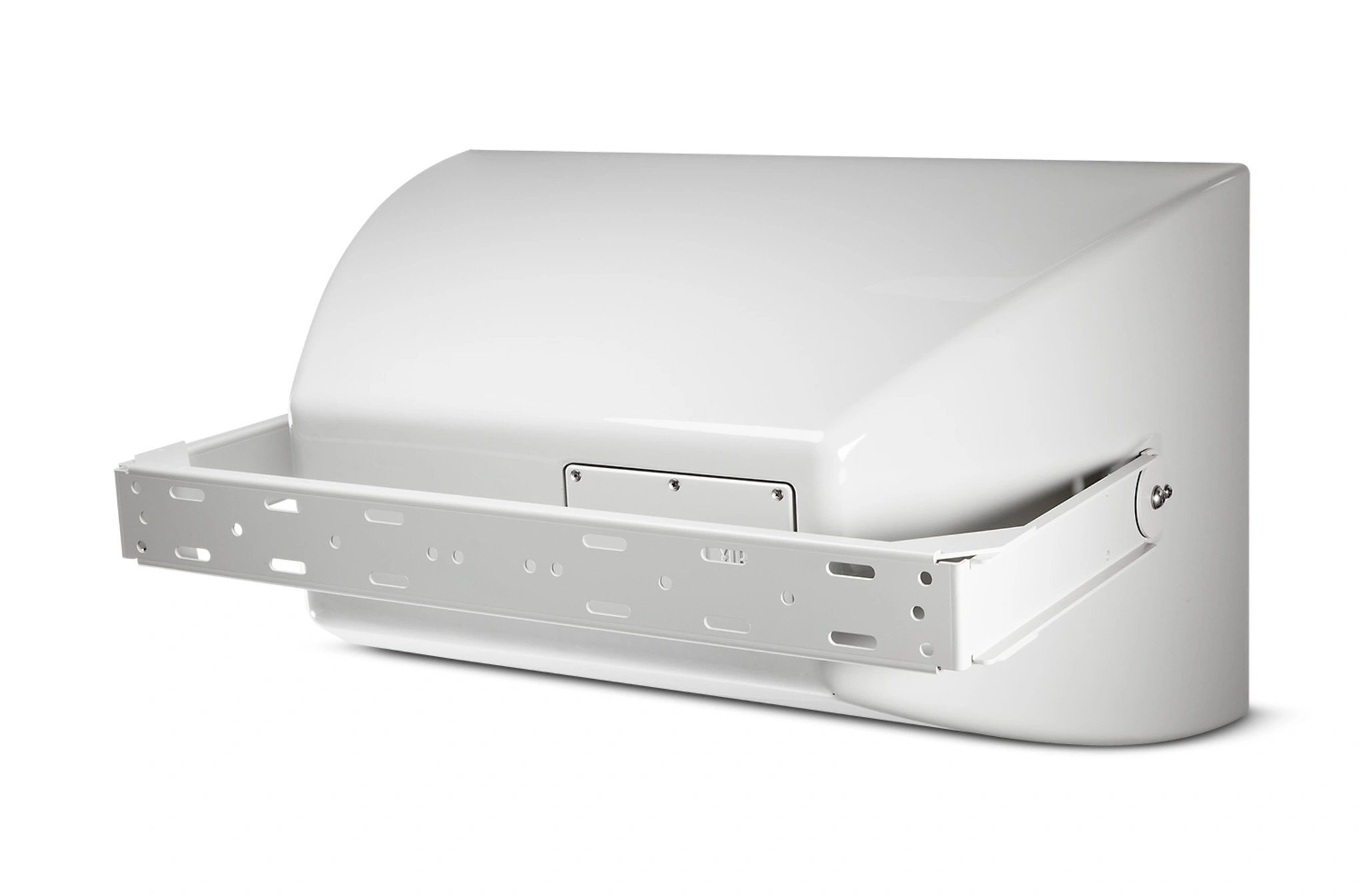

The AW566 includes a 400 W 70/100V transformer and a heavy-duty U-type mounting bracket for secure and flexible installation on flat surfaces or in 90° corners. It is suitable for sports facilities, themed entertainment venues, outdoor centers, and water parks. Origin of country mexico.
Features of AW566
Weather-resistant, all fiberglass enclosure
60° x 60° coverage
2265H-1 15-inch Differential Drive® low-frequency driver
2432H high-frequency compression driver
Progressive Transition™ waveguide for precise pattern control and low distortion
Rotatable horn for vertical or horizontal installation
400 W, 70/100V transformer included
U-type mounting bracket included
Available in gray and black finish
Ideal for indoor and outdoor applications
Specifications of AW566
| Frequency Range (-10 dB) | 35 Hz – 20 kHz |
| Frequency Response (±3 dB) | 54 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1 m) | 128 dB-SPL cont avg (134 dB peak) |
| System Sensitivity (1 W @ 1 m) | 100 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
| LF Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| Nominal LF Driver Impedance | 8 ohms |
| LF Sensitivity (1 W @ 1 m) | 98 dB SPL |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HF Sensitivity (1 W @ 1 m) | 113 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Hand-laminated fiberglass, gray finish |
| Suspension Attachment | 2 x M10 for U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point |
| Grille | Three-layer 14-gauge stainless steel grille with foam and mesh backing |

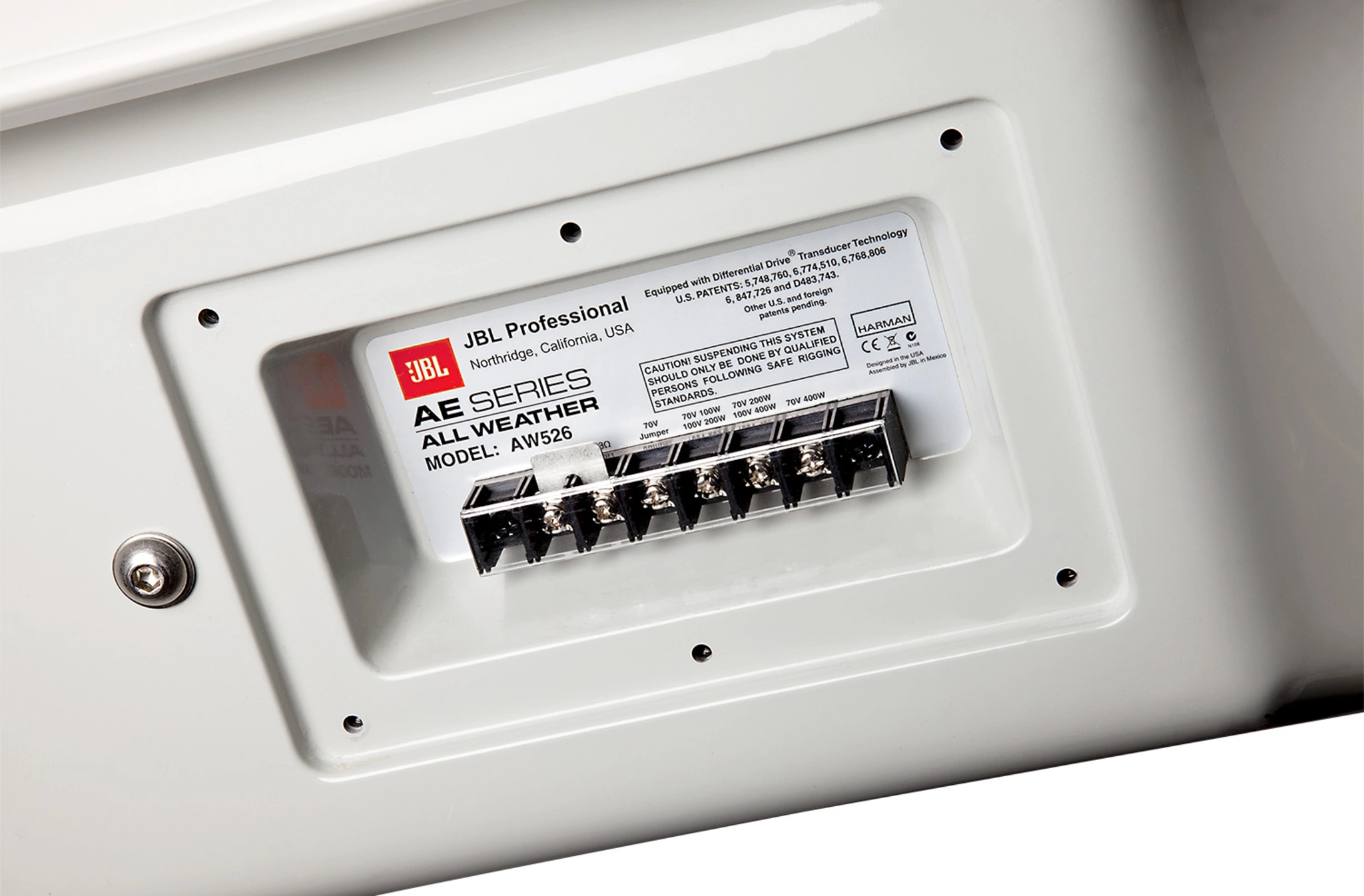

| Input Connector | CE-compliant covered barrier strip terminals |
| Environmental | IP55C per IEC529 |
| Dimensions (H x W x D) | 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in) |
| Net Weight (each) | 28.3 kg (62.5 lb) |
| Crossover Modes | Passive |
| Origin of Country | Mexico |
