JBL AW566-LS 15″ 2-Way All Weather Loudspeaker with EN54-24 Certification – Gray
The JBL AW566-LS High Power 15-inch 2-Way All-Weather Loudspeaker in grey is EN 54-24 compliant for life safety, features 60° x 60° coverage, rotatable horn, weather-resistant design, and a high-output 15″ LF driver.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 28,363.74 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AW566-LS High Power 15-inch 2-Way All-Weather Loudspeaker Grey Finish
The JBL AW566-LS is a high-performance, lightweight 2-way full-range loudspeaker designed specifically for life safety applications. Part of JBL’s AE Series, it offers powerful audio, precise coverage, and durable construction for both indoor and outdoor use.

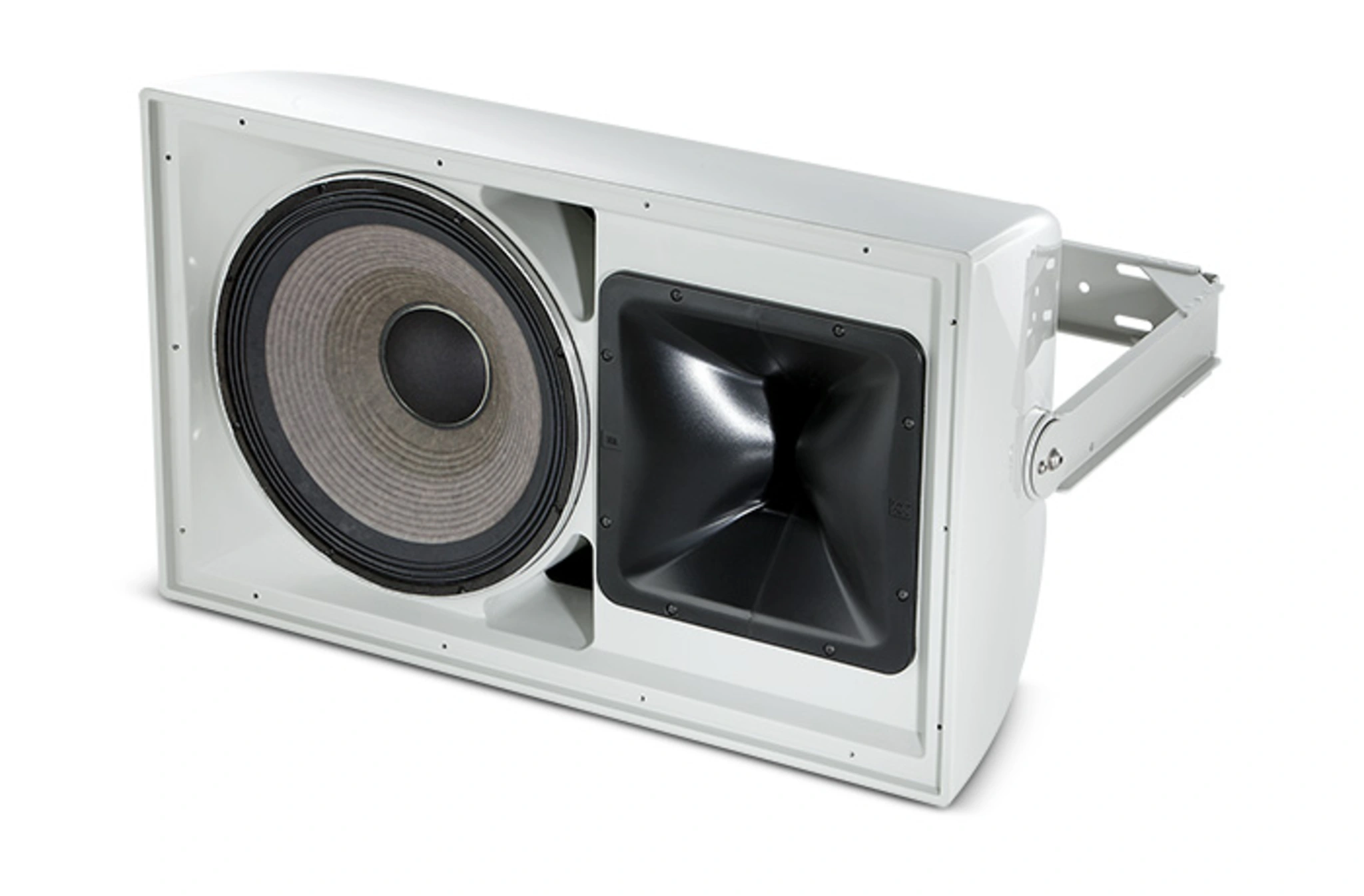

It features a 2265H 380 mm (15 in) Differential Drive® low-frequency driver with dual voice coil and dual magnetic gap technology for deep, accurate bass. The high-frequency section includes a 2432H 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver, ensuring clear and intelligible sound.
The large Progressive Transition™ waveguide delivers precise 60° x 60° coverage, and its rotatable design allows flexible vertical or horizontal installation. The enclosure is constructed from reinforced hand-laminated fiberglass, finished in grey, for optimal low-frequency performance and durability. A three-layer 16-gauge stainless steel grille, backed with foam and mesh, protects the system in harsh environments.
Equipped with a 400 W 70/100V transformer and a heavy-duty U-type mounting bracket, the AW566-LS is ideal for life safety installations in sports facilities, themed entertainment venues, outdoor entertainment centers, and water parks. Origin of country mexico.
Features of AW566-LS
Weather-resistant, all fiberglass enclosure
EN 54-24 compliant for life safety applications
60° x 60° coverage
2265H 15-inch Differential Drive® low-frequency driver
2432H high-frequency compression driver
Large Progressive Transition™ waveguide for accurate pattern control and low distortion
Rotatable horn for vertical or horizontal orientation
400 W, 70/100V transformer included

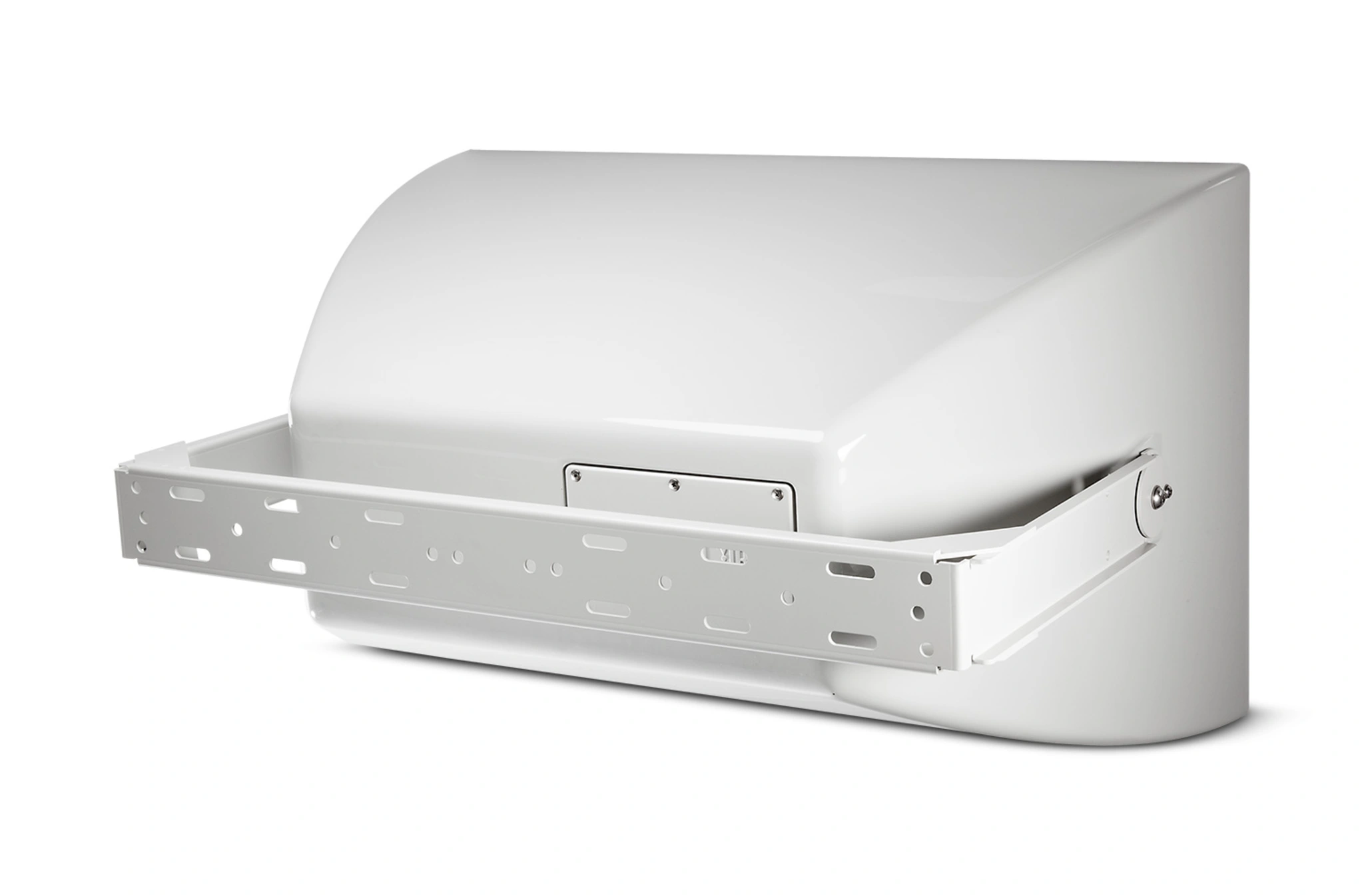

U-type mounting bracket included
Available in grey and black finish
Suitable for indoor and outdoor use
Specifications of AW566-LS
| Frequency Range (-10 dB) | 42 Hz – 20 kHz |
| Frequency Response (±3 dB) | 89 Hz – 18 kHz |
| Coverage Pattern | 60° x 60°, rotatable waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1 m) | 127 dB-SPL cont avg (133 dB peak) |
| Maximum SPL (@ 4 m) | 114.24 dB |
| System Sensitivity (1 W @ 1 m) | 100 dB SPL |
| Sensitivity (1 W @ 4 m) | 89.6 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
| LF Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| Nominal LF Driver Impedance | 8 ohms |
| LF Sensitivity (1 W @ 1 m) | 98 dB SPL |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HF Sensitivity (1 W @ 1 m) | 113 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Hand-laminated fiberglass, grey finish |
| Suspension Attachment | 2 x M10 for U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point |

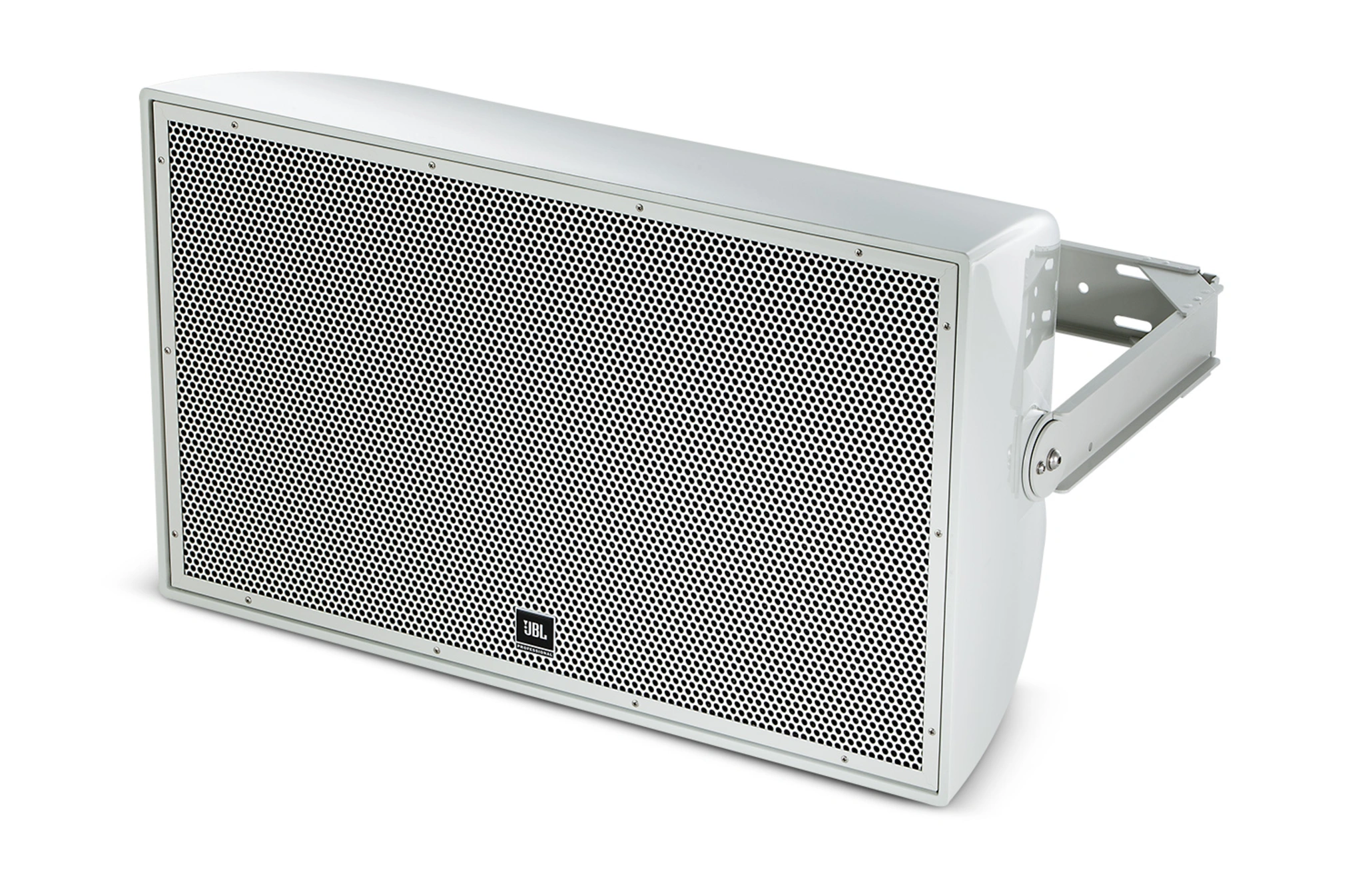

| Grille | Three-layer 16-gauge stainless steel grille with foam and mesh backing |

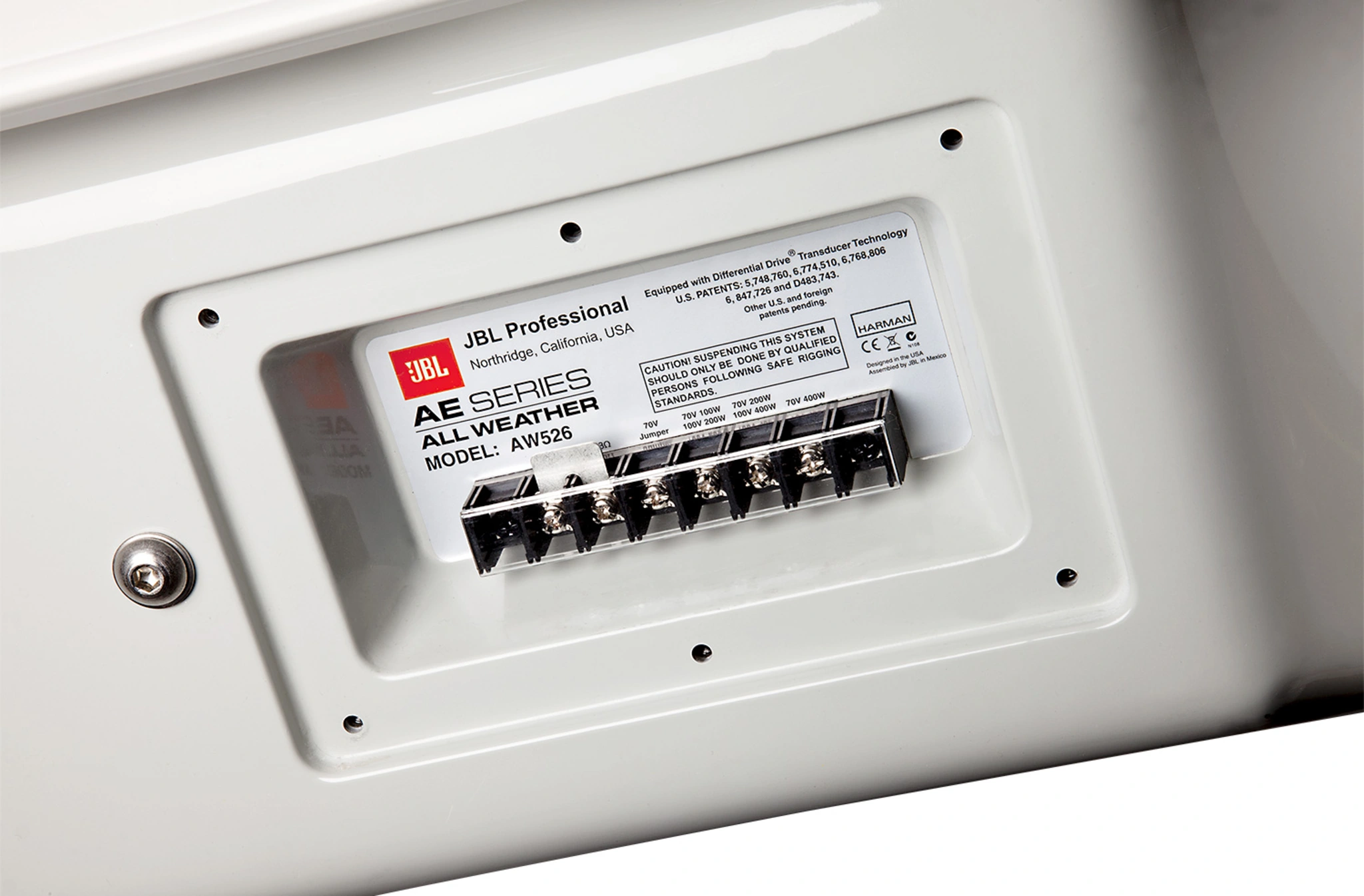

| Input Connector | CE-compliant covered barrier strip terminals |
| Environmental | IP55C per IEC529 |
| Dimensions (H x W x D) | 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in) |
| Net Weight (each) | 28.3 kg (62.5 lb) |
| Origin of Country | Mexico |
