JBL AW595-LS-BK 15″ 2-Way All Weather Loudspeaker with EN54-24 Certification – Black
The JBL AW595-LS High Power 15-inch 2-Way All-Weather Loudspeaker in black is EN 54-24 compliant for life safety, with rotatable 90° x 50° horn coverage, rugged fiberglass construction, and a 15″ LF driver for dependable indoor and outdoor sound performance.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 28,363.74 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

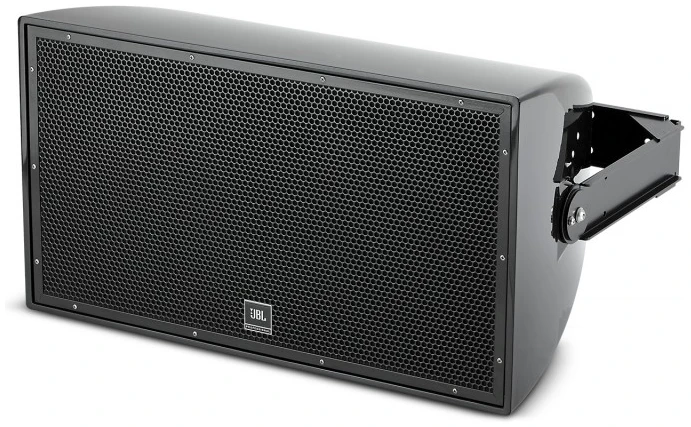

JBL AW595-LS High Power 15-inch 2-Way All-Weather Loudspeaker Black Finish
The JBL AW595-LS is a high-performance, lightweight, 2-way full-range loudspeaker designed specifically for life safety applications. Part of JBL’s AE Series, it delivers reliable, clear, and powerful audio while meeting EN 54-24 standards for emergency audio systems.
This loudspeaker integrates a 2265H 380 mm (15 in) Differential Drive® low-frequency driver with dual voice coil and dual magnetic gap, producing precise and deep bass. The high-frequency section employs a 2432H 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver, ensuring crisp mids and highs.
The large Progressive Transition™ waveguide provides 90° x 50° coverage and is rotatable, allowing flexible vertical or horizontal installation. The enclosure is constructed from reinforced hand-laminated fiberglass in black, with heavy bracing for optimal low-frequency output. A three-layer 16-gauge stainless steel grille with open cell foam and stainless steel mesh protects the drivers in harsh environments.
The system features a 400 W 70/100V transformer and a heavy-duty U-type mounting bracket for straightforward installation on flat surfaces or in corners. The AW595-LS is ideal for sports arenas, entertainment venues, outdoor centers, and water parks. Origin of country mexico.
Features of AW595-LS
Weather-resistant, all fiberglass enclosure
EN 54-24 compliant for life safety applications
90° x 50° coverage
2265H 15-inch Differential Drive® low-frequency driver
2432H high-frequency compression driver
Large Progressive Transition™ waveguide for accurate pattern control and minimal distortion
Rotatable waveguide for vertical or horizontal installation
400 W, 70/100V transformer included
U-type mounting bracket included
Available in black and grey finishes
Suitable for indoor and outdoor applications
Specifications of AW595-LS
| Frequency Range (-10 dB) | 41 Hz – 20 kHz |
| Frequency Response (±3 dB) | 88 Hz – 19 kHz |
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.2 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1 m) | 127 dB-SPL cont avg (133 dB peak) |
| Maximum SPL (@ 4 m) | 113.34 dB |
| System Sensitivity (1 W @ 1 m) | 100 dB SPL |
| Sensitivity (1 W @ 4 m) | 88.43 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
| LF Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| Nominal LF Driver Impedance | 8 ohms |
| LF Sensitivity (1 W @ 1 m) | 98 dB SPL |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HF Sensitivity (1 W @ 1 m) | 113 dB SPL |
| Waveguide | PT-H95HF-1 |
| Enclosure | Hand-laminated fiberglass, black finish |
| Suspension Attachment | 2 x M10 for U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point |
| Grille | Three-layer 16-gauge stainless steel grille with foam and mesh backing |
| Input Connector | CE-compliant covered barrier strip terminals |
| Environmental | IP55C per IEC529 |
| Dimensions (H x W x D) | 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in) |
| Net Weight | 28.3 kg (62.5 lb) |
| Crossover Modes | Passive |
| Origin of Country | Mexico |
