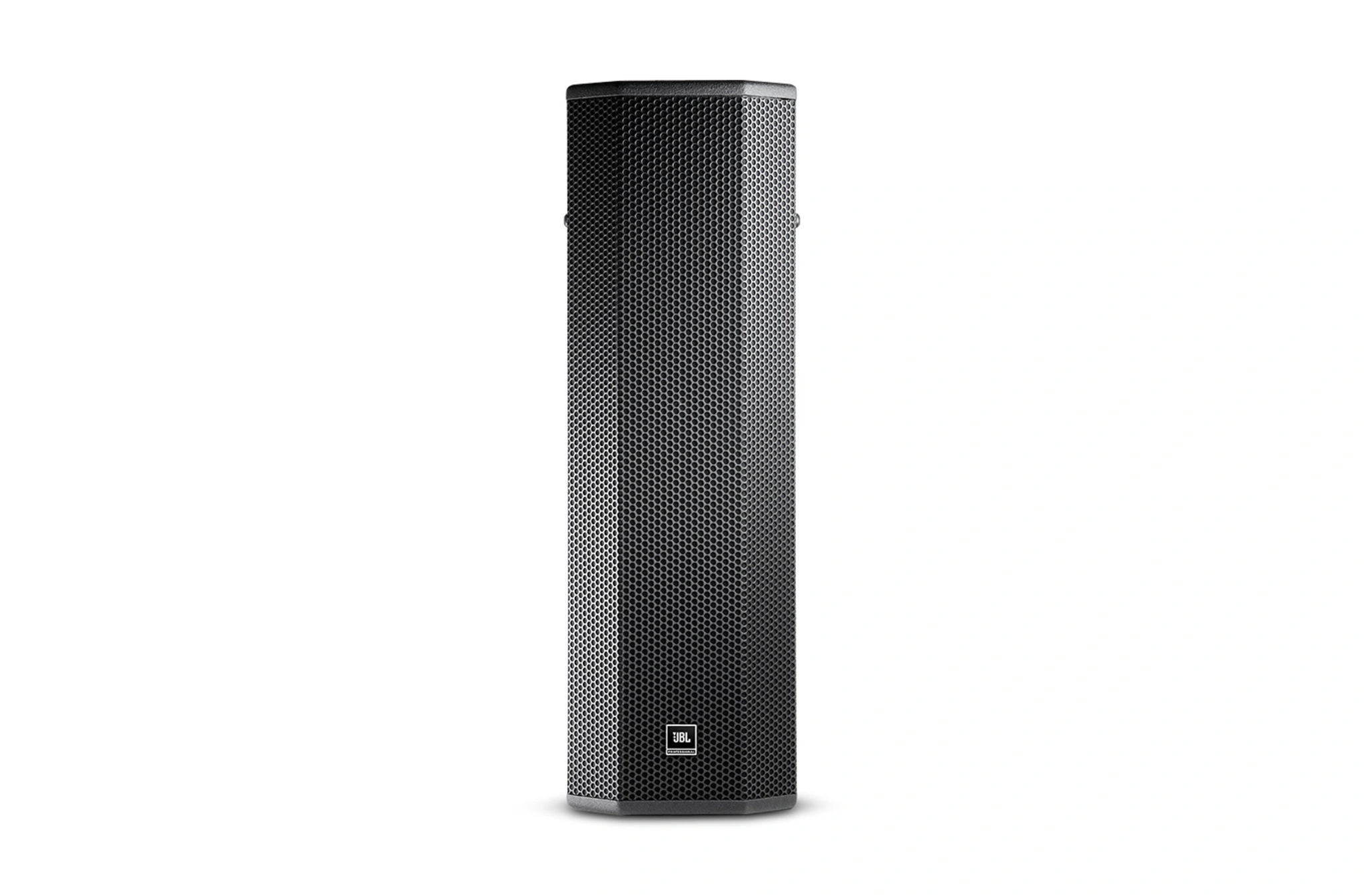

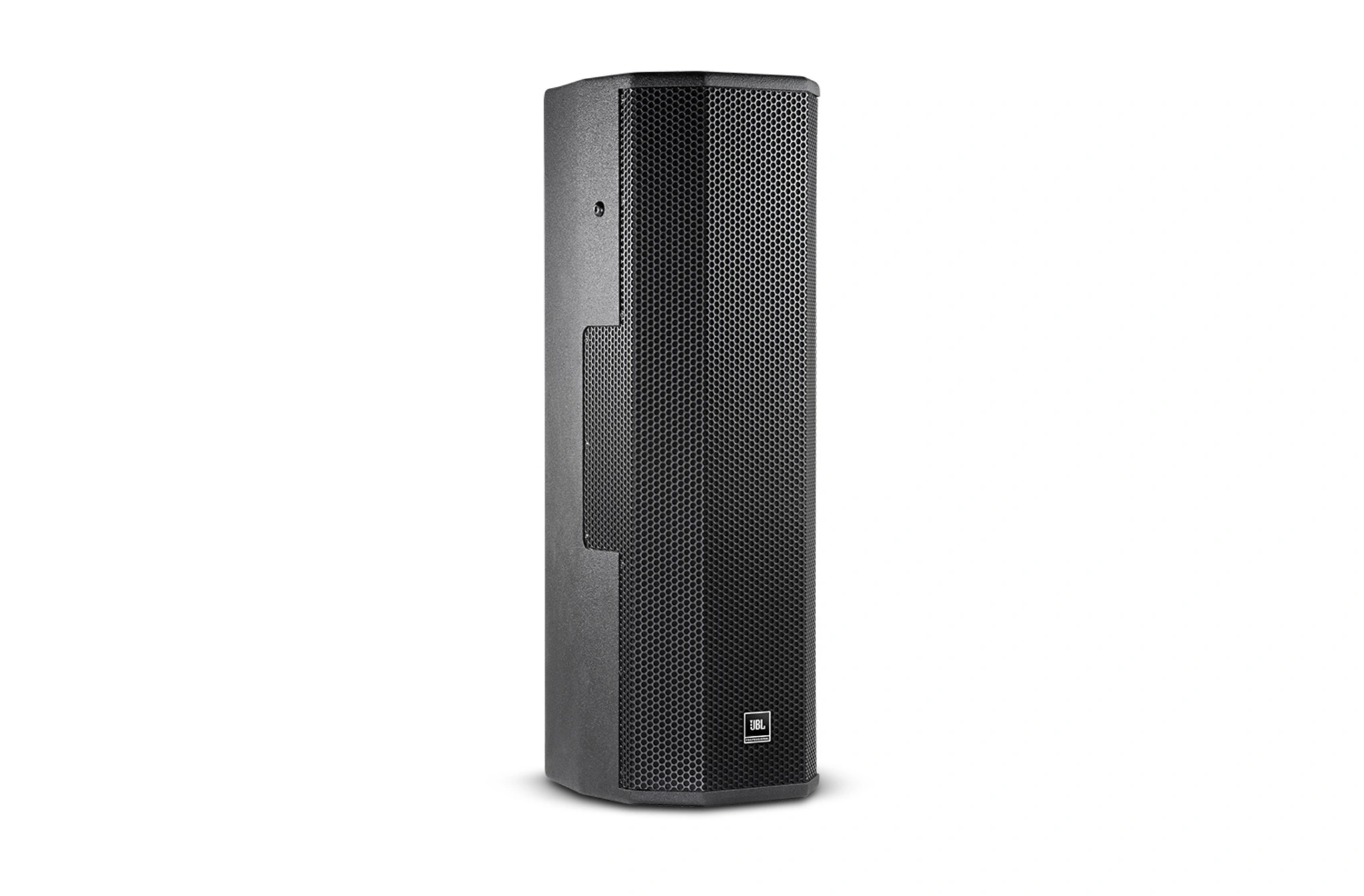

JBL CWT128 Dual 8″ 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology – Black
The JBL CWT128 Dual 8-inch 2-Way Loudspeaker System in black features Crossfired Waveguide Technology, delivering seamless 160° horizontal coverage with high SPL, compact design, and durable all-weather construction for versatile indoor and outdoor applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 18,170.78 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL CWT128 Dual 8″ 2-Way Loudspeaker System Black Finish
The JBL CWT128 is a high-performance, full-range 2-way loudspeaker system that incorporates JBL’s Crossfired Waveguide Technology (CWT) to provide wide horizontal coverage of up to 160°, ensuring uniform sound distribution across large areas. Compact in size, this system is ideal for architecturally sensitive environments, taking up only a fraction of the footprint of conventional dual-speaker setups while maintaining exceptional audio performance.

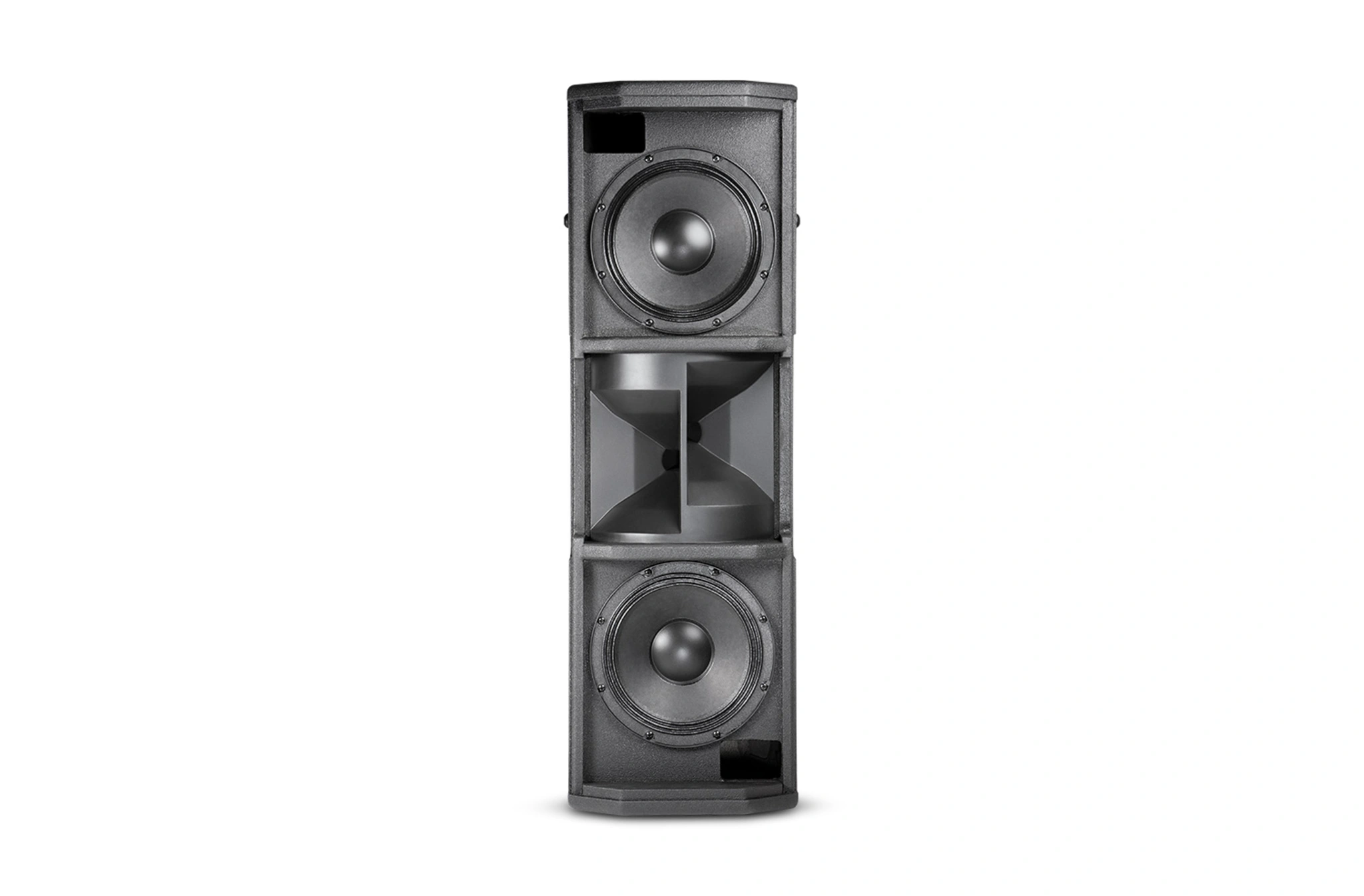

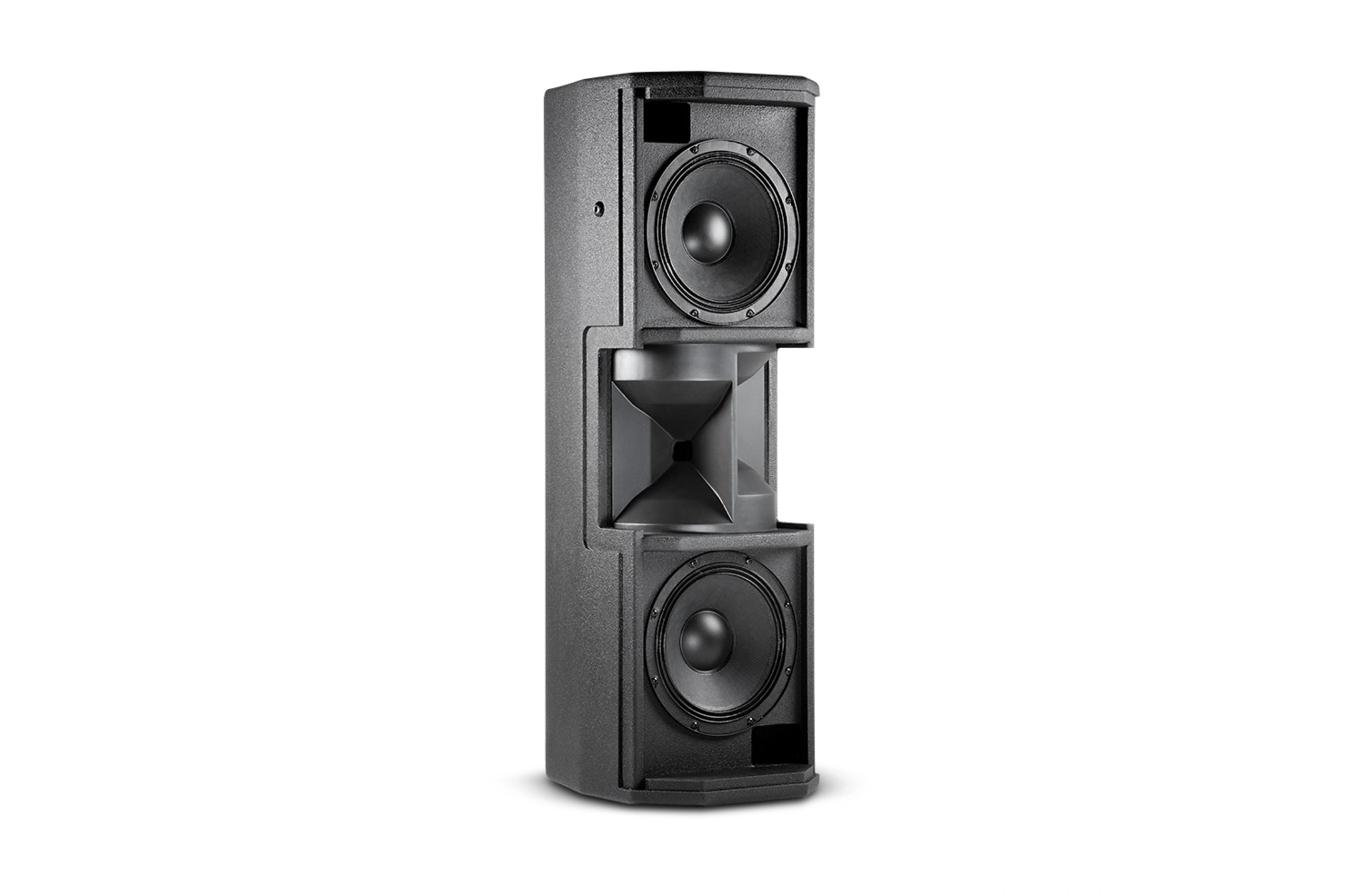

Equipped with dual 205 mm (8 in) low-frequency transducers and dual 25 mm (1 in) exit, 38 mm (1.5 in) diaphragm high-frequency compression drivers, the CWT128 delivers clear, powerful sound with excellent bandwidth and SPL. The Crossfired Waveguide ensures seamless coverage, making it suitable for venues where even distribution is critical, including transportation hubs, cinemas, sports facilities, and theme parks.
The enclosure is crafted from high-grade 12 mm and 15 mm multi-ply hardwood plywood with a rugged Black DuraFlex™ finish, providing durability and protection. Four M10 attachment points across the top and sides, along with four M8 points on the rear, facilitate easy installation with wall brackets or mounting systems. WRC and WRX weather-resistant versions are available for harsh outdoor environments. Origin of country mexico.
Features of CWT128
Extremely wide 160° x 60° coverage
Compact, space-saving design for architecturally sensitive spaces
Dual 205 mm (8 in) low-frequency transducers
Dual 25 mm (1 in) exit, 38 mm (1.5 in) high-frequency compression drivers

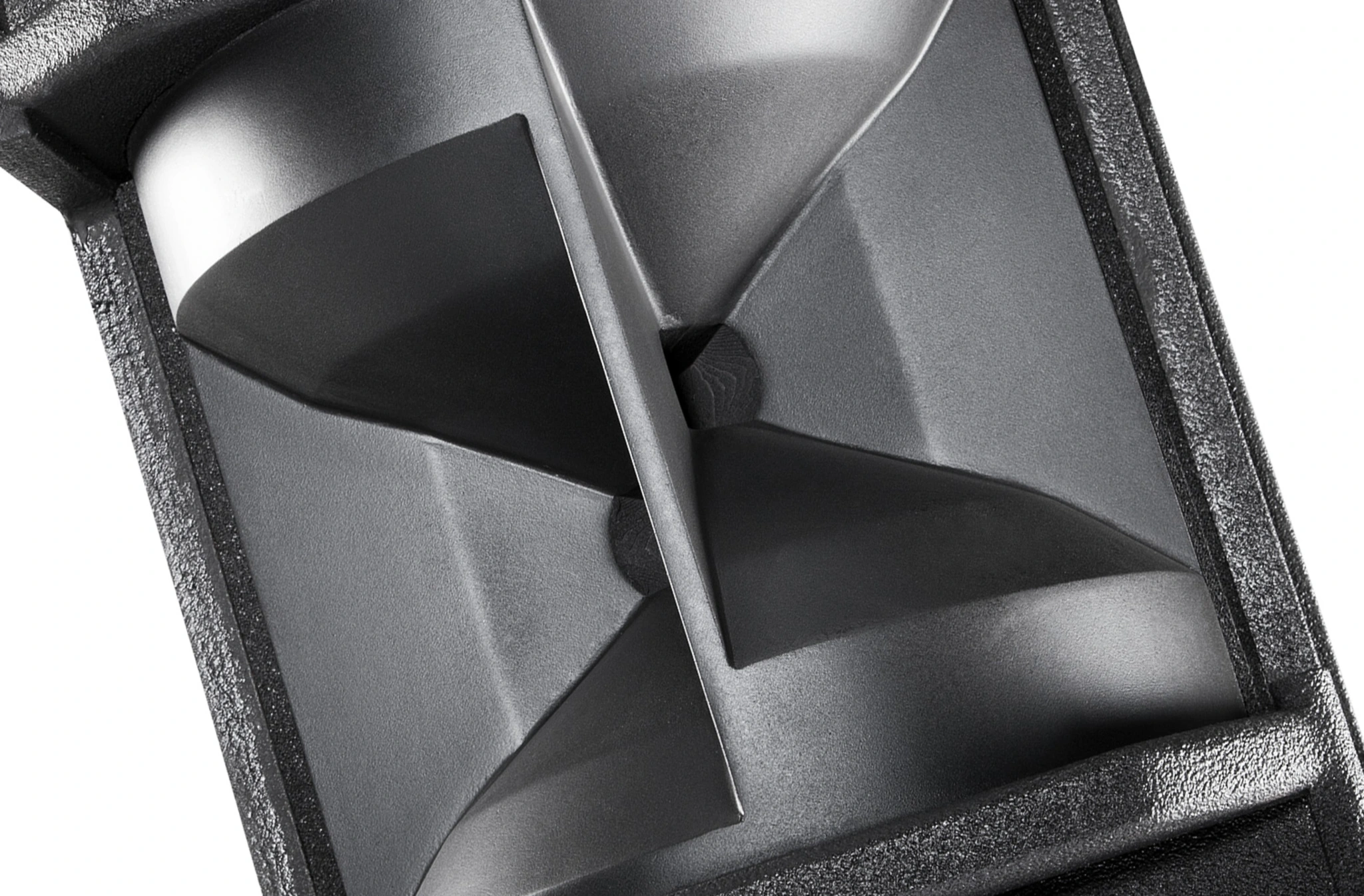

Crossfired Waveguide for seamless audio distribution
Black DuraFlex™ finish; White (-WH) available
4 M10 attachment points (top, bottom, sides)
4 M8 rear points for MultiMount® MM-120-BT installation
WRC and WRX weather-resistant versions available
Passive crossover mode
Suitable for indoor and outdoor applications
Specifications of CWT128
| System Format | Extremely Wide Angle Coverage Dual 8″ 2-Way Loudspeaker System |
| Frequency Range (-10 dB) | 71 Hz – 20 kHz |
| Frequency Response (±3 dB) | 96 Hz – 19 kHz |
| Coverage Pattern | 160° x 60° |
| Maximum SPL (1 m) | 129 dB |
| System Nominal Impedance | 8 ohms |
| Long-Term System Power Rating | 450 W (1800 W Peak) |
| System Power Rating | 850 W / 1700 W / 3400 W Continuous / Program / Peak |
| Crossover | 1.5 kHz |
| LF Driver | 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge-wound voice coil |
| HF Driver | 2 x 2408H-1, 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil |
| High-Frequency Waveguide | Crossfired Waveguide |
| System Sensitivity (1 W @ 1 m) | 94 dB SPL |
| Transformer Taps | 70V: 110 W, 55 W, 28 W; 100V: 110 W, 55 W |
| Nominal LF Driver Impedance | 8 ohms |
| Enclosure | 12 mm & 15 mm exterior-grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M10 (top, bottom, sides), 4 x M8 rear for MultiMount® MM-120-BT |
| Environmental | Mil-Std 810; IPx3 per IEC529 (WRC/WRX versions available for higher protection) |
| Dimensions (W x H x D) | 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in) |
| Net Weight | 18.6 kg (40.9 lb) |
| Crossover Modes | Passive |
| Origin of Country | Mexico |
