JBL Control 16C/T Two-Way 6.5″ Coaxial Ceiling Speaker – White

JBL Control 16C/T Two-Way 6.5″ Coaxial Ceiling Loudspeaker

The JBL Control 16C/T is a high-output, professional two-way coaxial ceiling loudspeaker engineered for powerful, clear, and evenly distributed sound in demanding commercial and institutional environments. Finished in an architectural black color, this loudspeaker combines advanced acoustic performance with durable construction and fast installation design. Origin of country China.

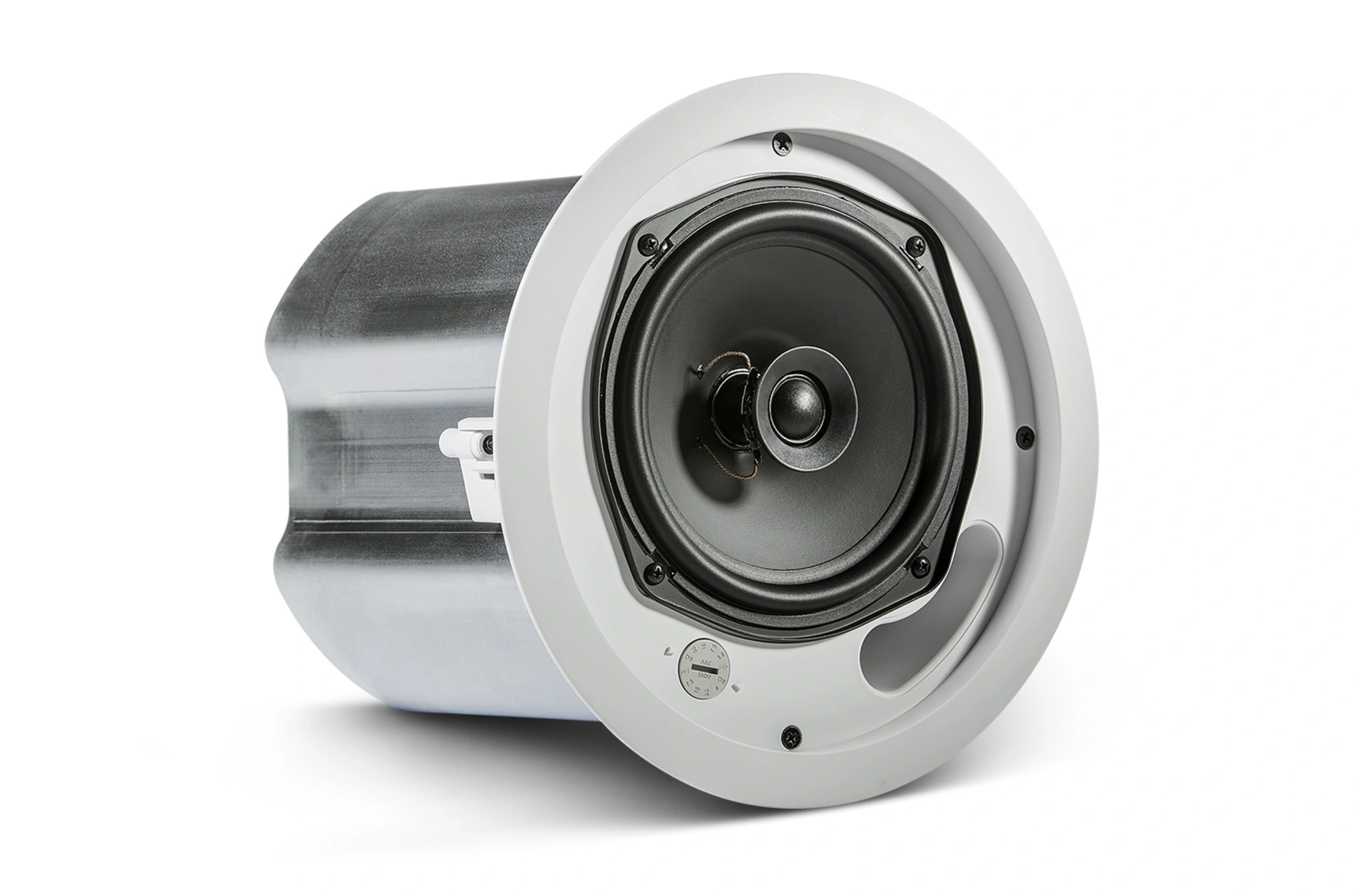

This ceiling speaker integrates a 165 mm (6.5 inch) high-output low-frequency driver constructed with a polypropylene cone and butyl rubber surround, delivering deep, controlled bass response and long-term mechanical stability. High-frequency reproduction is handled by a 19 mm (0.75 inch) soft-dome liquid-cooled tweeter, providing smooth, detailed treble and excellent speech intelligibility. Both drivers are mounted in a vented, paintable black baffle made from UV-resistant UL94-V0 and UL94-5VB flame-rated materials, ensuring safety compliance and long-term durability in commercial installations.

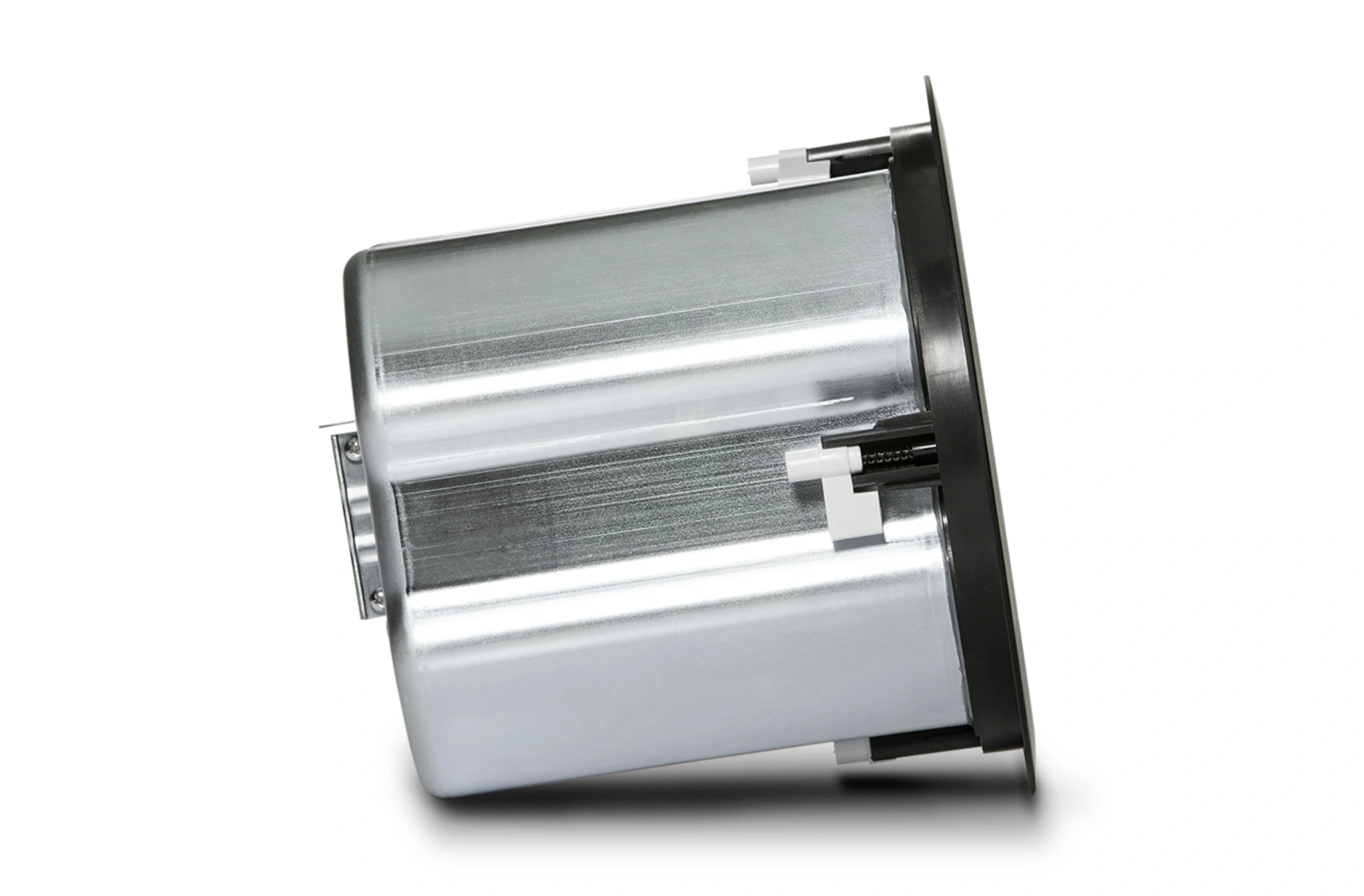

An integrated formed-steel backcan ensures plenum-rated performance, structural strength, and acoustic consistency while enabling quick and secure ceiling installation. The Control 16C/T supports both low-impedance 8Ω operation and distributed 70V/100V systems, making it suitable for flexible system design in large-scale audio networks. It delivers 50 watts at 8Ω and up to 30 watts through multi-tap transformer settings for distributed line applications.

With a wide 110° conical coverage pattern, a frequency bandwidth of 62 Hz to 20 kHz, and a high sensitivity rating of 91 dB, the Control 16C/T provides powerful output, high maximum SPL, and consistent sound coverage across large listening areas. It is ideally suited for retail environments, airports, hotels, convention centers, educational facilities, business centers, houses of worship, lounges, restaurants, and other high-volume commercial spaces requiring reliable, high-performance ceiling audio.

Features of Control 16C/T

• Two-way coaxial ceiling loudspeaker design

• 165 mm (6.5 in) polypropylene cone low-frequency driver

• 19 mm (0.75 in) soft-dome liquid-cooled tweeter

• Integrated formed-steel backcan

• Dual conduit and cable clamps

• Combined 70V/100V and 8Ω low-impedance operation

• 50 W nominal at 8Ω direct mode

• 30 W multi-tap transformer at 70V/100V

• Wide 110° conical sound coverage

• 62 Hz – 20 kHz frequency bandwidth

• High 91 dB sensitivity for high maximum SPL

• Paintable black UV-resistant baffle

• UL94-V0 and UL94-5VB flame-rated materials

• Plenum-rated construction

• Designed for high-output commercial audio systems

Specifications of Control 16C/T
