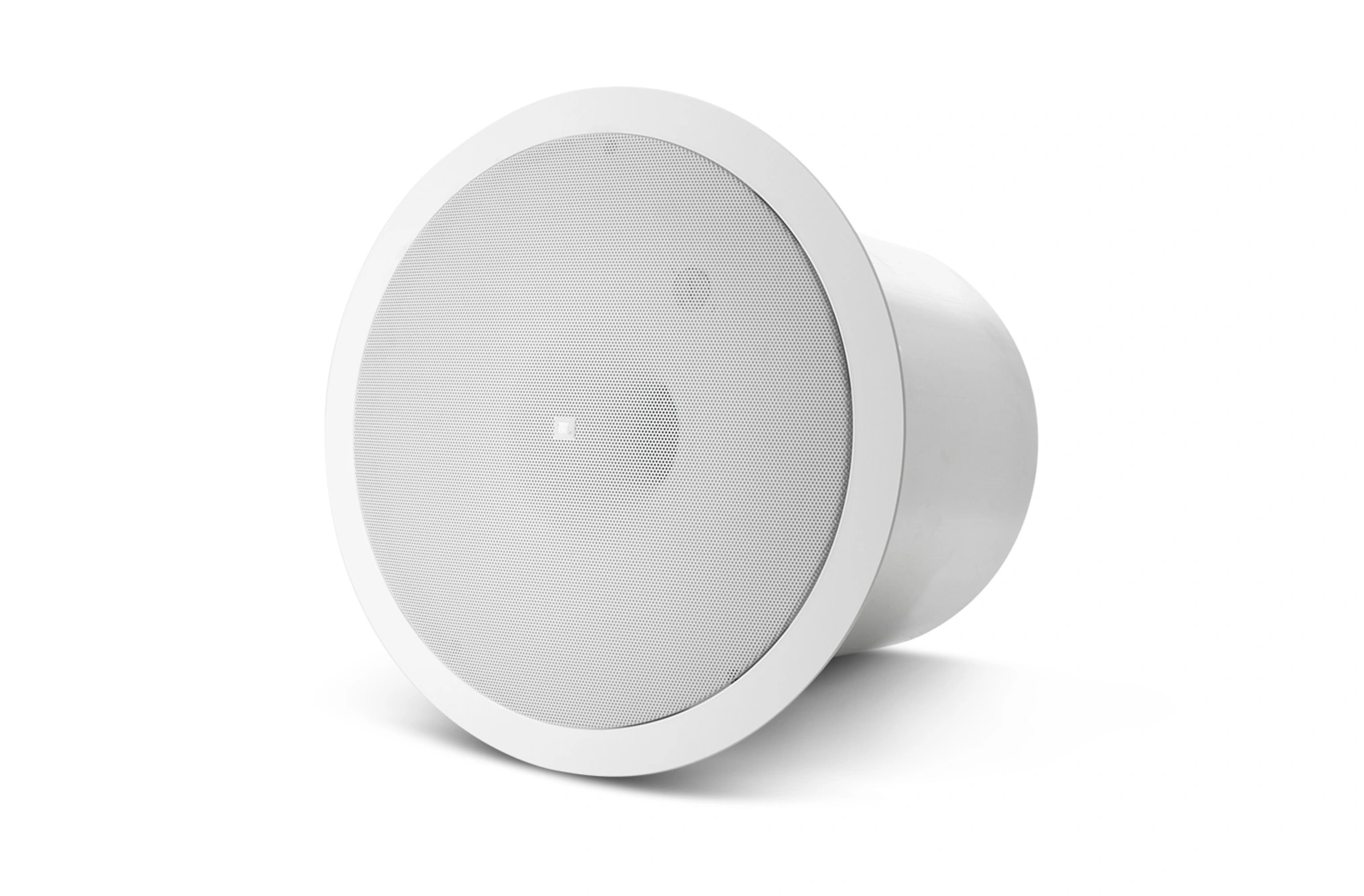

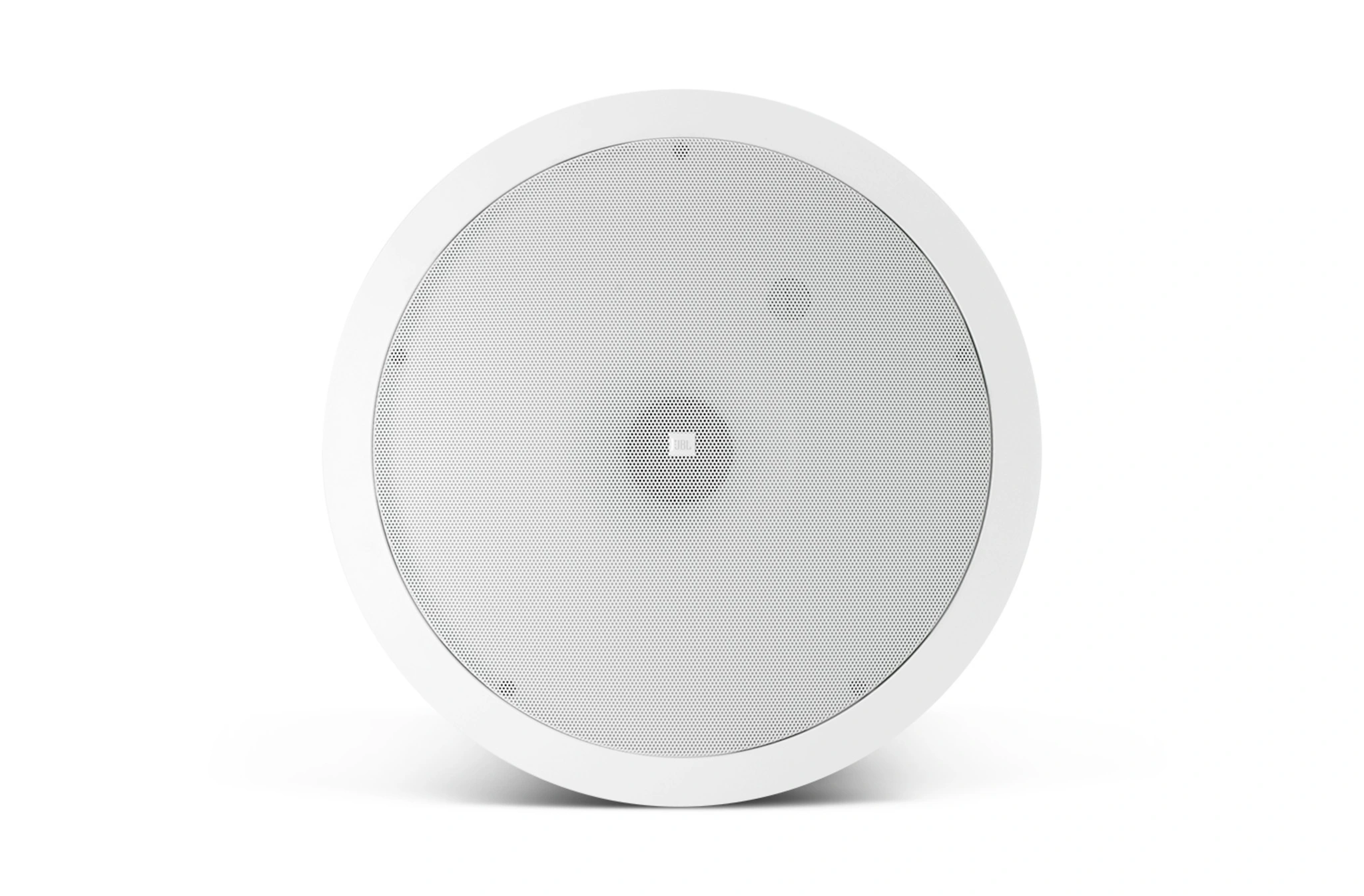

JBL Control 19CS In-Ceiling Subwoofer

JBL Control 19CS in-ceiling subwoofer

Control 19CS is a dedicated in-ceiling subwoofer designed to deliver deep, impactful bass from a compact and low-profile enclosure. It utilizes advanced proprietary acoustic technologies to achieve high output while maintaining a discreet ceiling-mounted form factor suitable for professional installations.

At the core of the design is a long-excursion 200 mm (8 inch) subwoofer driver, optimized to reproduce low frequencies with clarity and authority. The unique Nested Chamber™ architecture works in combination with the Linear Dynamic Aperture™ port design to maximize bass output and efficiency from a relatively small enclosure. This approach allows the subwoofer to extend low-frequency performance without requiring large cabinet volume.

Control 19CS incorporates SonicGuard™ overload protection technology, enabling higher operational levels while safeguarding internal components. This protection enhances system reliability and reduces the risk of damage during extended use or demanding audio conditions. The subwoofer is designed for seamless integration with ceiling-mounted full-range loudspeakers, providing consistent low-frequency coverage across the listening area.

The enclosure includes a formed steel backcan and fire-rated baffle materials, supporting plenum-rated installations in air-handling spaces. A 180-degree conical coverage pattern ensures even bass distribution, whether installed near corners or centrally within the ceiling. Installation is streamlined through a simple wiring method and included accessories such as grille, tile rails, and support backing plate.

Control 19CS is well suited for applications including retail environments, hospitality venues, conference facilities, and other commercial spaces requiring enhanced low-frequency performance. Manufactured in China, it offers a practical balance of acoustic output, installation efficiency, and long-term operational stability.

Features of Control 19CS

• Dedicated in-ceiling subwoofer for low-frequency reinforcement

• Long-excursion 200 mm subwoofer driver

• Nested Chamber™ design for high output from compact enclosure

• Linear Dynamic Aperture™ port for improved bass efficiency

• SonicGuard™ overload protection for system reliability

• Wide 180° conical low-frequency coverage

• Integrated steel backcan for plenum-rated installation

• Supplied with grille and tile rails for fast mounting

Specifications of Control 19CS
