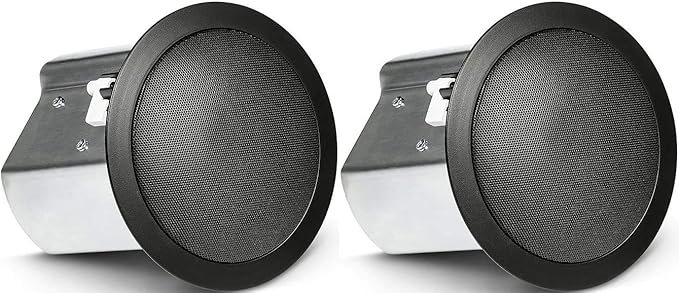

JBL Control 18C/T Two-Way 8-Inch Coaxial Ceiling Speaker – Black
Two-way 8-inch coaxial ceiling loudspeaker with integrated backcan, controlled dispersion, high acoustic output, and support for low-impedance or 70V/100V systems in commercial audio environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,595.62 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Control 18C/T ceiling loudspeaker
Control 18C/T is a high-performance two-way coaxial ceiling loudspeaker engineered for clear and powerful audio reproduction in professional indoor installations. It features a 200 mm (8.0 inch) high-output cone driver combined with a 25 mm soft-dome liquid-cooled tweeter, delivering smooth frequency response and enhanced speech clarity across listening areas.
The speaker is housed in a vented, paintable baffle manufactured from UV-resistant materials with UL94-V0 and UL94-5HB fire ratings, ensuring durability and compliance with safety standards. An integrated formed-steel backcan allows fast, secure installation and supports plenum-rated applications, making it suitable for use in air-handling spaces.
Control 18C/T offers versatile system integration through combined low-impedance and 70V/100V distributed audio operation. This flexibility enables use in both small-scale and large multi-zone installations. With a defined 90-degree conical coverage pattern and high sensitivity, the loudspeaker provides consistent sound levels while minimizing unwanted spill into adjacent areas.
Designed for medium to high volume applications, the speaker is well suited for retail spaces, business music systems, airports, hotels, lounges, educational facilities, convention centers, and courtrooms. Reliable internal components, a precision crossover network, and protective design considerations support long-term operational stability. Manufactured in China, Control 18C/T delivers dependable performance, installation efficiency, and professional acoustic control in a black-finished ceiling loudspeaker.
Features of Control 18C/T
Two-way coaxial ceiling loudspeaker configuration
200 mm polypropylene cone low-frequency driver
25 mm soft-dome liquid-cooled high-frequency driver
Integrated steel backcan for efficient installation
Dual cable and conduit strain relief system
Supports 8 ohm, 70V, and 100V audio systems
Controlled 90° conical sound dispersion
High 92 dB sensitivity for strong output levels
Flame-rated, UV-resistant paintable black baffle
Specifications of Control 18C/T
| Frequency Range (-10 dB) | 58 Hz – 20 kHz |
| Frequency Response (±3 dB) | 80 Hz – 16 kHz |
| Power Rating (Low-Z) | 90 W continuous pink noise |
| Continuous Program Power | 180 W |
| Sensitivity | 92 dB (1 kHz – 16 kHz) |
| Coverage Angle | 90° conical |
| Directivity Factor (Q) | 6.0 |
| Directivity Index (DI) | 7.8 dB |
| Maximum SPL (1 m) | 112 dB (low-impedance) |
| Impedance | 8 ohms |
| Transformer Taps | 60 W, 30 W, 15 W @ 70V/100V |
| Crossover Network | 12 dB/octave, 2nd order |
| Drivers | LF: 200 mm, HF: 25 mm |
| Input Connector | Removable locking 4-pin connector |
| Materials | ABS baffle, zinc-plated steel backcan |
| Dimensions | 307 mm diameter × 274 mm depth |
| Ceiling Cutout | 282 mm diameter |
| Net Weight | 6.4 kg |
| Color | Black |
| Plenum Rated | Yes |
| Country of Origin | China |
