JBL Control 24CT Background/ Foreground Ceiling Loudspeakers
Compact in-ceiling loudspeaker with transformer-based operation, delivering wide coverage, clear sound, and efficient performance for background music and paging applications in distributed commercial audio systems.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,165.38 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

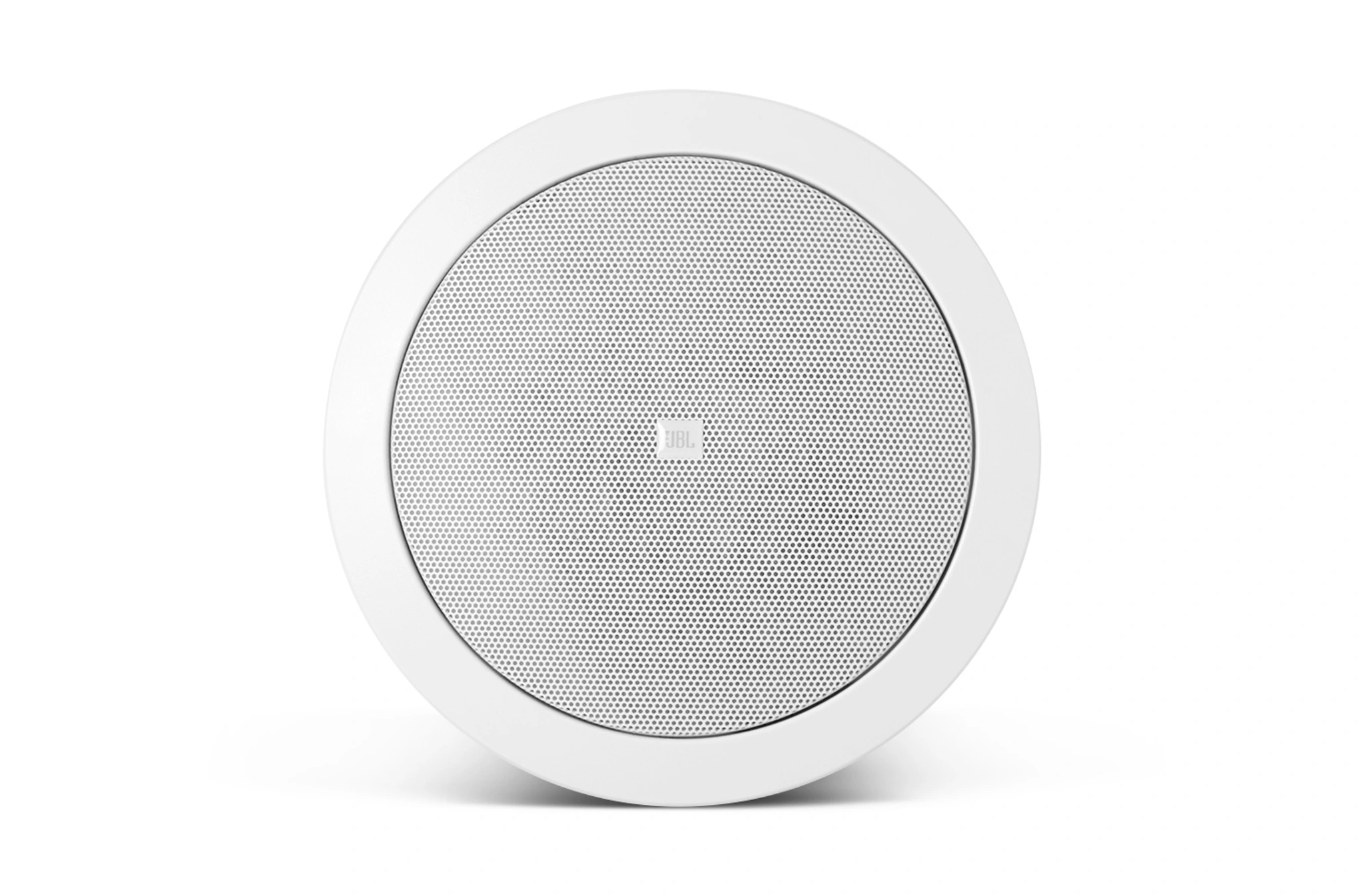

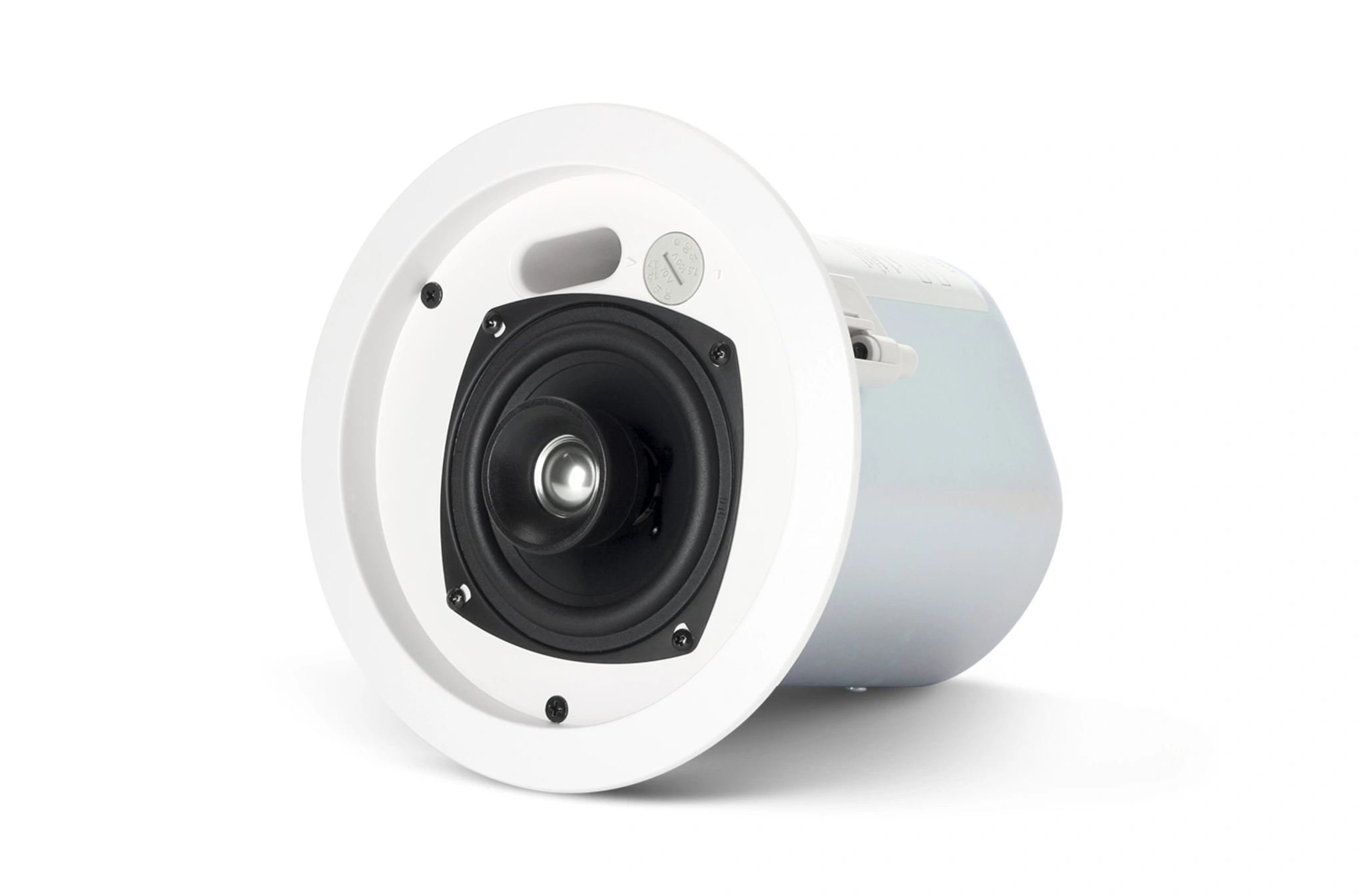

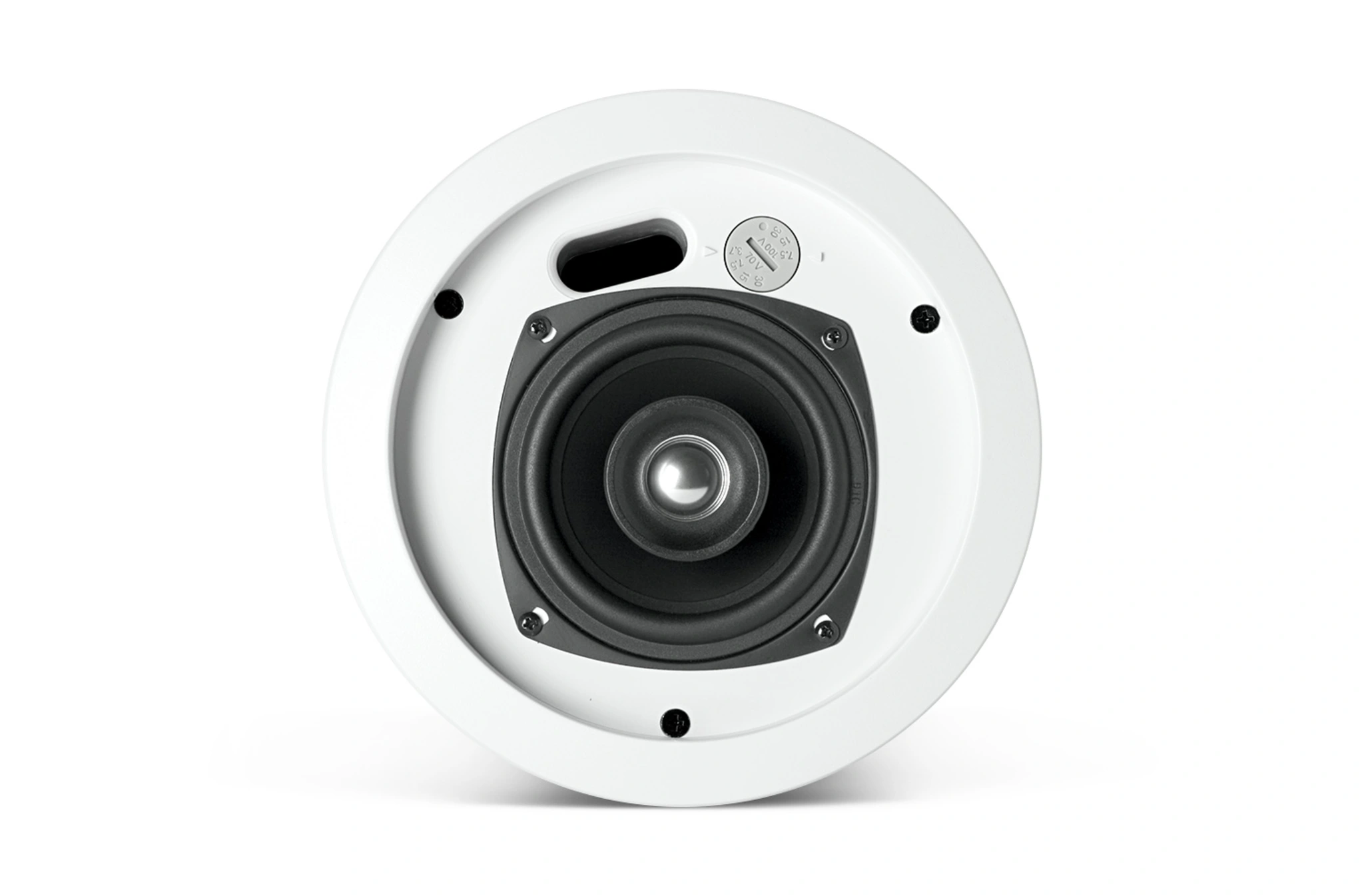

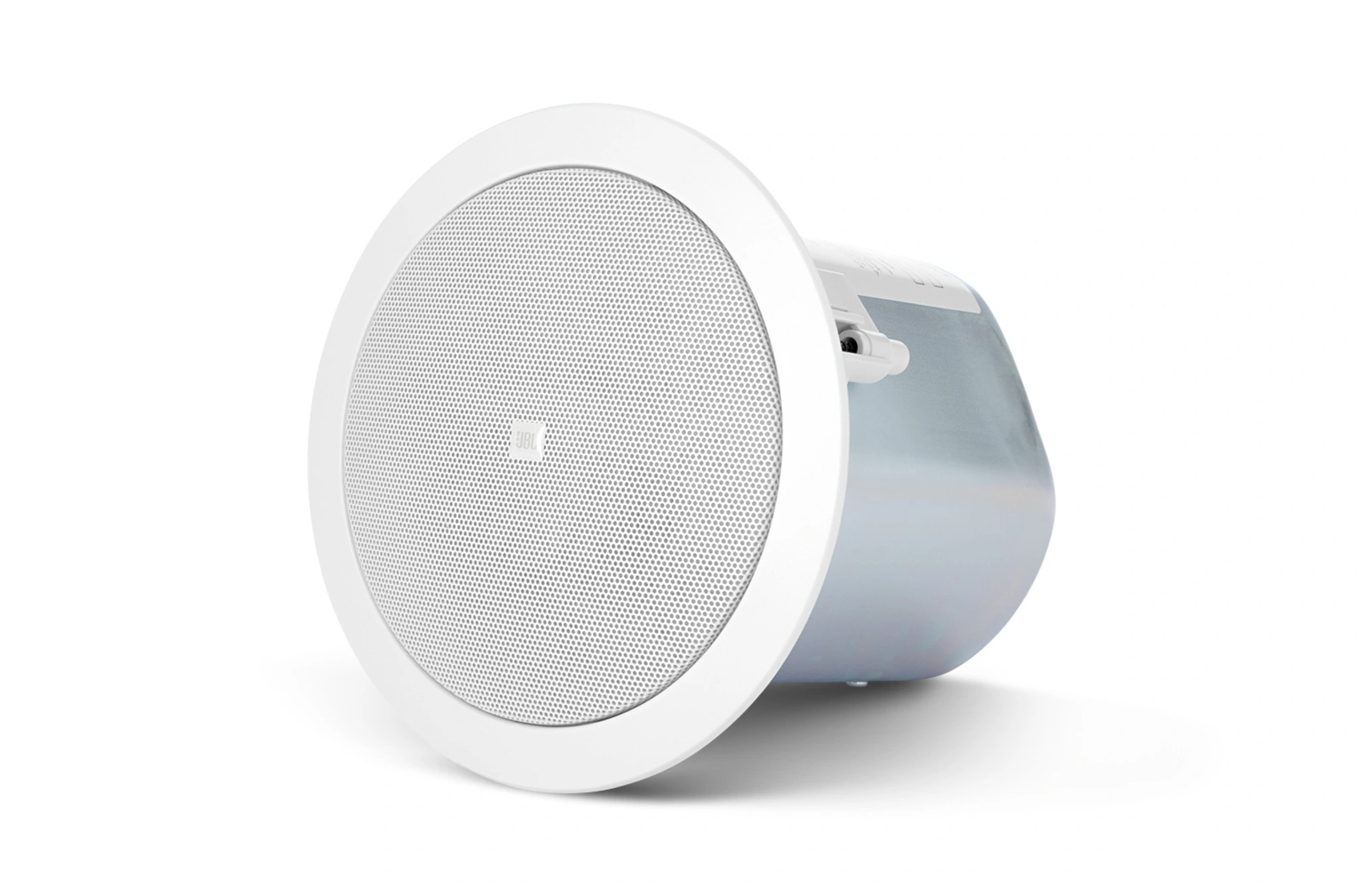

JBL Control 24CT in-ceiling loudspeaker
Control 24CT is a compact in-ceiling loudspeaker designed to provide high-quality sound reproduction for background music and music-plus-paging systems. Its efficient and discreet form factor makes it suitable for commercial environments where consistent audio coverage and reliable performance are required.
The loudspeaker features a coaxial design with a 100 mm (4 inch) low-frequency woofer using a butyl rubber surround, combined with a 19 mm (0.75 inch) high-frequency driver. This configuration delivers balanced audio reproduction with low distortion and clear high-frequency detail, supporting both speech intelligibility and music playback.
Control 24CT is optimized for distributed audio systems through an integrated transformer with multiple tap settings. This allows flexible power selection in 70V installations, making it easy to balance sound levels across different zones. The wide 130-degree conical coverage pattern enables fewer speakers to cover a given area, helping reduce system complexity and installation cost without sacrificing performance.
The enclosure includes a formed steel backcan and a fire-rated baffle, supporting plenum-rated installation in air-handling spaces. Its compact size and integrated mounting accessories simplify installation and ensure consistent results across projects. The speaker is packaged with a grille, tile rails, and support hardware to streamline deployment.
Control 24CT is well suited for retail spaces, restaurants, offices, hotels, educational facilities, and similar venues requiring dependable ceiling-mounted audio for background and paging use. Manufactured in China, it combines practical system flexibility, acoustic efficiency, and installation convenience in a compact in-ceiling loudspeaker solution.
Features of Control 24CT
Compact coaxial in-ceiling loudspeaker design
100 mm woofer with butyl rubber surround
19 mm high-frequency driver for clear detail
Integrated multi-tap transformer for 70V systems
Wide 130° conical coverage pattern
Low distortion at typical operating levels
Integrated steel backcan for plenum-rated use
Supplied with grille and tile rails for fast installation
Specifications of Control 24CT
| Frequency Range | 80 Hz – 20 kHz |
| Power Rating | Transformer-based operation |
| Transformer Taps | 30 W, 15 W, 7.5 W, 3.7 W @ 70V |
| Sensitivity | 86 dB (100 Hz – 10 kHz) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 2.4 |
| Directivity Index (DI) | 3.8 dB |
| Maximum SPL (1 m) | 102 dB (top 70V/100V tap) |
| Nominal Impedance | 16 ohms |
| Drivers | LF: 100 mm, HF: 19 mm |
| Input Connector | Removable 4-pin locking connector |
| Backcan | Formed steel |
| Baffle Material | Fire-rated polystyrene |
| Ceiling Cutout | 168 mm diameter |
| Color | White |
| Plenum Rated | Yes |
| Country of Origin | China |
