JBL Control 24CT Micro Background Music Ceiling Speaker

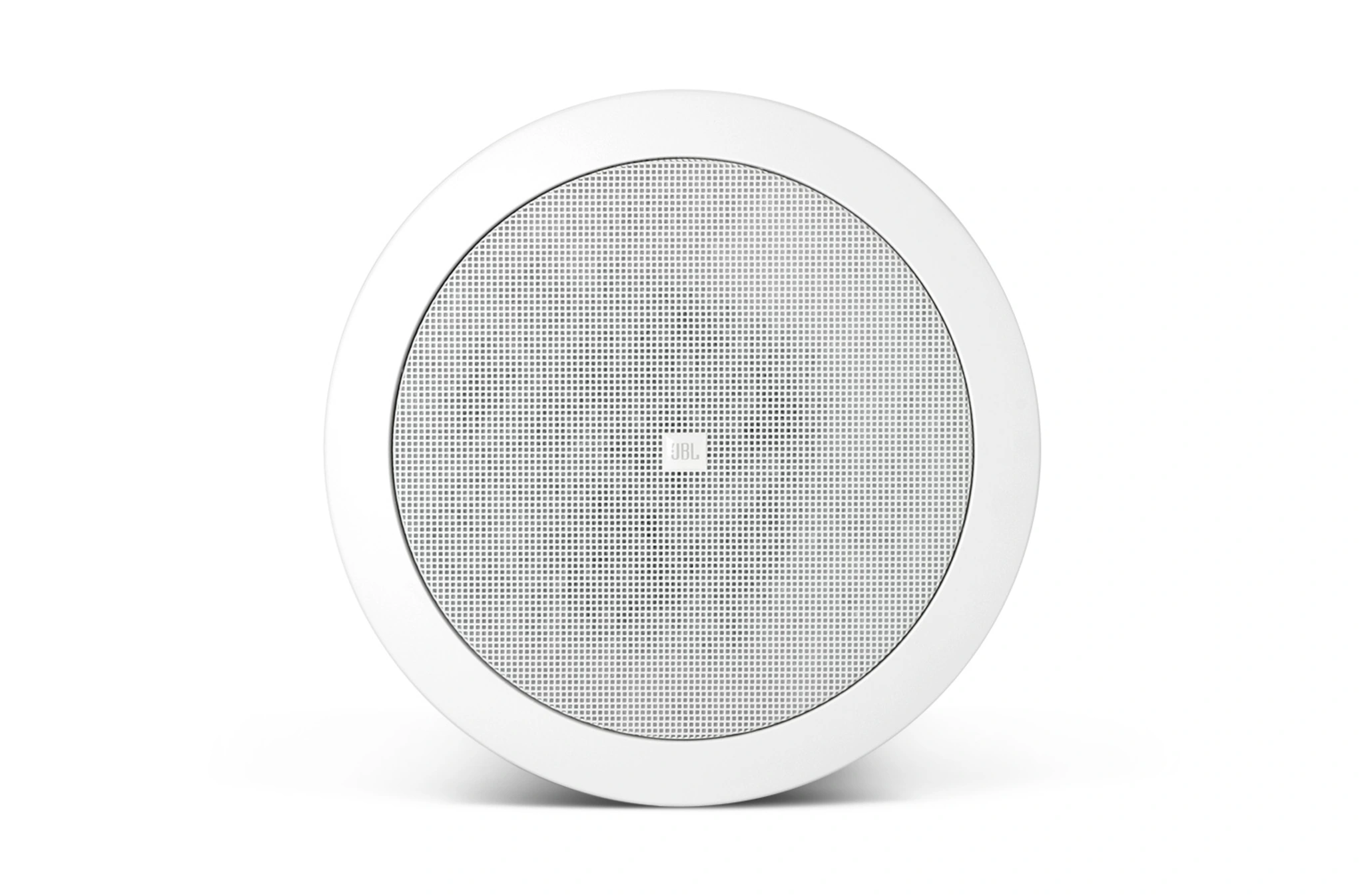

JBL Control 24CT Micro in-ceiling loudspeaker

Control 24CT Micro is a compact in-ceiling loudspeaker engineered to deliver clear and balanced sound for background music and music-plus-paging applications. Its small footprint and shallow mounting depth make it suitable for installations where ceiling space is limited while still requiring consistent audio coverage.

The loudspeaker features a coaxial design that combines a 115 mm (4.5 inch) low-frequency driver with a 12 mm (0.5 inch) high-frequency driver. This configuration provides smooth frequency response and reliable performance for speech and music reproduction. With an extended high-frequency range reaching up to 25 kHz, the speaker maintains clarity and detail at typical background listening levels.

Control 24CT Micro incorporates an integrated 9-watt multitap transformer, allowing flexible power selection for 70V distributed audio systems. Multiple tap options enable installers to balance sound levels across different zones without additional components. The wide 150-degree conical coverage pattern allows fewer speakers to cover larger areas, improving system efficiency and reducing overall installation complexity.

The enclosure includes a formed steel backcan and a fire-rated baffle, supporting installation in air-handling spaces. Its compact depth of approximately 100 mm helps accommodate tight ceiling cavities while maintaining structural integrity and acoustic consistency. The speaker is packaged with a grille, backcan, and tile rails, simplifying installation and standardizing deployment across projects.

Control 24CT Micro is intended for commercial environments such as offices, retail spaces, hospitality venues, and educational facilities where unobtrusive design, wide coverage, and dependable background audio performance are required. Its combination of compact size, transformer-based operation, and broad dispersion makes it a practical solution for distributed ceiling speaker systems.

Features of Control 24CT Micro

• Compact in-ceiling loudspeaker for background audio

• Extremely wide 150° conical coverage

• Smooth and balanced frequency response

• Integrated 9 W multitap transformer

• Shallow mounting depth for limited ceiling space

• Coaxial driver configuration for consistent sound

• Supplied with grille, backcan, and tile rails

• Suitable for distributed 70V audio systems

Specifications of Control 24CT Micro
