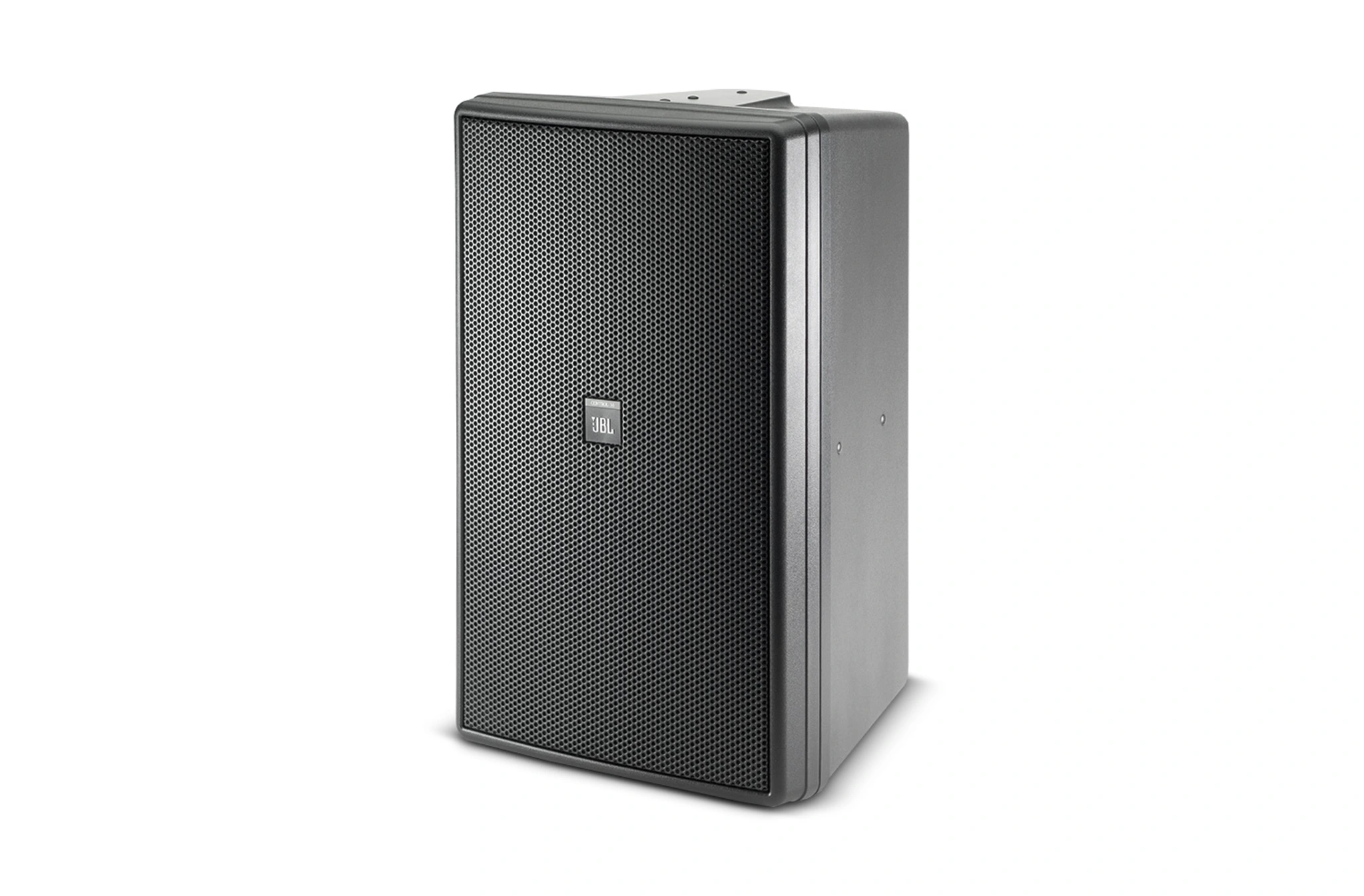

JBL Control 30 Three-Way High Output Indoor / Outdoor Monitor Speaker
The JBL Control 30 is a powerful three-way speaker designed for both indoor and outdoor use, delivering high-fidelity audio with extended bandwidth and well-defined coverage. Its compact design integrates high-power components, computer-optimized horns, coaxial component placement, and a complex network to produce smooth sound across a wide range of applications including retail, hospitality, leisure venues, and outdoor performance areas.
This speaker features a 250 mm (10 in) fiberglass/Kevlar woofer with a neodymium magnet for low frequencies, a 125 mm (5 in) anodized aluminum midrange driver with EPDM surround, and a 25 mm (1 in) titanium compression driver for high frequencies. The combination provides full-range sound with a frequency response of 38 Hz – 17 kHz (-10 dB) and a sensitivity of 93 dB, reaching a maximum SPL of 123 dB at 1 meter. Its 120° horizontal x 110° vertical coverage ensures even sound distribution in a variety of environments.
The Control 30 is fully outdoor-capable with WeatherMax™ protection and an IEC IP-X5 rating, exceeding MilSpec 810 for humidity, salt spray, temperature, and UV exposure. It includes SonicGuard® overload protection, a sealed input panel cover, screw-down terminals, and the InvisiBall mounting system for flexible installation, with optional U-bracket and ceiling-mount adapters available. The grille is made from thermoset composite-coated steel with WeatherMax multi-layer foam for durability. This speaker is made in China.
Features of Control 30
Three-way high-output indoor/outdoor monitor speaker
250 mm fiberglass/Kevlar cone woofer, 125 mm anodized aluminum cone midrange, 25 mm titanium compression driver
Smooth high-fidelity sound with extended bandwidth
120° x 110° coverage
500 W Continuous Program Power, 250 W Continuous Pink Noise
150 W transformer for 70 V / 100 V lines, with 8-ohm thru
SonicGuard full-range overload protection
WeatherMax outdoor capability, IP-X5 rating
InvisiBall mounting system included; optional U-bracket and ceiling adapter
Thermoset composite coated steel grille with multi-layer foam
Screw-down input terminals
Complex crossover network with conjugate shaping for optimal response
Compact design with high-impact polystyrene enclosure and patented internal molding
Made in China
Specifications of Control 30
| Frequency Range (-10 dB) | 38 Hz – 17 kHz |
| Frequency Response (±3 dB) | 40 Hz – 16 kHz |
| Power Capacity | 500 W Continuous Program; 250 W Continuous Pink Noise |
| Transformer Taps | 70 V: 150 W, 75 W, 38 W, 19 W; 100 V: 150 W, 75 W, 38 W; Thru: 4 ohms nominal |
| Maximum SPL (1 m) | Short-Term: 123 dB; Long-Term: 117 dB |
| Sensitivity | 93 dB, 1 W @ 1 m |
| Coverage Angle | 120° H x 110° V |
| Directivity Factor (Q) | 5.2 dB (averaged 500 Hz – 10 kHz) |
| Directivity Index (DI) | 7.1 dB (averaged 500 Hz – 10 kHz) |
| Impedance | 4 ohms |
| Crossover Network | 3rd order Low Pass LF, 2nd order High Pass / 3rd order Low Pass MF, 3rd order High Pass HF, plus conjugate shaping |
| Drivers | LF: 250 mm fiberglass/Kevlar cone, 50 mm voice coil, neodymium magnet; MF: 125 mm anodized aluminum cone, 25 mm voice coil; HF: 25 mm titanium diaphragm compression driver |
| Enclosure | High Impact Polystyrene with 10% glass fill, patented internal polyurethane molding |
| Grille | Thermoset composite coated steel, WeatherMax foam |
| Outdoor Capability | IEC IP-X5, exceeds MilSpec 810 |
| Input Connectors | Screw-down terminal strip, zinc-plated copper base, nickel-plated screws/washers, accepts up to 12 AWG |
| Mounting Hardware | InvisiBall aimable wall-mount system included, optional U-bracket and ceiling adapter |
| Dimensions (H x W x D) | 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in) |
| Net Weight (each) | 18.9 kg (42 lb) |
| Shipping Weight (ea) | 20.3 kg (45 lb) |
| Included Accessories | MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm hex wrench |
| Optional Accessories | MTC-30CM ceiling mount, MTC-30UB U-bracket |
| Colors | Black or white (-WH) |
| Origin of Country | China |
