JBL Control 414C/T 4″ Two-Way Coaxial Ceiling Speaker
The JBL Control 414C/T is a two-way coaxial in-ceiling loudspeaker with a 4-inch woofer, integrated enclosure, and modern design for clear, balanced sound in commercial environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 933.69 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

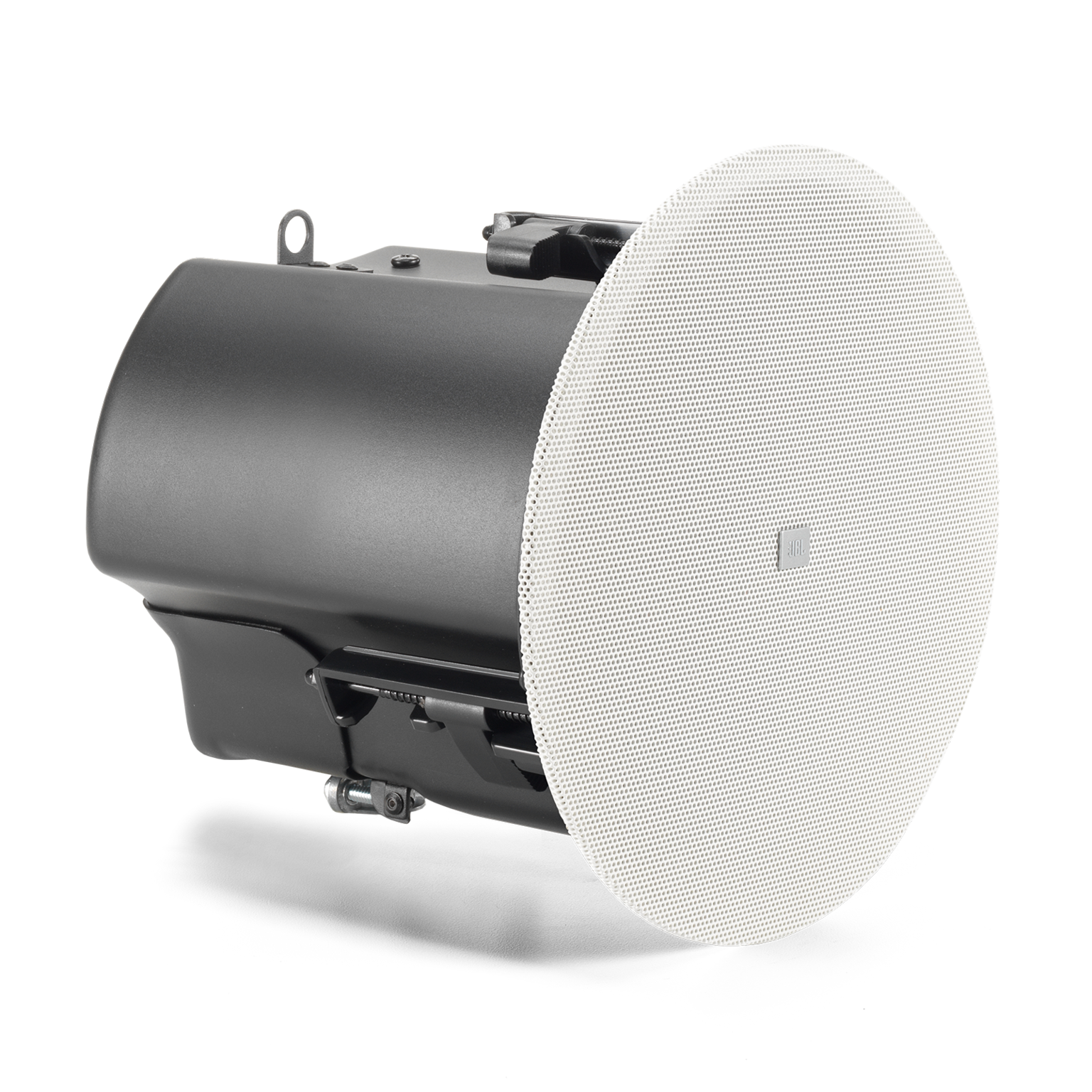

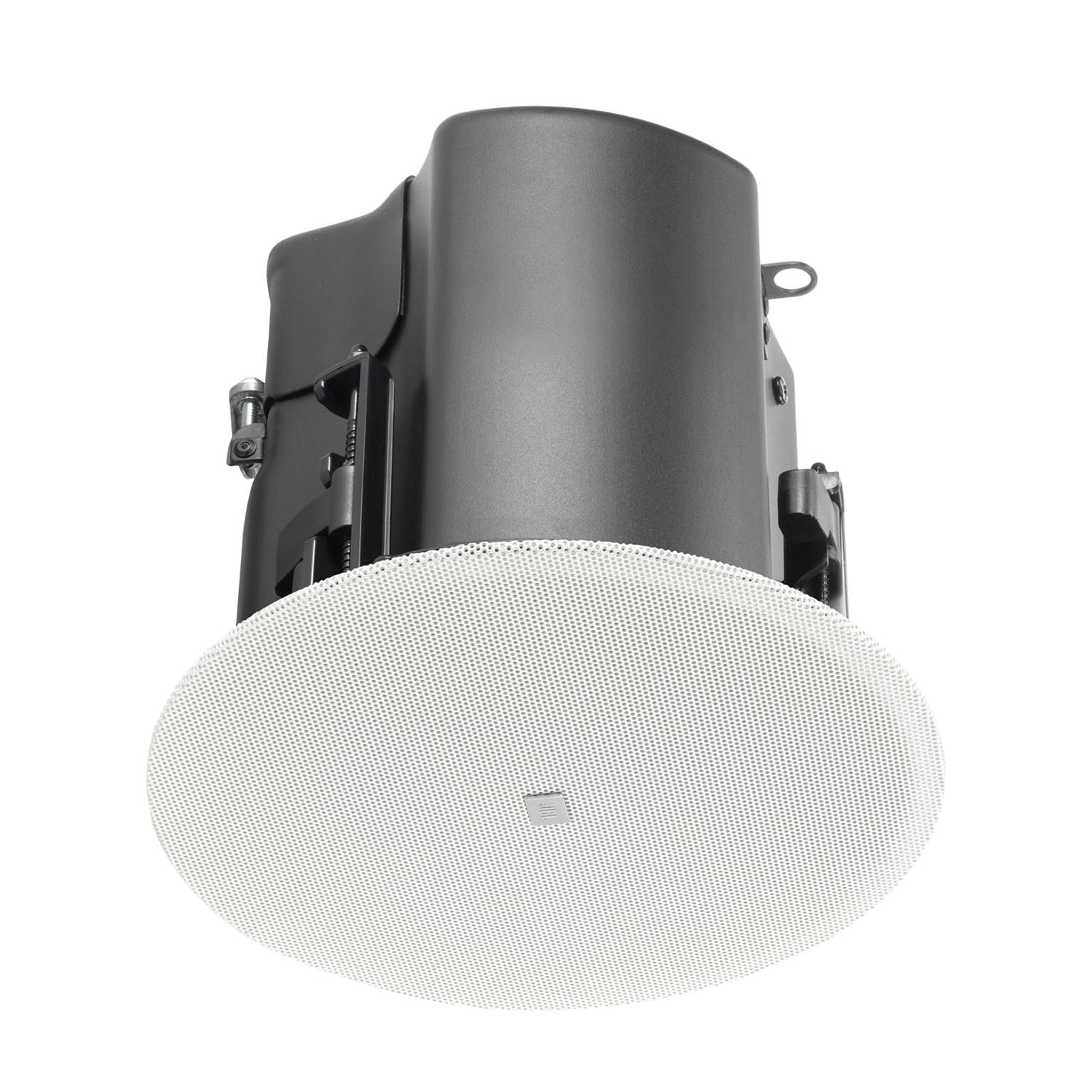

JBL Control 414C/T Two-Way Coaxial In-Ceiling Loudspeaker White
The JBL Control 414C/T belongs to the Control 400 Standard Coverage Series and is engineered to deliver high-quality, full-range audio performance from a compact in-ceiling loudspeaker. Featuring a 100 mm (4-inch) woofer paired with a 20 mm (0.75-inch) soft-dome tweeter in a coaxial configuration, this model provides enhanced clarity, improved frequency balance, and smooth coverage for speech and background music applications.
The integrated enclosure makes the Control 414C/T ideal for installation in most ceiling plenum spaces, ensuring consistent acoustic performance while simplifying system design. Its wide 130-degree conical coverage allows even sound distribution across listening areas, making it suitable for offices, retail stores, hospitality spaces, educational facilities, and corporate environments.
Designed with modern interiors in mind, the loudspeaker includes a full-face magnetic grille that delivers a clean, refined appearance. The grille is paintable, allowing seamless integration with surrounding décor, while optional grille styles offer additional design flexibility. Installation efficiency is enhanced through top and side cable entry options and a robust captive dogear mounting system that accommodates a wide range of ceiling thicknesses. Supporting both 70V/100V distributed systems and 8-ohm low-impedance operation, the Control 414C/T offers flexibility for a variety of commercial audio system requirements. Origin of country China.
Features of Control 414C/T
Two-way coaxial design with 4-inch woofer and soft-dome tweeter
Integrated enclosure suitable for ceiling plenum installations
Built-in 70V/100V multi-tap transformer and 8-ohm direct input
Full-face, paintable magnetic grille with safety tether
Wide 130° conical coverage pattern

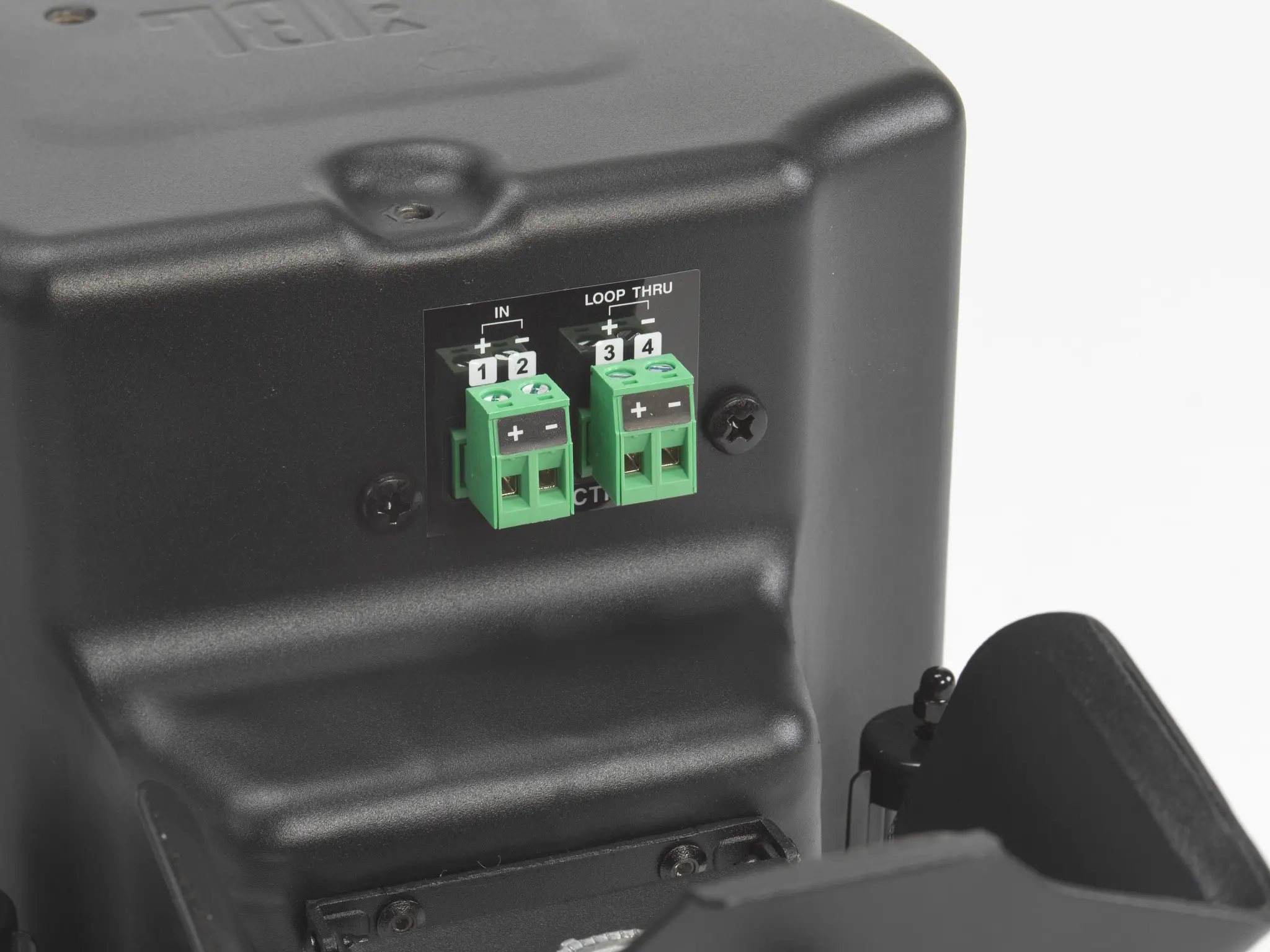

Top and side cable entry for flexible wiring
Captive dogear mounting system for varied ceiling thicknesses
Refined, modern architectural design
IP33 environmental rating
Specifications of Control 414C/T
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Sensitivity (1W @ 1m) | 86 dB |
| Coverage Angle | 130° conical |
| Maximum SPL (1 m) | 103 dB continuous, 109 dB peak |
| Power Capacity | 45 W continuous (2 hrs), 30 W continuous (100 hrs) |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 25 W, 12.5 W, 6.3 W, 3.2 W / 100V: 25 W, 12.5 W, 6.3 W |
| LF Driver | 100 mm (4 in) paper cone with SBR surround |
| HF Driver | 20 mm (0.75 in) soft-dome tweeter |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Dimensions | 186 mm height x 203 mm diameter |
| Depth Above Ceiling | 177 mm |
| Environmental Rating | IP33 per EN/IEC 60529 |
| Safety Certifications | UL 2043, UL 1480A, NFPA 90A, NFPA 70, CSA C22.2 No. 205 |
| Operating Temperature | 0 °C to 45 °C |
| Optional Accessories | Black round, white square, weather grille, mounting brackets, tile rails |
| Net Weight | 2.50 kg |
| Shipping Weight | 9.52 kg per pair |
| Color | White |
| SKU | JBL-C414C/T |
| Origin of Country | China |
