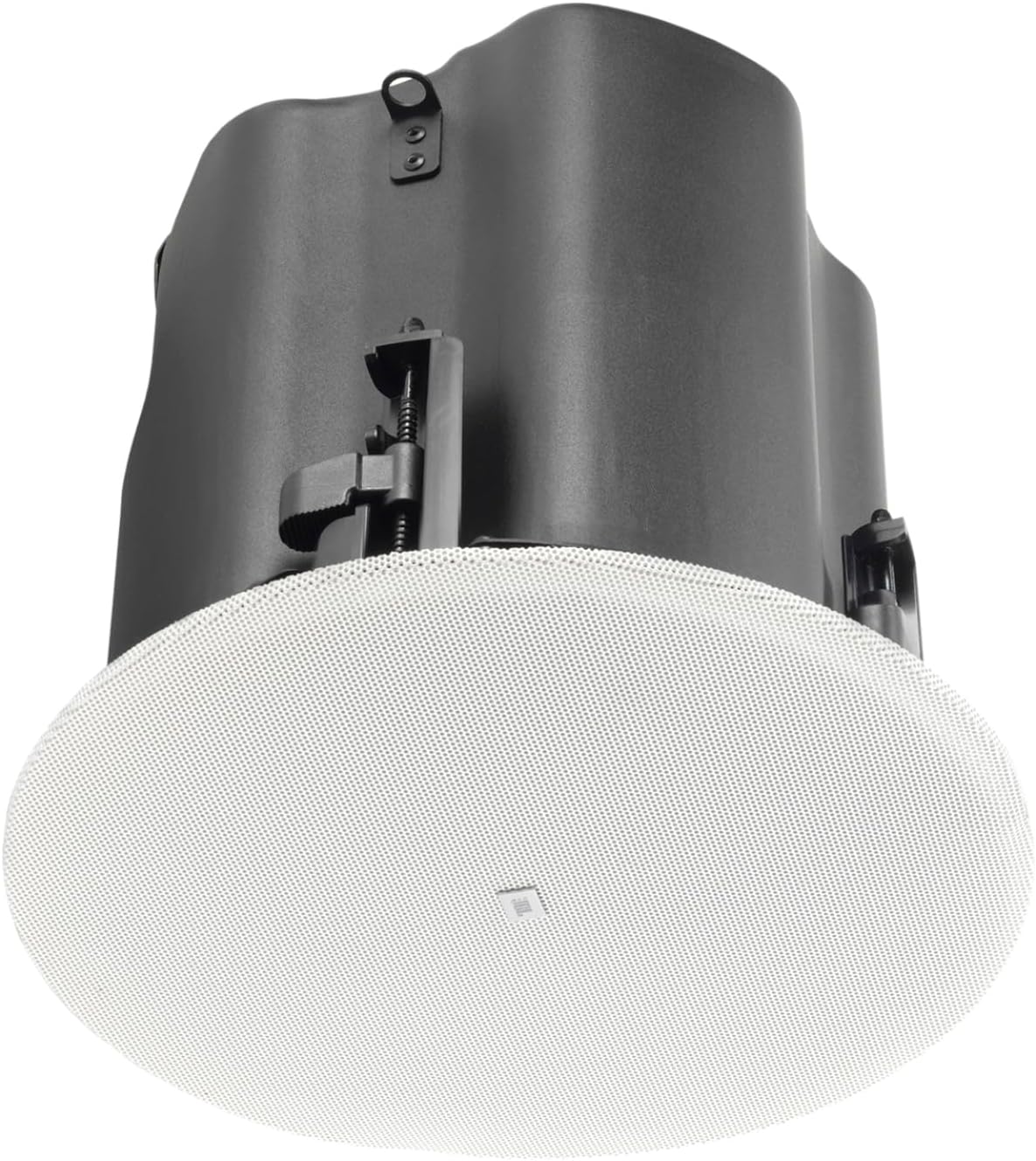

JBL Control 416C/T 6.5″ Two-Way Coaxial Ceiling Speaker

JBL Control 416C/T Two-Way Coaxial In-Ceiling Loudspeaker White

The JBL Control 416C/T is part of the Control 400 Standard Coverage Series and is designed to deliver enhanced low-frequency performance and clear high-frequency detail in a compact, integrated in-ceiling loudspeaker. Featuring a 165 mm (6.5-inch) woofer combined with a 20 mm (0.75-inch) soft-dome tweeter in a coaxial configuration, this model provides balanced, full-range audio reproduction suitable for both speech and music applications.

Its integrated enclosure makes the Control 416C/T ideal for installation in most ceiling plenum spaces, helping ensure consistent sound quality while simplifying system integration. The wide 120-degree conical coverage pattern enables uniform sound dispersion across listening areas, making it well suited for retail environments, offices, hospitality venues, educational facilities, and corporate spaces.

Aesthetically refined, the loudspeaker includes a full-face magnetic grille that offers a sleek, modern appearance. The grille is paintable, allowing it to blend seamlessly into a wide range of interior designs, while optional grille styles provide added flexibility. Installation efficiency is enhanced through top and side cable entry options and a durable captive dogear mounting system that accommodates various ceiling thicknesses. Supporting both 70V/100V distributed audio systems and 8-ohm low-impedance operation, the Control 416C/T offers flexibility for diverse commercial sound system requirements. Origin of country China.

Features of Control 416C/T

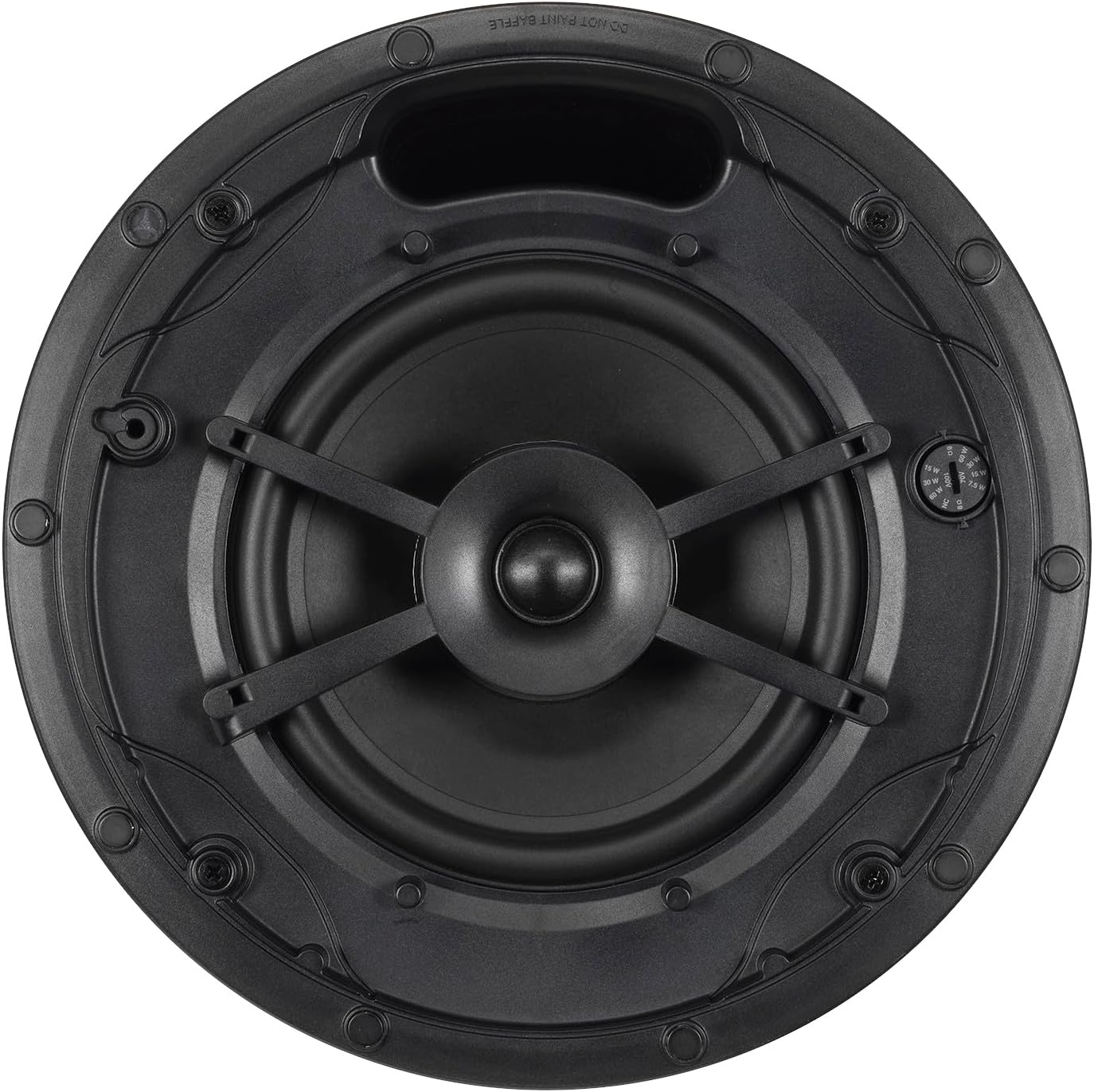

• Two-way coaxial design with 6.5-inch woofer and soft-dome tweeter

• Integrated enclosure for ceiling plenum installations

• Built-in 70V/100V multi-tap transformer and 8-ohm direct input

• Full-face, paintable magnetic grille with safety tether

• Wide 120° conical coverage pattern

• Top and side cable entry for flexible wiring options

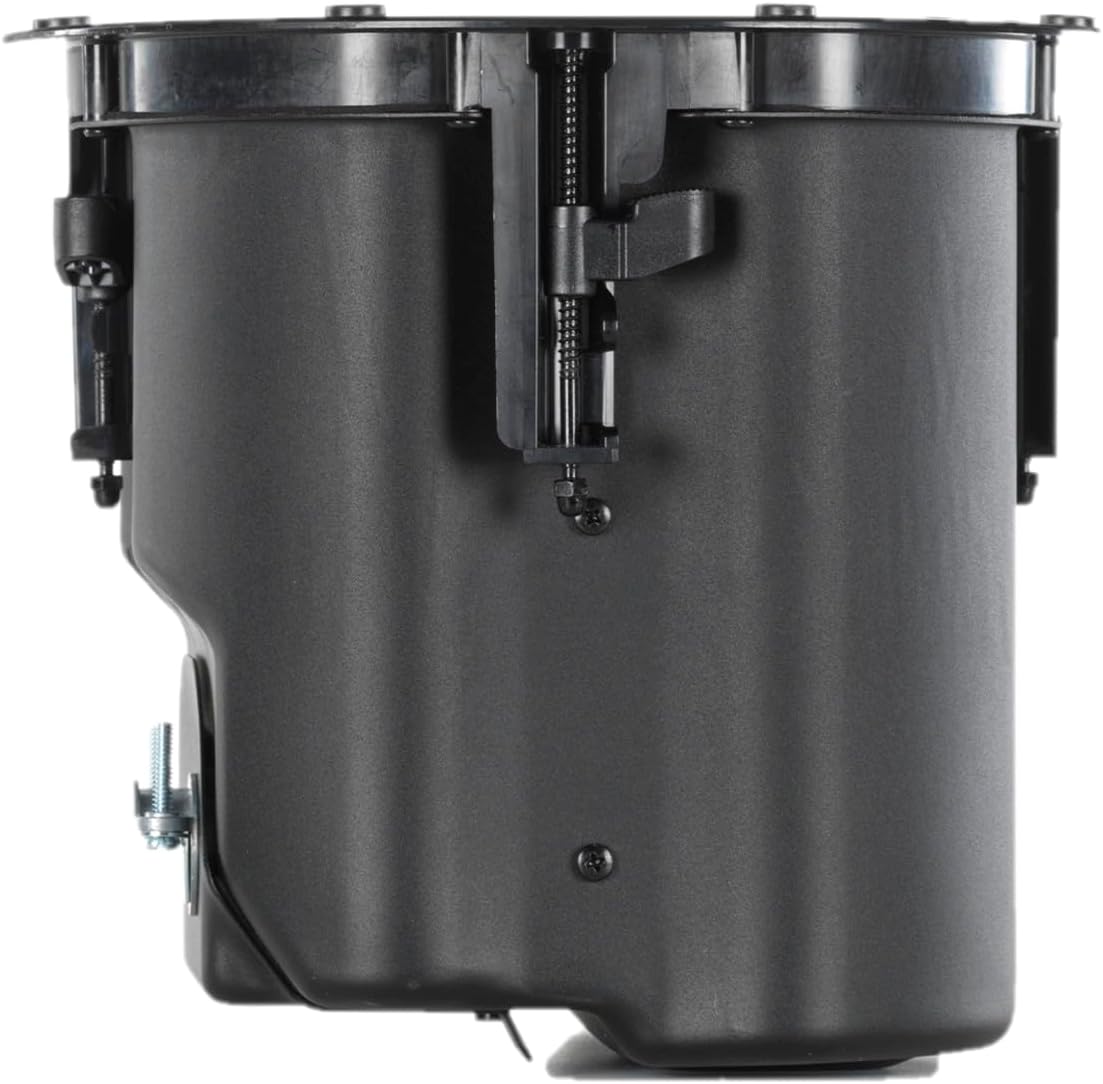

• Captive dogear mounting system for varied ceiling thicknesses

• Clean, modern architectural styling

• IP33 environmental rating

Specifications of Control 416C/T
