JBL Control 47C/T Consistent Coverage Extended Bass
The JBL Control 47C/T Ceiling Loudspeaker delivers extended bass performance, wide 120° coverage, and consistent sound dispersion, enabling fewer speakers to cover large spaces with clear, balanced audio reproduction.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 2,230.81 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

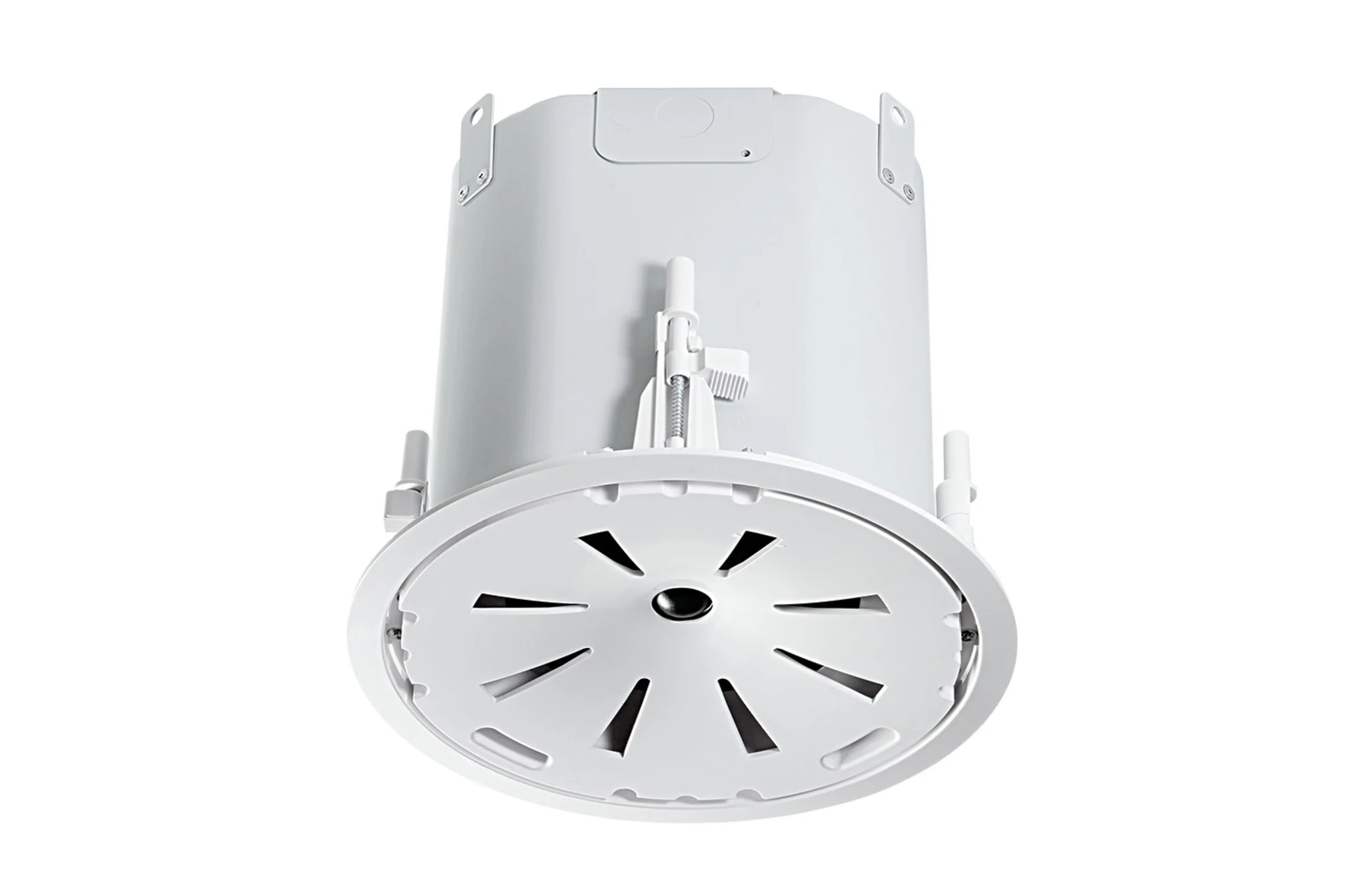

JBL Control 47C/T Ceiling Loudspeaker
The JBL Control 47C/T Ceiling Loudspeaker is engineered to deliver extended bass performance combined with wide, consistent sound coverage, making it an ideal solution for professional commercial environments that require high-quality distributed audio with minimal installation complexity. Designed for versatility, it is suitable for applications ranging from restaurants and retail spaces to casinos, entertainment venues, and large public facilities where uniform sound distribution and clarity are essential.
This loudspeaker features JBL’s proprietary Conical RBI® (Radiation Boundary Integrator®) technology, which ???????????? wide 120° conical coverage with constant directivity. This ensures flat frequency response and consistent audio performance throughout the listening area, minimizing acoustic dead zones and reducing the number of speakers required to effectively cover large spaces. The large formed-steel backcan is acoustically optimized to support extended bass response down to 55 Hz, delivering a fuller and more natural low-frequency presence than typical ceiling loudspeakers in its class.
The JBL Control 47C/T Ceiling Loudspeaker supports both low-impedance 8-ohm operation and 70V/100V distributed audio systems, providing flexibility for different system architectures. It integrates a 165 mm (6.5 in) low-frequency driver and a 25 mm (1 in) high-frequency driver for balanced full-range performance. The elegant, low-profile design allows the speaker to blend seamlessly into any architectural environment while maintaining professional-grade acoustic performance. With its blind-mount installation system, plenum-rated construction, and included mounting accessories, the Control 47C/T delivers a reliable, scalable, and acoustically consistent ceiling speaker solution for modern commercial audio installations.
Features of Control 47C/T Ceiling
Extended bass response down to 55 Hz
120° constant directivity coverage
Conical RBI® pattern control technology
Flat frequency response design
Wide-area sound dispersion
Large acoustically optimized backcan
Low-impedance and 70V/100V operation
Professional-grade coaxial driver system
Elegant architectural design
Blind-mount ceiling installation system
Fire-rated and plenum-rated construction
Uniform sound coverage for large spaces
Specifications of Control 47C/T Ceiling
| Frequency Range | 55 Hz – 20 kHz |
| Power Rating | 150 W continuous program, 75 W continuous pink noise (300 W peak) |
| Sensitivity | 91 dB (1 kHz – 16 kHz) |
| Transformer Taps | 60W, 30W, 15W (7.5W @ 70V only) |
| Coverage Angle | 120° conical, constant directivity |
| Impedance | 8 ohms (bypass mode) |
| Drivers | LF: 165 mm (6.5 in), HF: 25 mm (1 in) |
| Input Connectors | Two removable locking 2-pin connectors with screw terminals |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, grille |
| Suspension Tabs | Three on top panel |
| Dimensions | 305 mm diameter × 259 mm depth (12.0 in × 10.2 in) |
| Maximum SPL (1m) | 110 dB low-impedance (116 dB peak), 109 dB top 70V/100V tap |
| Color | White |
| Safety Agency | UL1480, UL2043, NFPA90, NFPA70, IEC60849/EN60849 compliant |
| Backcan | Formed steel, blind-mount, included |
| Baffle/Rim | ABS baffle, UL94-V0 fire-rated |
| Ceiling Cutout Size | 282 mm (11.1 in) diameter |
| Optional Accessories | MTC-47NC bracket, MTC-47MR mud ring |
| Plenum Usage | Yes, backcan included |
| Origin of Country | China |
