JBl CSS-H15 15 Watt Paging Horn
The CSS-H15 15W paging horn delivers clear voice projection, wide coverage, and reliable outdoor performance with IP65 protection, making it ideal for public address, security, and industrial communication systems.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 774.63 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

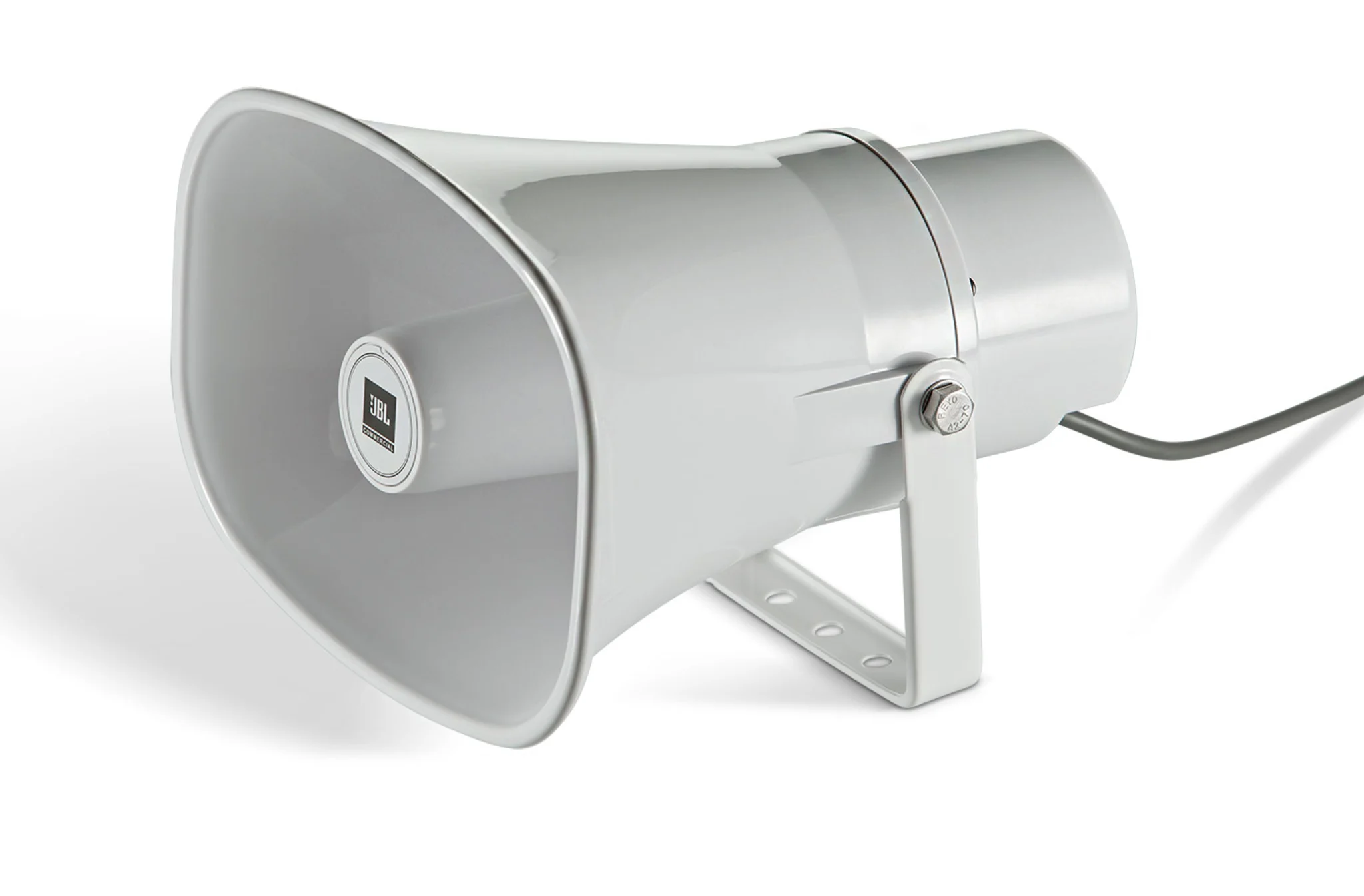

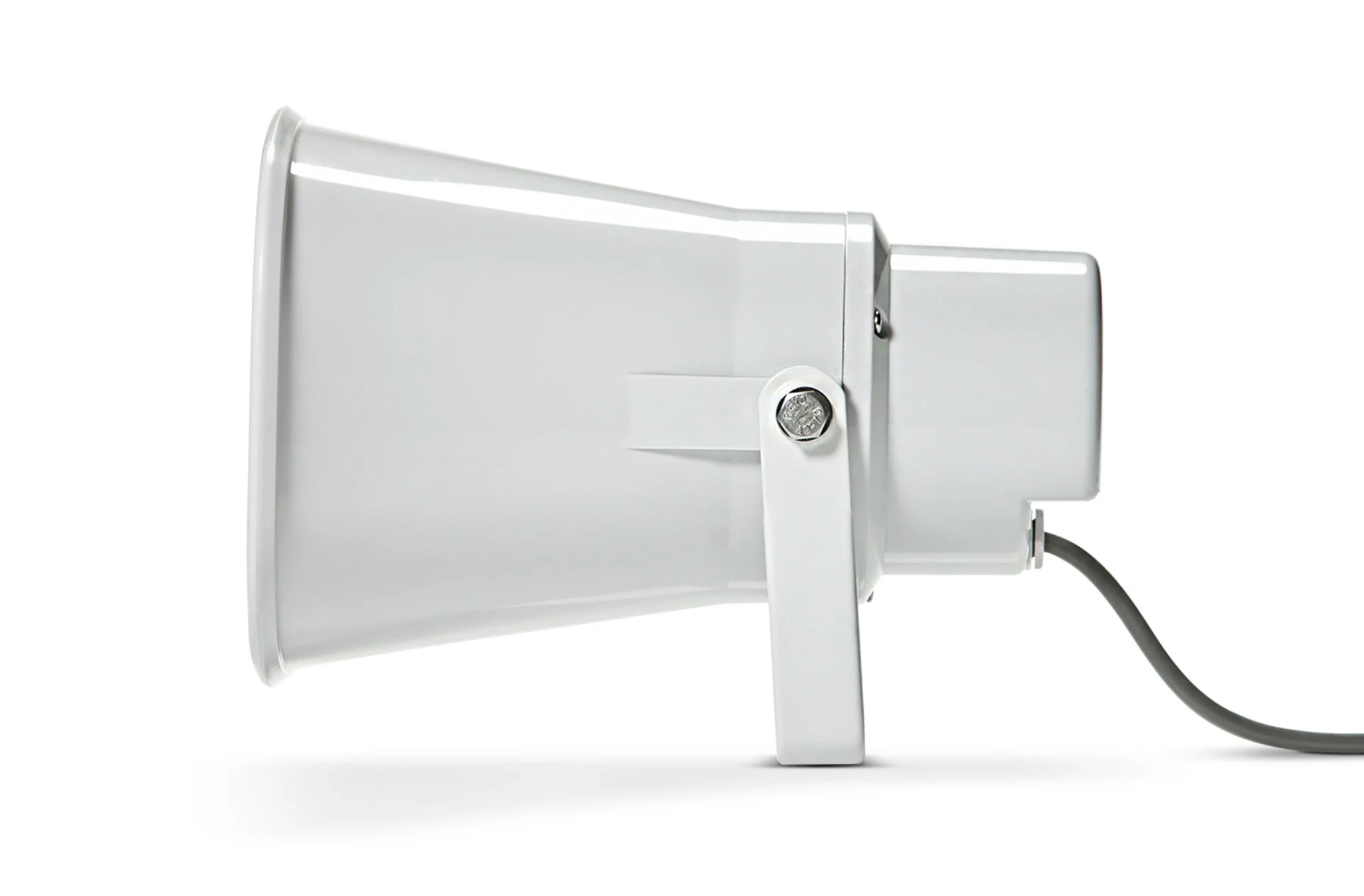

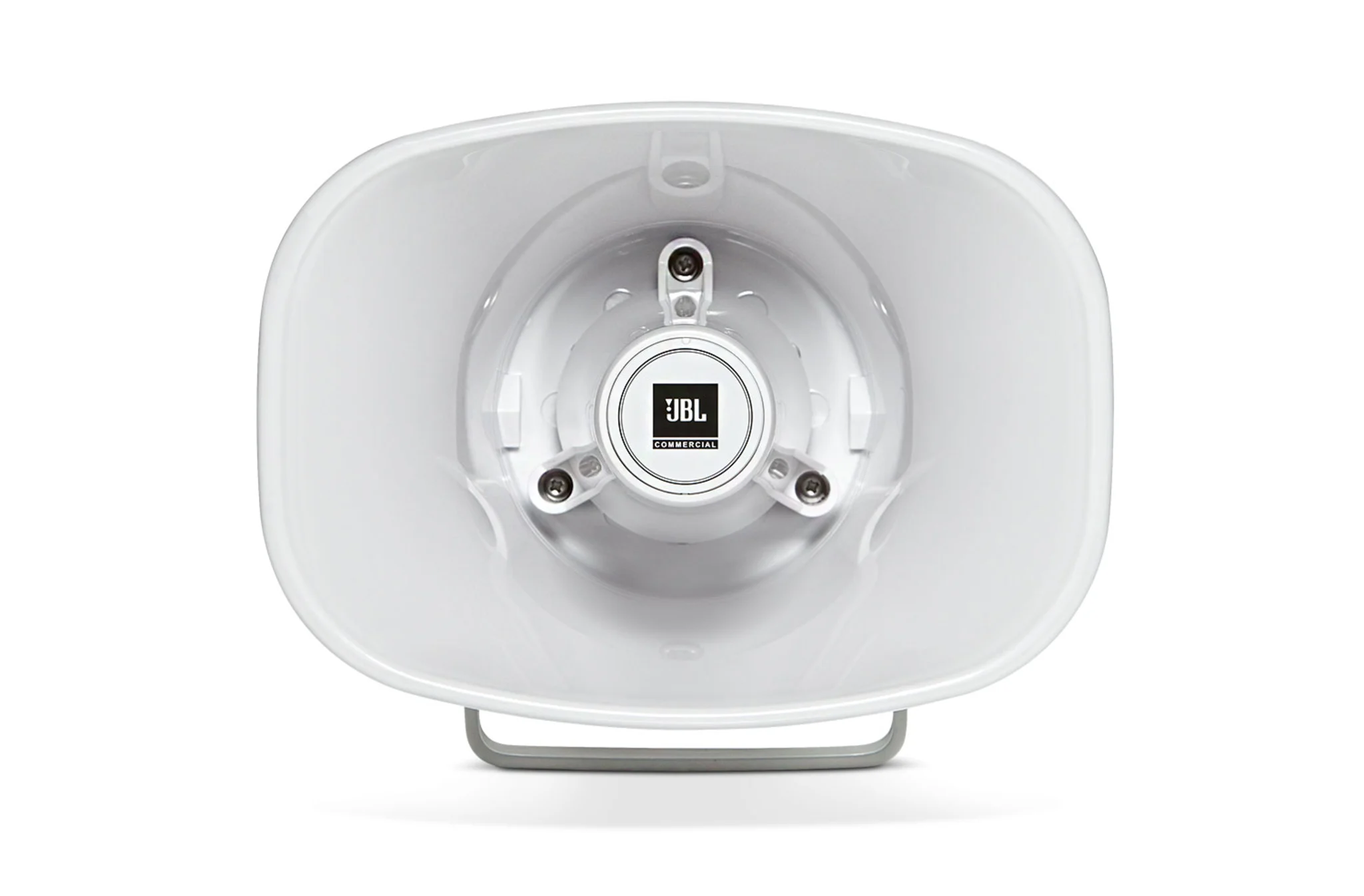

Commercial Solutions Series CSS-H15 15 Watt Paging Horn
The Commercial Solutions Series CSS-H15 15 Watt Paging Horn is a high-performance voice projection loudspeaker designed for clear and reliable communication in public address, paging, intercom, alarm, and industrial sound systems. Engineered for demanding environments, the CSS-H15 features an IP65-rated weather-resistant design, making it suitable for both indoor and outdoor installations.
This paging horn delivers excellent voice range clarity with high sensitivity, enabling high sound pressure levels using minimal amplification power. Its wide 70° horizontal by 90° vertical coverage pattern allows it to cover larger audience areas compared to conventional paging horns, making it highly effective for medium-throw applications. The phenolic diaphragm driver ensures durability, reliability, and consistent performance in harsh environmental conditions.
The CSS-H15 includes a UL-registered 15-watt multi-tap transformer with 70V/100V line operation and an 8-ohm direct bypass option for flexible system integration. A built-in passive high-pass filter protects the driver from low-frequency damage, enhancing long-term reliability. The horn is constructed from durable ABS material and supplied with a stainless steel powder-coated U-bracket and stainless steel exterior hardware for secure mounting and corrosion resistance.
Designed for commercial and industrial use, the CSS-H15 paging horn provides dependable performance, strong speech intelligibility, and long-term durability for critical communication systems in warehouses, factories, schools, public access areas, and large commercial facilities.
Features of CSS-H15
Excellent voice clarity for paging and announcements
High sensitivity for loud output with low amplifier power
Wide 70° H x 90° V coverage pattern
Phenolic diaphragm driver for outdoor durability
UL-registered 15W multi-tap transformer
70V/100V line operation with 8-ohm direct bypass
Built-in passive high-pass filter for driver protection
Highly weather-resistant IP65-rated construction
Durable ABS horn body
Stainless steel powder-coated U-bracket
Stainless steel exterior mounting hardware
Corrosion-resistant design for outdoor use
Reliable performance in harsh environments
Specifications of CSS-H15
| Product Type | Paging horn loudspeaker |
| Power Rating | 15 W continuous (60 W peak) |
| Frequency Range (-10 dB) | 400 Hz – 7.5 kHz |
| Coverage Angle | 70° H x 90° V |
| Sensitivity | 105 dB avg (1 kHz–6 kHz), 111 dB at 2 kHz |
| Maximum SPL | 117 dB continuous (123 dB peak), 1 kHz–6 kHz |
| Driver | 33 mm (1.3 in) phenolic diaphragm driver |
| Horn Material | ABS |
| Transformer | UL-registered multi-tap 70V/100V with 8 ohm bypass |

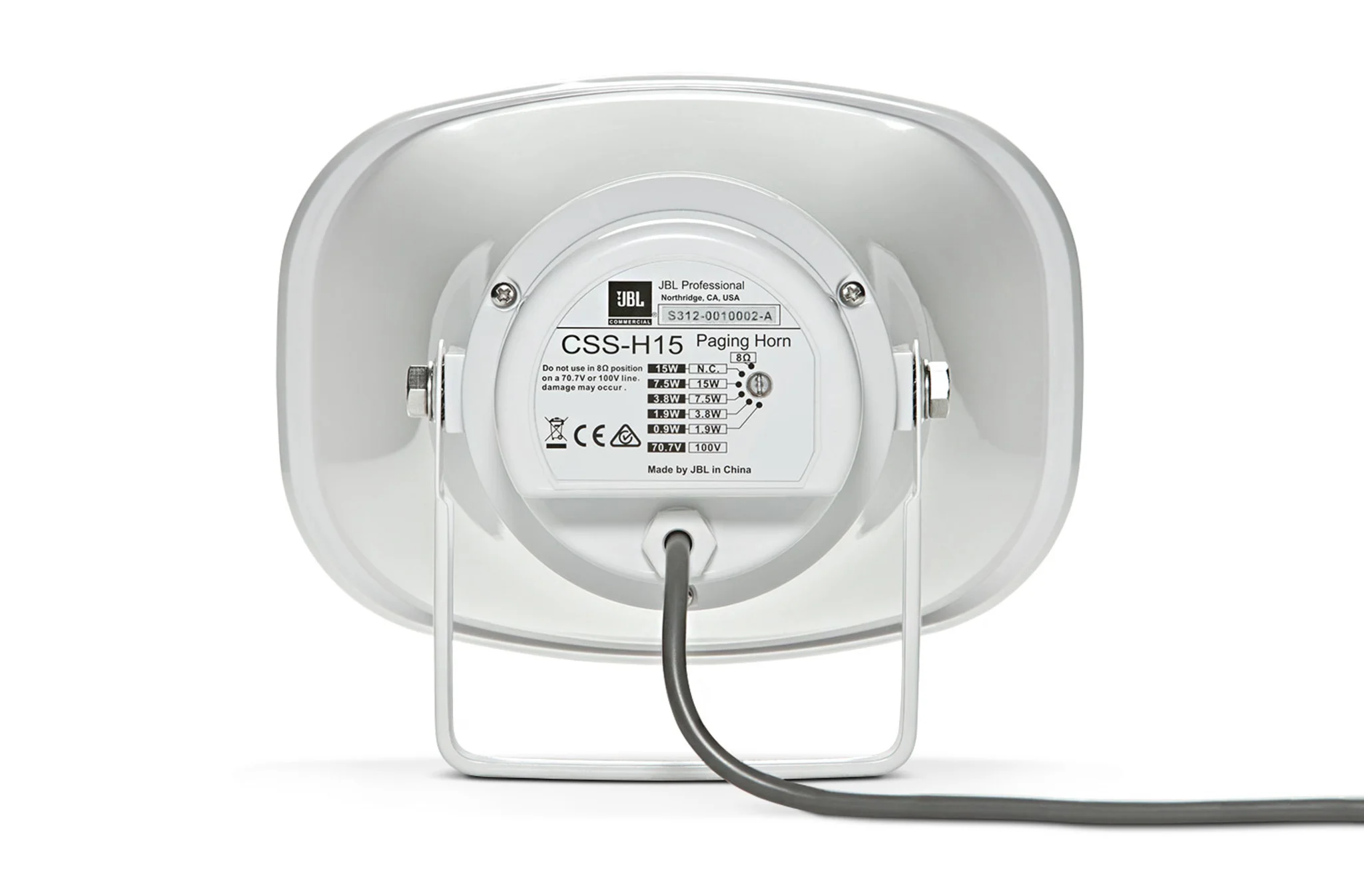

| Transformer Taps | 70V: 15W, 7.5W, 3.8W, 1.9W, 0.9W / 100V: 15W, 7.5W, 3.8W, 1.9W |
| High-Pass Filter | Passive 350 Hz built-in |
| Directivity Index (DI) | 10.4 dB (2 kHz) |
| Directivity Factor (Q) | 10.9 (2 kHz) |
| Impedance | Multi-tap transformer selectable / 8 ohms direct |
| Input Connection | 300 mm pigtail to bare wire, watertight entry |
| Mounting Hardware | Stainless steel powder-coated U-bracket |
| Color | RAL9016 (horn and bracket) |
| Outdoor Rating | IP65 weather-resistant |
| Safety Certification | UL1876 transformer registered |
| Dimensions (Horn Only) | 163 x 222 x 232 mm (6.5 x 8.8 x 9.2 in) |
| Dimensions (With Bracket) | 181 x 222 x 232 mm (7.1 x 8.8 x 9.2 in) |
| Net Weight | 1.36 kg / 3.0 lb |
| Shipping Weight | 1.68 kg / 3.7 lb |
| Included Accessories | Stainless steel mounting bracket |
| Origin of Country | Mexico |
