JBL CSS-H30 30 Watt Paging Horn

Commercial Solutions Series CSS-H30 30 Watt Paging Horn

The Commercial Solutions Series CSS-H30 30 Watt Paging Horn is a high-output voice projection loudspeaker engineered for long-distance sound coverage in public address, paging, intercom, alarm, and industrial communication systems. Designed for demanding environmental conditions, the CSS-H30 features an IP65-rated weather-resistant construction, making it ideal for both indoor and outdoor installations.

Unlike wide-dispersion paging horns, the CSS-H30 uses a focused 50° horizontal by 70° vertical coverage pattern, enabling long-throw sound projection for large spaces where extended distance coverage is required. Its high sensitivity design delivers high sound pressure levels with minimal amplifier power, ensuring efficient system operation.

The phenolic diaphragm driver provides excellent durability and reliability in harsh outdoor and industrial environments. The CSS-H30 includes a UL-registered 30-watt multi-tap transformer supporting 70V/100V line systems, along with an 8-ohm direct bypass option for flexible system integration. A built-in passive high-pass filter protects the driver from low-frequency damage, improving long-term reliability and system safety.

Constructed from durable ABS material and supplied with a stainless steel powder-coated U-bracket and stainless steel exterior hardware, the CSS-H30 offers corrosion resistance, mechanical strength, and secure mounting in exposed environments.

Designed for commercial and industrial installations, the CSS-H30 paging horn provides strong speech intelligibility, long-range projection, and dependable performance for warehouses, factories, schools, public access areas, commercial buildings, distribution centers, civic centers, and large-scale protective signaling systems.

Features of CSS-H30

• Excellent voice clarity for paging and announcements

• High sensitivity for powerful output with low amplifier power

• Focused 50° H x 70° V coverage for long-throw projection

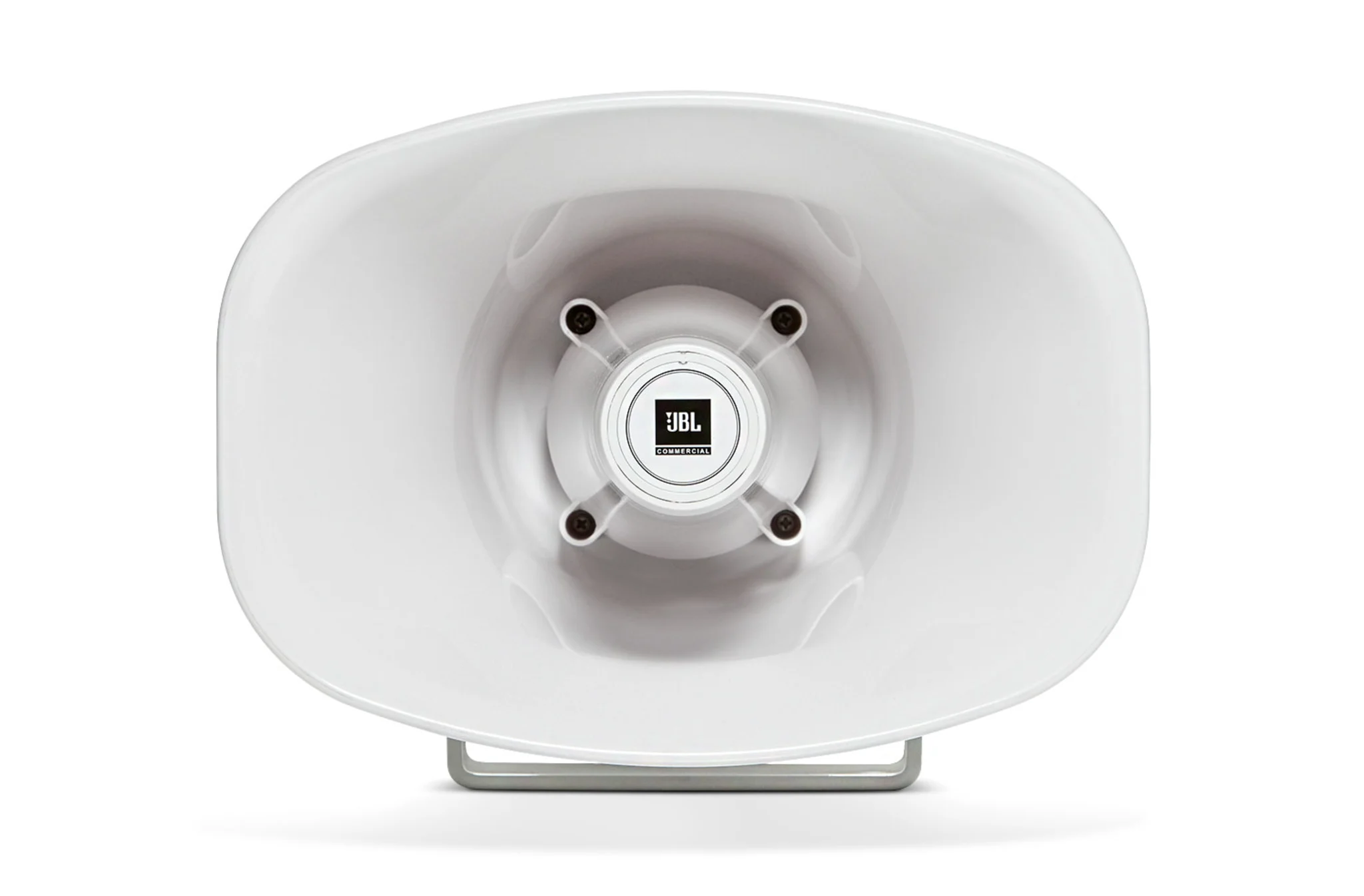

• Phenolic diaphragm driver for outdoor durability

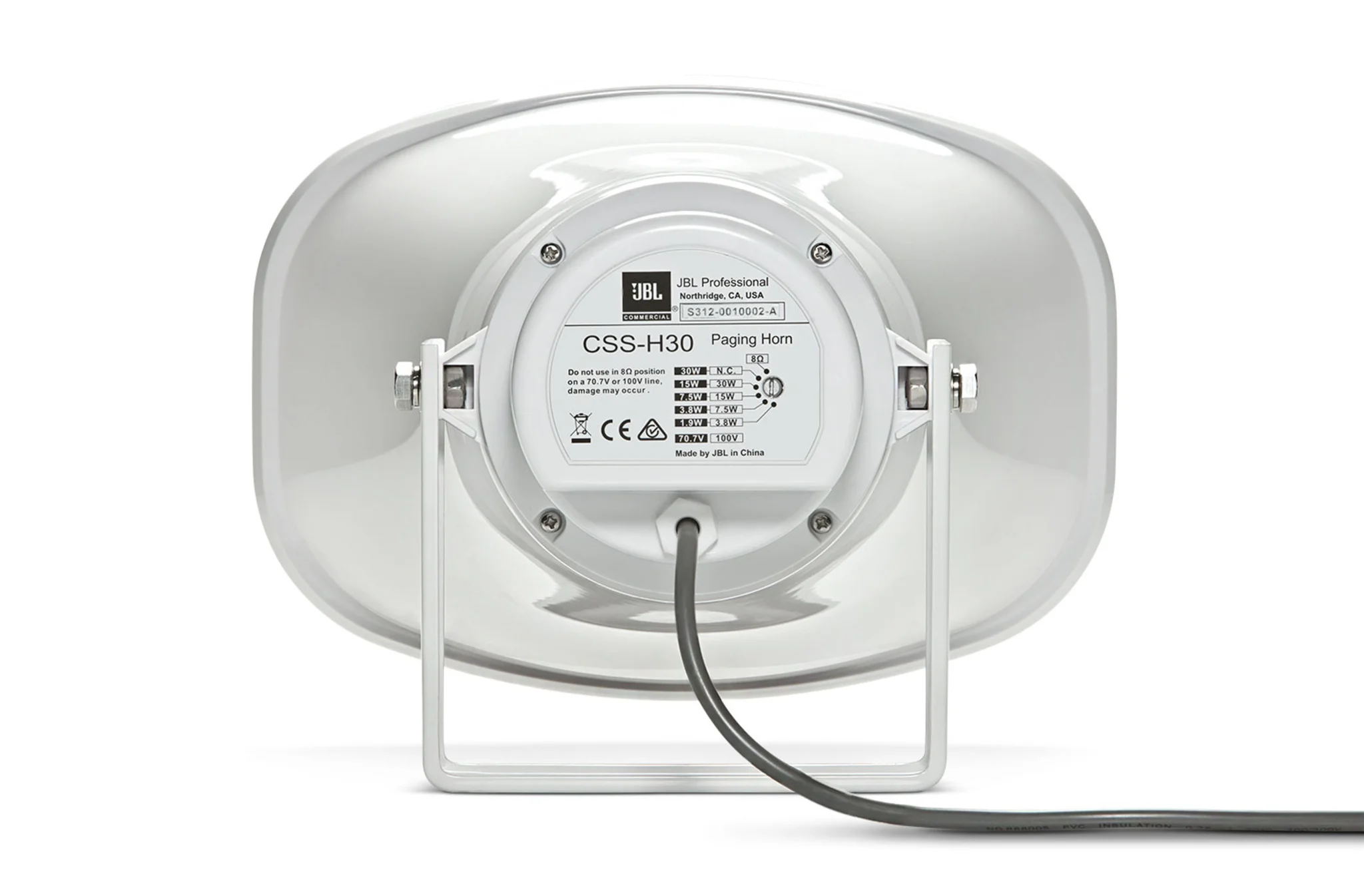

• UL-registered 30W multi-tap transformer

• 70V/100V line operation with 8-ohm direct bypass

• Built-in passive high-pass filter for driver protection

• IP65-rated weather-resistant construction

• Durable ABS horn body

• Stainless steel powder-coated U-bracket

• Stainless steel exterior mounting hardware

• Corrosion-resistant outdoor design

• Reliable performance in harsh environments

Specifications of CSS-H30
