JBL JRX218S 18″ Compact Subwoofer

JBL JRX218S 18″” compact subwoofer

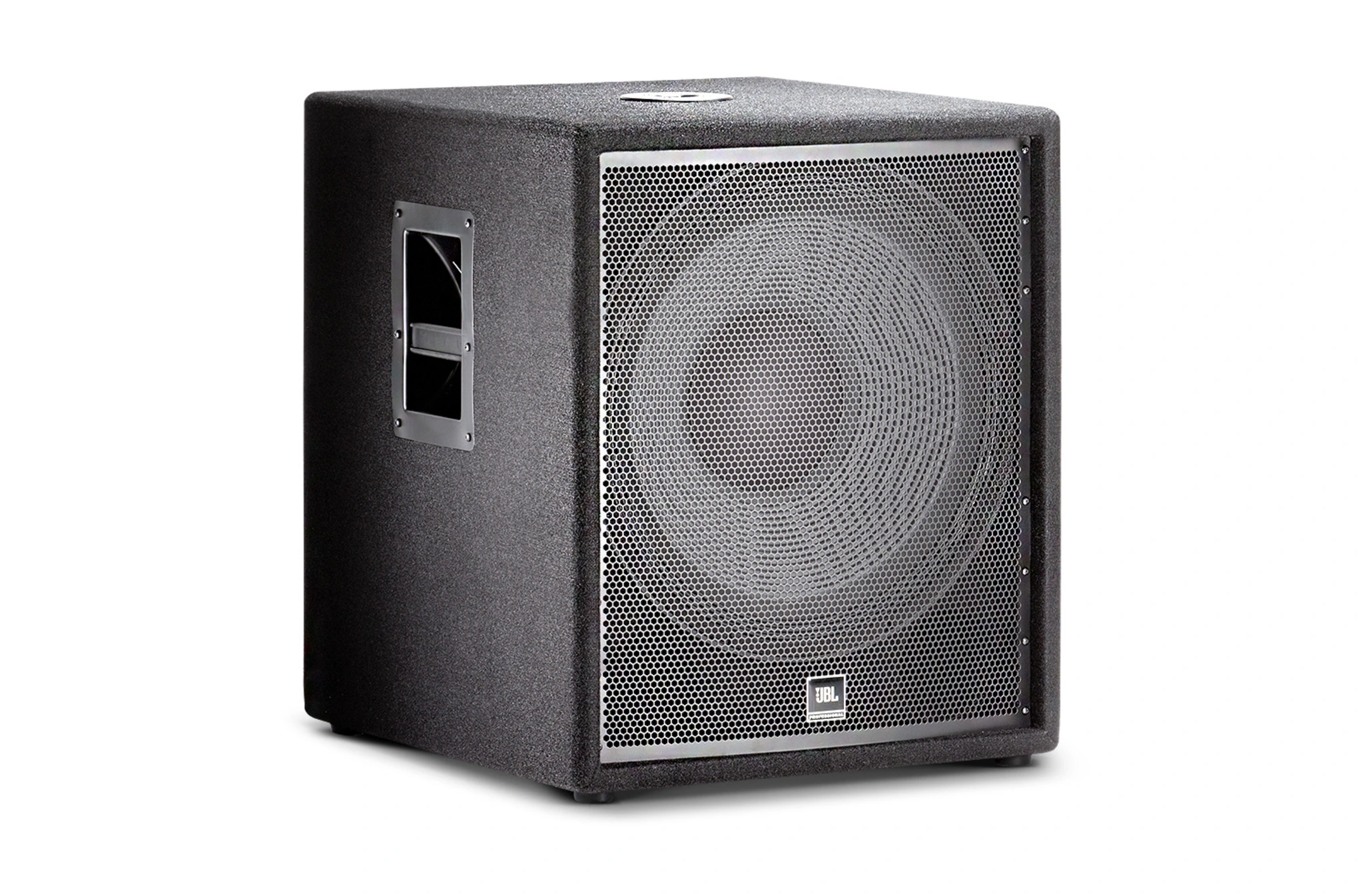

The JBL JRX218S 18″” compact subwoofer is a high-performance, portable low-frequency reinforcement system designed to provide deep, powerful bass for live sound, stage monitoring, and professional audio installations. Equipped with a massive JBL 18-inch woofer featuring a cast frame and a 3-inch voice coil, the system delivers precise, high-output bass reproduction with minimal distortion.

Constructed from 19 mm (0.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fasteners, the rugged enclosure enhances low-frequency performance while ensuring long-term durability. The cabinet is covered in black carpet for protection and aesthetic appeal. The JRX218S includes non-resonant, all-steel handles for easy transport, and a heavy-duty 18-gauge perforated steel grille protects the woofer and internal components from damage.

For integration with mid/high loudspeakers, the subwoofer features a top-mounted 35 mm cast aluminum pole-mount receptacle, which can accommodate an optional SS3BK pole to elevate other speaker cabinets. With a frequency response of 53 Hz to 250 Hz and a maximum SPL of 133 dB, the JRX218S ensures consistent and impactful low-frequency coverage for live performances, concerts, and large venue sound reinforcement, making it an essential component for professional audio systems.

Features of JRX218S

• 18″” compact subwoofer design

• High-output 18″” woofer with 3″” voice coil

• 350 W continuous / 1400 W peak power handling

• Rugged 19 mm MDF enclosure

• Black carpet cabinet finish

• Top-mounted 35 mm pole-mount receptacle

• Supports optional SS3BK pole for mid/high speakers

• Non-resonant all-steel handles

• 18-gauge perforated steel protective grille

• Durable and portable design

• Optimized low-frequency performance

• Professional stage and live sound ready

• High SPL capability for large venues

• Reliable long-term operation

Specifications of JRX218S
