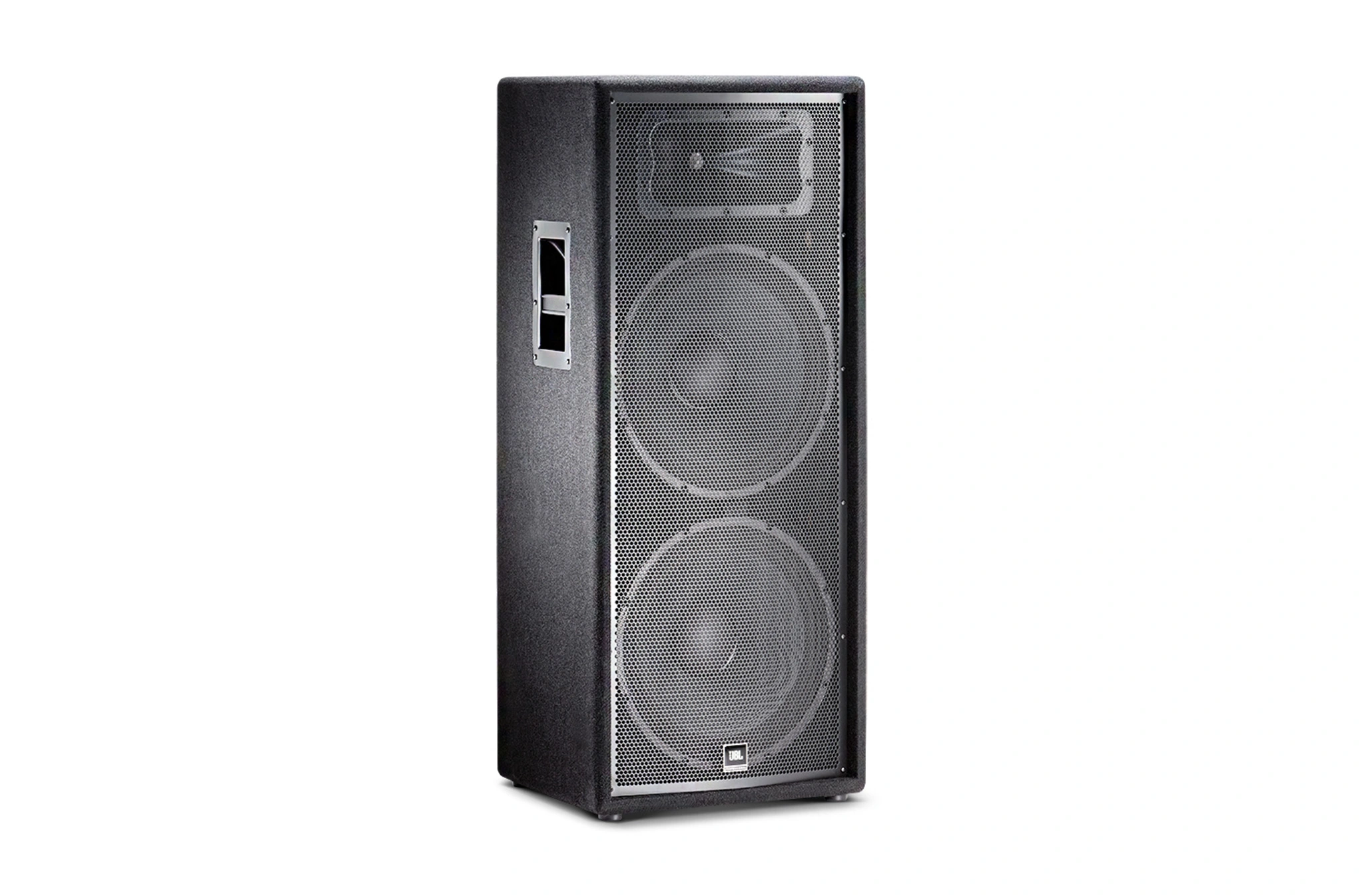

JBL JRX225 Dual 15″ Two-Way Sound Reinforcement Loudspeaker System

JBL JRX225 Dual 15″ Two-Way Loudspeaker System

The JBL JRX225 Dual 15″ Two-Way Loudspeaker System is a portable, high-performance sound reinforcement solution designed for live music performances and music playback. Featuring dual 15-inch low-frequency drivers with 64 mm (2.5 in) edgewound ribbon voice coils, the system provides greater efficiency, higher power handling, and deep, extended bass response. The JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver ensures clear, reliable high-frequency output.

A “Quasi 3-Way” design enhances midrange performance by allowing the upper woofer to produce mid-frequencies and bass, while the lower woofer focuses solely on low frequencies. This reduces phase cancellation, delivering more coherent midrange sound quality and consistent coverage. The advanced network topology crossover design shapes frequency response for smooth summation across the critical range.

The rugged 19 mm (.75 in) MDF enclosure, constructed with advanced adhesives and mechanical fasteners, provides durability and improved low-frequency performance. SonicGuard™ technology protects the high-frequency driver from excess power without interrupting performance. The speaker features non-resonant, all-steel handles for easy transport and an 18-gauge perforated steel grille that safeguards internal components. Designed for professional live sound applications, the JRX225 ensures reliable high-output performance, wide dispersion, and superior coverage control.

Features of JRX225

• Dual 15″ low-frequency drivers with edgewound ribbon voice coils

• JBL 2414H-C 1″ compression driver for clear high frequencies

• Quasi 3-Way design for improved midrange and bass

• Advanced network topology crossover for coherent summation

• High-voltage crossover components for high power handling

• Progressive Transition™ high-frequency waveguide for smooth coverage

• Rugged 19 mm MDF enclosure for durability and acoustic performance

• SonicGuard™ high-frequency protection

• Non-resonant, all-steel handles

• 18-gauge perforated steel protective grille

• Portable stage-ready design

• Optimized for live music and playback

• High SPL capability for large venues

Specifications of JRX225
