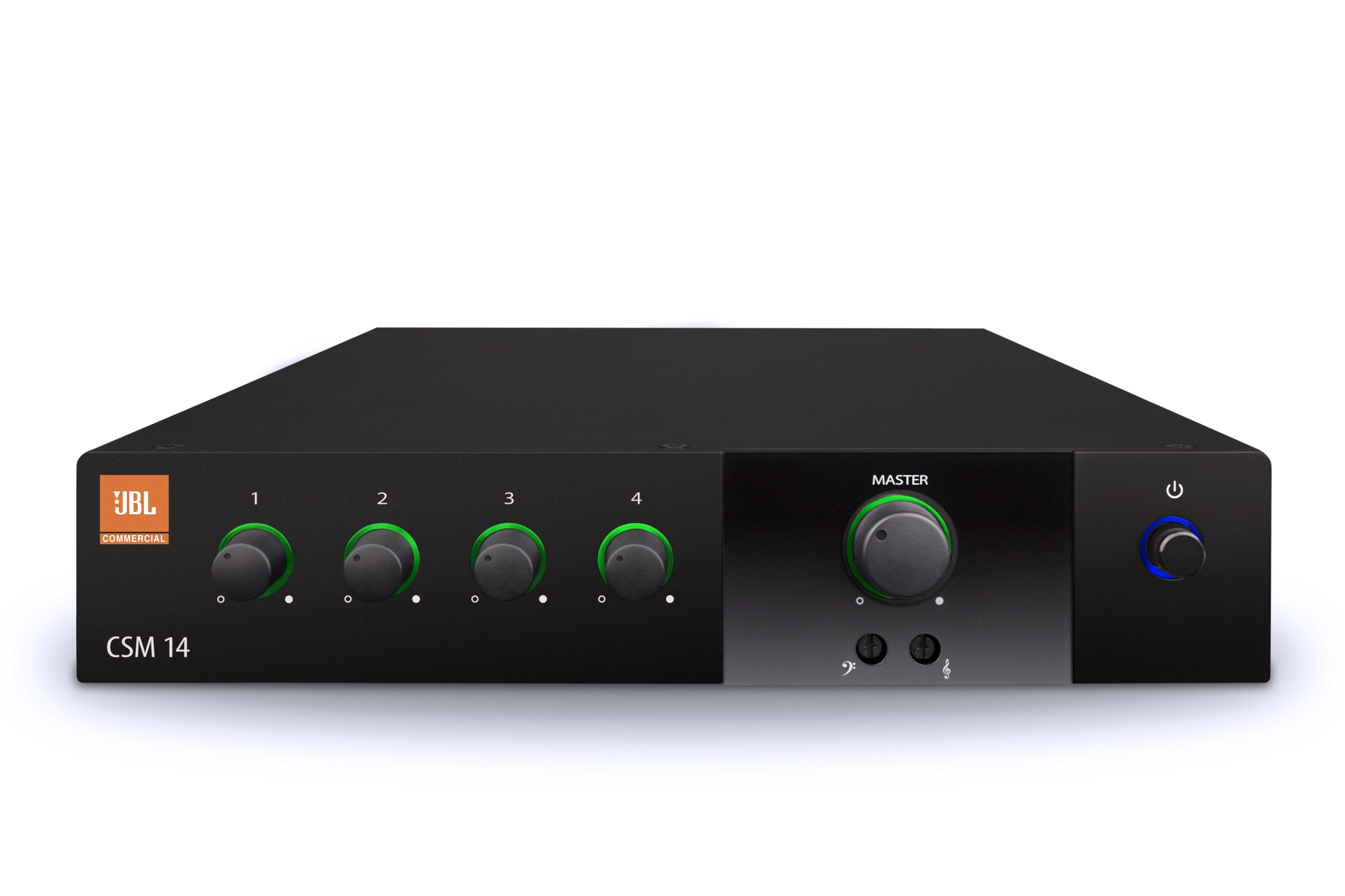

JBL NCSM14-U-UK Commercial Mixer

JBL NCSM14-U-UK

The JBL NCSM14-U-UK is a high-performance Commercial Series mixer designed for professional audio environments, including schools, hospitals, restaurants, fitness centers, and offices. Drawing on HARMAN’s expertise, this mixer provides clear, reliable sound for background music, paging, and security systems.

It features RJ45 connectors for seamless integration with JBL CSR-V in-wall volume controls. The universal AC power supply supports 100–240 V at 50/60 Hz, making it suitable for a wide range of installations. Built with HARMAN’s GreenEdge™ energy-efficient design, this fanless 1U mixer minimizes power consumption while delivering outstanding performance. Euro-block mic/line inputs and outputs, along with unbalanced RCA inputs, provide versatile connectivity. Priority muting, VOX ducking, and phantom power ensure the unit meets the demanding needs of commercial audio applications, origin of country Mexico.

Features of JBL NCSM14-U-UK

• 4 inputs with 1 output channel

• Fanless, space-saving 1U design

• Independent bass and treble controls

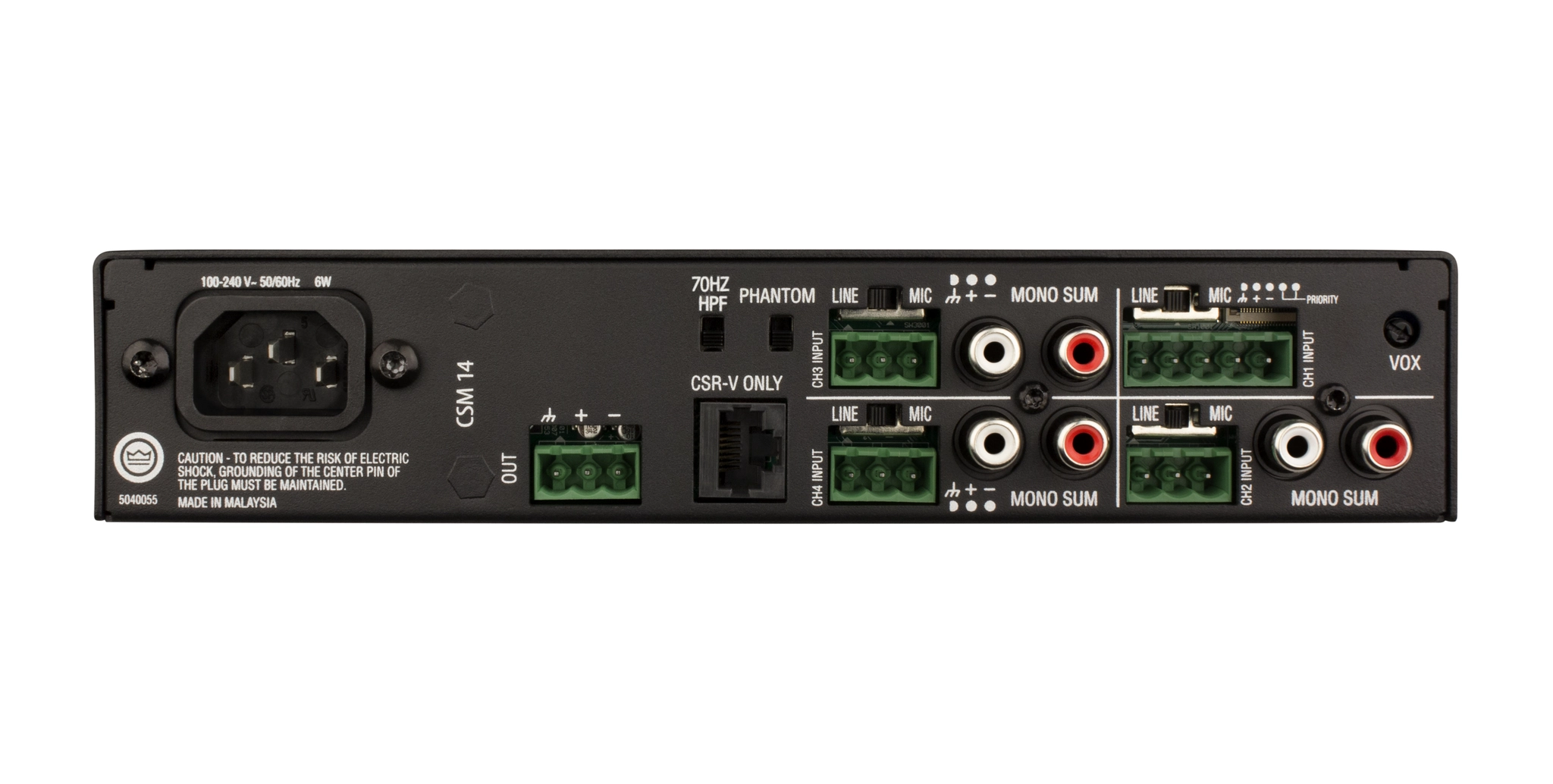

• Euro-block mic/line inputs and outputs, plus RCA unbalanced inputs

• RJ45 support for JBL CSR-V wall controller

• Priority muting and VOX ducking

• Phantom power for all inputs

• Universal AC voltage support (100–240 V, 50/60 Hz)

• Energy-efficient GreenEdge™ design

• RoHS-compliant, compact and durable design

• Professional industrial appearance

Specifications of JBL NCSM14-U-UK
