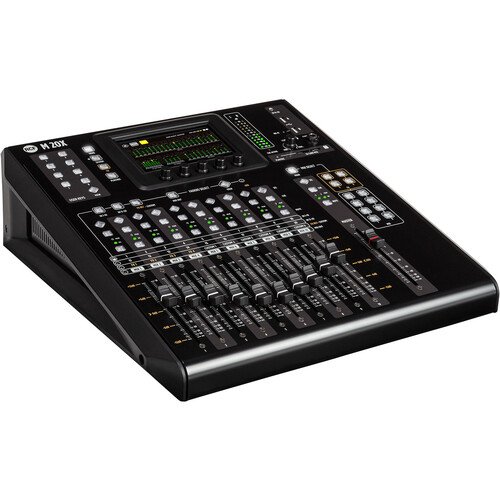

RCF M 20X Desktop 20×14 Digital Mixer with USB Interface

RCF M 20X digital mixing console

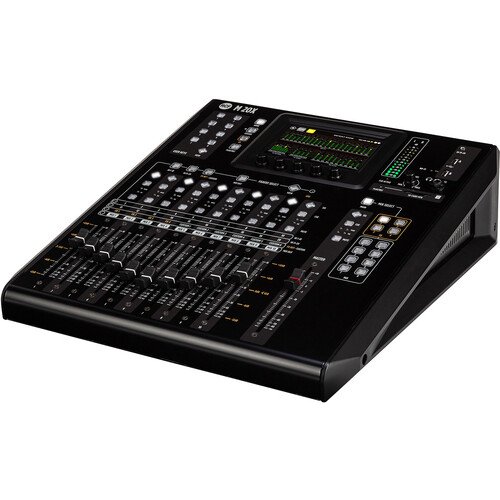

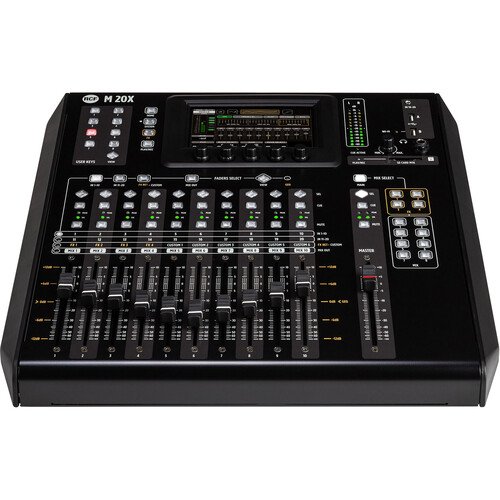

The RCF M 20X digital mixing console is a professional-grade, fully recallable mixer designed for live sound reinforcement, studio recording, and touring applications. Built with a rugged metal chassis and engineered for durability, it combines advanced digital processing with intuitive hardware control, offering a powerful and flexible mixing solution for demanding audio environments.

The mixer features 20 analog inputs, including 16 remote-controlled microphone preamps and additional line inputs, along with 14 output channels combining balanced analog and AES/EBU digital outputs. Its high-end DSP engine provides studio-quality processing, ensuring precise control over dynamics, equalization, and effects for every channel.

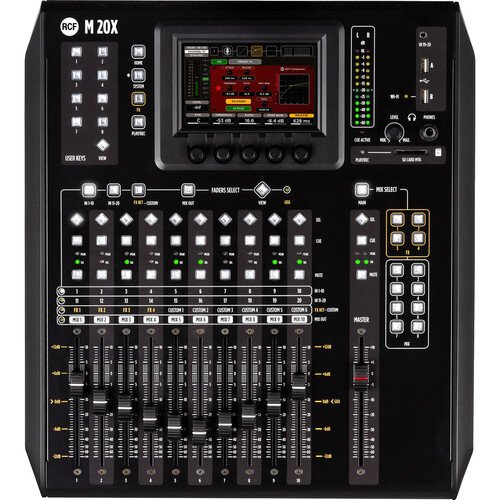

Equipped with 11 motorized 100 mm faders, a 5-inch capacitive touchscreen, and layered control architecture, the M 20X provides fast and intuitive access to all mixing parameters. Users can easily navigate between input channels, FX returns, and output buses, while real-time visual feedback ensures accurate mix control.

The integrated processing suite includes high-pass filters, noise gates, compressors, de-essers, and a flexible 4-band parametric EQ per channel. The mixer also supports multitrack recording via SD card (up to 20 tracks), USB 2.0 audio interface (24×24 channels), and stereo USB playback/recording for maximum workflow flexibility.

With WiFi remote control support via dedicated applications, expandable USB connectivity, and advanced routing options across 14 mix buses, the RCF M 20X delivers a complete digital mixing ecosystem. Its combination of portability, processing power, and professional-grade reliability makes it ideal for modern live sound and production environments.

Features of M 20X

• 20-channel digital mixing console
• 16 remote-controlled mic preamps
• Fully recallable digital mixer system
• 11 motorized 100 mm faders
• 5-inch capacitive touchscreen display
• High-performance studio-grade DSP engine
• 4-band parametric EQ per channel
• Compressor and de-esser processing
• Noise gate and high-pass filter per input
• 20-track SD card multitrack recording
• 24×24 USB audio interface (24-bit/48 kHz)
• Stereo USB recording and playback
• 14 flexible mix buses
• AES/EBU digital output support

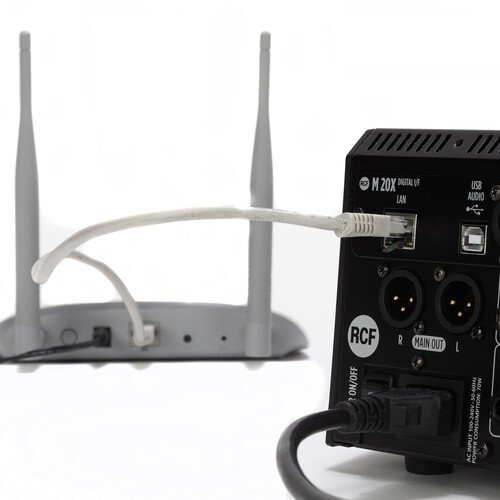

• WiFi remote control capability
• 8 programmable user keys
• Motorized fader layer control system
• Internal FX with dual reverb engines
• Designed for touring and live sound use
• Rugged metal chassis construction
• Internal universal power supply
