JBL SRX900 Pull Back accessory, compatible with all LA models

JBL SRX906LA PB Pull-Back Bracket

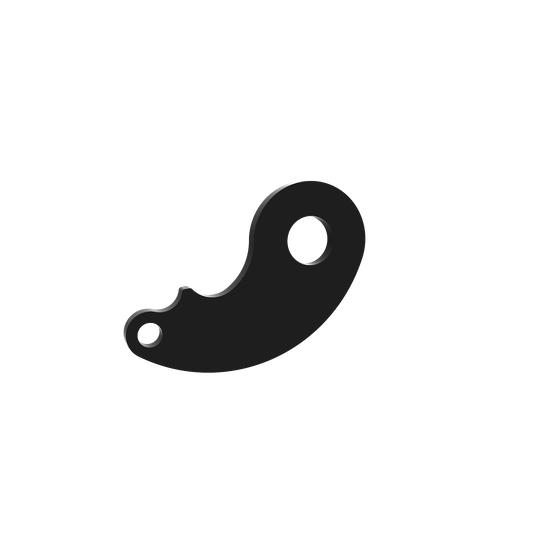

The JBL SRX906LA PB Pull-Back Bracket is a lightweight rigging accessory designed to enhance suspension flexibility for SRX906LA and SRX910LA line array systems. Engineered to implement pull-back configurations, this bracket allows greater downtilt capability than is possible when using an SRX900 Series array frame alone. It provides additional aiming control for optimized audience coverage in professional sound reinforcement environments.

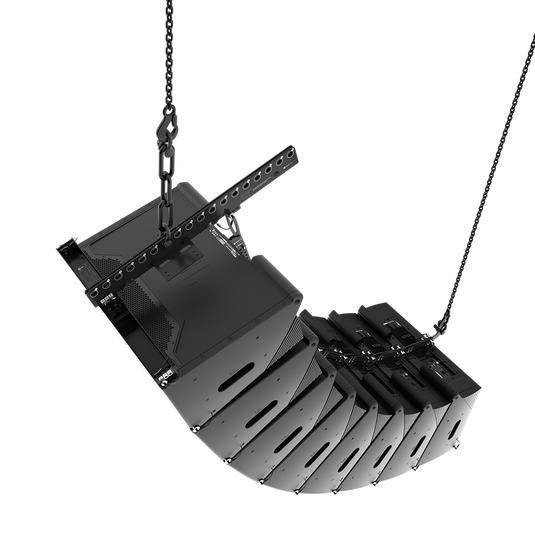

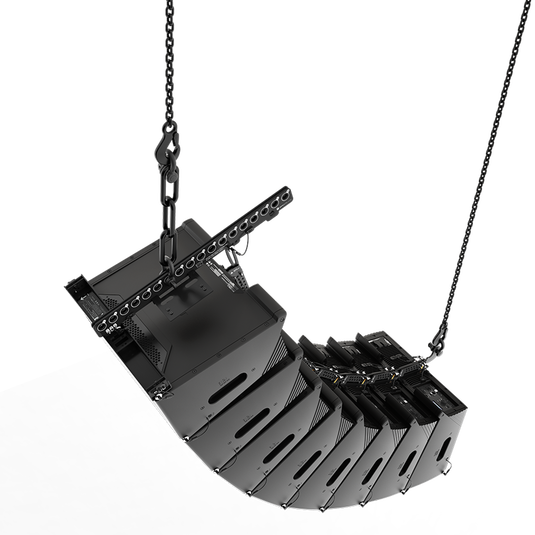

The bracket attaches securely to the bottom cabinet of an array and connects to a rear center suspension point. This configuration enables precise adjustment of the array’s vertical angle, improving coverage performance in venues requiring steeper downtilt alignment. JBL’s Line Array Calculator 3 software application is used to determine the required downtilt angle, ensuring accurate system design and deployment.

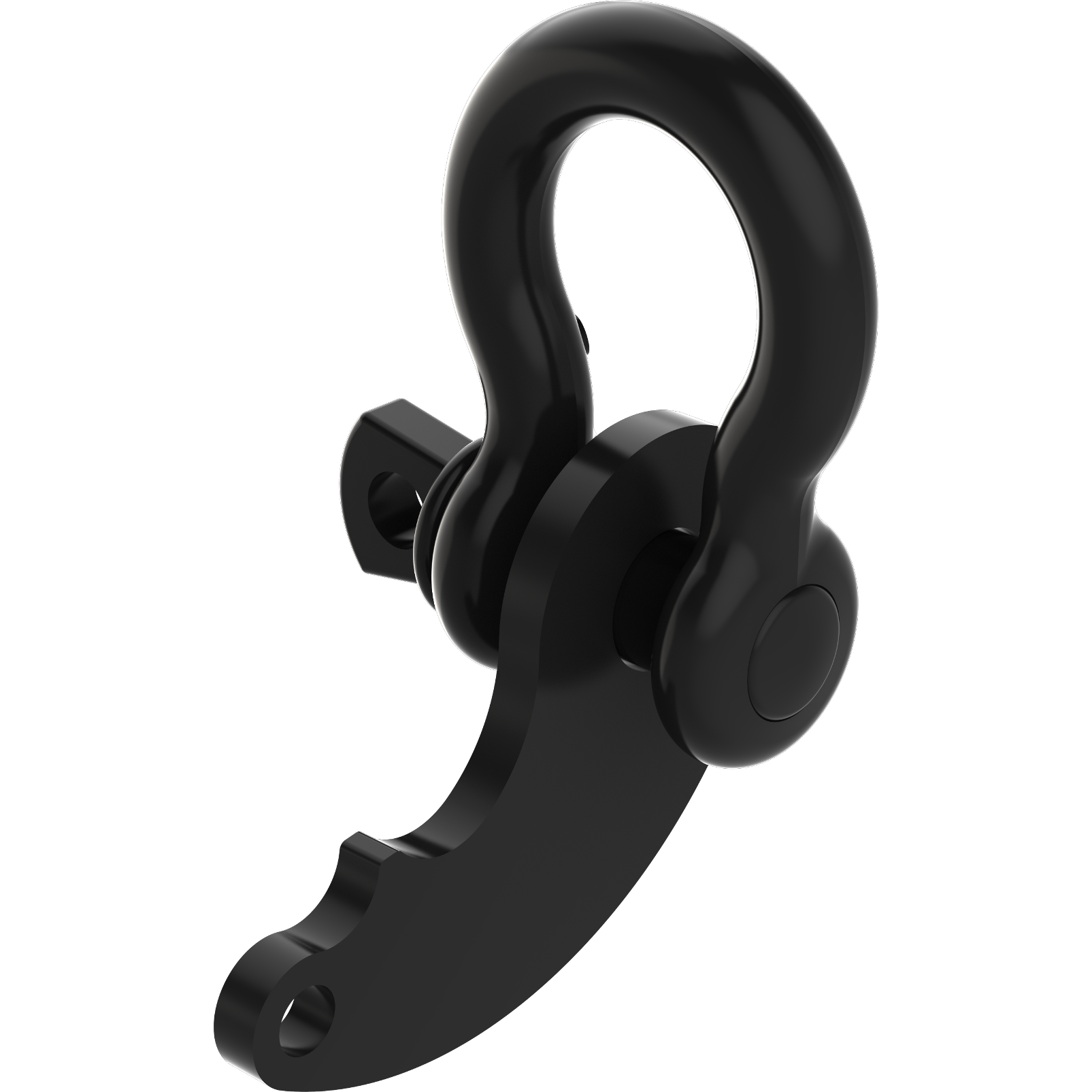

Constructed from high-grade steel with an anti-corrosion coating, the SRX906LA PB is built for durability and long-term reliability in touring and installation settings. The black powder coat finish enhances resistance to wear and environmental exposure. The bracket supports a 1/2-inch shackle, which can be attached directly for secure suspension.

The SRX906LA PB is capable of supporting up to 16 SRX906LA or 16 SRX910LA enclosures, depending on array geometry. With defined mechanical safe and maximum load limits, this accessory provides dependable structural support while maintaining compact dimensions and lightweight handling characteristics.

Features of SRX906LA PB

• Lightweight pull-back bracket design

• Compatible with SRX906LA and SRX910LA

• Enables increased array downtilt

• Attaches to bottom cabinet position

• Connects to rear center suspension point

• Supports up to 16 enclosures

• Compatible with 1/2-inch shackle

• High-grade steel construction

• Anti-corrosion protective coating

• Durable black powder coat finish

• Precision aiming support with software calculation

Specifications of SRX906LA PB
