JBL VTX F18S 18-inch Compact Subwoofer
The JBL VTX F18S compact 18-inch subwoofer delivers powerful low-frequency performance with a 2269H Differential Drive transducer, 2000W continuous power handling, reverse-cardioid capability, and rugged Baltic birch enclosure design.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 17,276.48 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

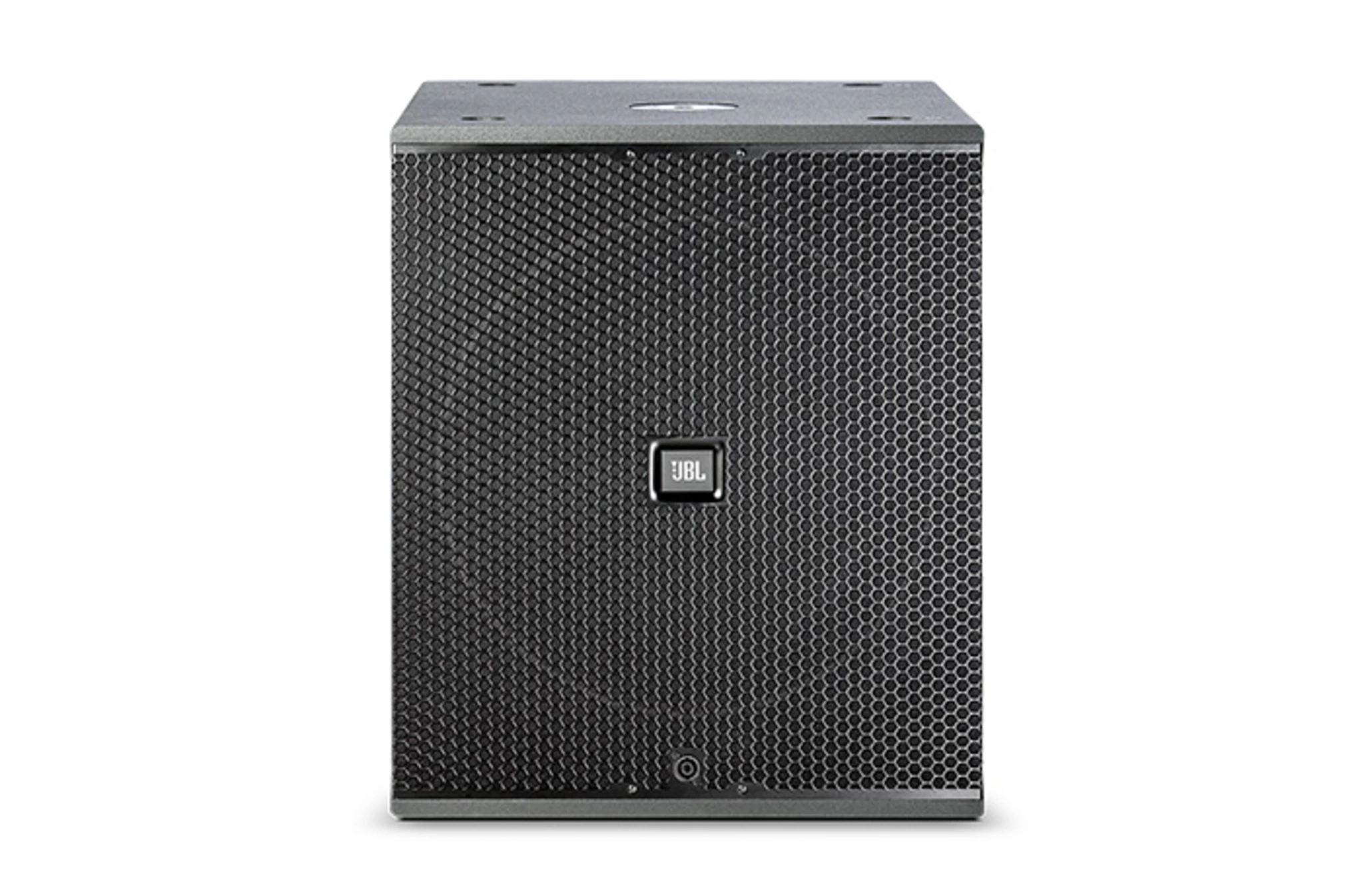

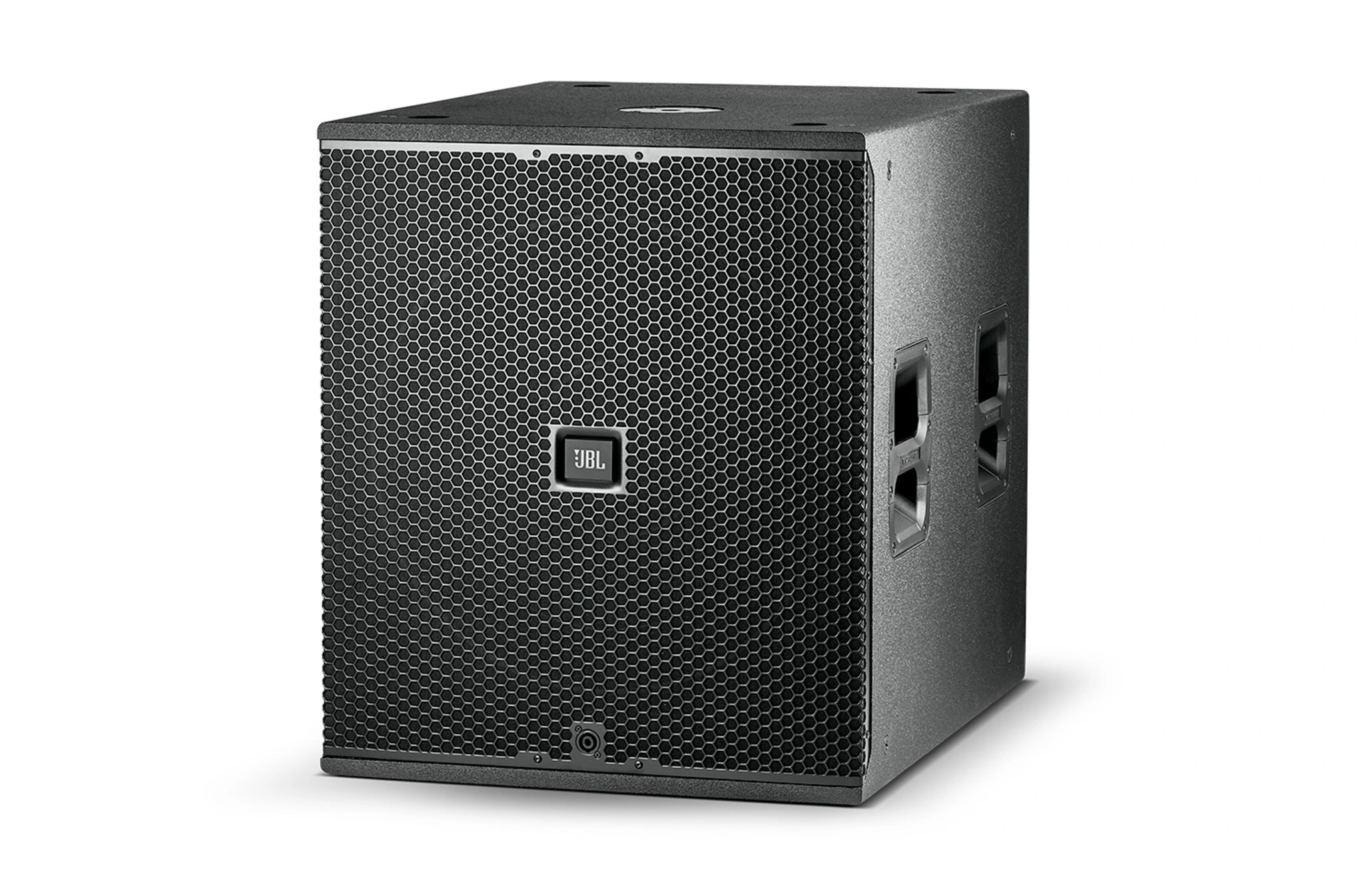

JBL VTX F18S 18-inch Compact Single Subwoofer
The JBL VTX F18S 18-inch Compact Single Subwoofer is part of the VTX F Series, engineered to provide sound production professionals with a flexible and high-performance low-frequency solution. Designed for use as a stand-alone subwoofer, or paired with VTX F12 and VTX F15 loudspeakers, the VTX F18S delivers extended bass response and high output for FOH systems, satellite-sub configurations, and stage applications.

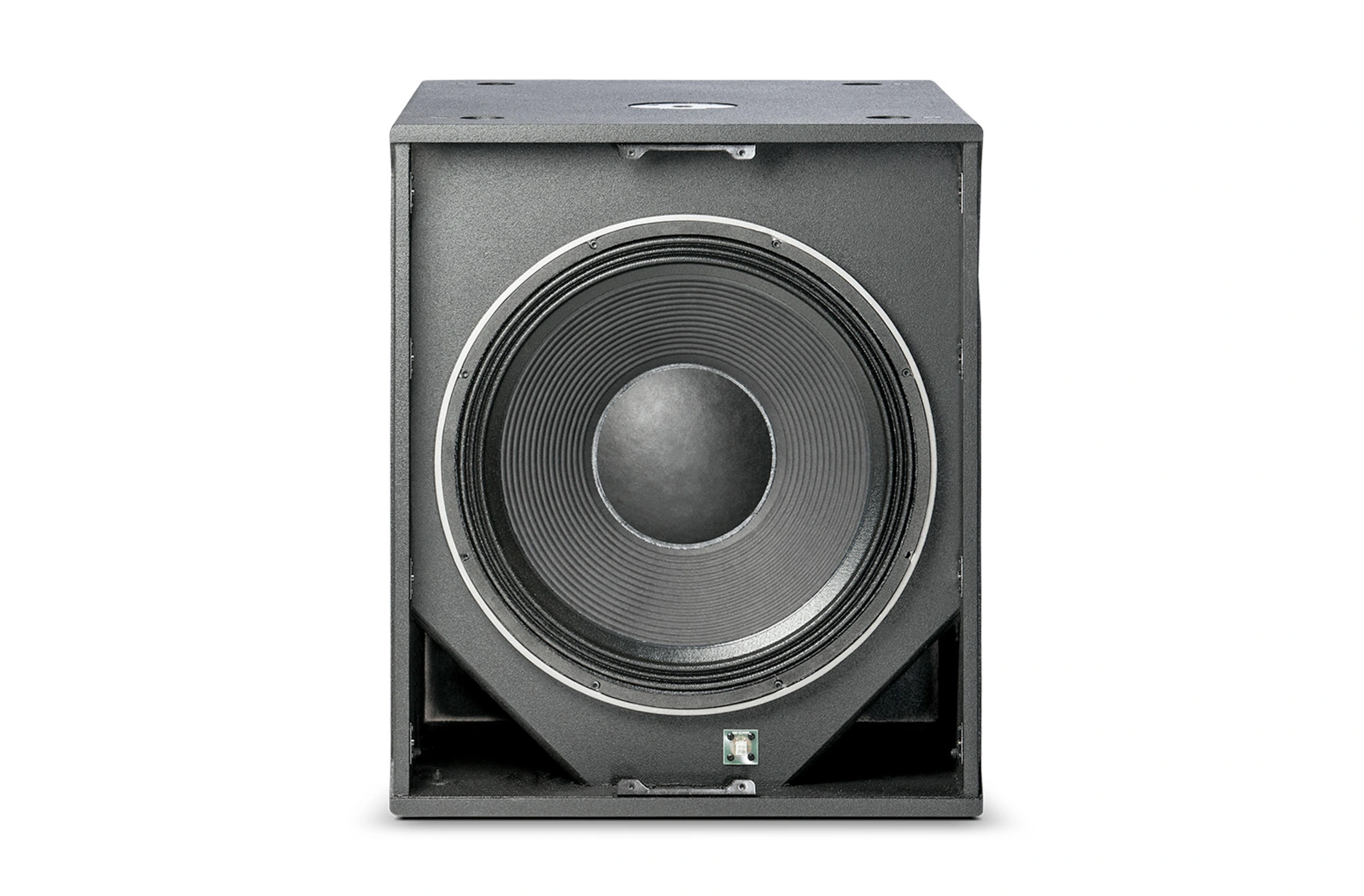

At the core of the system is a 2269H 18-inch Differential Drive transducer featuring dual 4-inch voice coils and a neodymium magnet structure. This advanced design enhances thermal performance, reduces weight, and delivers exceptional power handling of 2000W continuous and 8000W peak (AES 2 hour). The transducer also offers massive 3.5-inch peak-to-peak linear excursion capability, ensuring deep, controlled bass with minimal distortion.
The enclosure is constructed from 18 mm, 11-ply Baltic birch plywood and finished with a durable black DuraFlex coating for structural strength and long-term reliability. The cabinet includes 16 M10 mount points, a reinforced M20 extension rod receptacle, and integrated attachment plates for stacked configurations with VTX F12 or F15 systems.

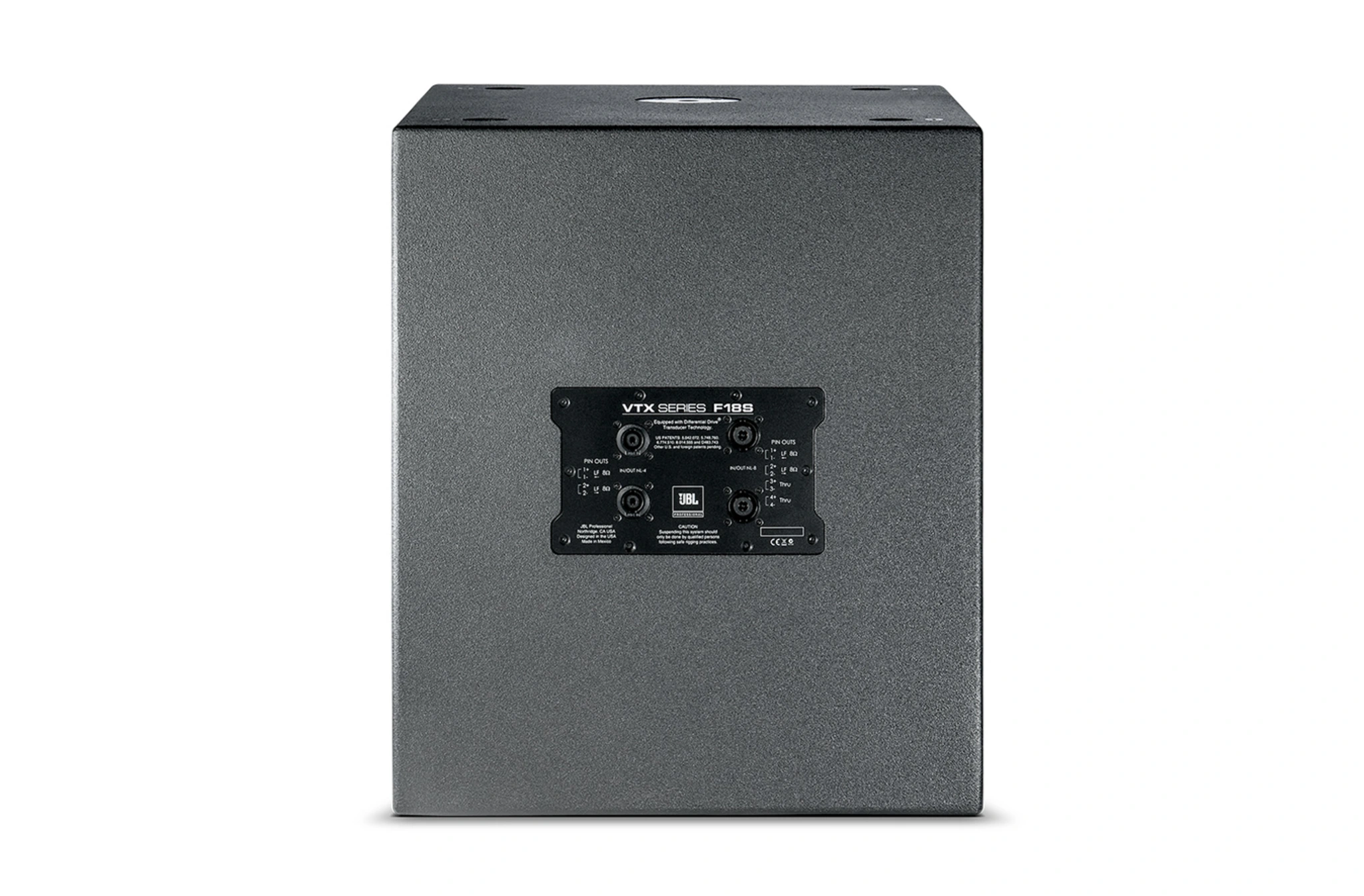

Designed for flexible deployment, the VTX F18S supports reverse-cardioid array configurations via front NL4 connectivity, improving low-frequency pattern control in complex system setups. Multiple integrated handles ensure safe and convenient transport, making the JBL VTX F18S a compact yet high-output subwoofer solution for professional reinforcement applications.
Features of VTX F18S
High power single 18-inch subwoofer
2269H Differential Drive transducer
Dual 4-inch voice coil design
2000 W continuous power handling
8000 W peak power capability
3.5-inch peak-to-peak linear excursion
Reverse-cardioid array configuration support
Front NL4 connectivity
Reinforced M20 extension rod receptacle
16 x M10 mounting points
Integrated stacking attachment plates
18 mm Baltic birch plywood enclosure
Durable DuraFlex finish
Multiple integrated carry handles
Specifications of VTX F18S
| System Type | High Power Single 18-inch Differential Drive Subwoofer |
| LF Driver | 1 x 2269H, 460 mm (18 in), 100 mm (4 in) Dual Coil Neodymium Differential Drive |
| Frequency Range (-10 dB) | 24 Hz – 100 Hz |
| Frequency Response (±3 dB) | 32.5 Hz – 80 Hz |
| Sensitivity | 97 dB (half space) |
| Nominal Impedance | 8 ohms |
| Transducer Power Rating (AES 2 hr) | 2000 W Continuous; 8000 W Peak |
| Maximum SPL (1m) | 133 dB |
| Dimensions (H x W x D) | 640.1 mm x 548.6 mm x 713.7 mm |
| Net Weight | 45.4 kg |
| Enclosure | 18 mm, 11-ply Baltic birch plywood; black DuraFlex finish |
| Mounting Points | 16 x M10 (4 per side, 4 top, 4 bottom) |
| Extension Rod Receptacle | Reinforced M20 |
| Origin of Country | Mexico |
