JBL VTX F15 15-inch Bi-Amplified 2-Way System
High-output 15-inch bi-amplified two-way loudspeaker engineered for professional touring and installed sound applications. Ideal for FOH, stage monitoring, and subwoofer-supported systems. Origin of country mexico.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 13,399.95 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

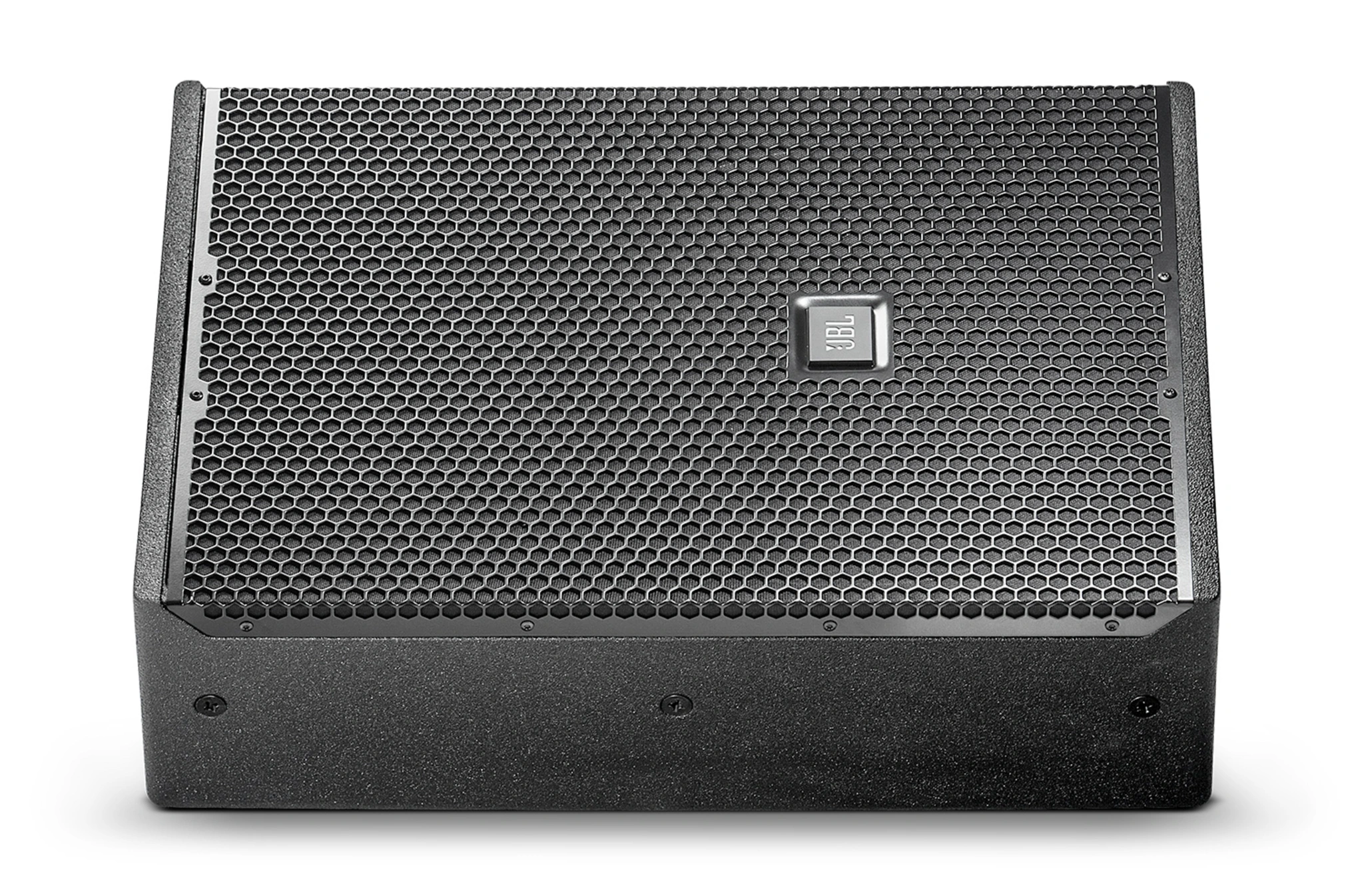

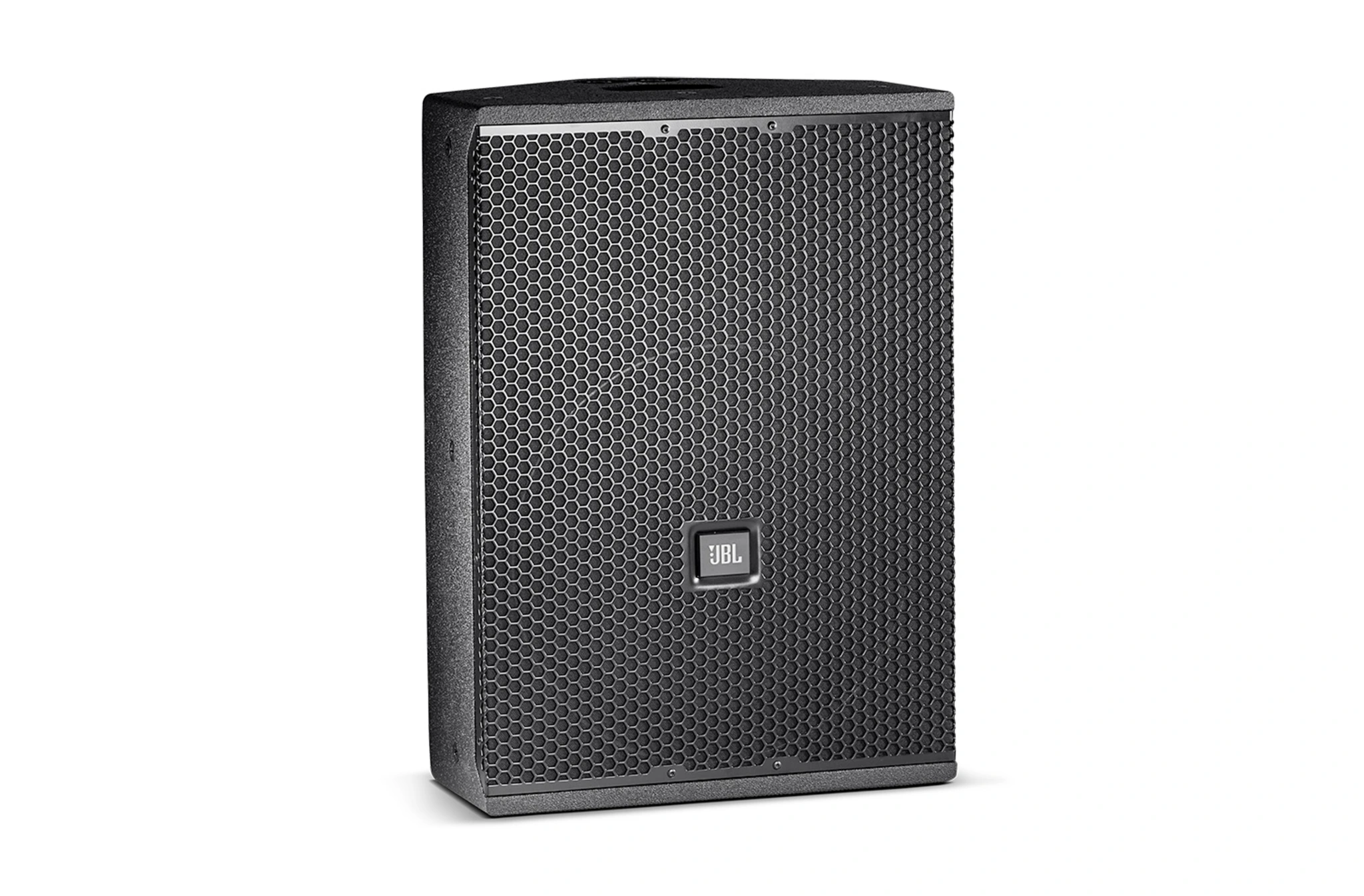

JBL VTX F15 15-inch Bi-Amplified 2-Way Loudspeaker
The JBL VTX F15 15-inch Bi-Amplified 2-Way Loudspeaker is part of the VTX F Series, a line of multi-purpose loudspeakers engineered to provide flexible deployment options for sound production professionals. Designed for high-quality audio reinforcement, the VTX F15 can operate as a stand-alone FOH system, a satellite speaker paired with the VTX F18S subwoofer, or as an on-stage floor monitor and fill speaker.

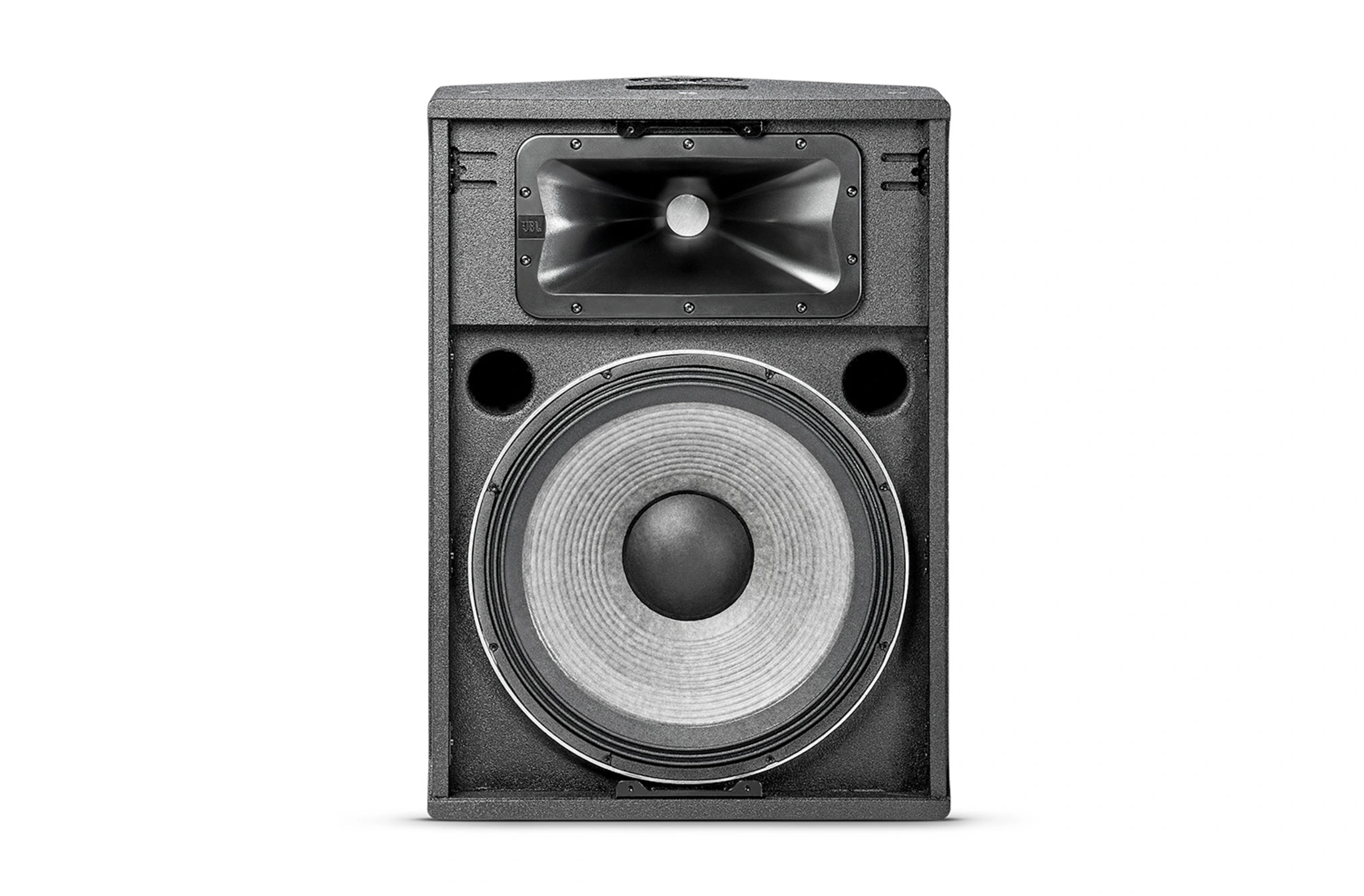

The system incorporates a 2265H 15-inch Differential Drive low-frequency transducer with dual 3-inch voice coils and neodymium magnet structure, delivering high output, efficient cooling, and reduced distortion. The high-frequency section features the D2430K D2 dual diaphragm, dual voice coil compression driver, ensuring extended high-frequency response, increased power handling, and improved clarity.
A Progressive Transition Waveguide provides a consistent 90° x 50° coverage pattern for controlled dispersion and smooth audience coverage. The bi-amplified design allows independent powering of LF and HF sections, optimizing system performance and maximizing headroom.

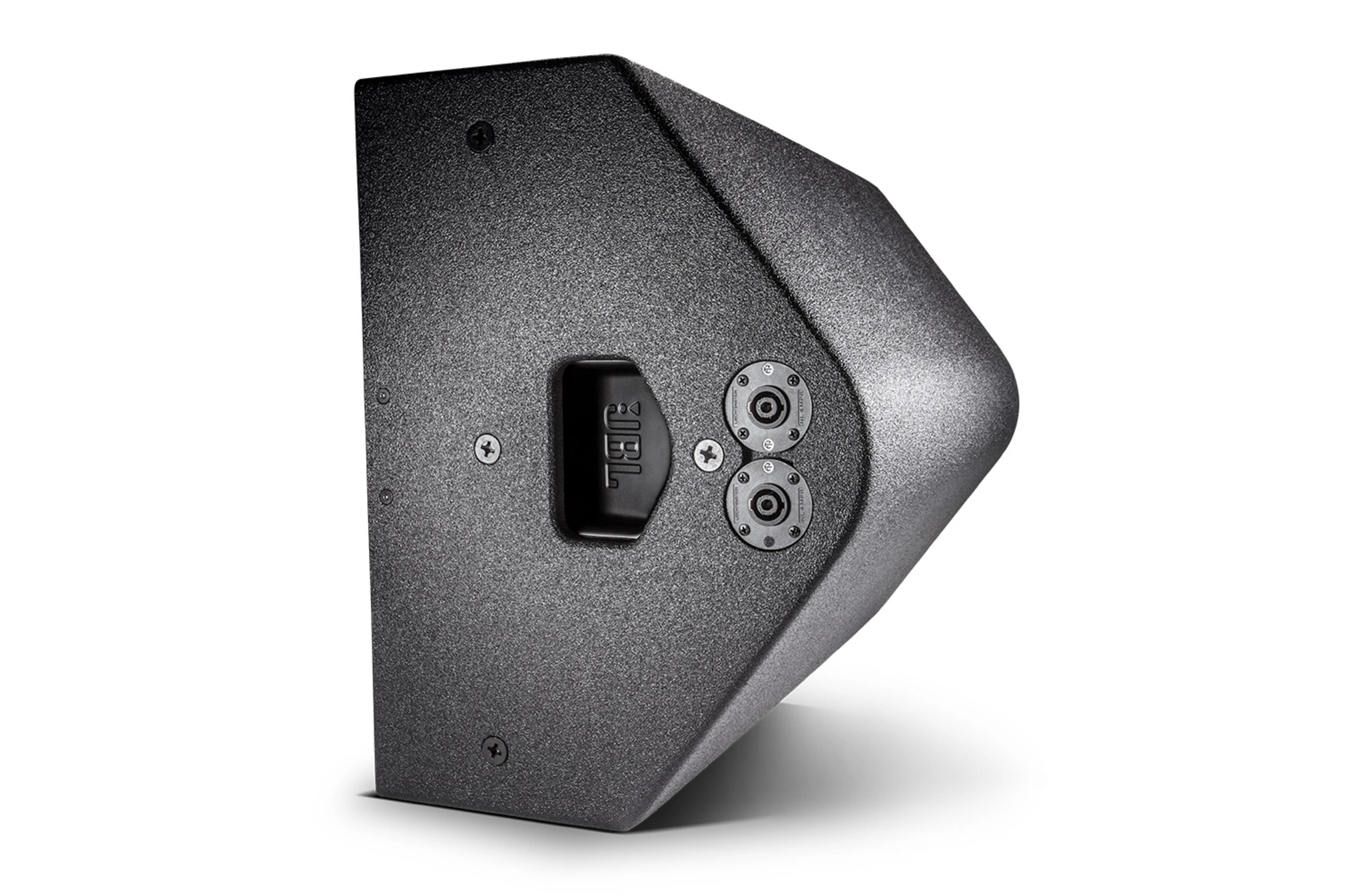

The enclosure is constructed from 18 mm 11-ply Baltic birch plywood with a durable DuraFlex finish. Its symmetrical 53-degree monitor angle enhances stage monitoring applications, while integral recessed handles improve portability. The cabinet includes a 35 mm pole mount socket and 16 M10 suspension points for flexible mounting options.
Designed for integration with BSS Audio OmniDriveHD V5 processing and compatible with Crown ITechHD and VRack systems, the JBL VTX F15 supports JBL HiQnet Performance Manager Control for advanced system management.
Features of VTX F15
Bi-amplified 2-way system architecture
15-inch Differential Drive low-frequency transducer
D2430K D2 dual diaphragm compression driver
Progressive Transition Waveguide
90° x 50° coverage pattern
BSS Audio OmniDriveHD V5 processing integration
Compatible with Crown ITechHD and VRack
JBL HiQnet Performance Manager control support

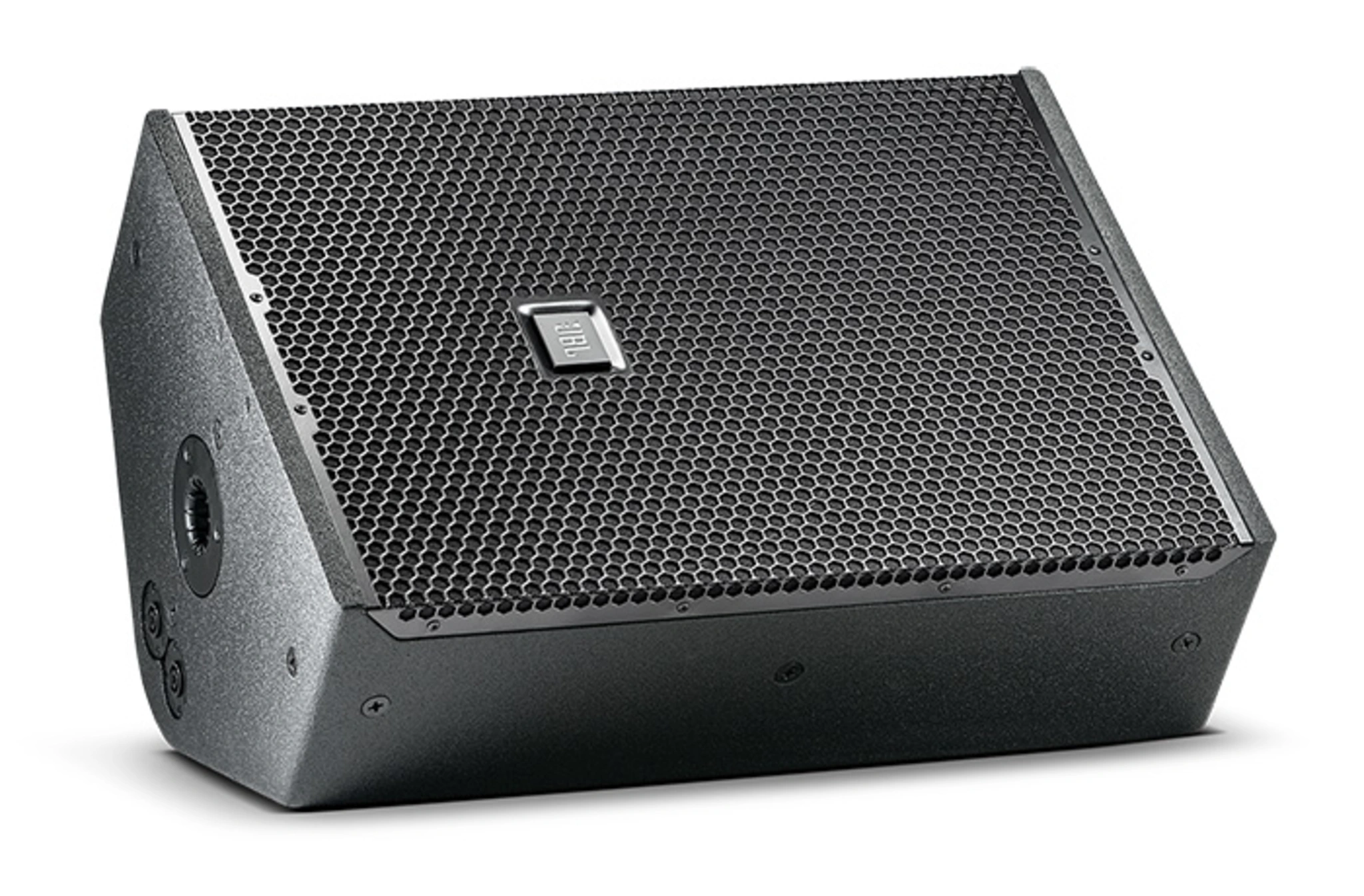

Symmetrical 53° stage monitor design
18 mm Baltic birch plywood enclosure
35 mm pole mount socket
16 x M10 suspension points
Specifications of VTX F15
| System Type | 2-Way Premium Multi-Purpose Loudspeaker |
| Components | 1 x 2265H 15-inch Differential Drive LF; 1 x D2430K D2 HF Driver |
| Coverage Pattern | 90° x 50° |
| Frequency Range (-10 dB) | 43 Hz – 21.5 kHz (short throw); 42 Hz – 21.5 kHz (monitor mode) |
| Frequency Response (±3 dB) | 59 Hz – 20 kHz (short throw); 58 Hz – 20 kHz (monitor mode) |
| Sensitivity | 98 dB LF; 108 dB HF |
| Nominal Impedance | LF: 8 ohms; HF: 20 ohms |
| Transducer Power Rating (AES 2 hr) | 1000 W LF / 200 W HF Continuous; 4000 W LF / 800 W HF Peak |
| Maximum Peak Output | 134 dB |
| LF Driver | 1 x 15-inch Dual 3-inch Voice Coil Neodymium Differential Drive |
| HF Driver | 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Enclosure | 18 mm 11-ply Baltic birch plywood; black DuraFlex finish |
| Monitor Angle | 53 degrees |
| Suspension / Mounting | 35 mm pole socket; 16 x M10 mount points |
| Dimensions (H x W x D) | 640.1 mm x 457.2 mm x 327.7 mm |
| Net Weight | 22.9 kg |
| Origin of Country | Mexico |
