JBL VTX M22 Dual 12-inch Professional Stage Monitor
The JBL VTX M22 compact 2-way stage monitor features dual 12-inch Differential Drive transducers, D2 compression driver, 60° x 60° waveguide, passive or bi-amp operation, and high-output performance for touring applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 28,273.43 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL VTX M22 Dual 12-inch 2-Way Stage Monitor

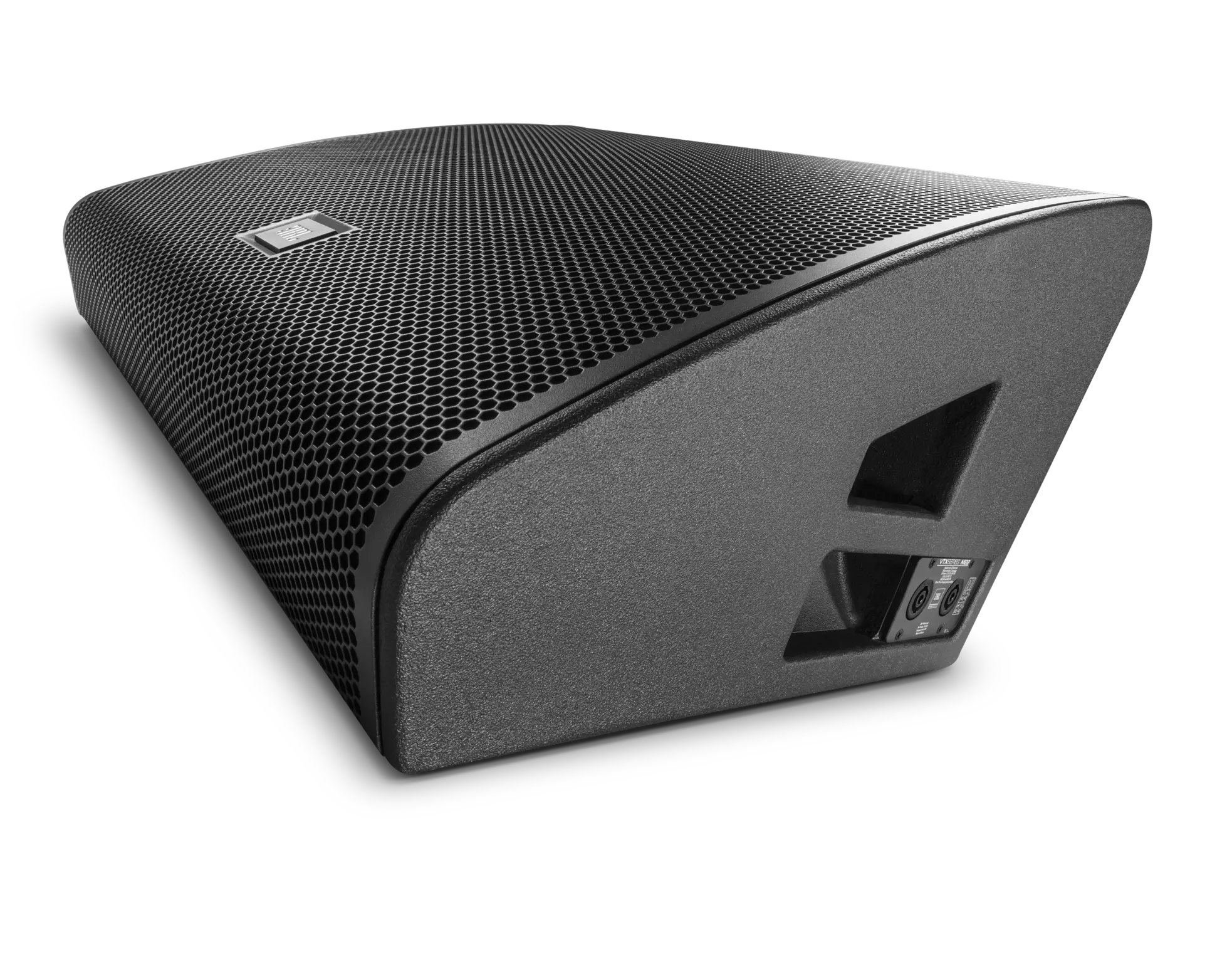

The JBL VTX M22 Dual 12-inch 2-Way Stage Monitor is designed for professional touring and high-profile broadcast applications that demand compact, low-profile, and high-output monitoring solutions. Its elegant trapezoidal enclosure houses advanced JBL transducers and precision waveguide technology to deliver controlled, uniform sound coverage across the stage area.
The low-frequency section is driven by dual 2262H 12-inch Differential Drive transducers with dual 3-inch voice coils and neodymium magnets, providing superior thermal efficiency, high power handling, and low distortion. High frequencies are reproduced by the D2430H D2 dual diaphragm, dual voice coil compression driver, ensuring detailed and dynamic high-frequency response.
A 60° x 60° high-frequency waveguide employing JBL’s patented Image Control Waveguide technology guarantees consistent tonal balance and precise coverage. The monitor angle of 30 degrees is optimized for on-stage use, allowing performers accurate monitoring without obstruction.

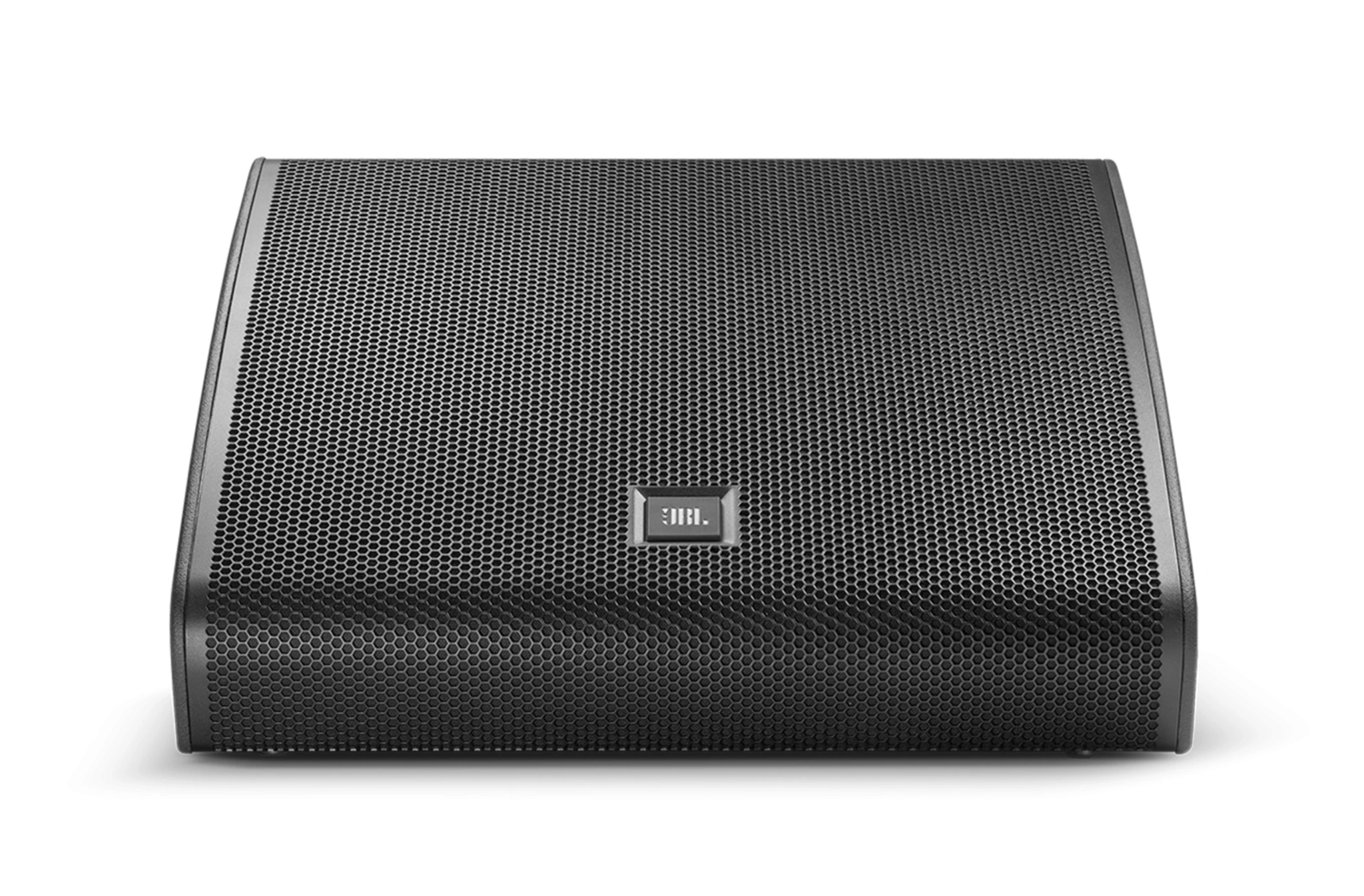

The system supports both single-channel passive operation and dual-channel bi-amplified configurations, providing flexibility in deployment and compatibility with Crown I-Tech HD series amplifiers. The enclosure, constructed from 11-ply Finnish birch plywood with a durable finish, ensures longevity and rugged performance in demanding environments. Powder-coated steel grille with acoustically transparent backing protects internal components while maintaining clarity.
Features of VTX M22
Compact high-output 2-way stage monitor
Dual 12-inch Differential Drive LF transducers
D2430H D2 dual diaphragm compression driver
60° x 60° Image Control Waveguide
Passive or bi-amp operation modes
30° optimized monitor angle
Designed for Crown I-Tech HD amplifiers
Lightweight trapezoidal enclosure
11-ply Finnish birch plywood construction
Powder-coated steel grille protection
Specifications of VTX M22
| System Type | Compact 2-Way Stage Monitor |
| Frequency Range (-10 dB) | 45 Hz – 19.5 kHz |
| Coverage Pattern (-6 dB) | 60° Horizontal x 60° Vertical |
| System Input Power Rating | Passive: 1500 W Continuous; Active LF: 1500 W Continuous; Active HF: 100 W Continuous |
| Maximum SPL (1m) | 138 dB |
| System Latency | 3.33 ms |
| System Amplification | Crown I-Tech HD |
| Nominal Impedance | Passive: 4 ohms; Active LF: 4 ohms; Active HF: 8 ohms |
| LF Driver | 2 x 2262H, 304 mm (12 in), dual 76 mm voice coils, Neodymium Differential Drive |
| HF Driver | 1 x D2430H D2 dual diaphragm, dual 76 mm voice coil |
| Monitor Angle | 30 degrees |
| Enclosure | 11-ply Finnish birch plywood |
| Grille | 14-gauge powder-coated hex-perforated steel with acoustic cloth backing |

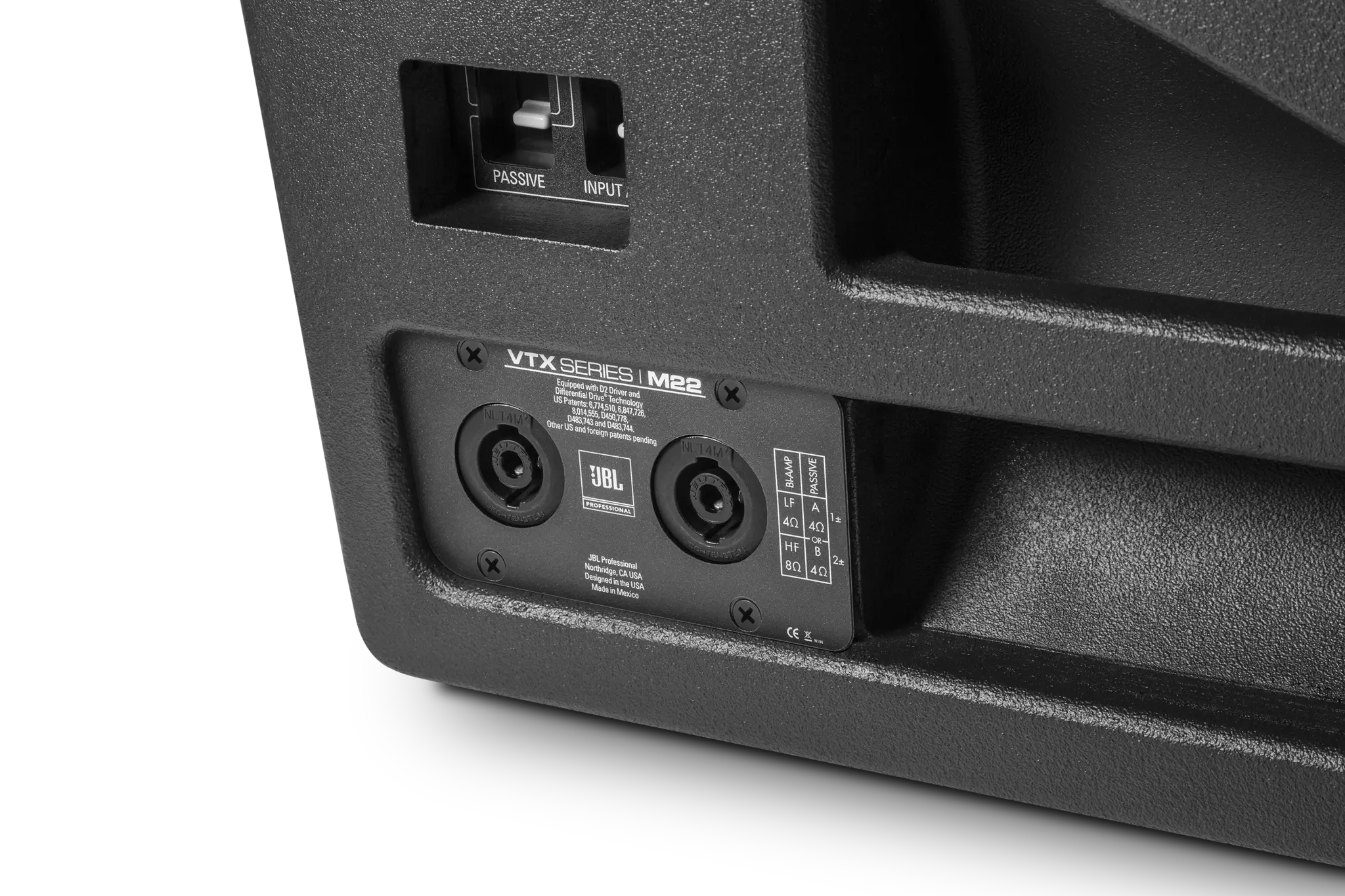

| Input Connectors | Neutrik Speakon NL4 (Passive or Active configurations) |
| Dimensions (H x W x D) | 380 mm x 671 mm x 555 mm |
| Net Weight | 27 kg |
| Origin of Country | Mexico |
