JBL VTX M20 Dual 10-inch Professional Stage Monitor
The JBL VTX M20 compact 2-way stage monitor delivers 60° x 60° coverage, dual 10-inch Differential Drive transducers, D2 compression driver technology, and flexible passive or bi-amp operation for touring applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 23,209.57 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

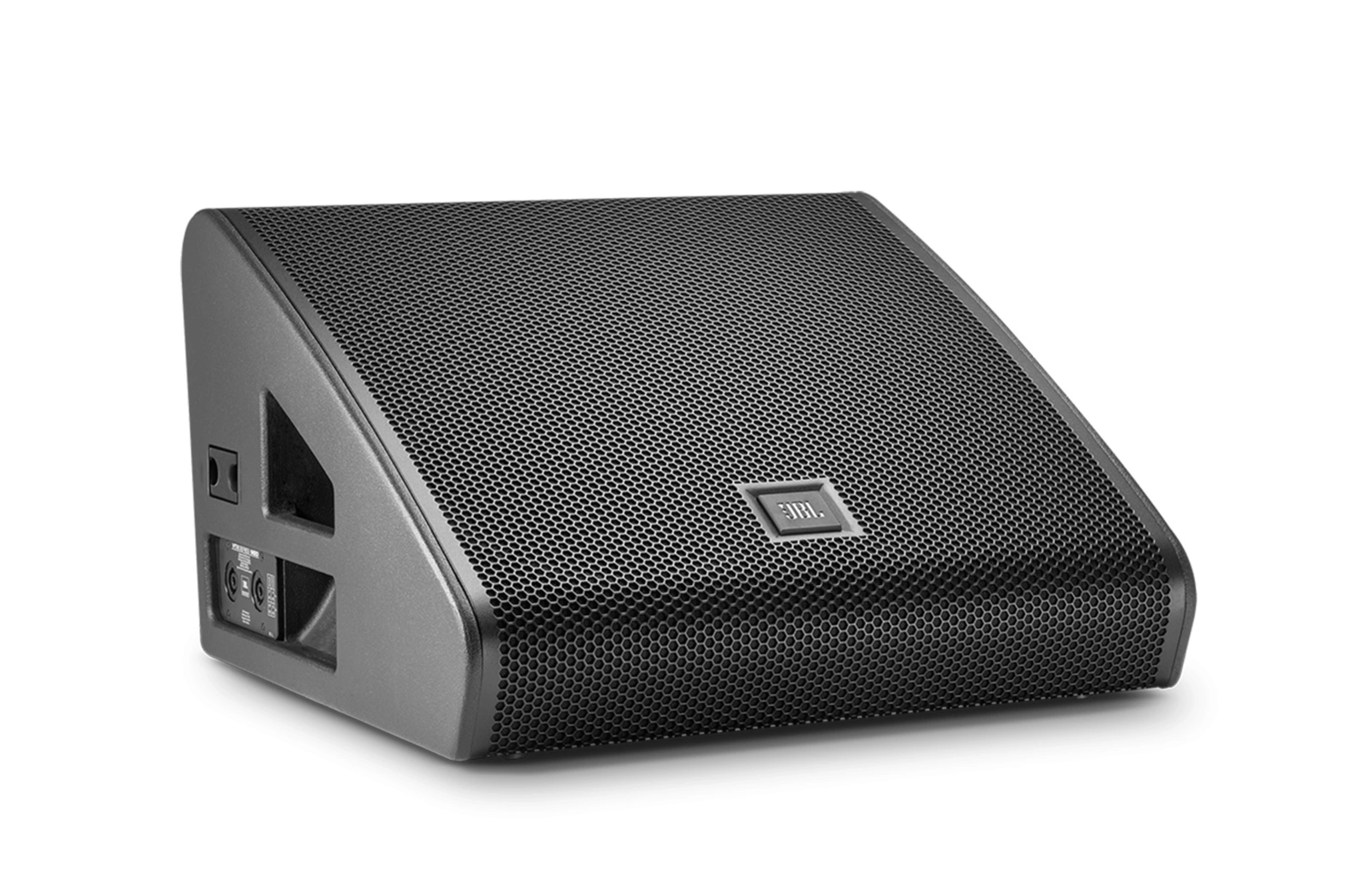

JBL VTX M20 Dual 10-inch 2-Way Stage Monitor
The JBL VTX M20 Dual 10-inch 2-Way Stage Monitor is engineered for touring and high-profile broadcast applications requiring high output, controlled coverage, and a low-profile form factor. Designed with an elegant and compact enclosure, the VTX M20 provides powerful monitoring performance while maintaining a stage-friendly footprint.

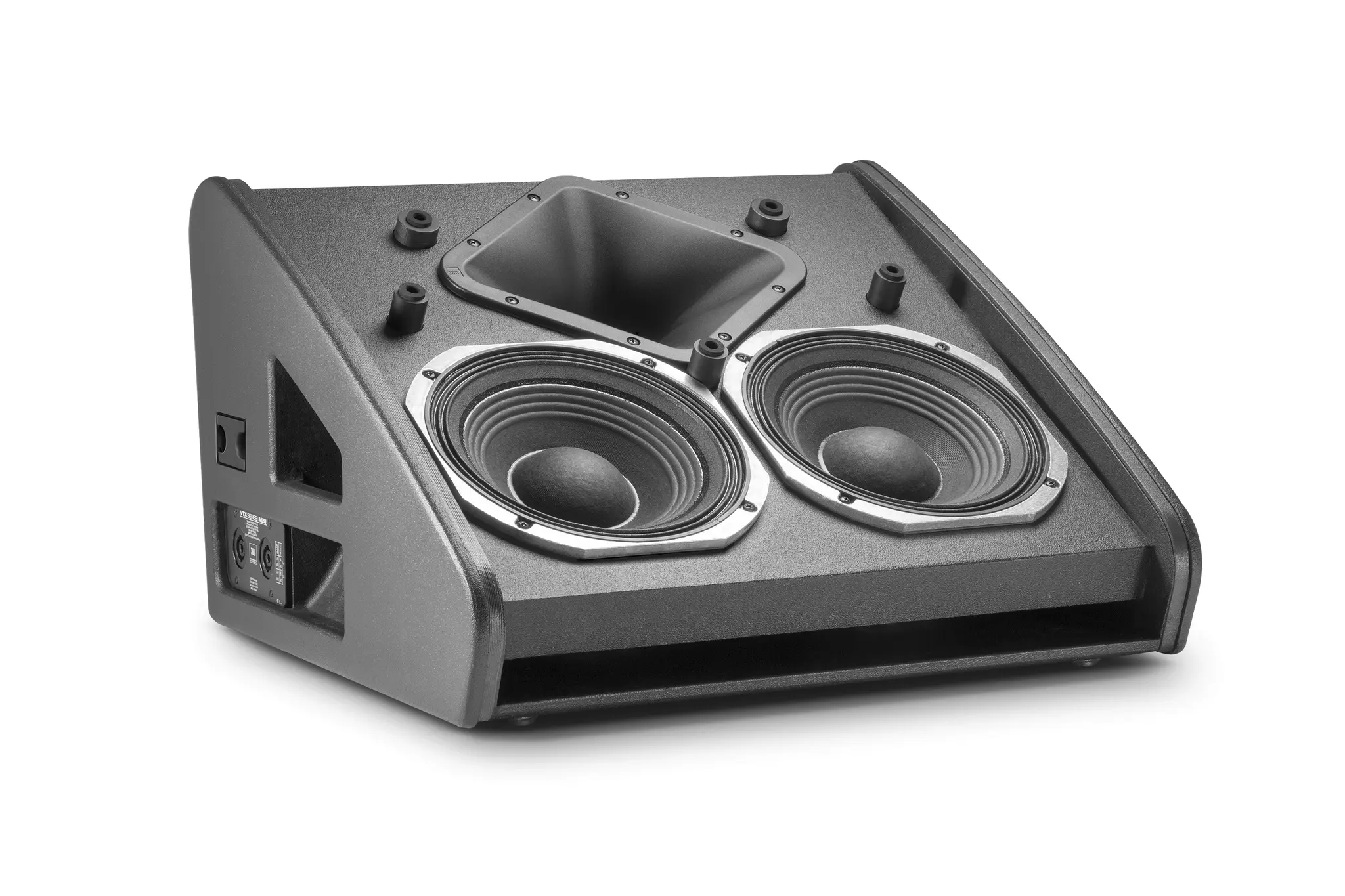

The low-frequency section features dual 2261H 10-inch Differential Drive cone transducers with dual 3-inch voice coils and neodymium magnet structures. This configuration enhances thermal efficiency, reduces distortion, and ensures consistent high-output performance. High frequencies are reproduced by the D2430H D2 dual diaphragm, dual voice coil compression driver, delivering extended high-frequency response, improved clarity, and increased dynamic headroom.

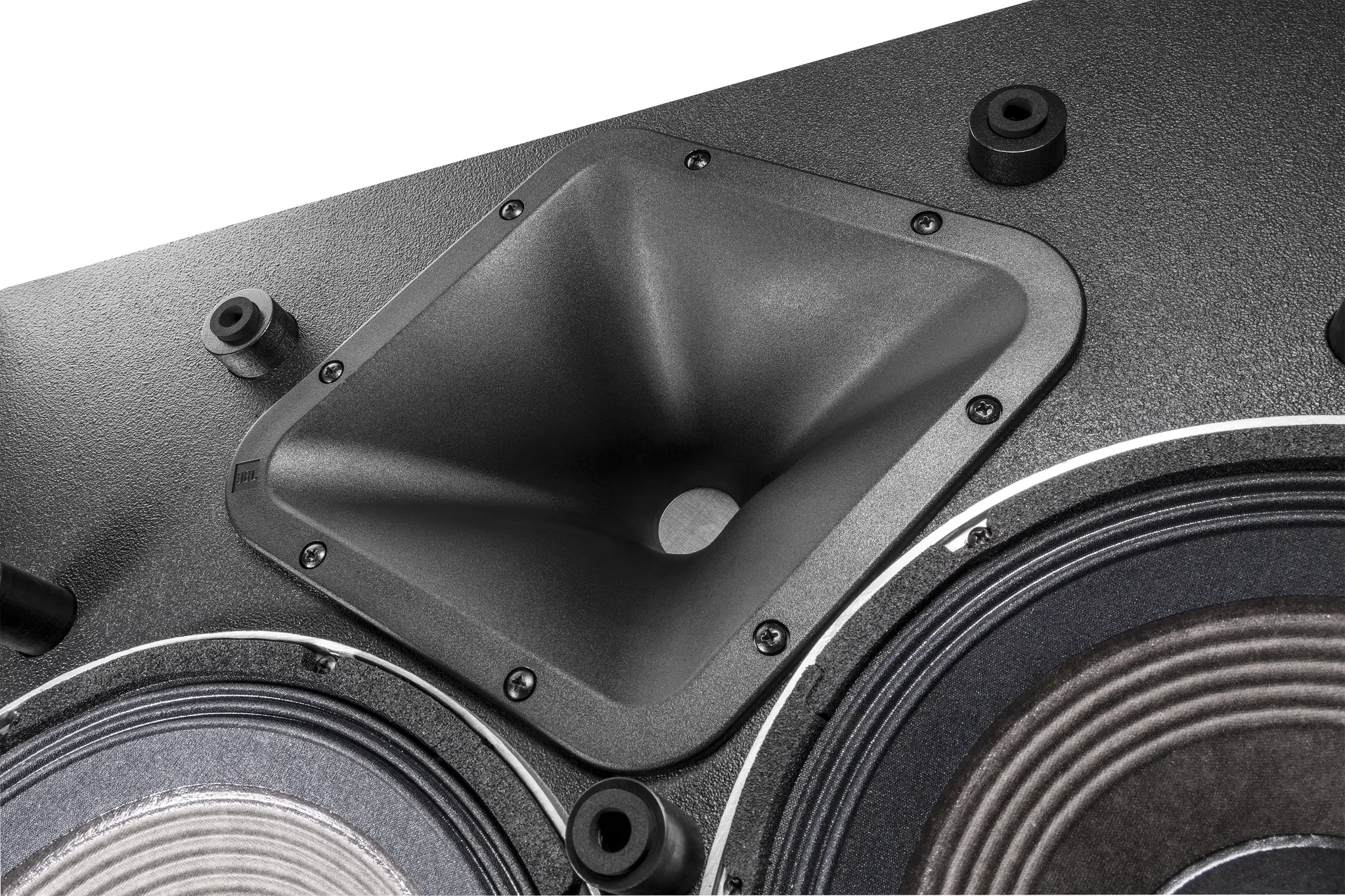

A 60° x 60° high-frequency waveguide incorporating JBL patented Image Control Waveguide technology provides uniform horizontal and vertical coverage, ensuring consistent tonal balance across the listening area. The 30-degree monitor angle is optimized for on-stage use, delivering accurate monitoring for performers.
The system supports both single-channel passive and dual-channel bi-amplified operation modes, allowing flexible system configuration depending on application requirements. Designed for use with Crown I-Tech HD series amplifiers, the VTX M20 integrates advanced processing for optimized performance.
Constructed from 18 mm, 11-ply Finnish birch plywood and protected by a powder-coated steel grille with acoustically transparent backing, the JBL VTX M20 combines durability with high acoustic performance for professional monitoring environments.
Features of VTX M20
Compact high-output 2-way stage monitor
Dual 10-inch Differential Drive LF transducers
D2430H D2 dual diaphragm compression driver
60° x 60° Image Control Waveguide
Passive and bi-amp operation modes
30° optimized monitor angle
Designed for Crown I-Tech HD processing
Low-profile touring enclosure
18 mm Finnish birch plywood construction

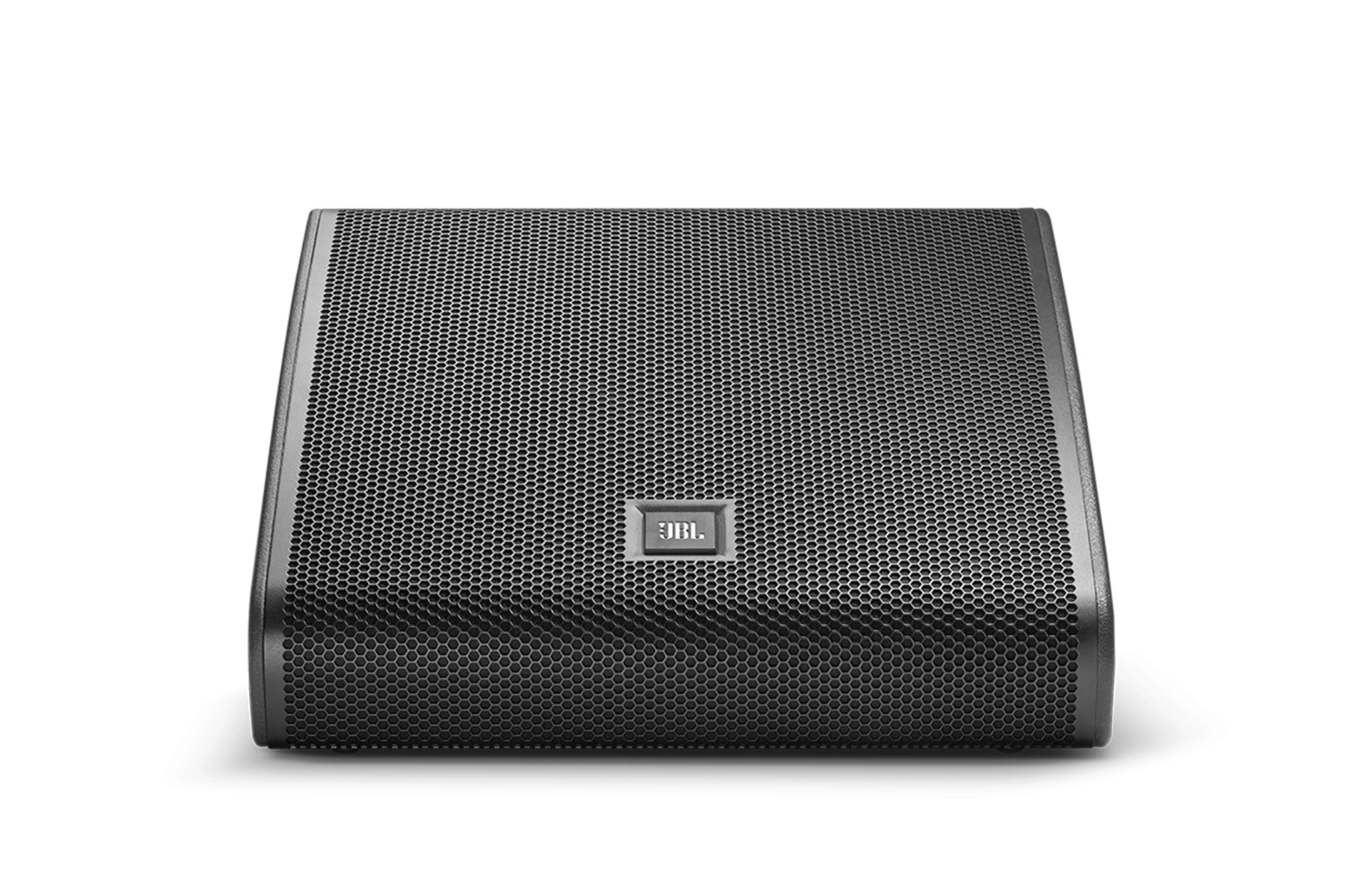

Powder-coated steel grille protection
Specifications of VTX M20
| System Type | Compact 2-Way Stage Monitor |
| Frequency Range (-10 dB) | 55 Hz – 19.5 kHz |
| Coverage Pattern (-6 dB) | 60° Horizontal x 60° Vertical |
| System Input Power Rating | Passive: 1250 W Continuous; Active LF: 1250 W Continuous; Active HF: 100 W Continuous |
| Maximum SPL (1m) | 136 dB |
| System Latency | 3.33 ms |
| System Processing | Crown I-Tech HD Series; Crown I-Tech 4x3500HD |
| Nominal Impedance | Passive: 4 ohms; Active LF: 4 ohms; Active HF: 8 ohms |
| LF Driver | 2 x 2261H, 254 mm (10 in), dual 76 mm voice coils, Neodymium Differential Drive |
| HF Driver | 1 x D2430H D2 dual diaphragm, dual 76 mm voice coil |
| Monitor Angle | 30 degrees |
| Enclosure | 18 mm, 11-ply Finnish birch plywood |
| Grille | 14-gauge powder-coated hex-perforated steel with acoustic cloth backing |

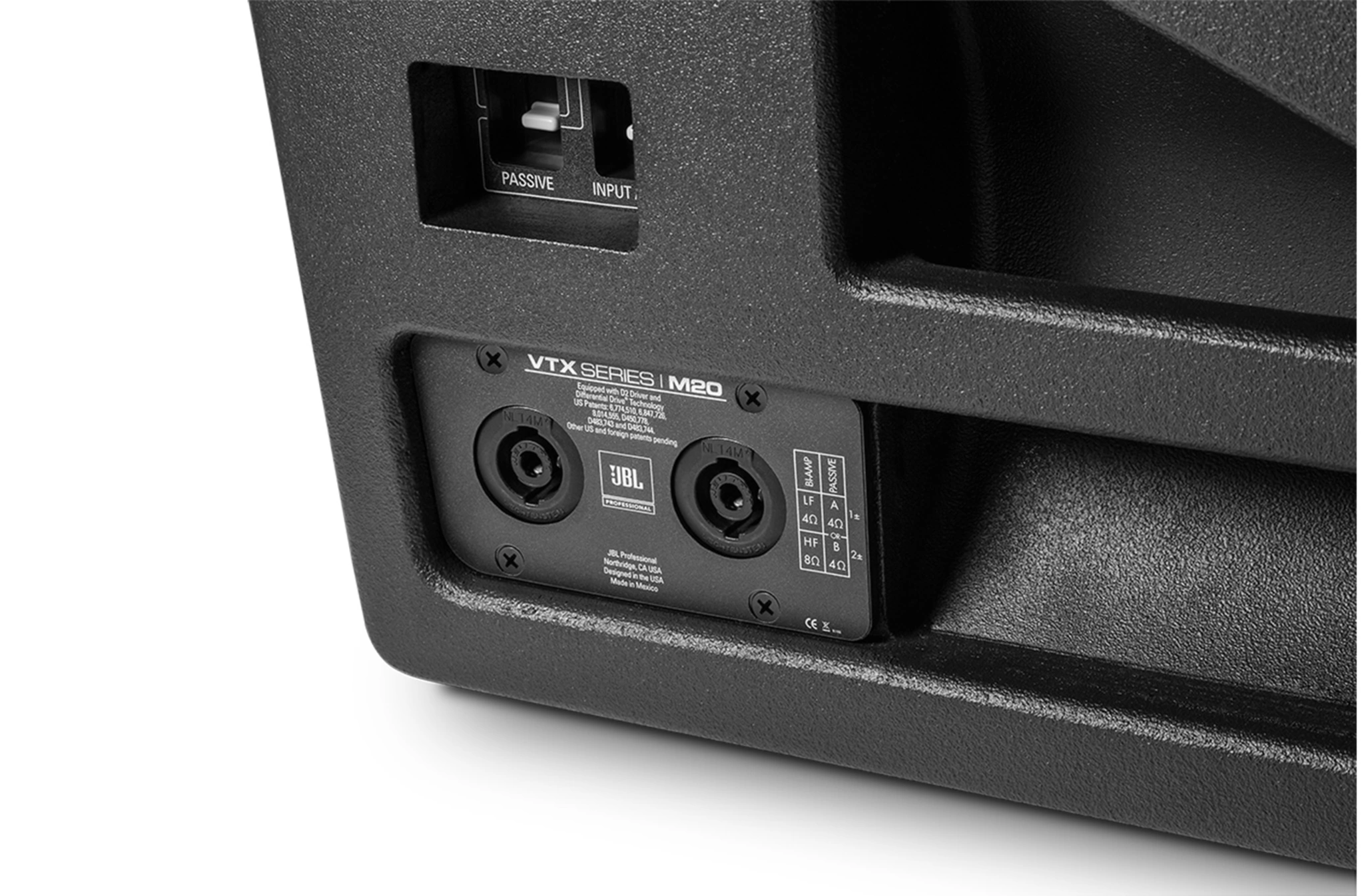

| Input Connectors | Neutrik Speakon NL4 (Passive or Active configurations) |
| Dimensions (H x W x D) | 342.9 mm x 575.0 mm x 515.3 mm |
| Net Weight | 23 kg |
| Origin of Country | Mexico |
