KEF BQ11 8″ Uni-Q 3-Way Outdoor Bollard Speaker

KEF BQ11 Three-Way Outdoor Bollard Speaker

The KEF BQ11 outdoor bollard speaker combines bass, midrange and high-frequency reproduction in a single three-way enclosure. A 300 mm bass driver supports a 200 mm Uni-Q midrange driver and 19 mm tweeter. This integrated arrangement gives the installation a dedicated low-frequency section without requiring a separate bass enclosure at each speaker position.

The Uni-Q array places the tweeter within the midrange driver, keeping the two acoustic sections closely aligned. Nominal coverage is 100 degrees, providing a useful reference when planning the outdoor listening area. The specified frequency response is 30 Hz–20 kHz at ±6 dB, with sensitivity of 90 dB at 2.83V/1m. These characteristics help define the speaker's role within a landscape music system.

Internal passive crossovers operate at 80 Hz and 1.8 kHz, dividing the incoming signal between the driver sections. The speaker has a nominal impedance of 4 ohms and a recommended amplifier power of 400W. External amplification remains necessary, but the passive crossover arrangement manages the separation of the three operating bands within the speaker itself.

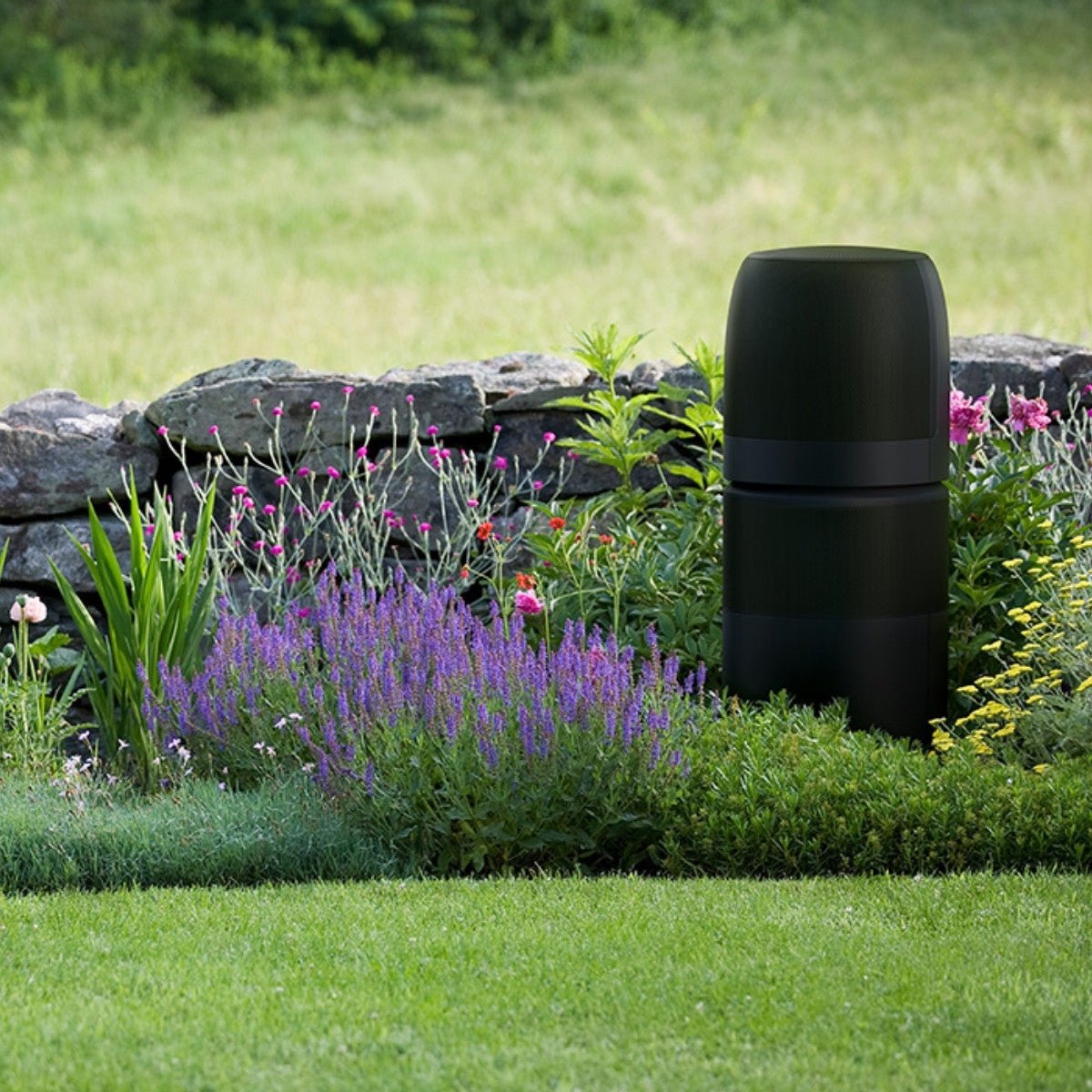

An IPX5 protection rating, UV-resistant exterior and aluminium grille support outdoor use. Ground-stake and hardscape mounting arrangements provide different ways to position the enclosure around the site. Without a mount, the speaker measures 1168 × 362 × 362 mm and weighs 28 kg. Combining the driver sections in one bollard makes the BQ11 useful when a complete speaker position is preferred within the landscape layout. Its combined acoustic sections allow bass and upper-frequency reproduction to share one physical location, simplifying the relationship between the speaker position and the intended listening zone.

Features of BQ11

• Three-way outdoor speaker
• 300 mm dedicated bass driver
• 200 mm Uni-Q midrange array
• 19 mm tweeter
• Internal passive crossovers
• 100° nominal coverage
• IPX5 water protection

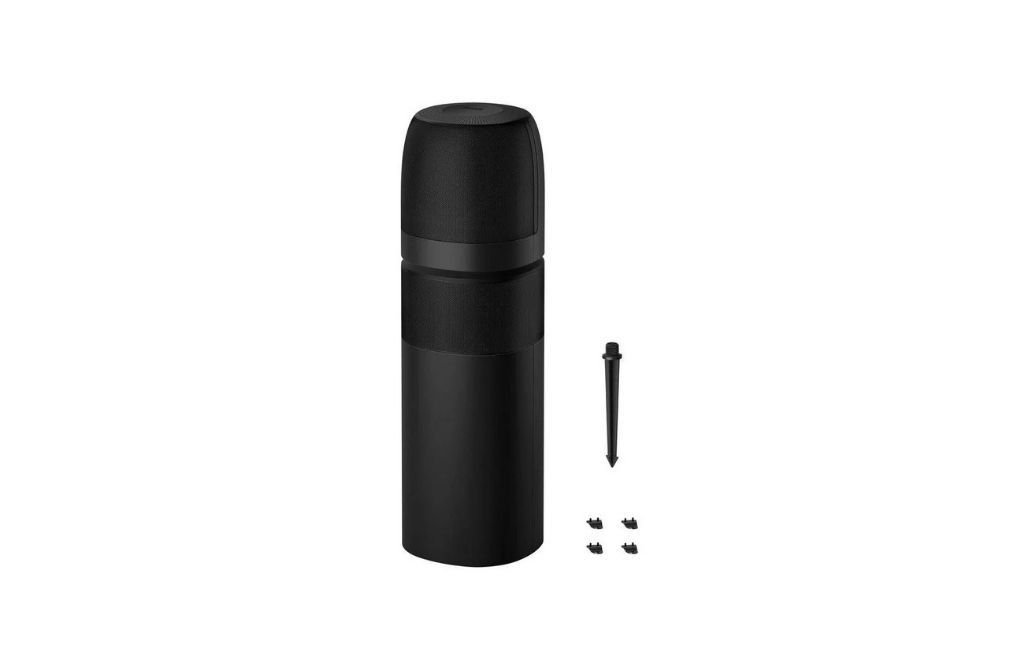

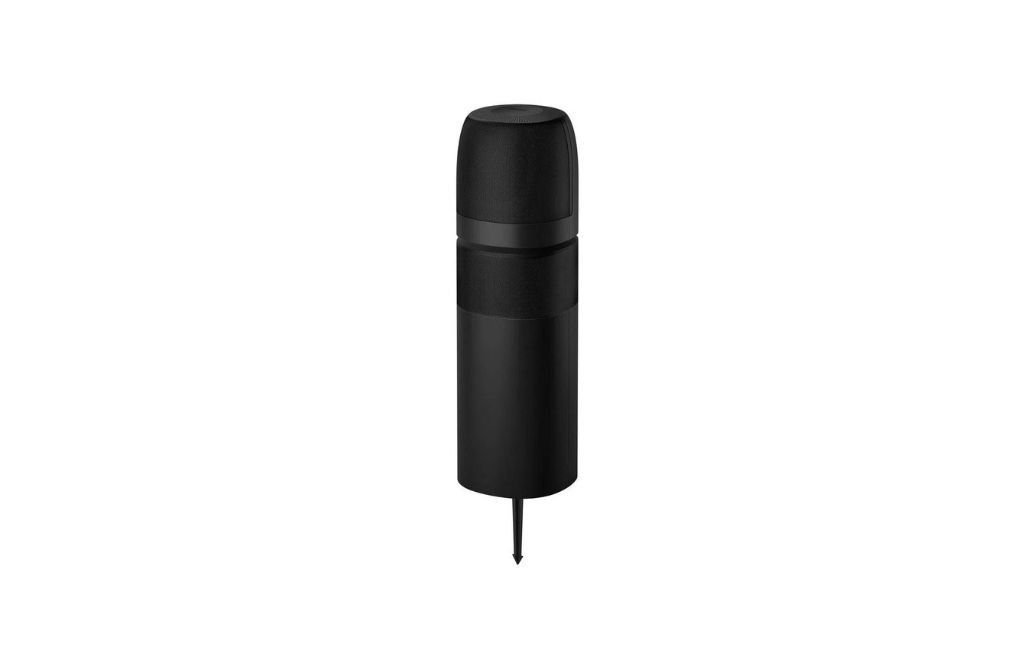

• Ground-stake or hardscape mounting

Specifications of BQ11
